Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

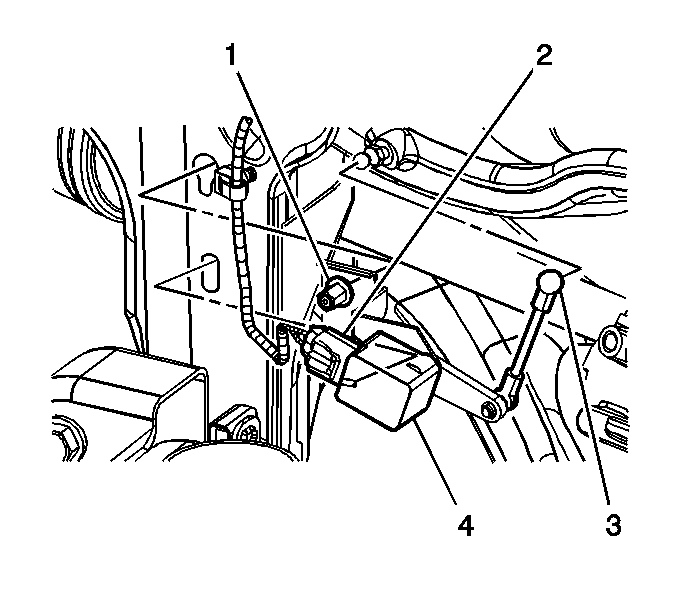

    Fig 1: View Of Rear Headlamp Leveling Sensor
    GM802721Courtesy of GENERAL MOTORS CORP.
  1. Position the sensor (3) to the vehicle.
  2. Install the bolt (1) to secure the sensor (4) to the vehicle.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  3. Install ball and socket (3) to sensor (4).
  4. Connect electrical connector (2) to the sensor (4).
  5. Install the right tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
