Front Side Door Window Regulator Motor Replacement

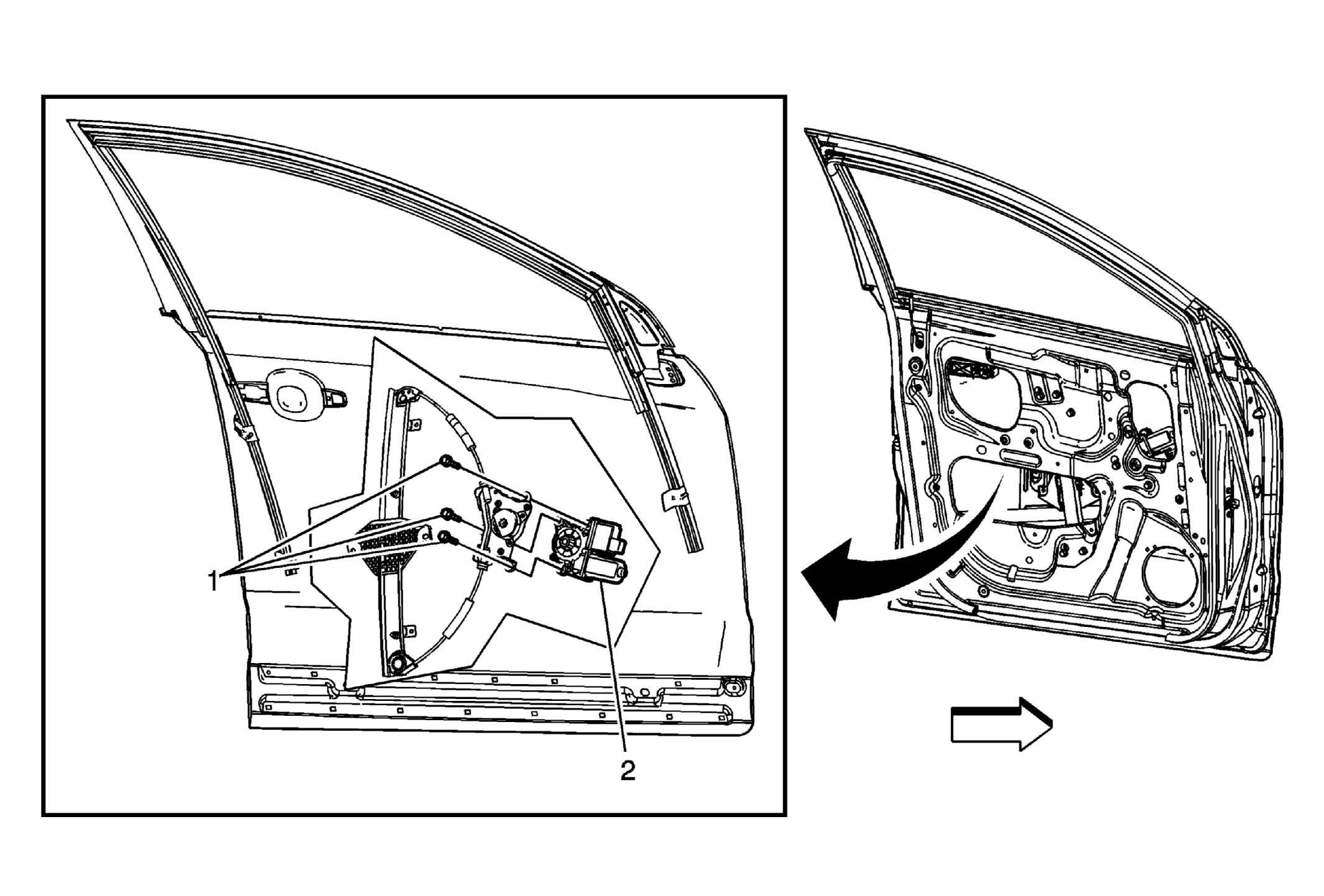

Fig 1: Front Side Door Window Regulator Motor
GM1866556Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement
1 Front Side Door Window Regulator Motor Screws (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  8 N.m (71 lb in)
2 Front Side Door Window Regulator Motor
