Engine Controls Schematics

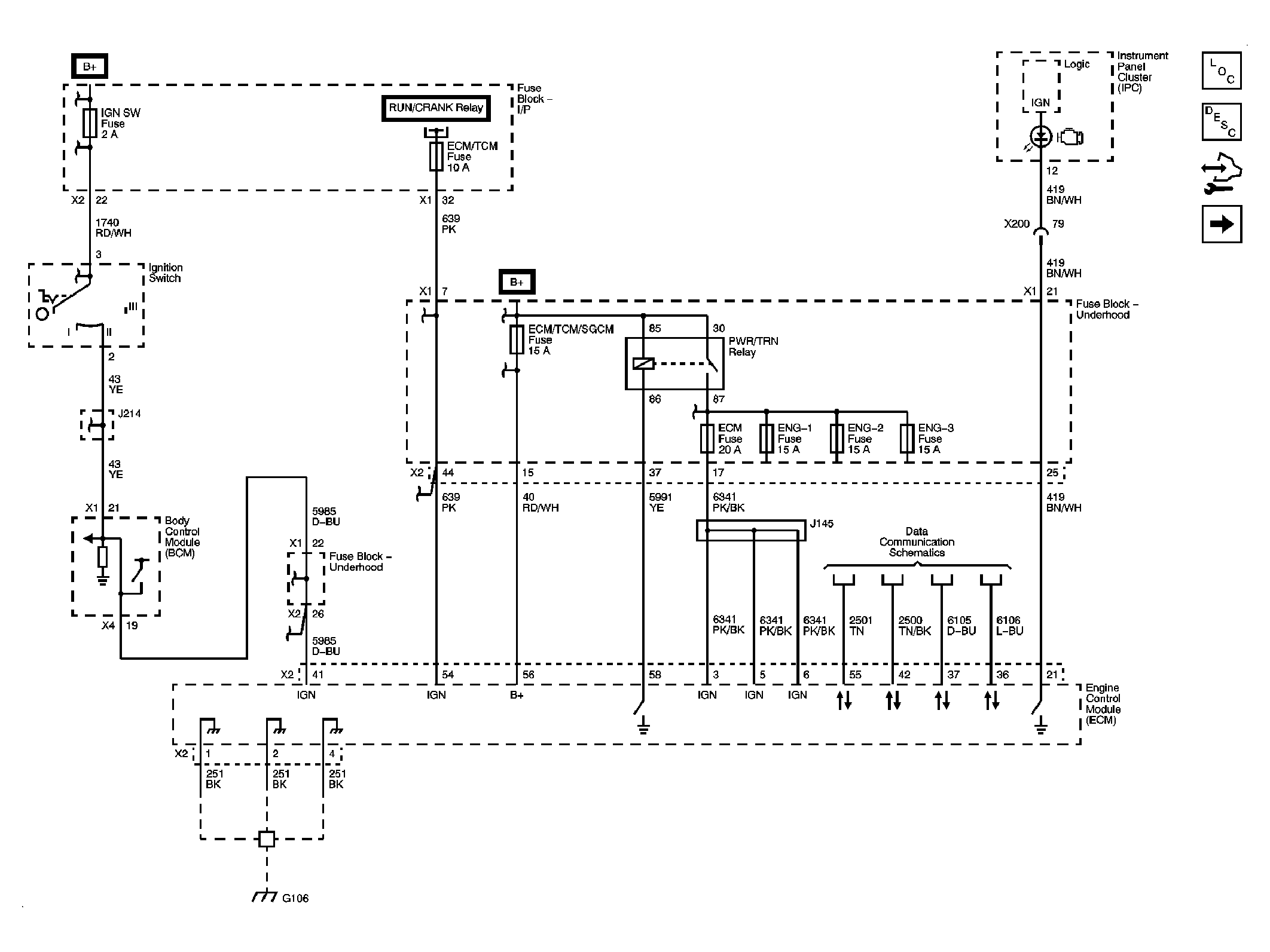

Fig 1: Module Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

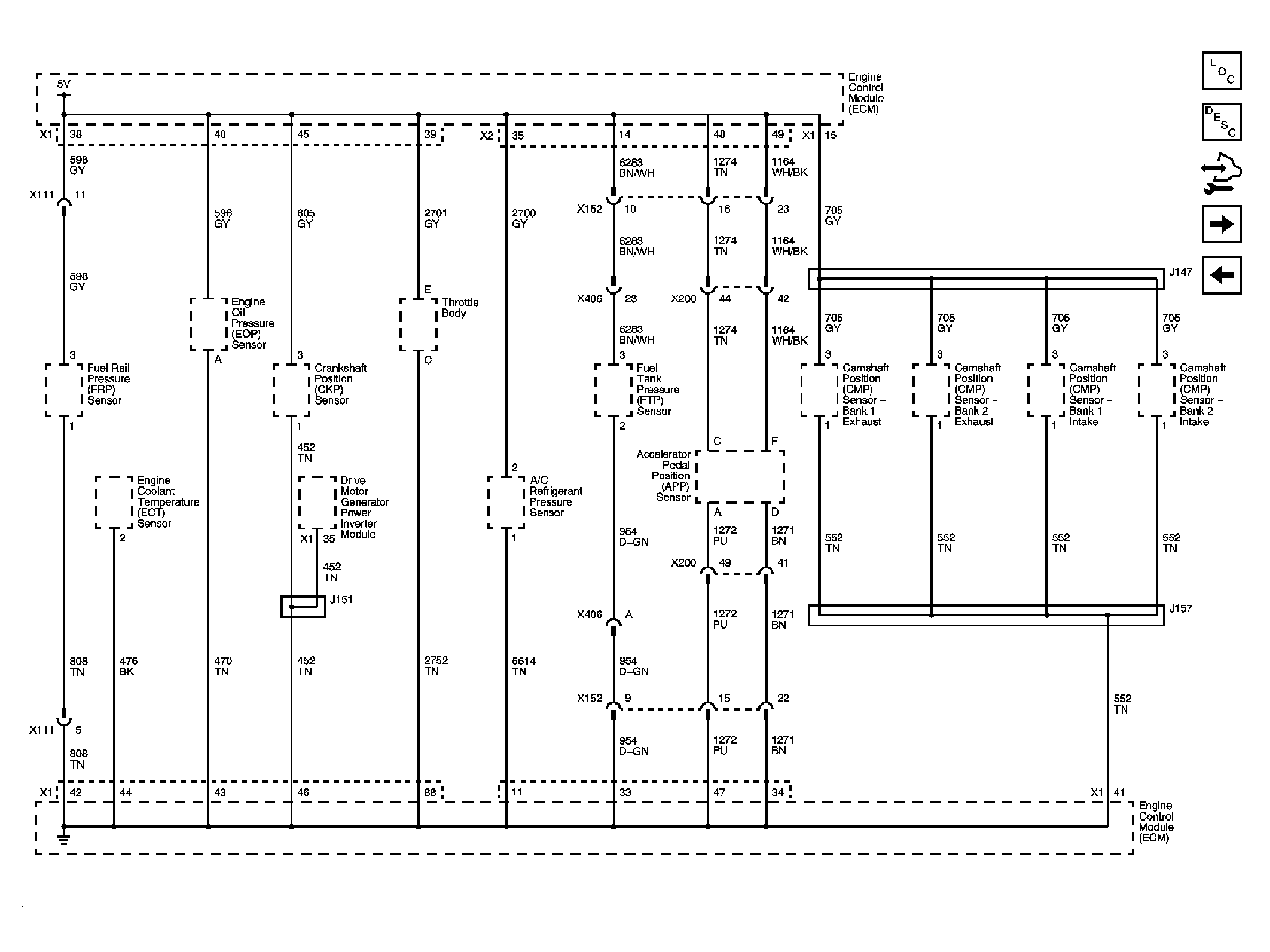

Fig 2: Engine Data Sensors - 5-Volt and Low References

Courtesy of GENERAL MOTORS CORP.

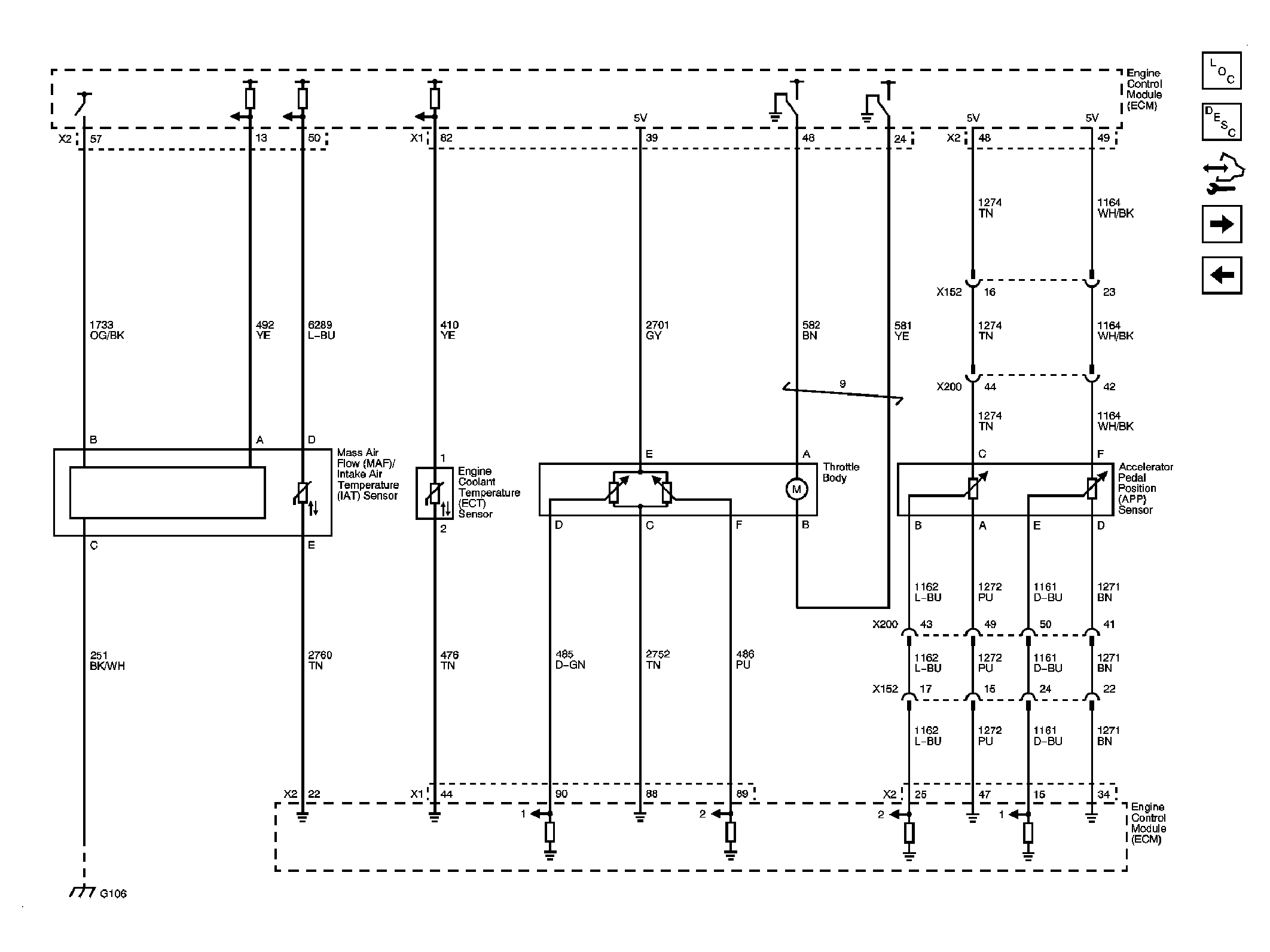

Fig 3: Engine Data Sensors - Temperature, MAF/IAT, APP and TAC

Courtesy of GENERAL MOTORS CORP.

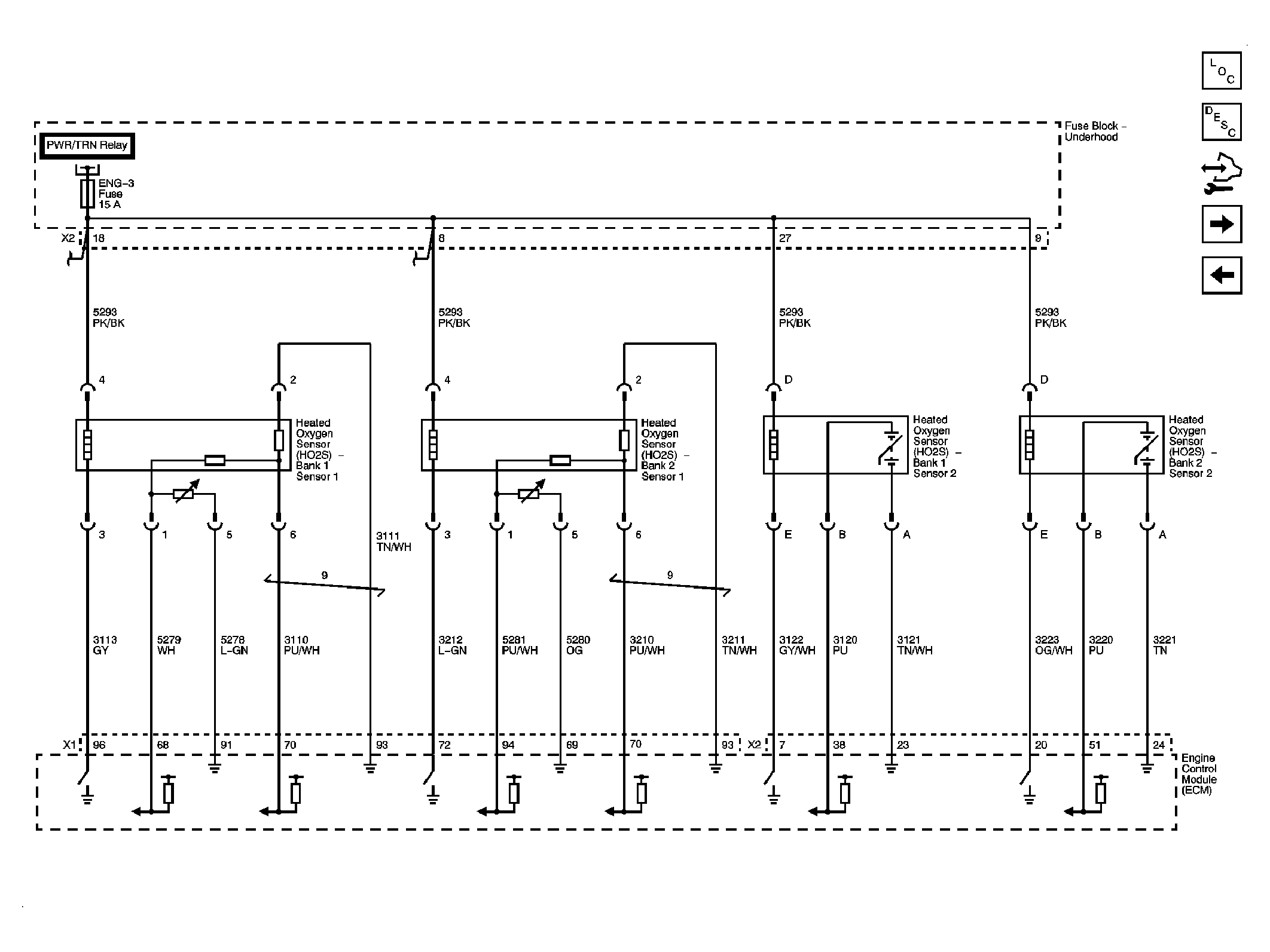

Fig 4: Engine Data Sensors - Heated Oxygen Sensors (HO2S)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition System - Ignition Coil 1, Ignition Coil 3, Ignition Coil 5

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition System - Ignition Coil 2, Ignition Coil 4, Ignition Coil 6

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Crankshaft Position (CMP) and Knock Sensors

Courtesy of GENERAL MOTORS CORP.

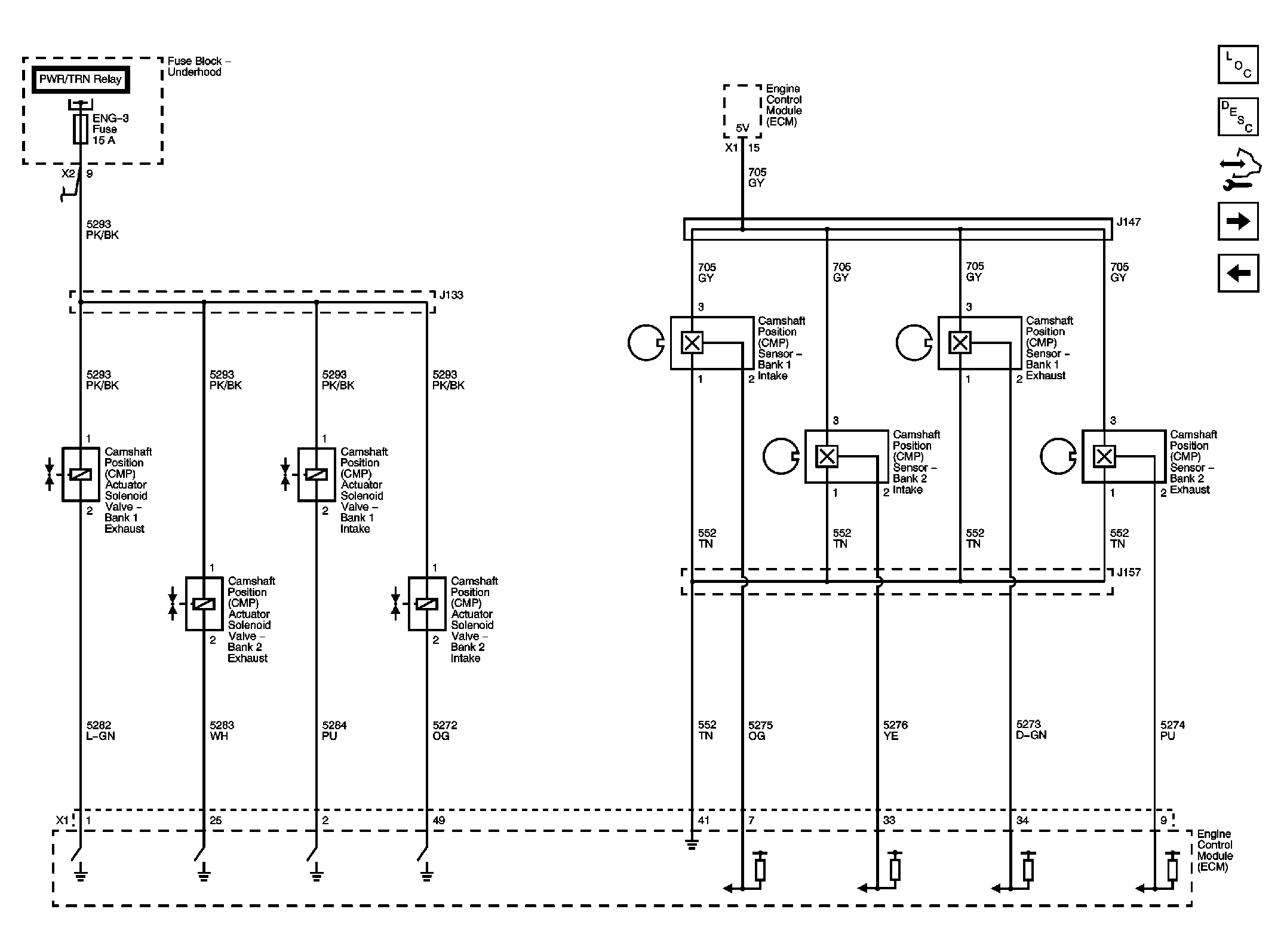

Fig 8: Ignition Controls - Camshaft Sensors and Actuators

Courtesy of GENERAL MOTORS CORP.

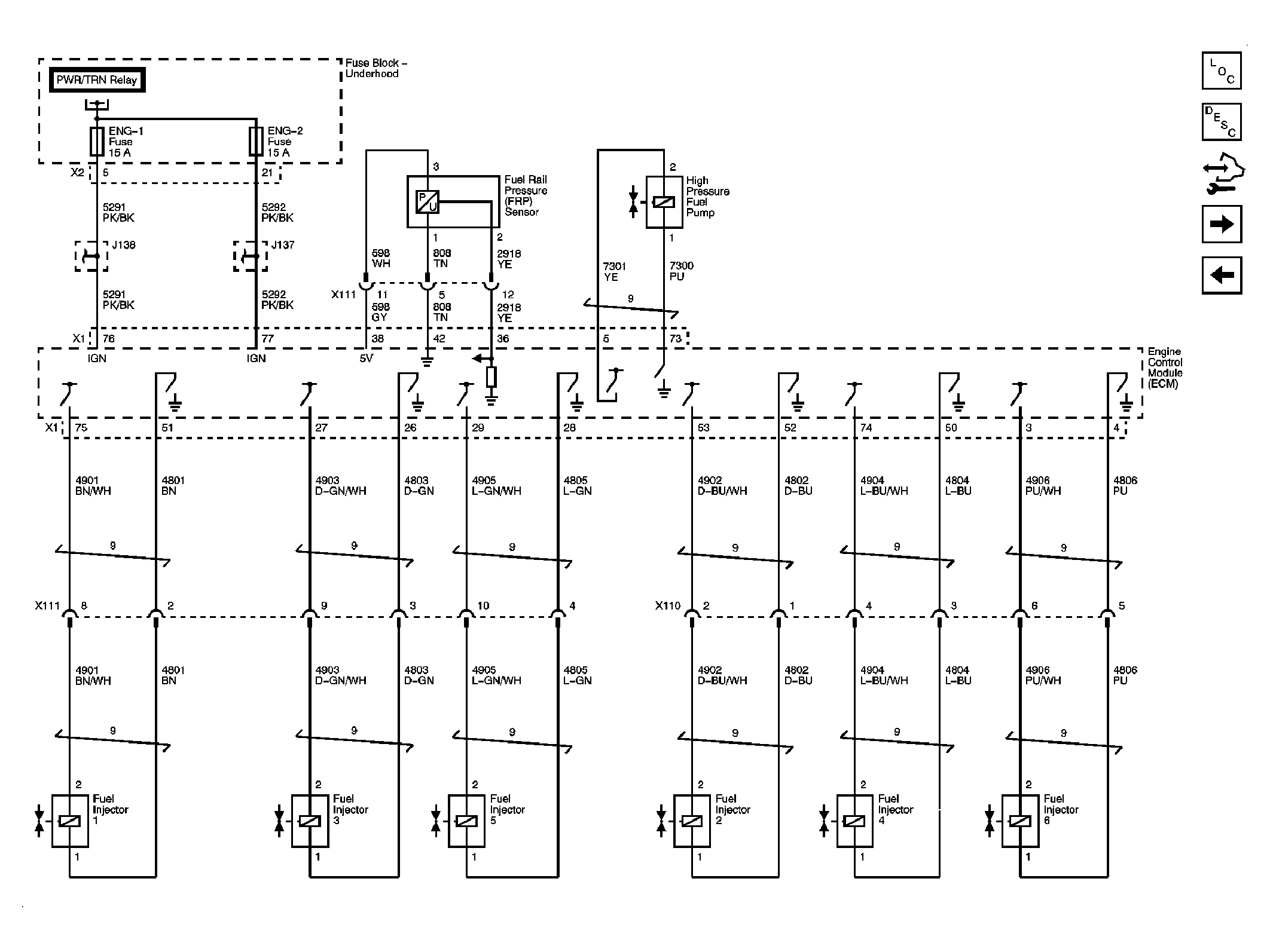

Fig 9: Fuel Controls - Fuel Injectors, High Pressure Fuel Pump and Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

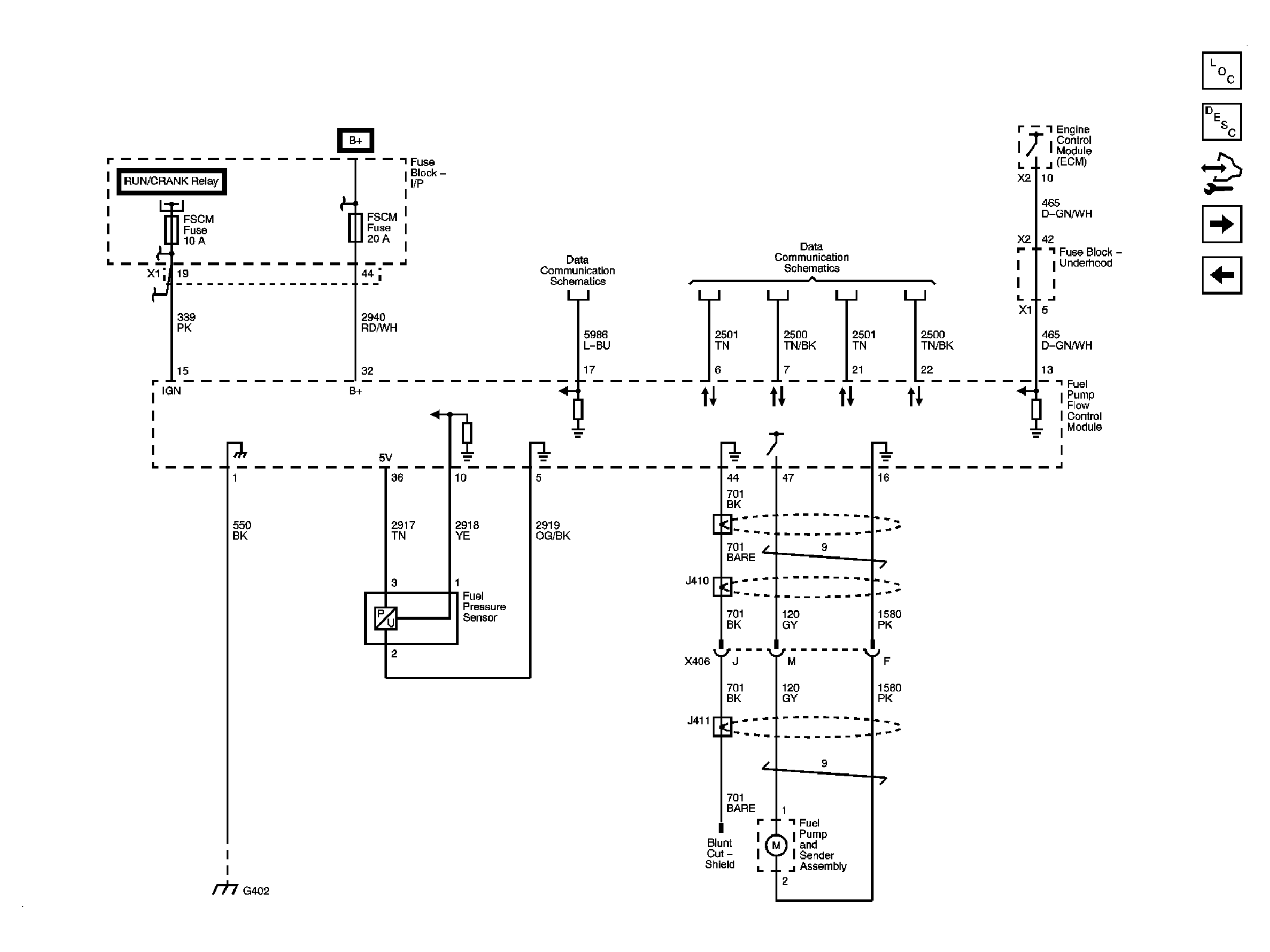

Fig 10: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

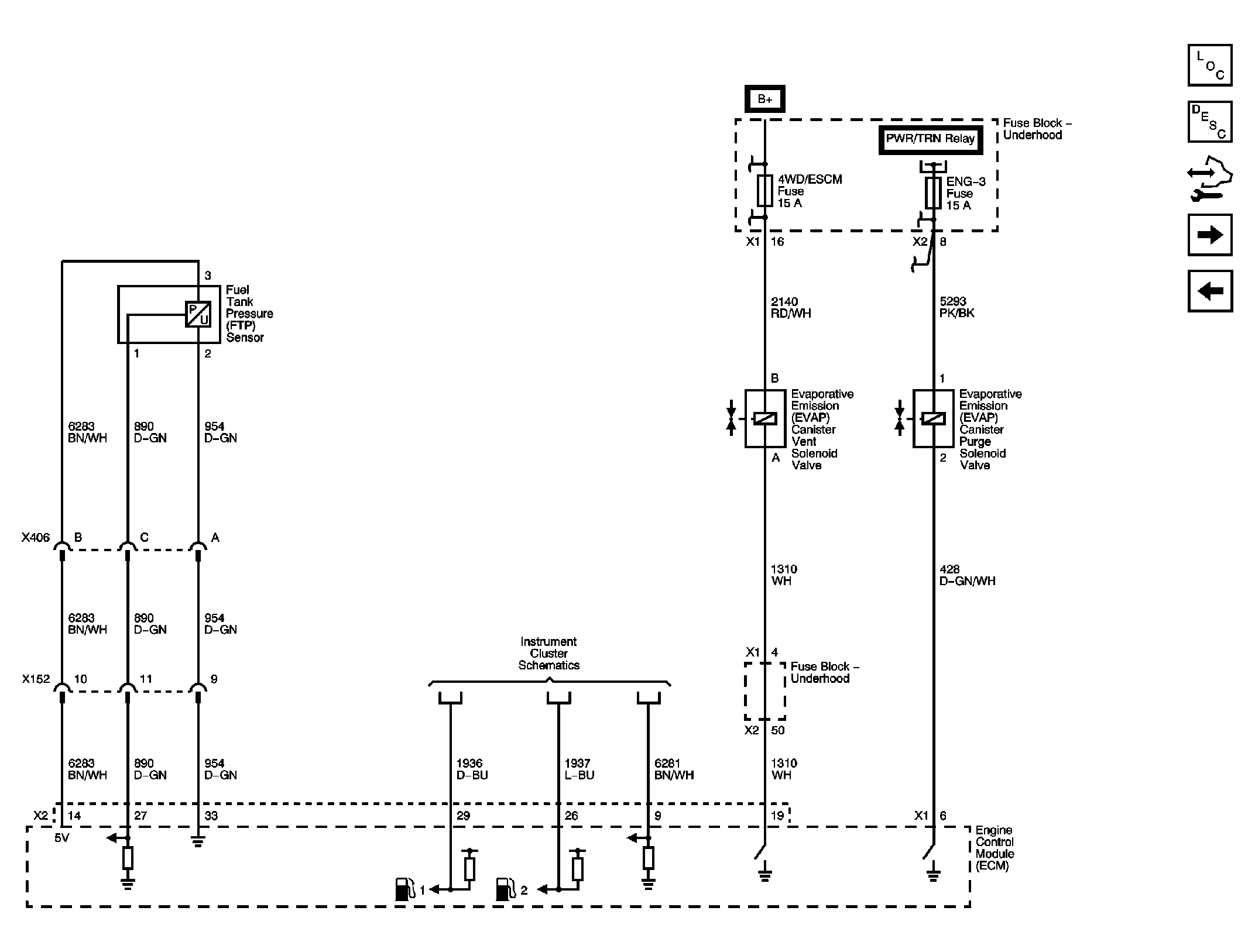

Fig 11: Fuel Controls - Evaporative Emissions (EVAP) Controls

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
