Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1 (LY7)






Ignition Coil 2 (LY7)






Ignition Coil 3 (LY7)

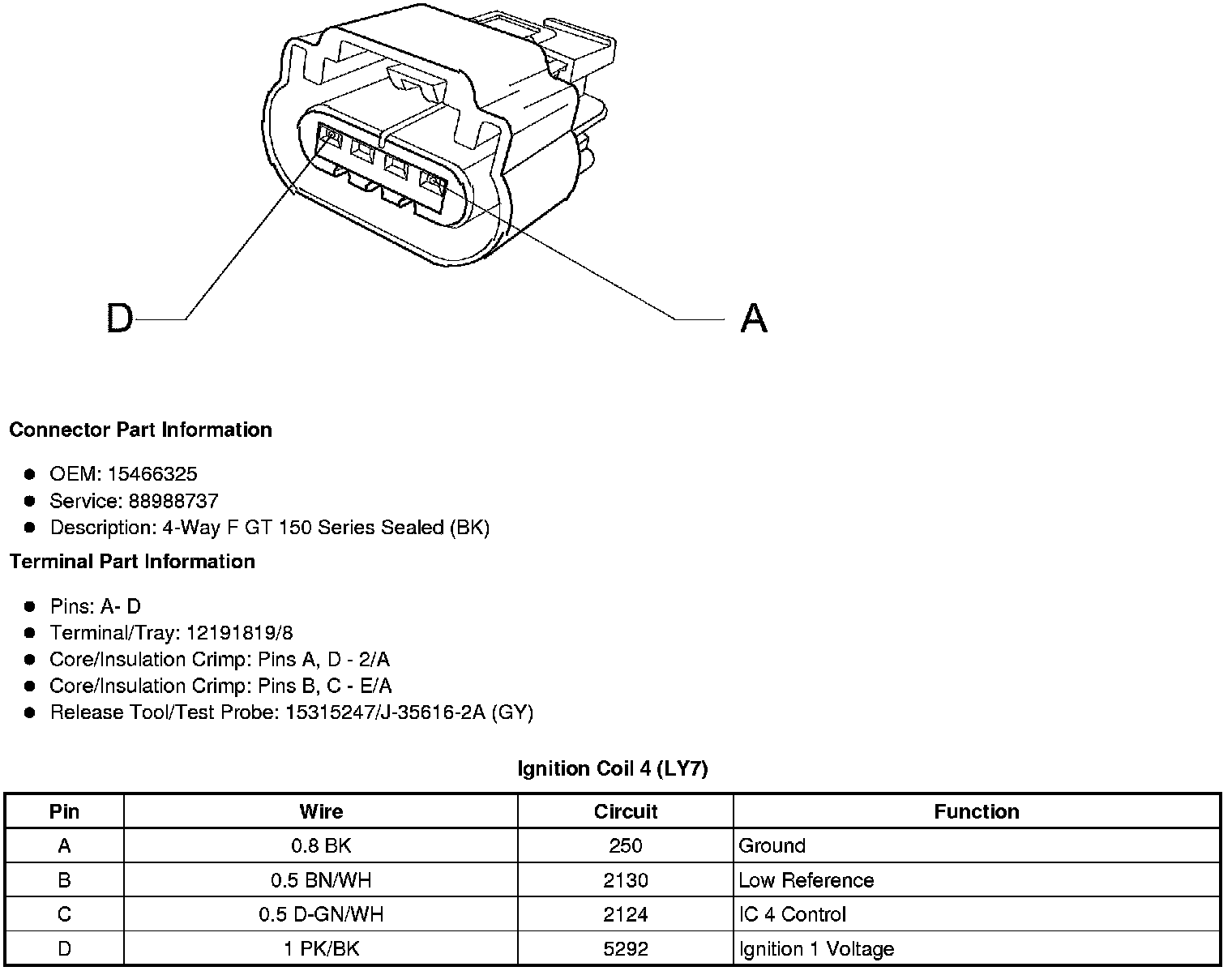

Ignition Coil 4 (LY7)

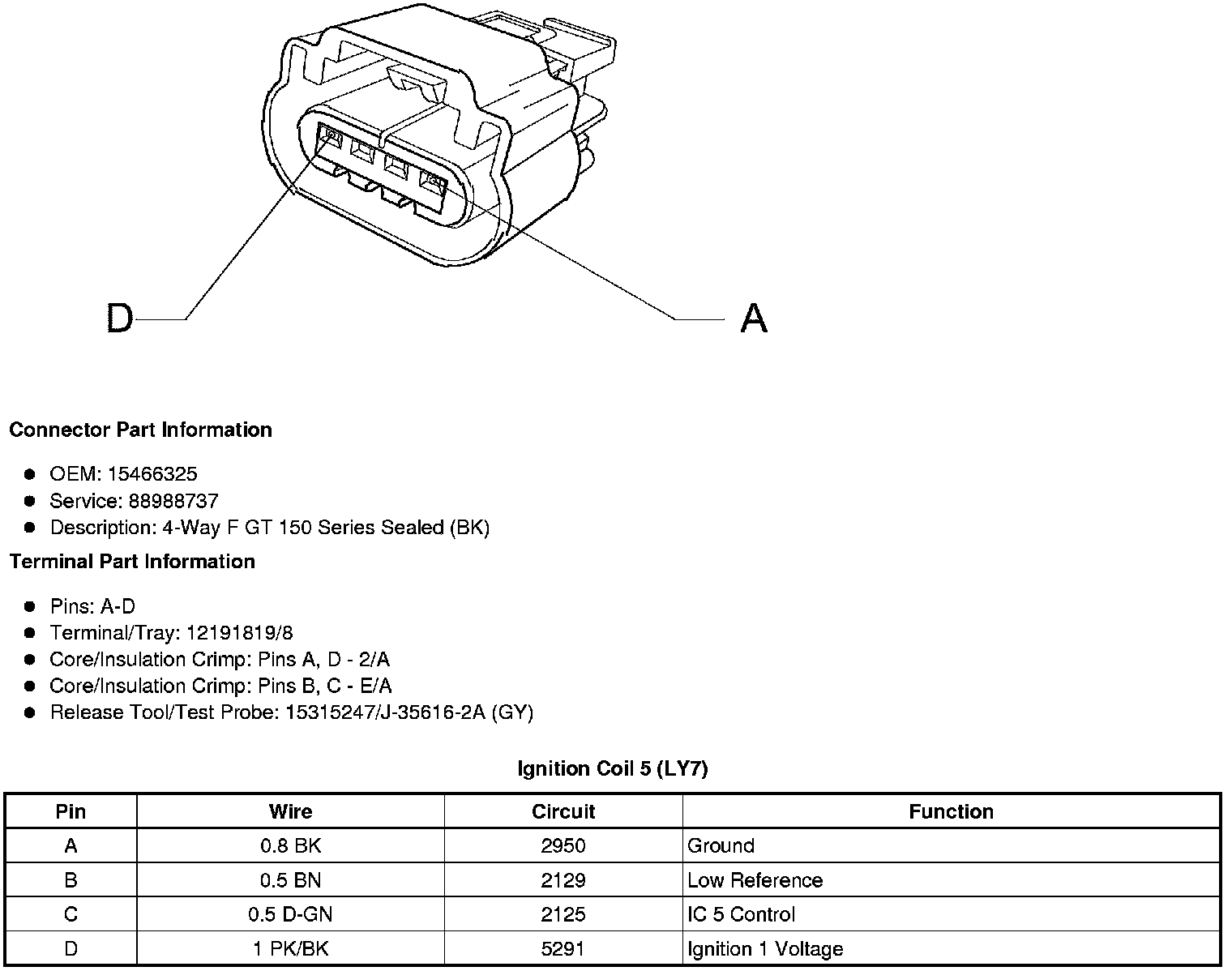

Ignition Coil 5 (LY7)

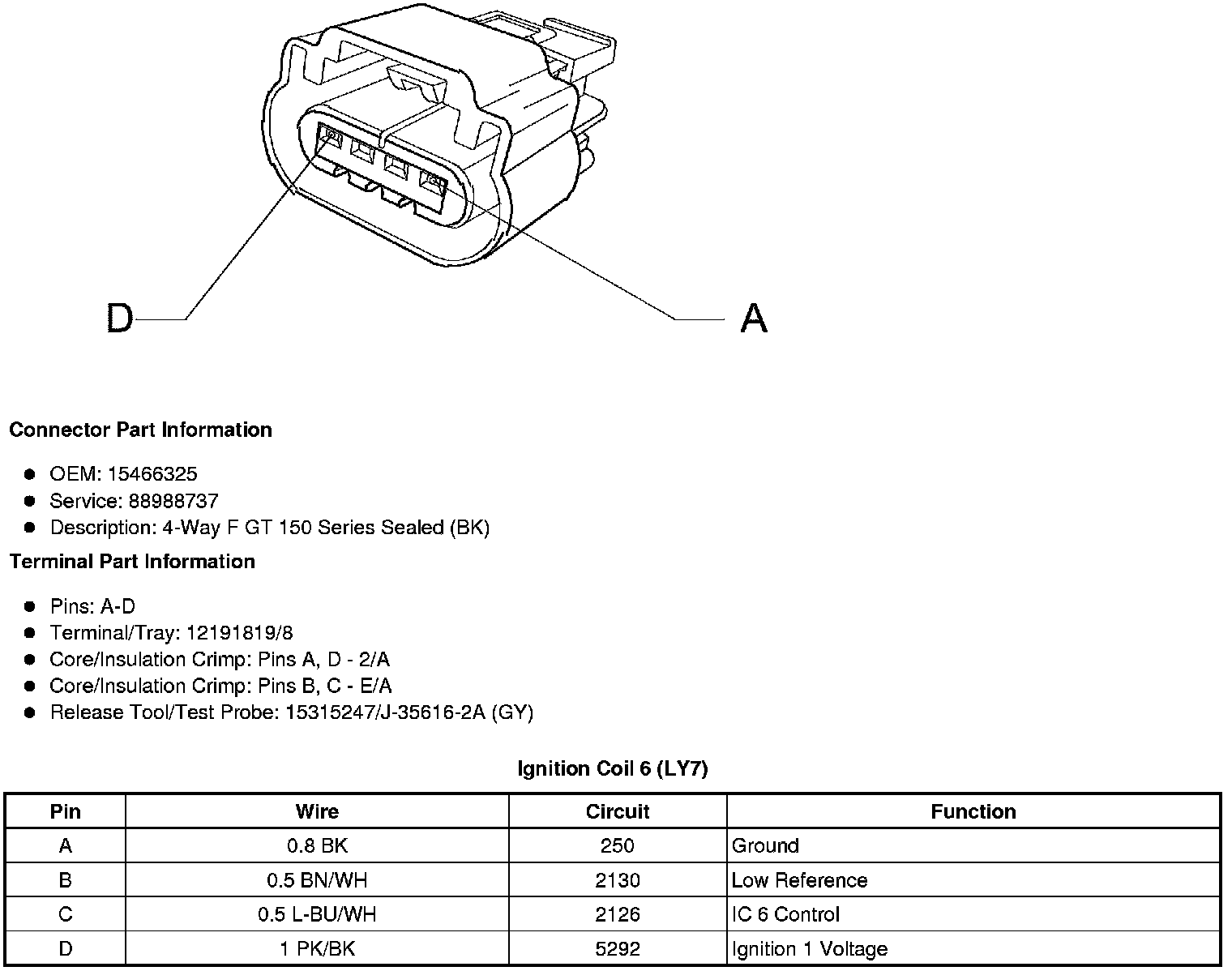

Ignition Coil 6 (LY7)
