Underhood Fuse Block




Electrical Center Identification Views

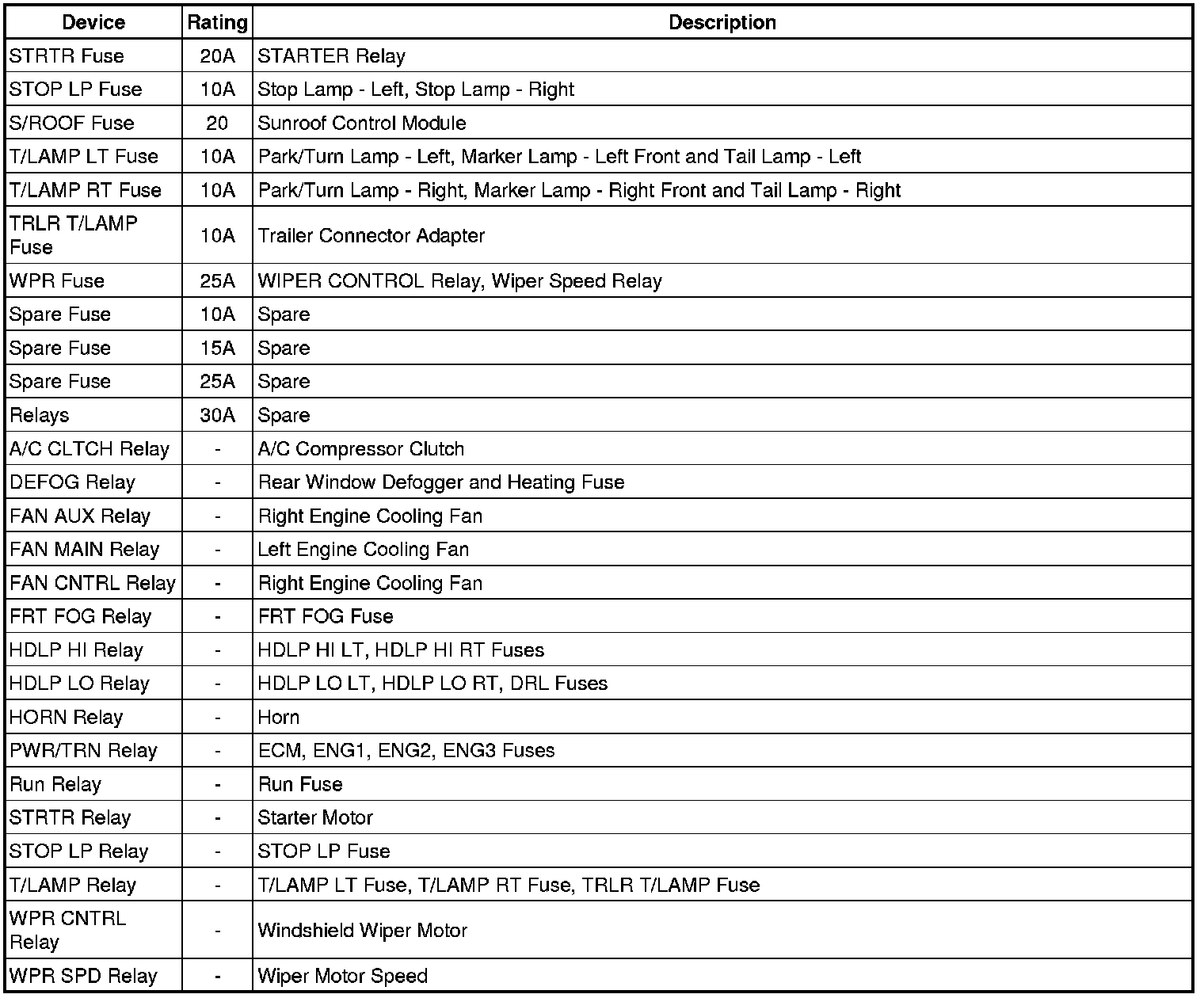

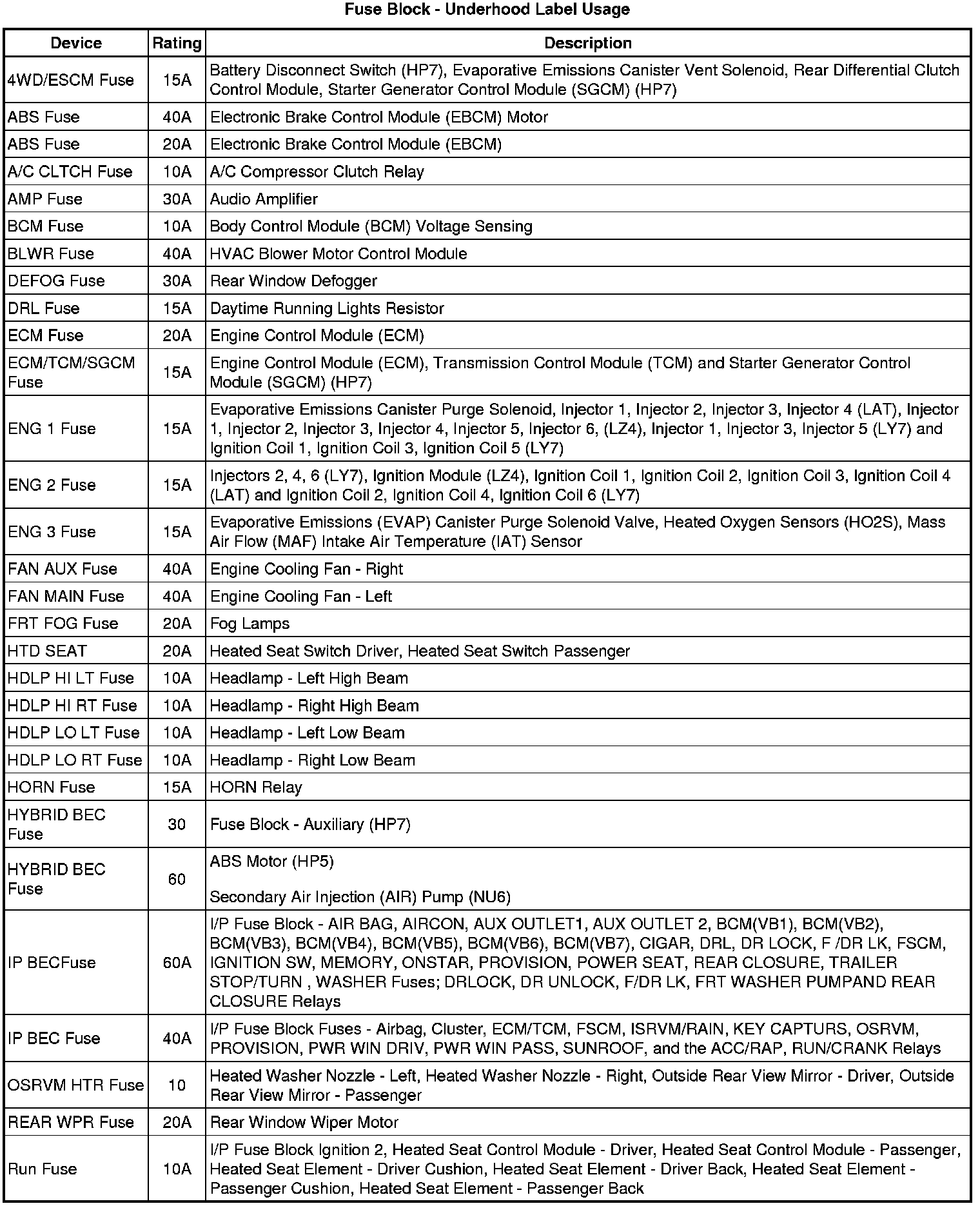

Fuse Block - Underhood Label

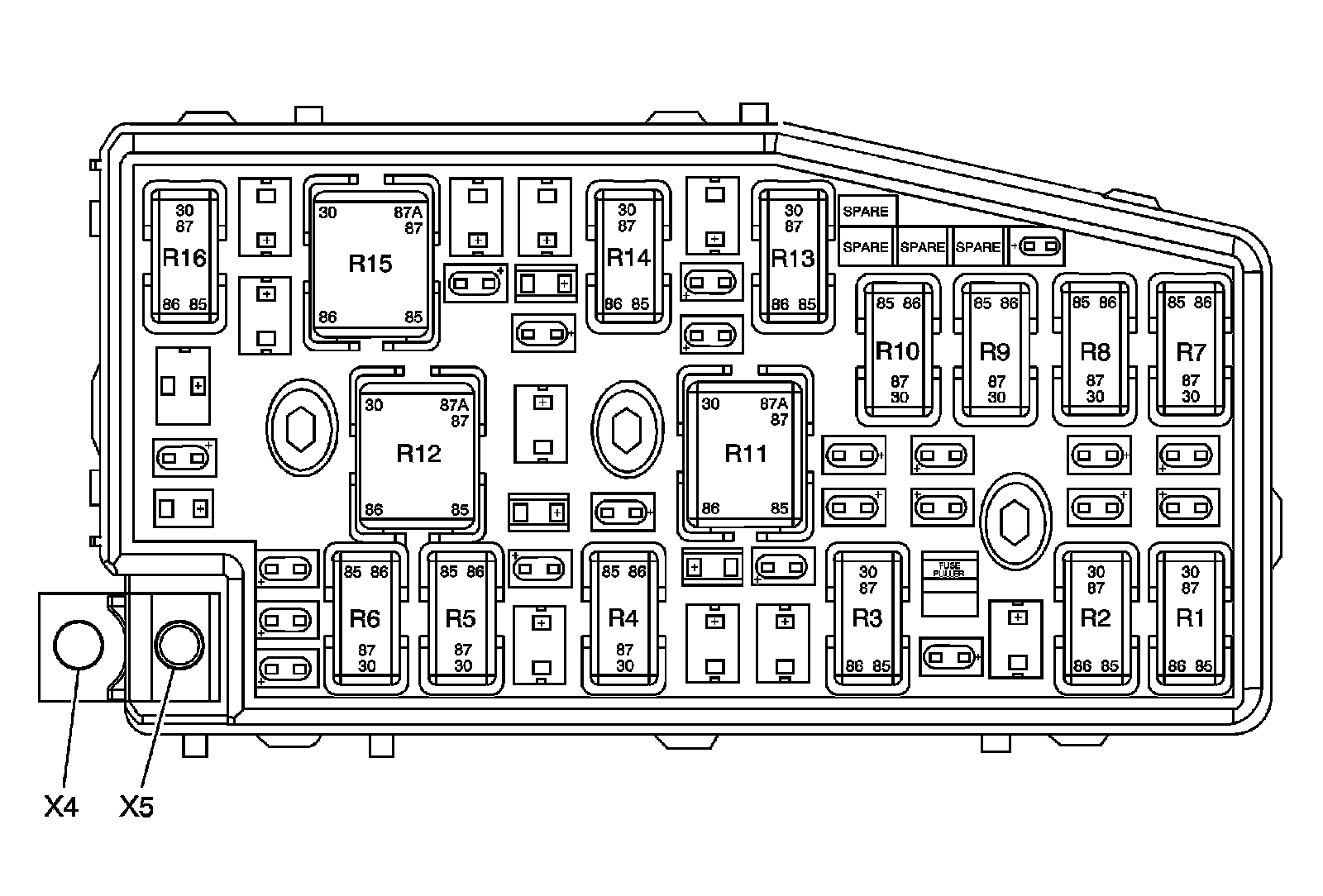

Fuse Block - Underhood Top View

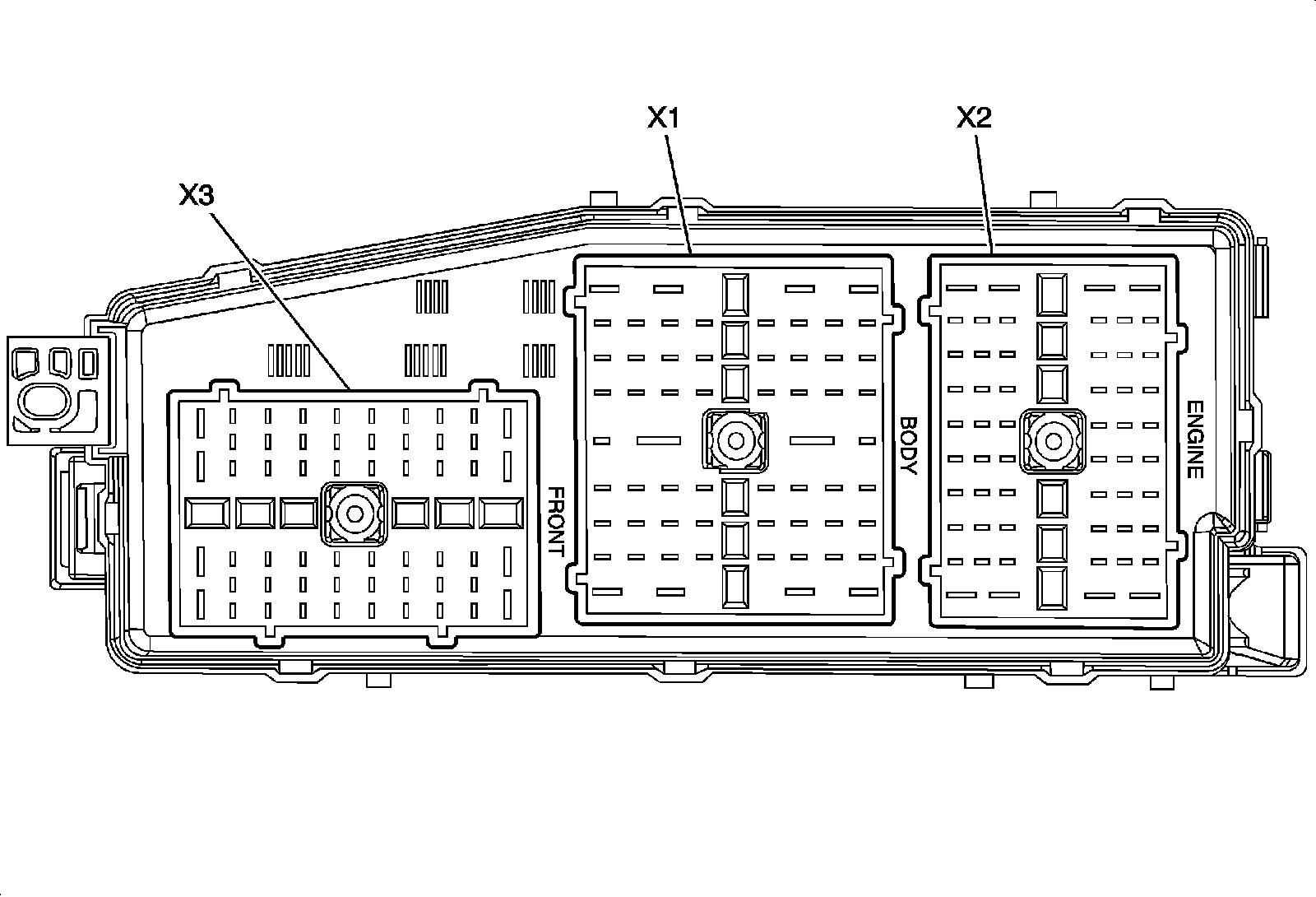

Fuse Block - Underhood Bottom View

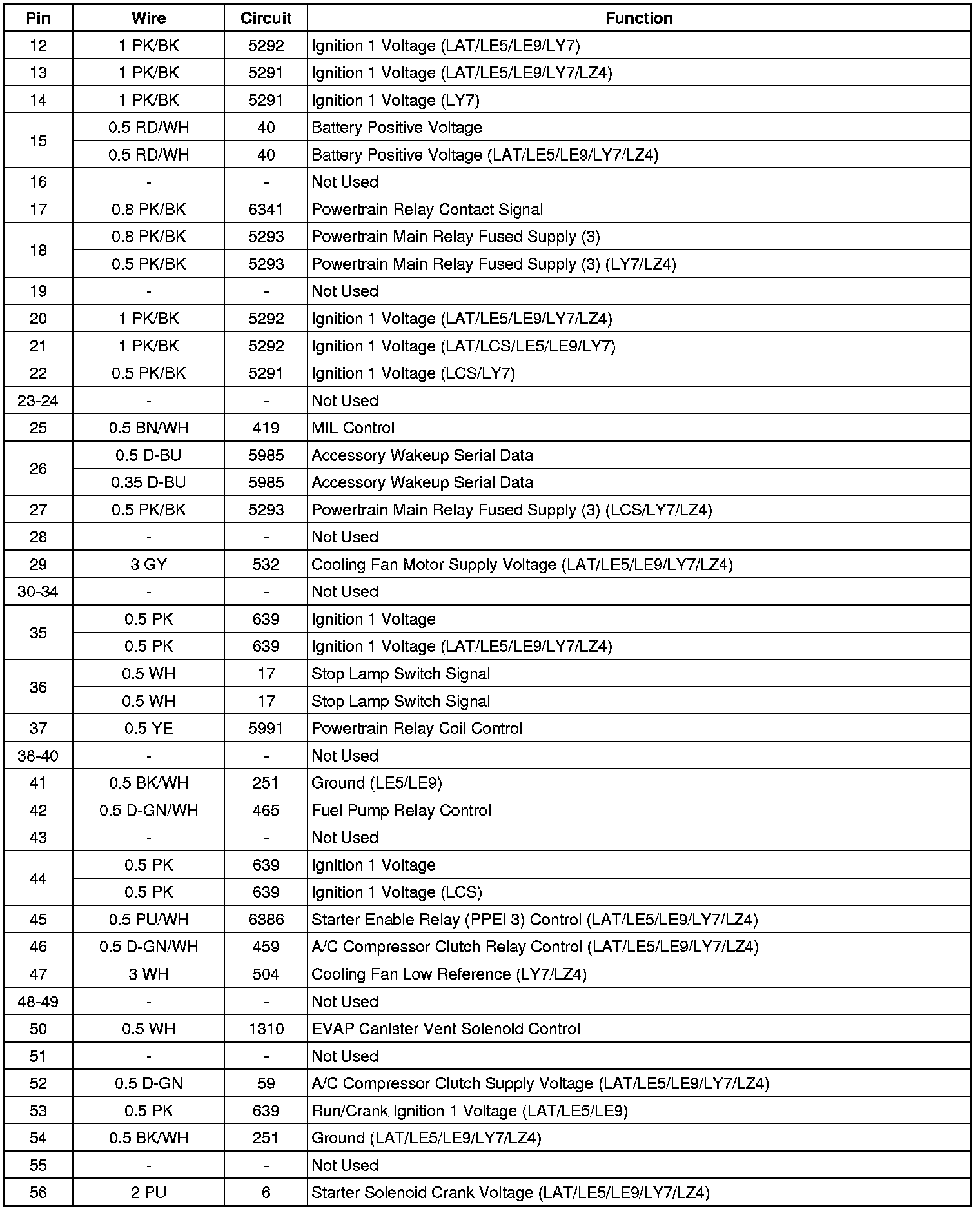

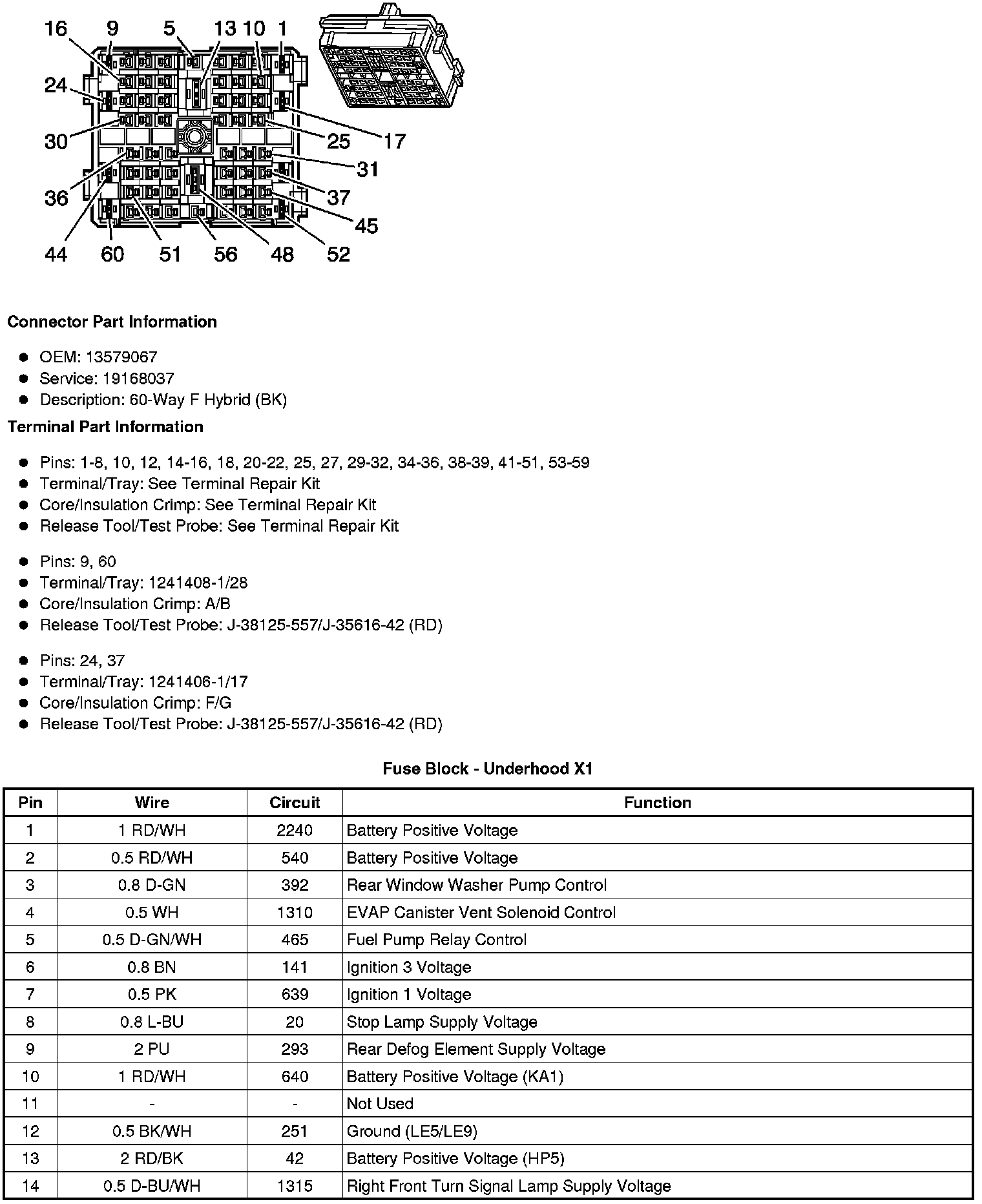

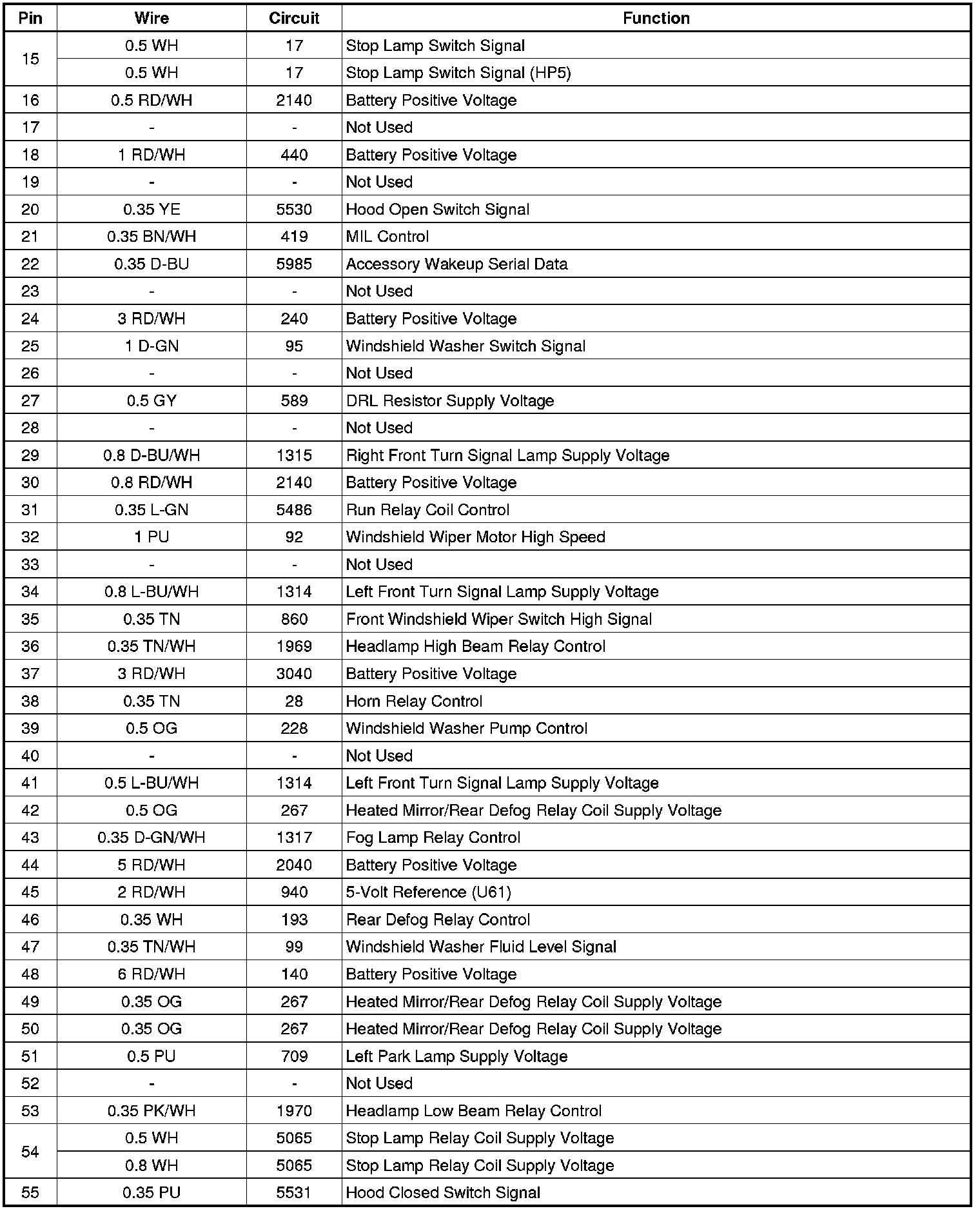

Fuse Block - Underhood X1

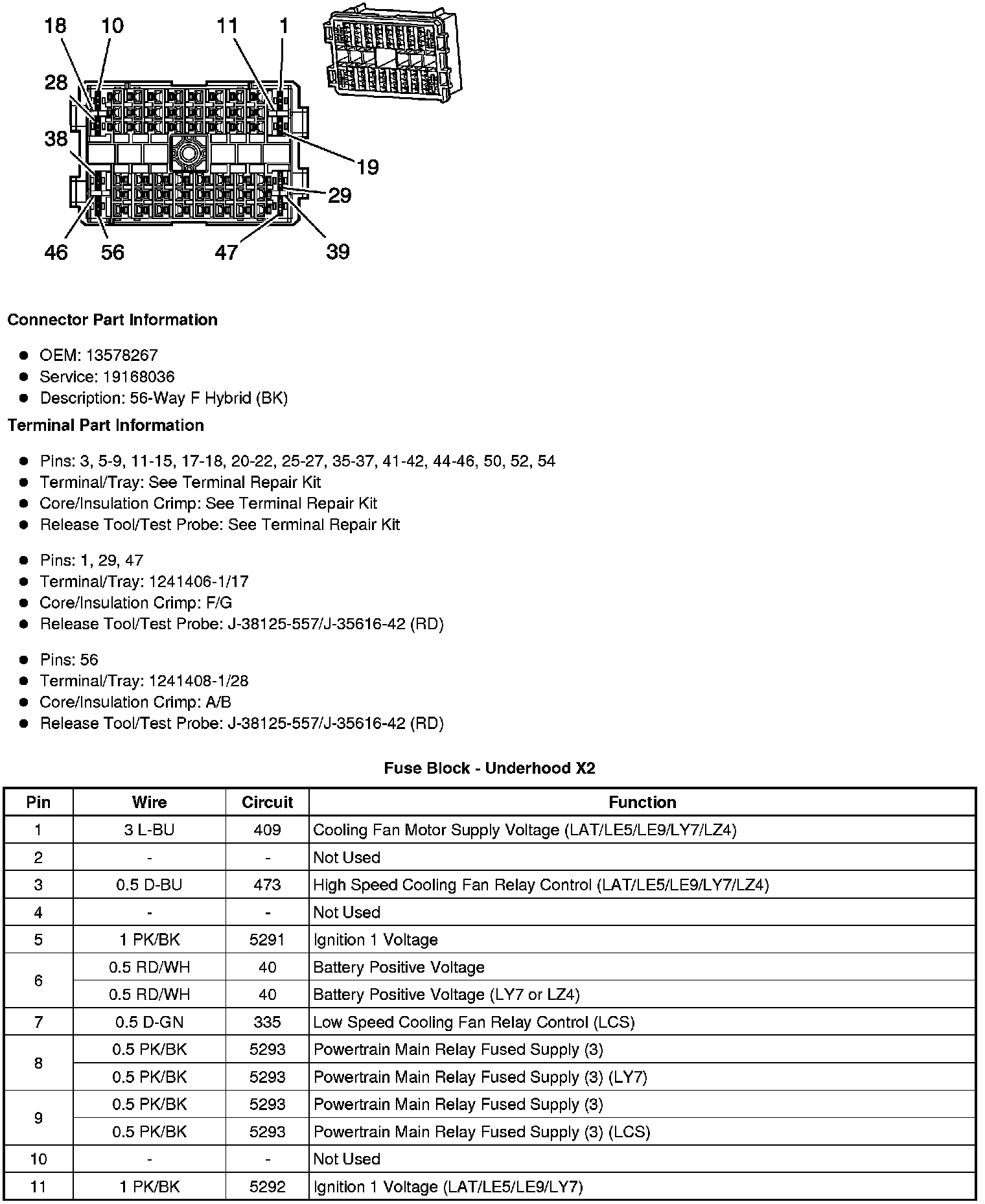

Fuse Block - Underhood X2

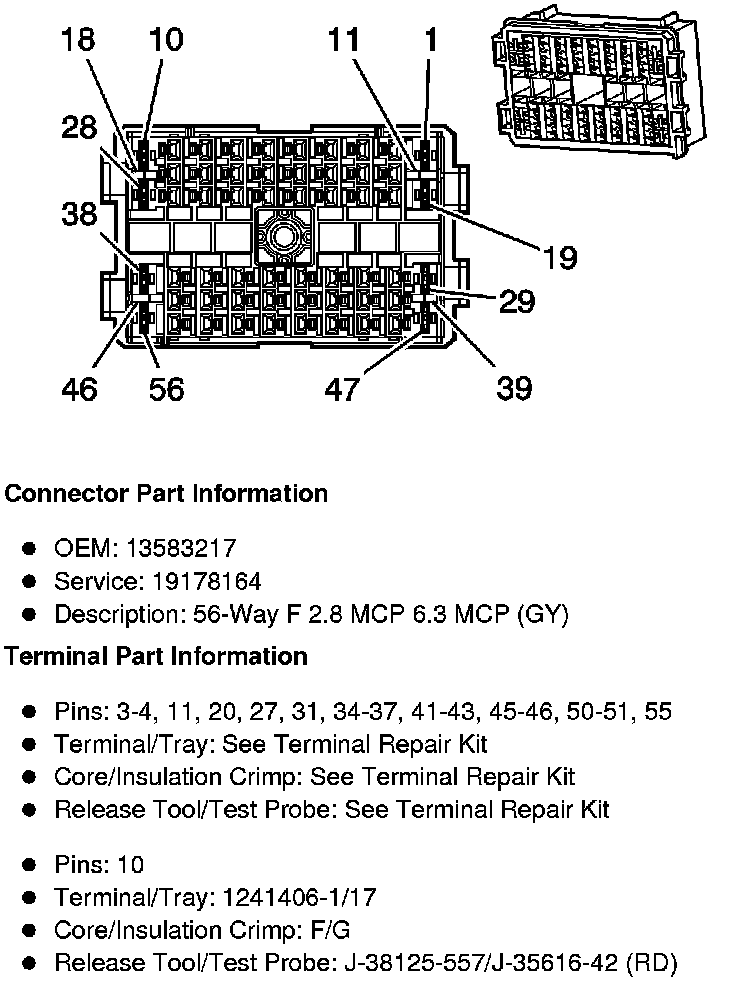

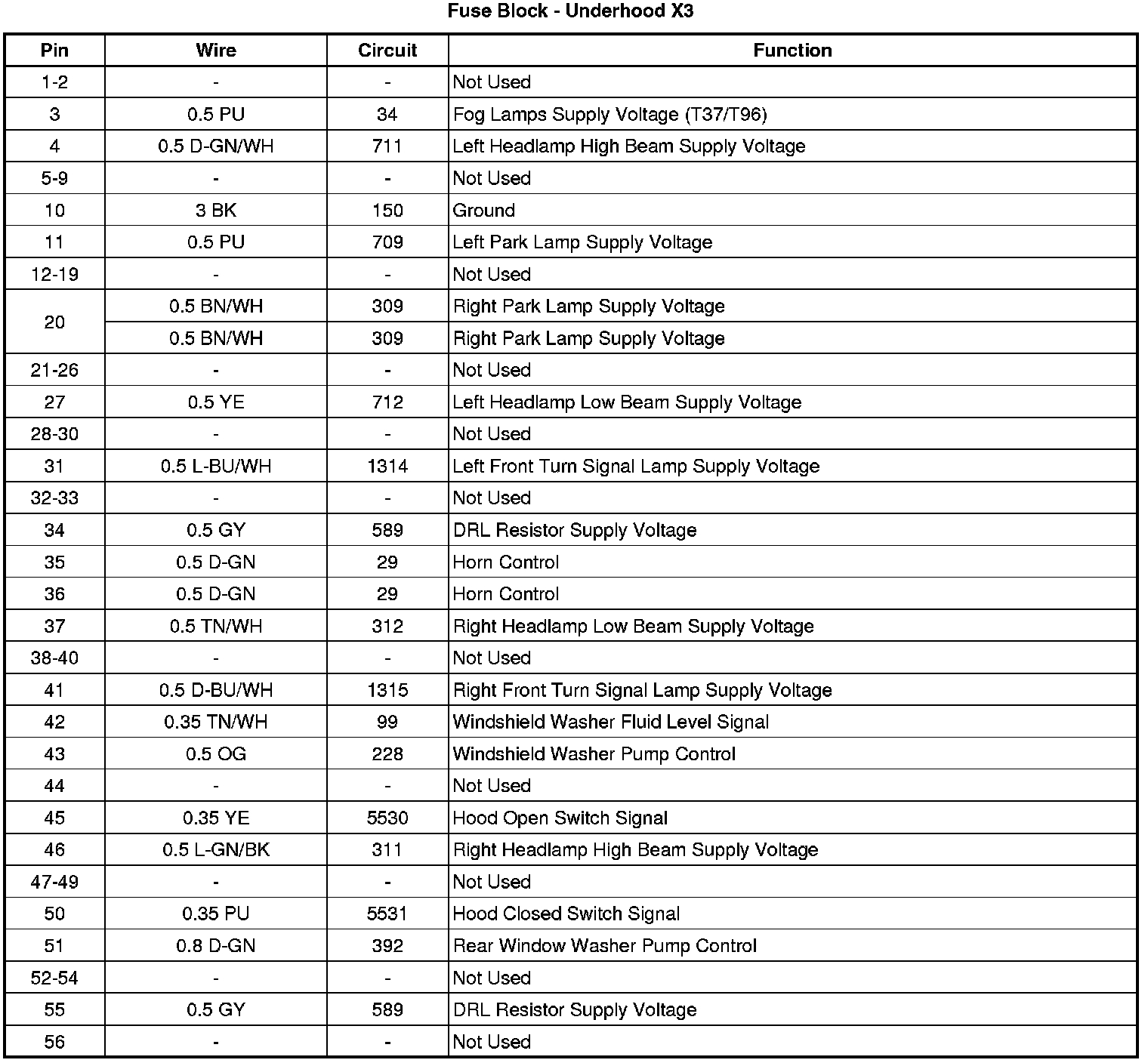

Fuse Block - Underhood X3










Fuse Block - Underhood X4 (Battery Positive Cable) (without HP5)
