Fuel Tank Views




Harness Routing Views

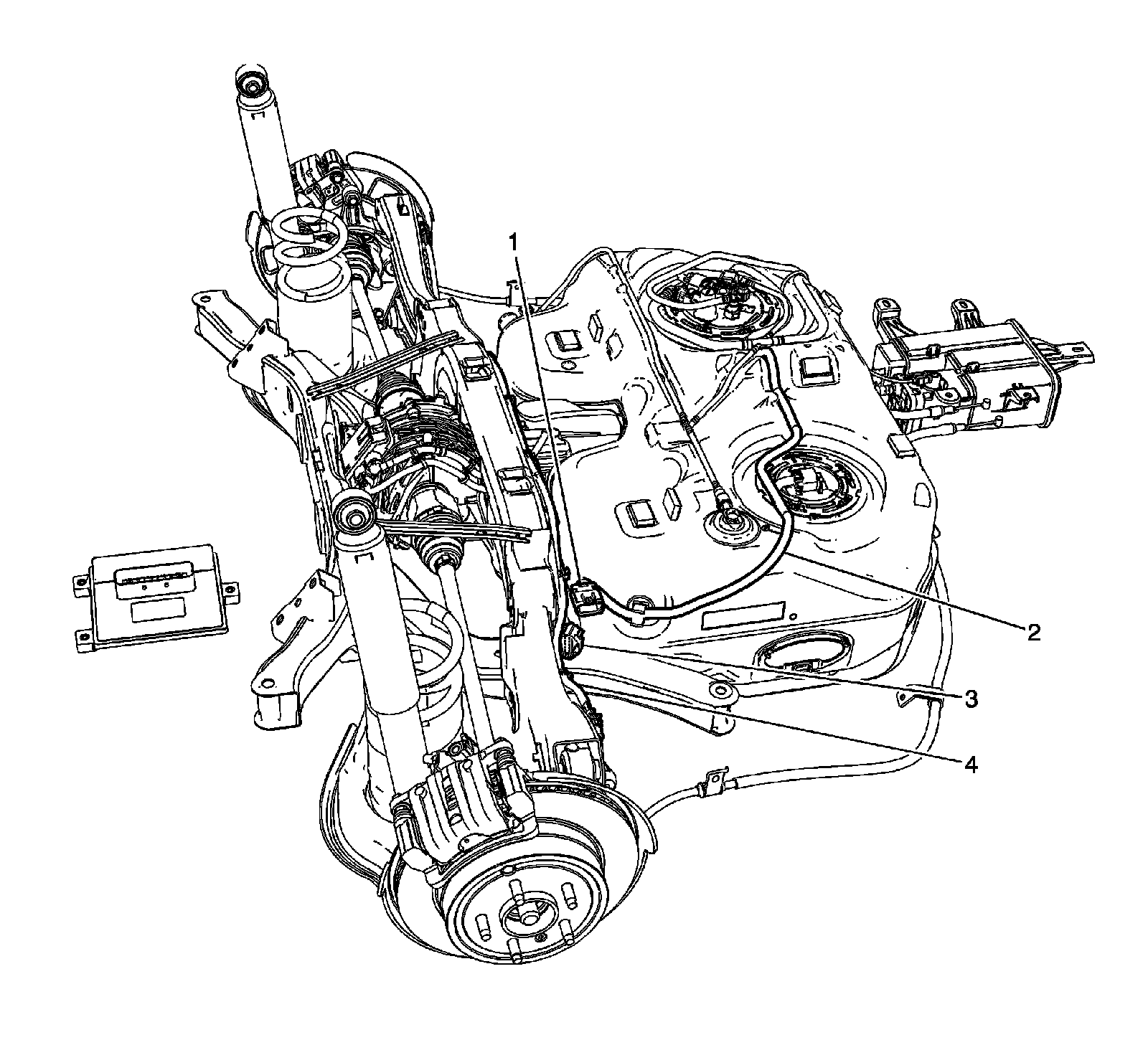

Rear Chassis/Fuel Tank Harness




1 - X406
2 - Fuel Tank Harness
3 - X408
4 - Rear Chassis Harness
