Fuel Injector




Component Connector End Views

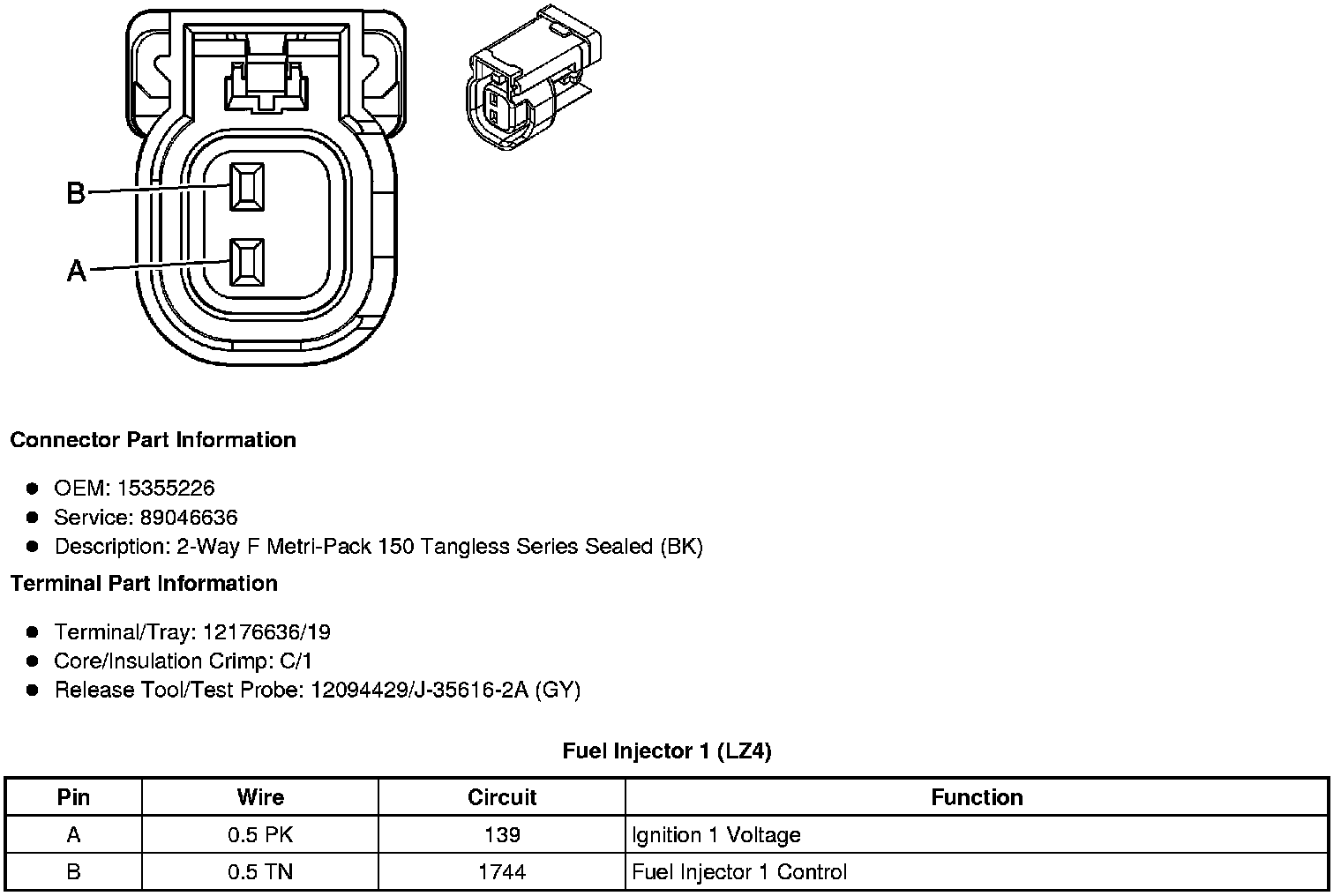

Fuel Injector 1 (LZ4)






Fuel Injector 2 (LZ4)






Fuel Injector 3 (LZ4)

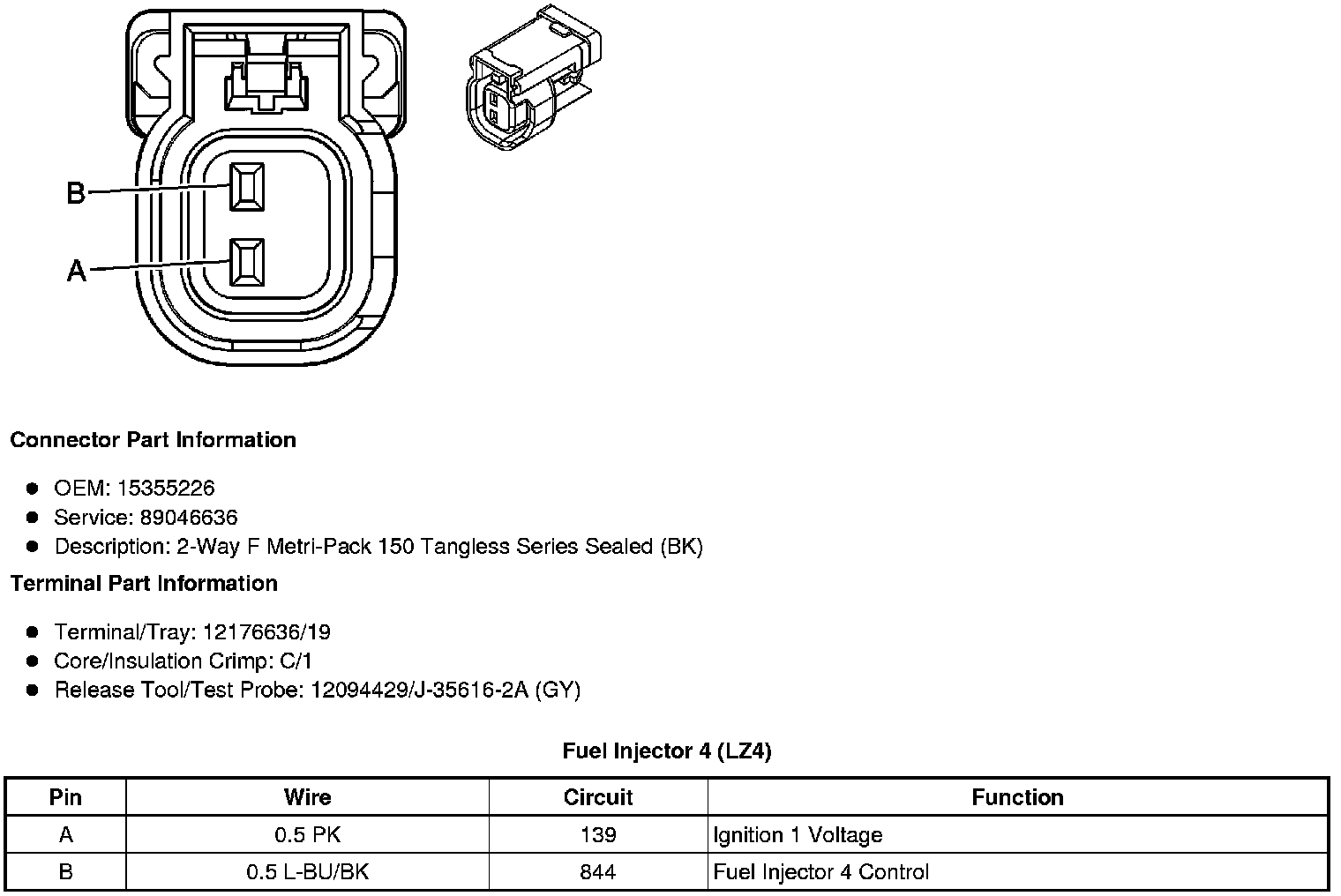

Fuel Injector 4 (LZ4)






Fuel Injector 5 (LZ4)

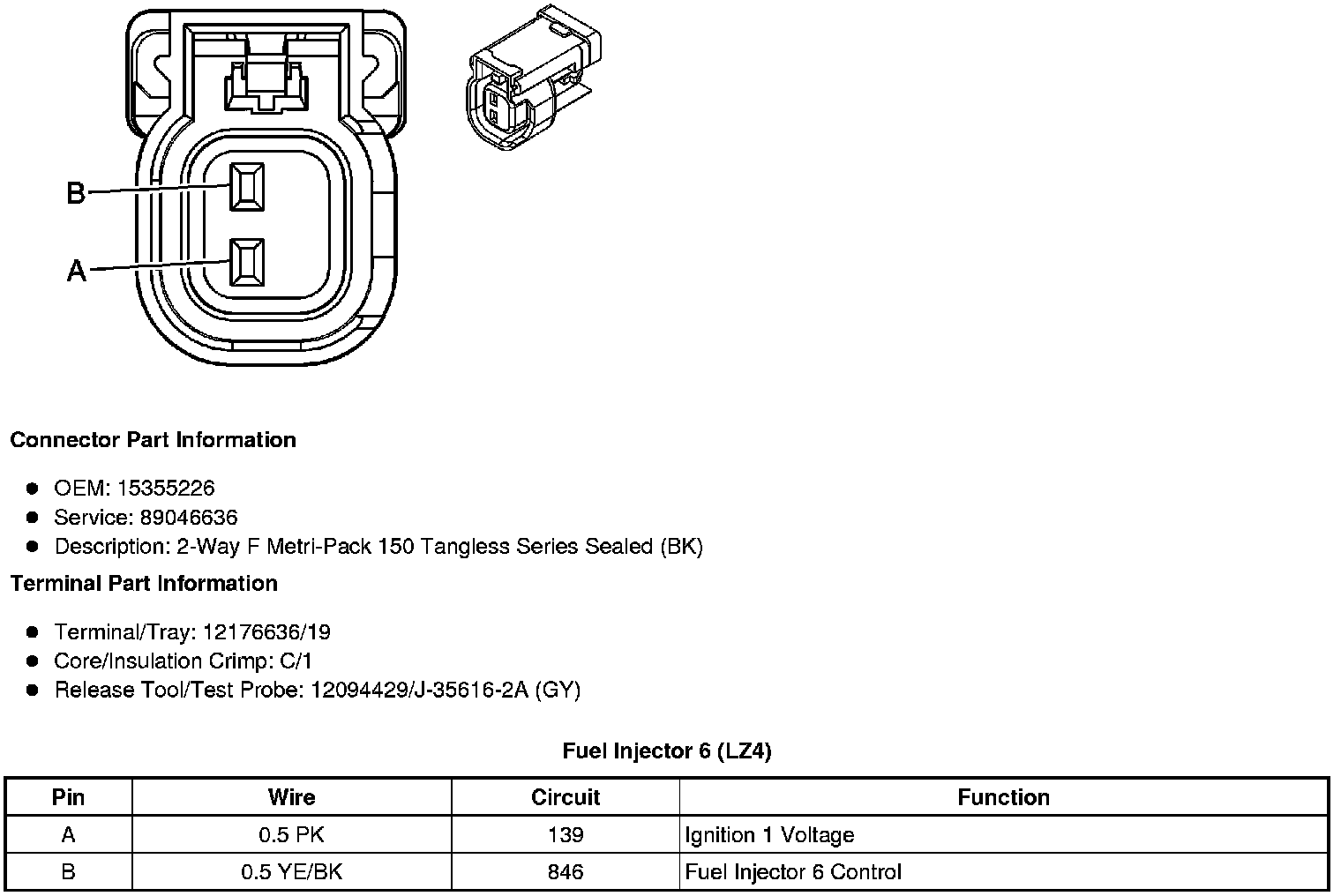

Fuel Injector 6 (LZ4)
