Sky Base, Standard
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Mechanical - 2.4L
>>
Specifications
>>
Thread Repair Specifications
>>
Engine Block - Right Side View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Block - Right Side View

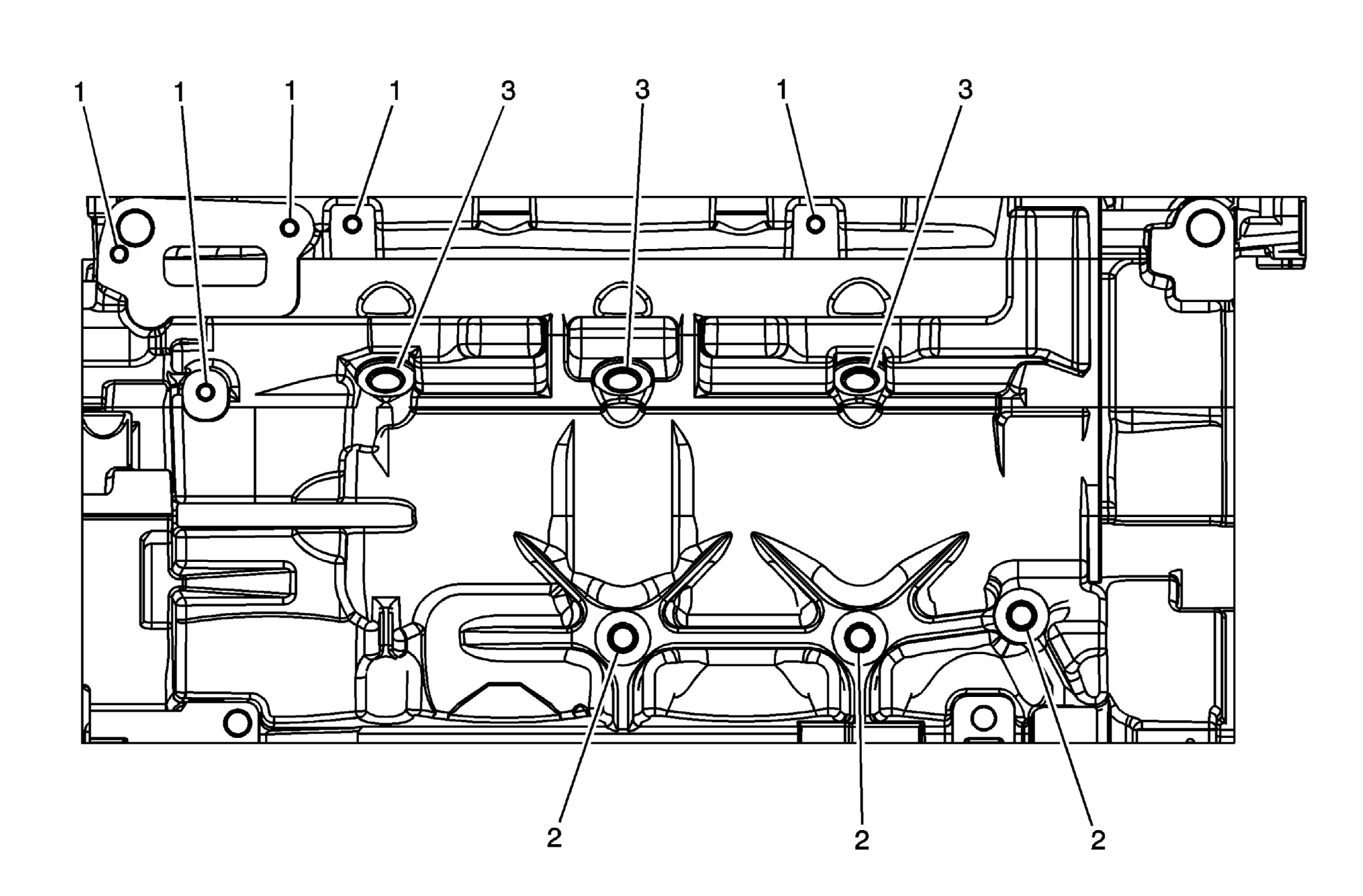

Fig 1: Identifying Bolts On Engine Block - Right Side View
Courtesy of GENERAL MOTORS CORP.
Service Call Out
Thread Size
Insert
Drill
Counterbore Tool
Tap
Driver
Drill Depth (Maximum)
Tap Depth (Maximum)
J 42385-850
MM
(IN)
MM
(IN)
1
M6 x 1
205
201
202
203
204
20.5
0.807
16
0.63
2
M10 x 1.5
215
211
212
213
214
23.5
0.925
18.5
0.73
3
M12 x 1.75
865
856
857
858
859
19.5
0.768
12.5
0.49
