Saturn
>>
2009
>>
Sky Base, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Schematic and Routing Diagrams
>>
Antilock Brake System Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Antilock Brake System Schematics

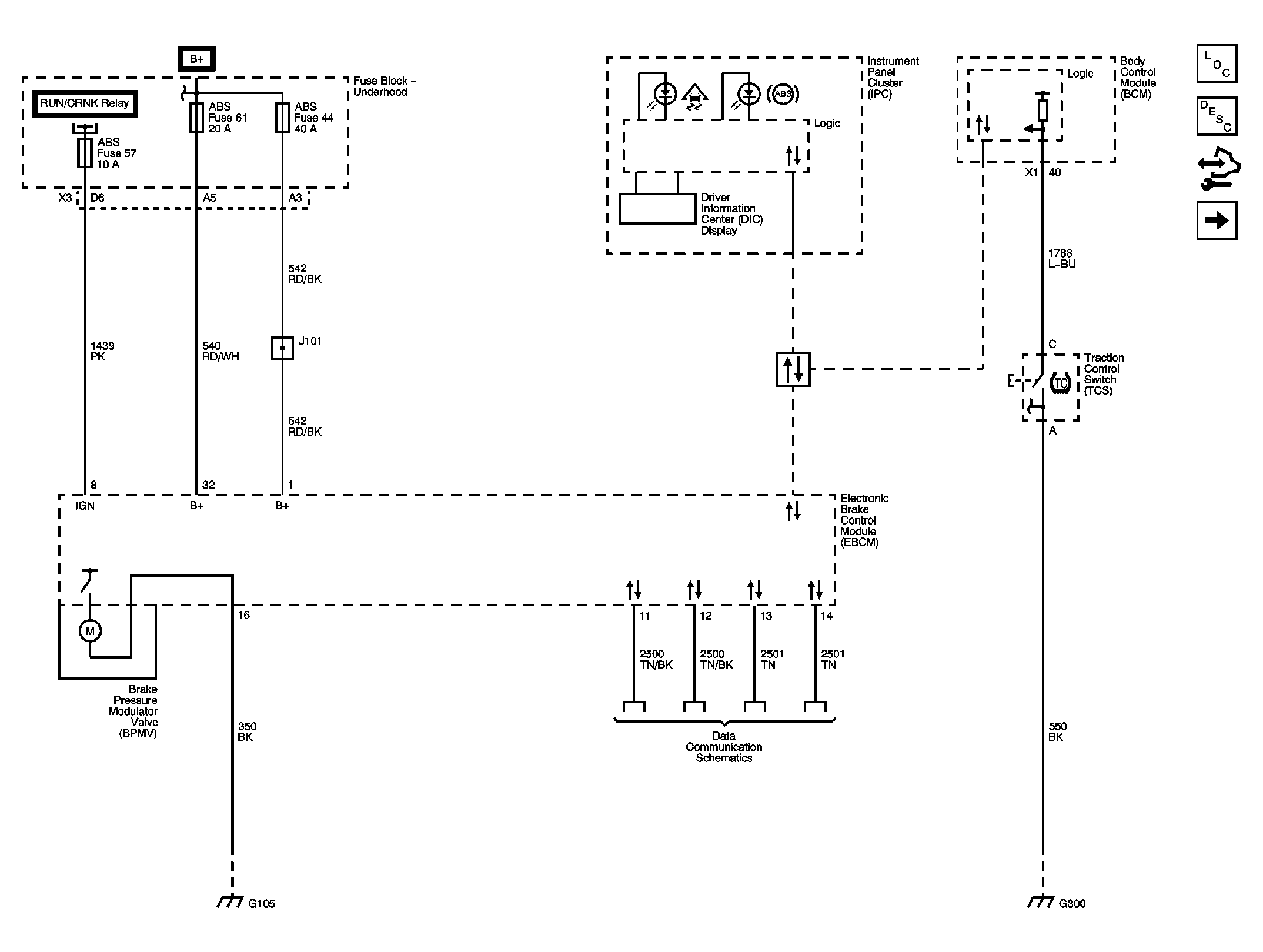

Fig 1: Power, Ground, Indicator, Traction Control Switch & Brake Booster Vacuum Sensor (LNF)
Courtesy of GENERAL MOTORS CORP.

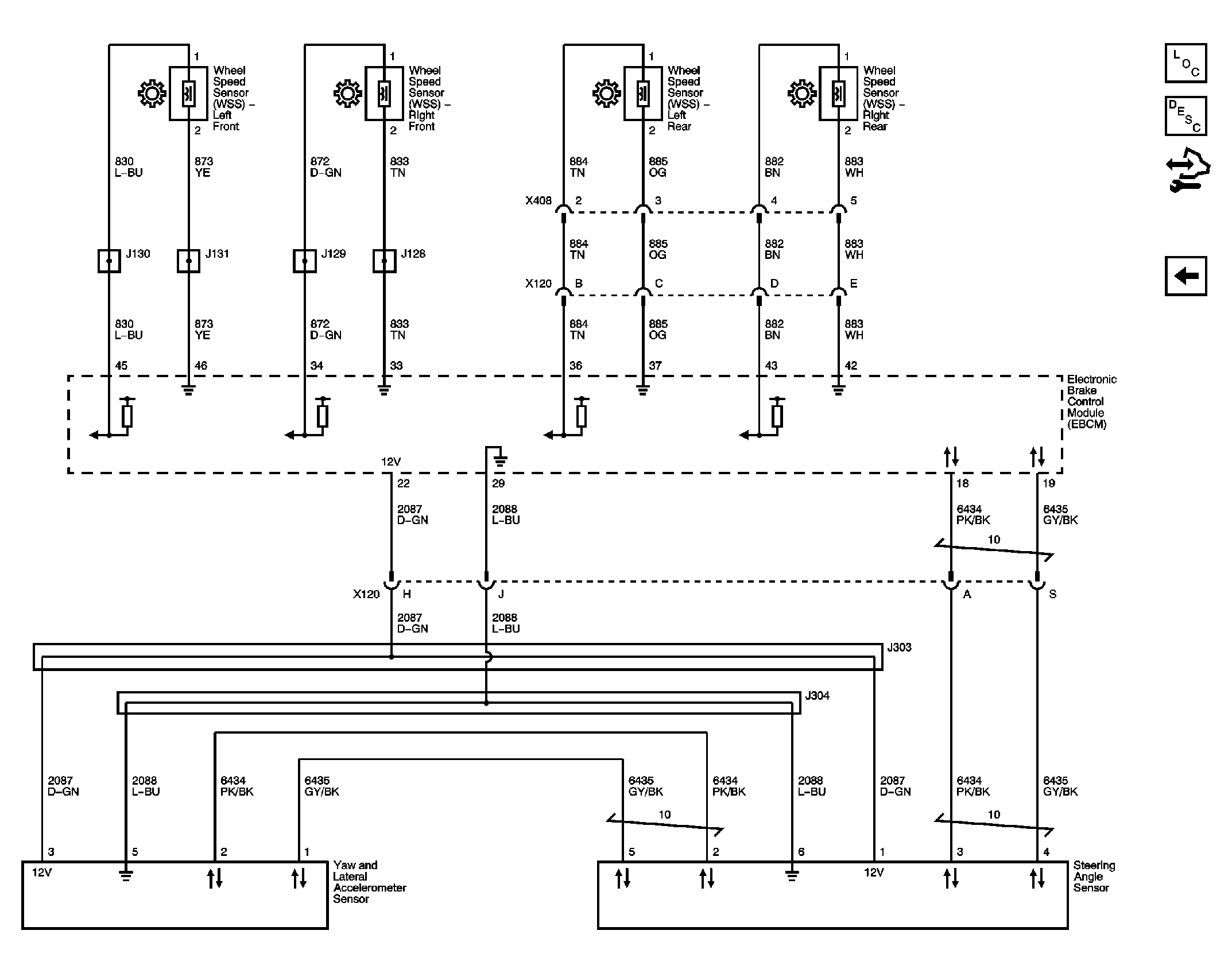

Fig 2: Stability Control Sensors (JL4)
Courtesy of GENERAL MOTORS CORP.
