Ground Distribution Schematics

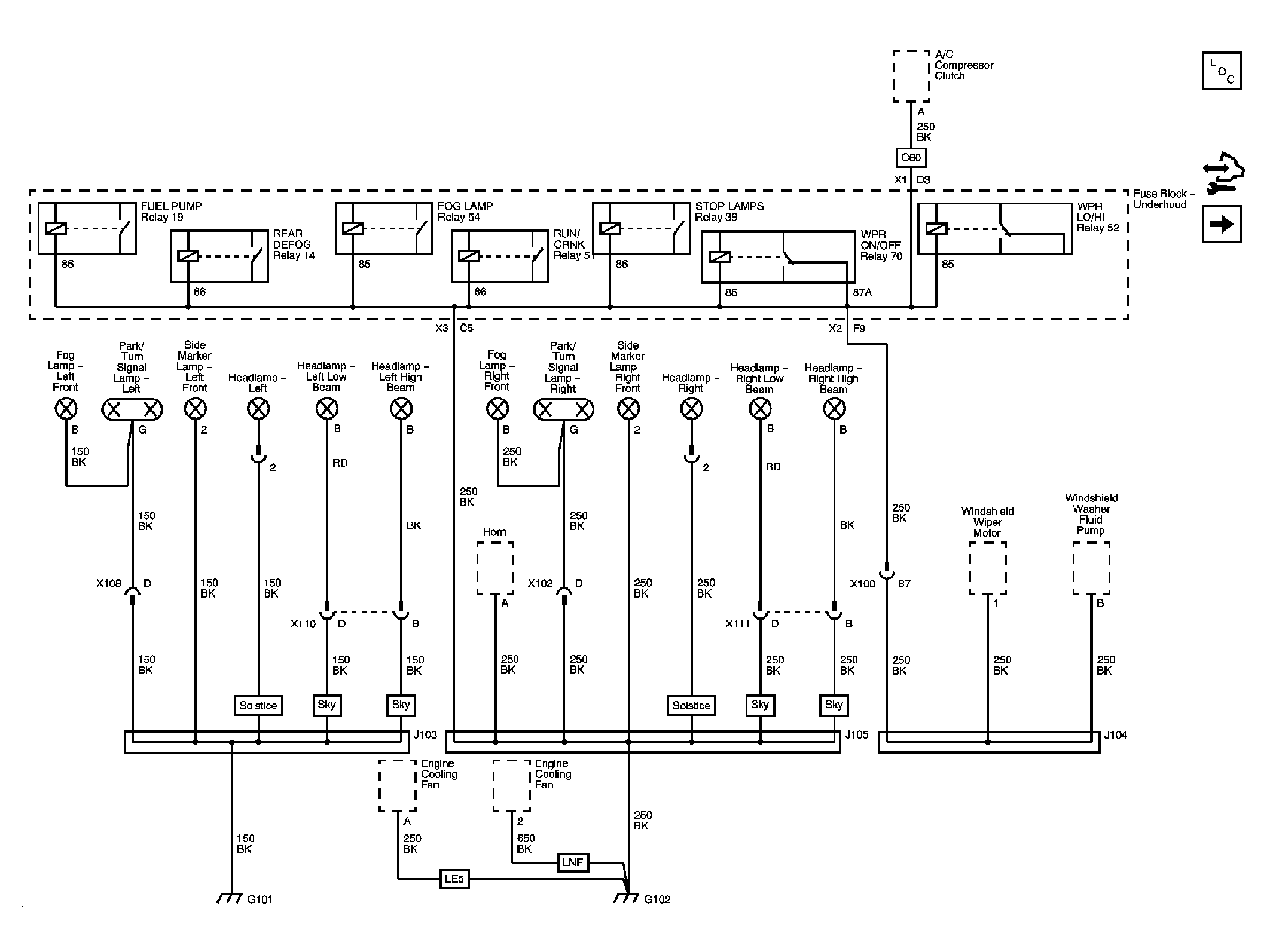

Fig 1: G101 & G102

Courtesy of GENERAL MOTORS CORP.

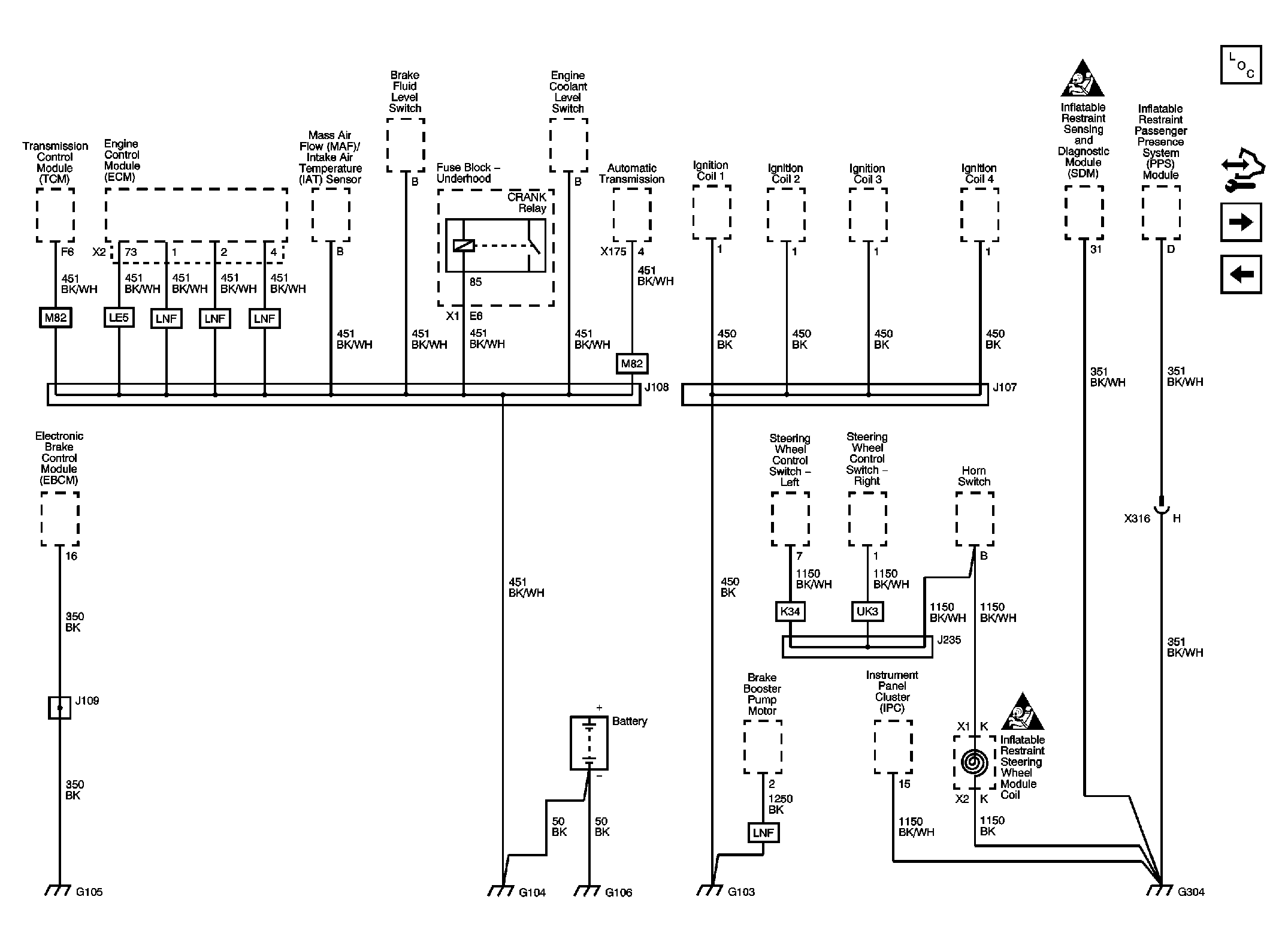

Fig 2: G103, G105, G104, G106, G304

Courtesy of GENERAL MOTORS CORP.

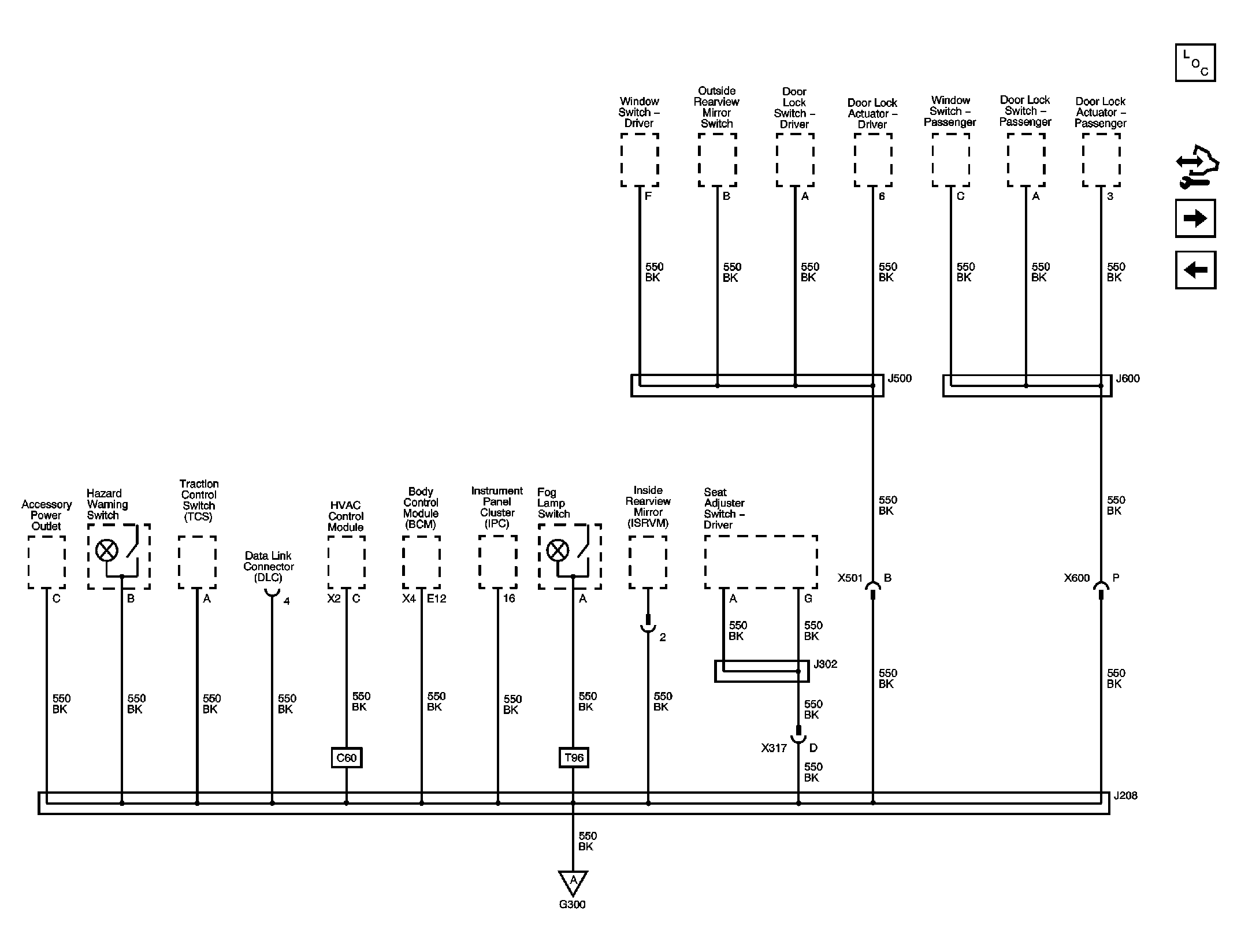

Fig 3: G300 (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: G300 (2 of 2)

Courtesy of GENERAL MOTORS CORP.

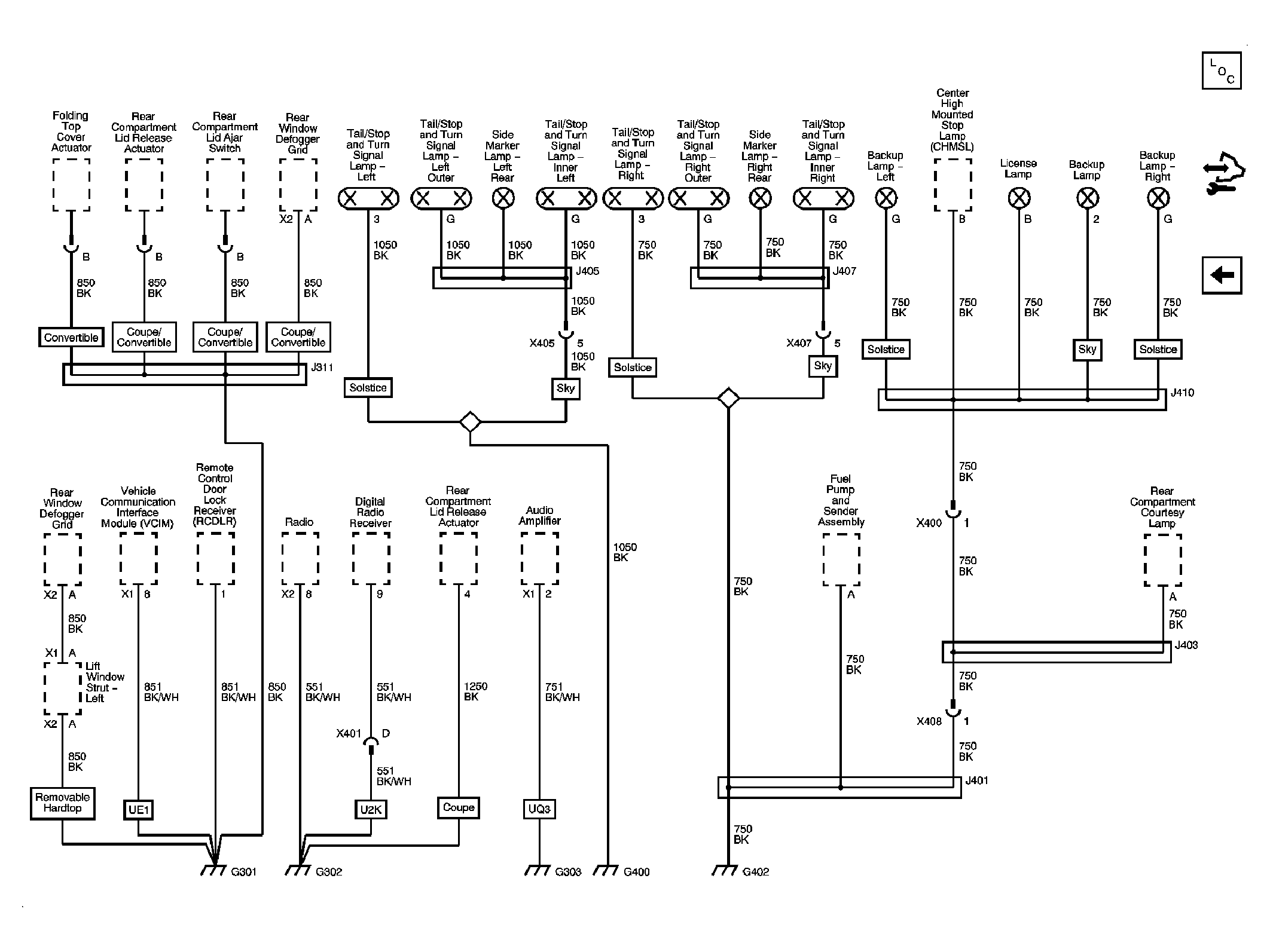

Fig 5: G301, G302, G303, G400, G402

Courtesy of GENERAL MOTORS CORP.
