Oxygen Sensor: Diagrams




Component Connector End Views

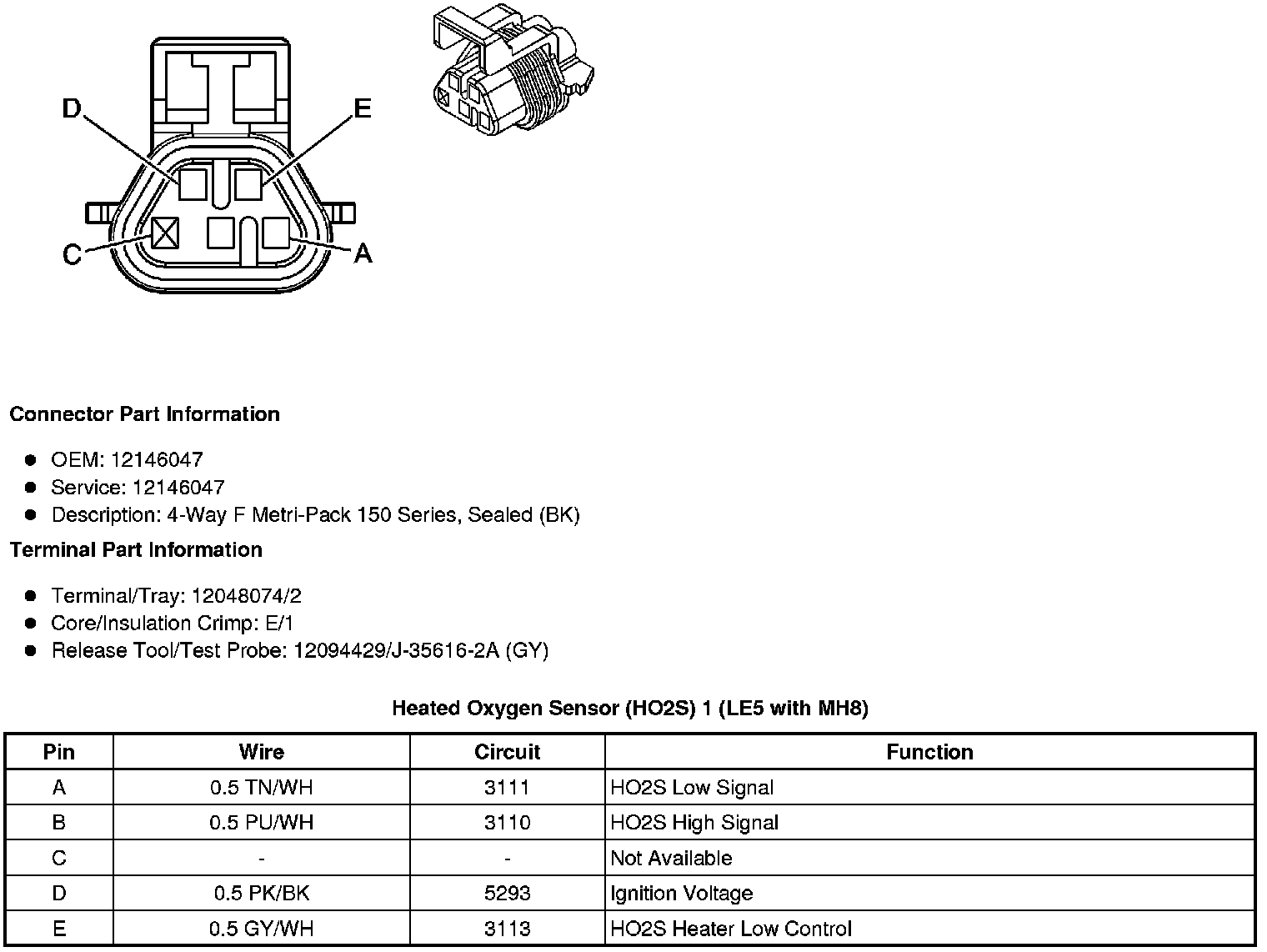

Heated Oxygen Sensor (HO2S) 1 (LE5 with MH8)






Heated Oxygen Sensor (HO2S) 1 (LAT or LE5 with MN5)

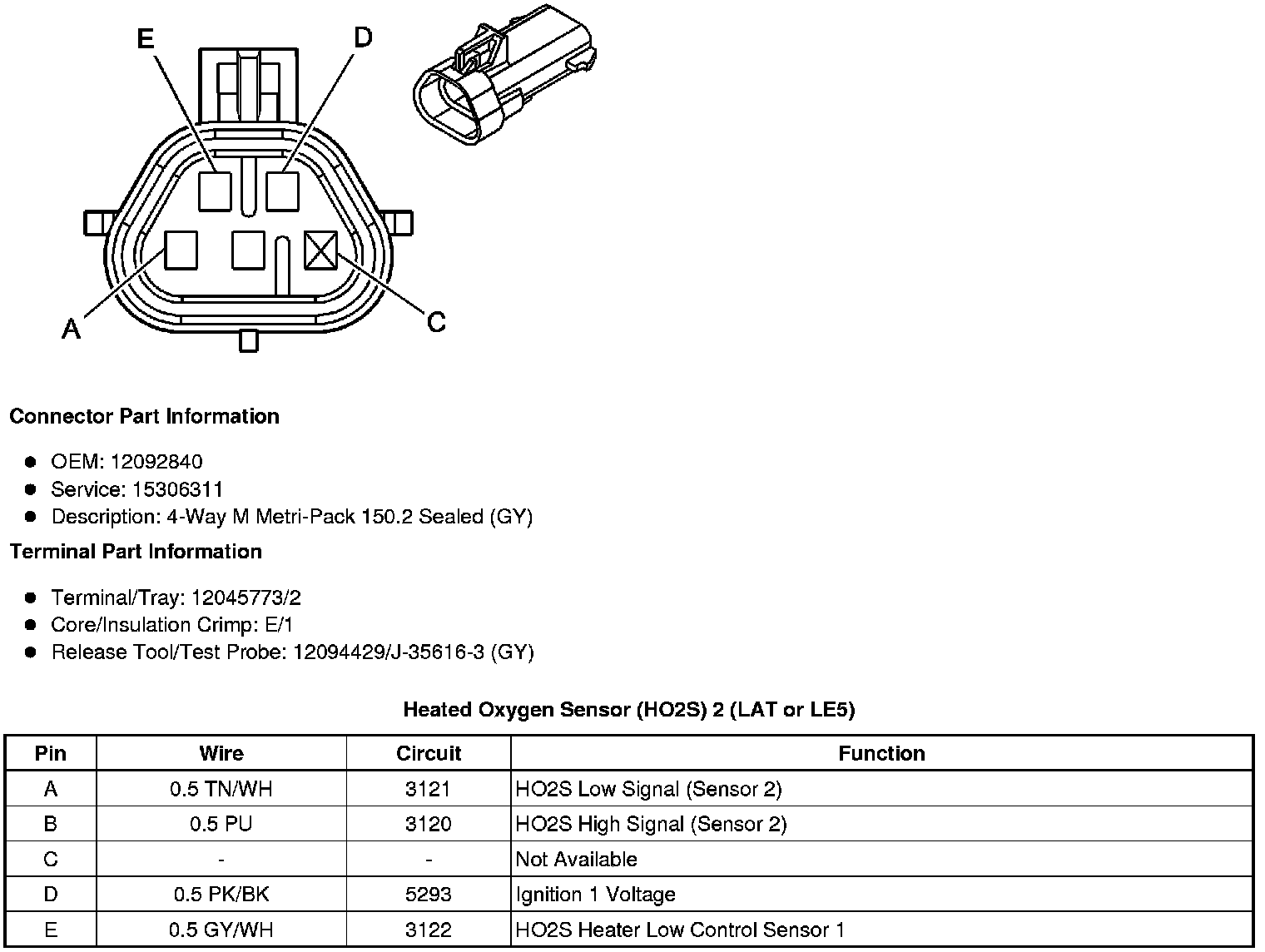

Heated Oxygen Sensor (HO2S) 2 (LAT or LE5)
