System Diagram




Component Connector End Views

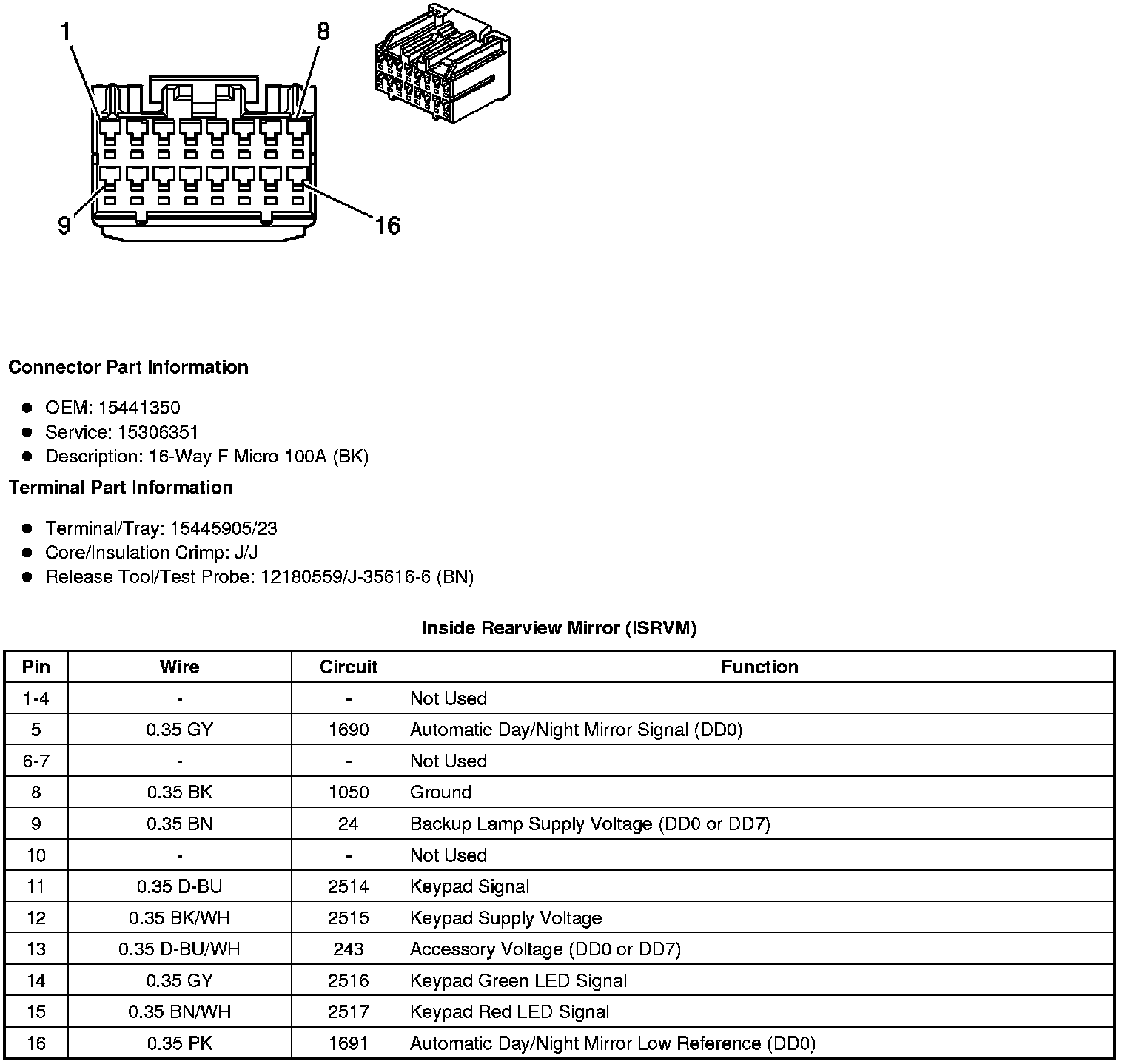

Inside Rearview Mirror (ISRVM)






Outside Rearview Mirror - Driver (D49)

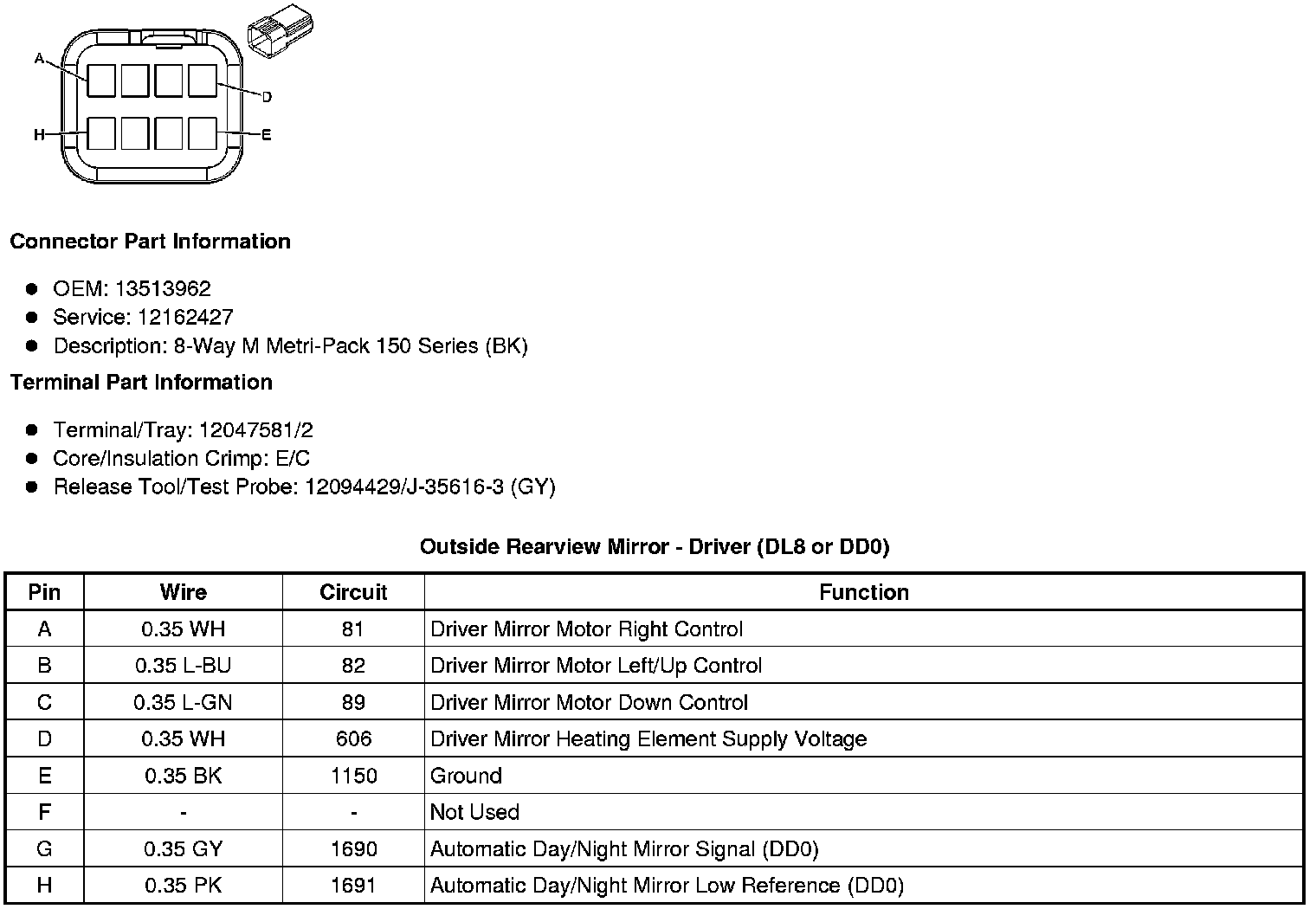

Outside Rearview Mirror - Driver (DL8 or DD0)






Outside Rearview Mirror - Passenger (D49)






Outside Rearview Mirror - Passenger (DL8 or DL8)
