Radio Replacement

WARNING: This page is about a different car, the 2008 Saturn Aura. However, it is still accessible from the selected car via links, so may be relevant.

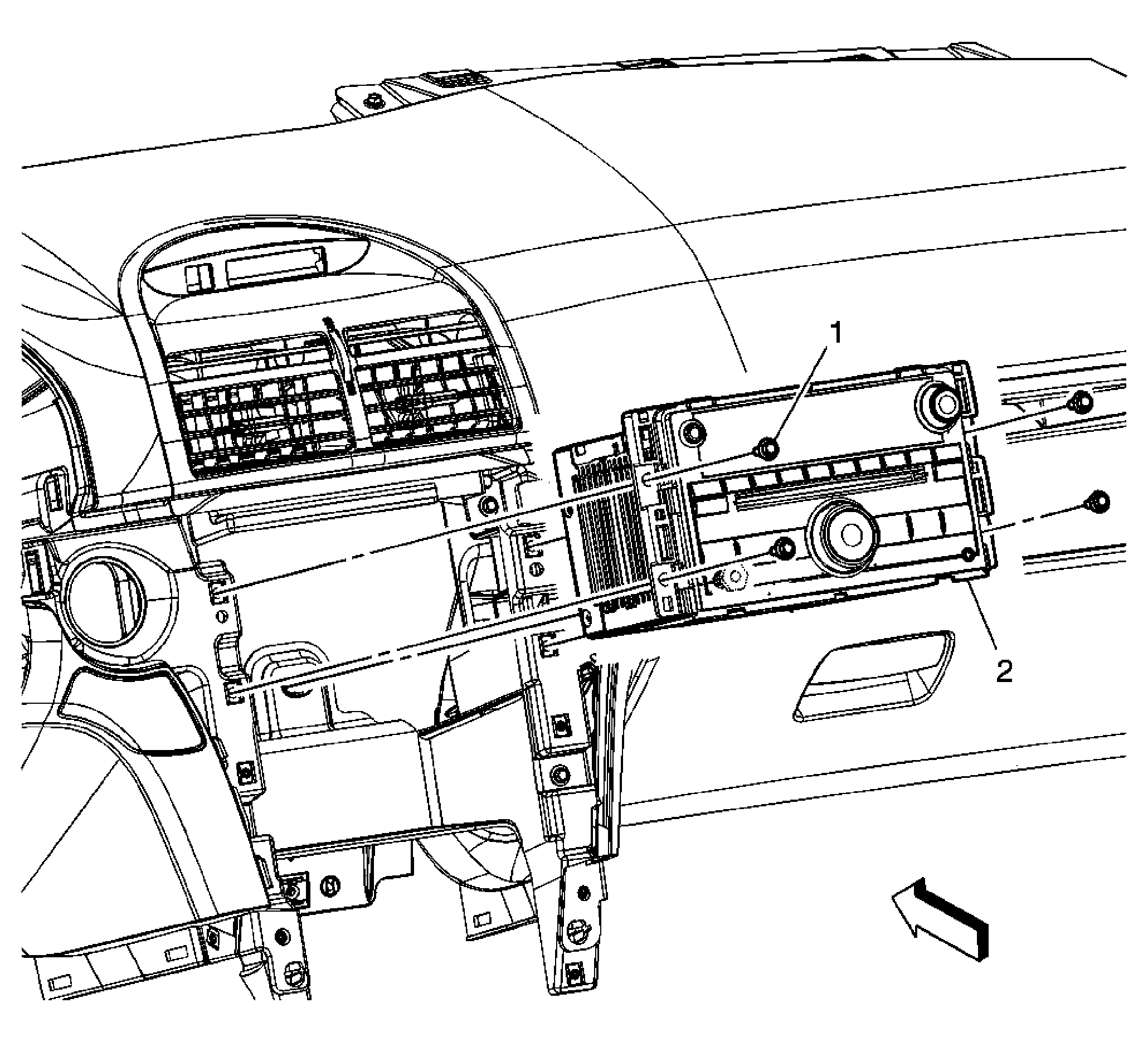

Fig 1: View Of Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel center molding panel. Refer to Instrument Panel Center Molding Replacement Remove the HVAC control module. Refer to HVAC Control Module Replacement
1	Radio Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Radio Assembly Tip: Disconnect the electrical connector. Disconnect the antenna cable. When installing the radio verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension. Reprogram the radio after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center molding panel. Refer to Instrument Panel Center Molding Replacement
Remove the HVAC control module. Refer to HVAC Control Module Replacement

Radio Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Radio Assembly
Tip:

Disconnect the electrical connector.
Disconnect the antenna cable.
When installing the radio verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension.
Reprogram the radio after replacement. Refer to Control Module References .
