Front Side Door Window Switch Replacement - Left Side

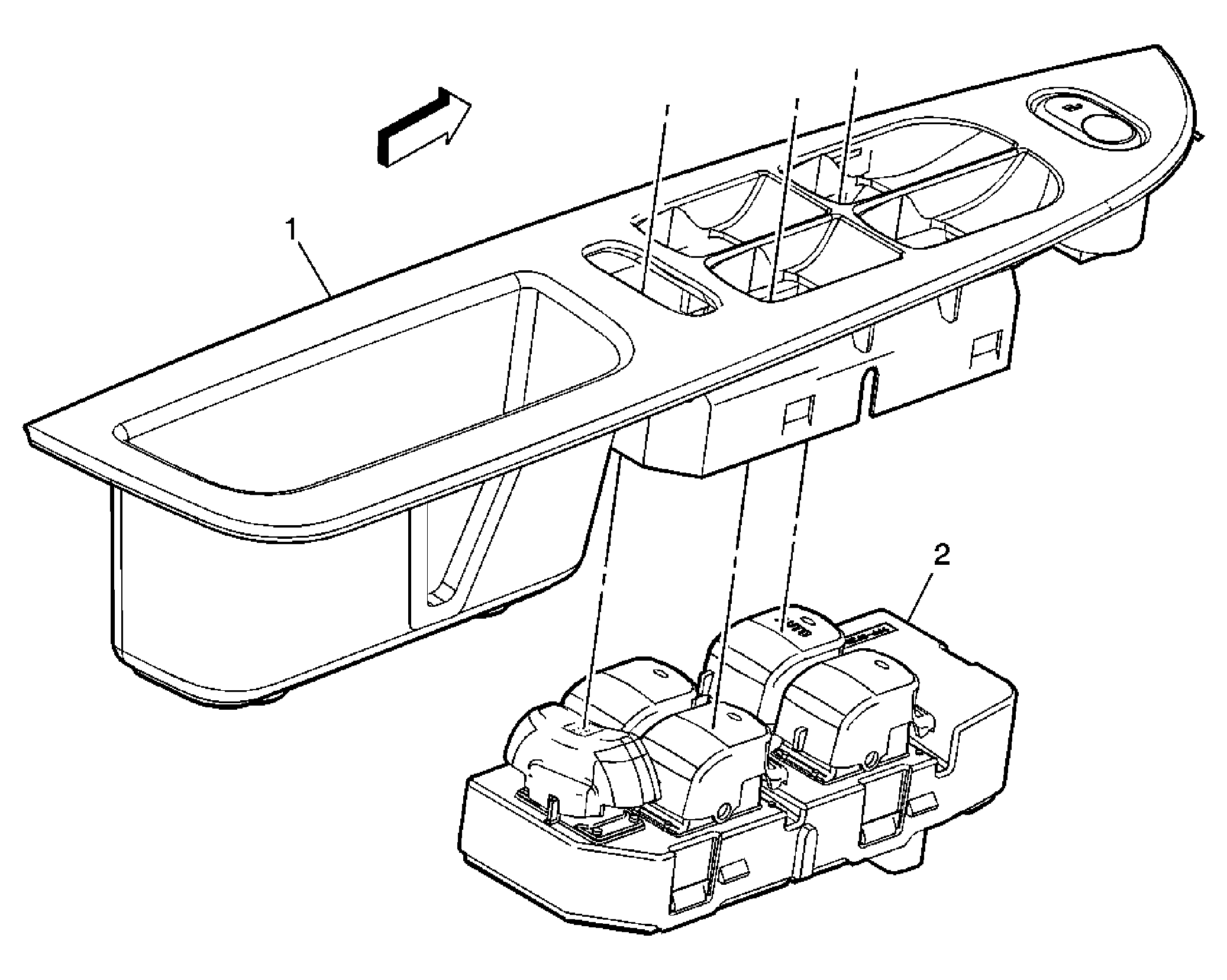

Fig 1: Identifying Front Side Door Window Switch - Left Side
GM1840209Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Door Switch Bezel
Refer to Front Side Door Window Switch Bezel Replacement (Driver Side) or Front Side Door Window Switch Bezel Replacement (Passenger Side) .
2 Front and Rear Side Door Window Switch Assembly
Tip:  Disconnect electrical connector.
