Engine Splash Shield Replacement

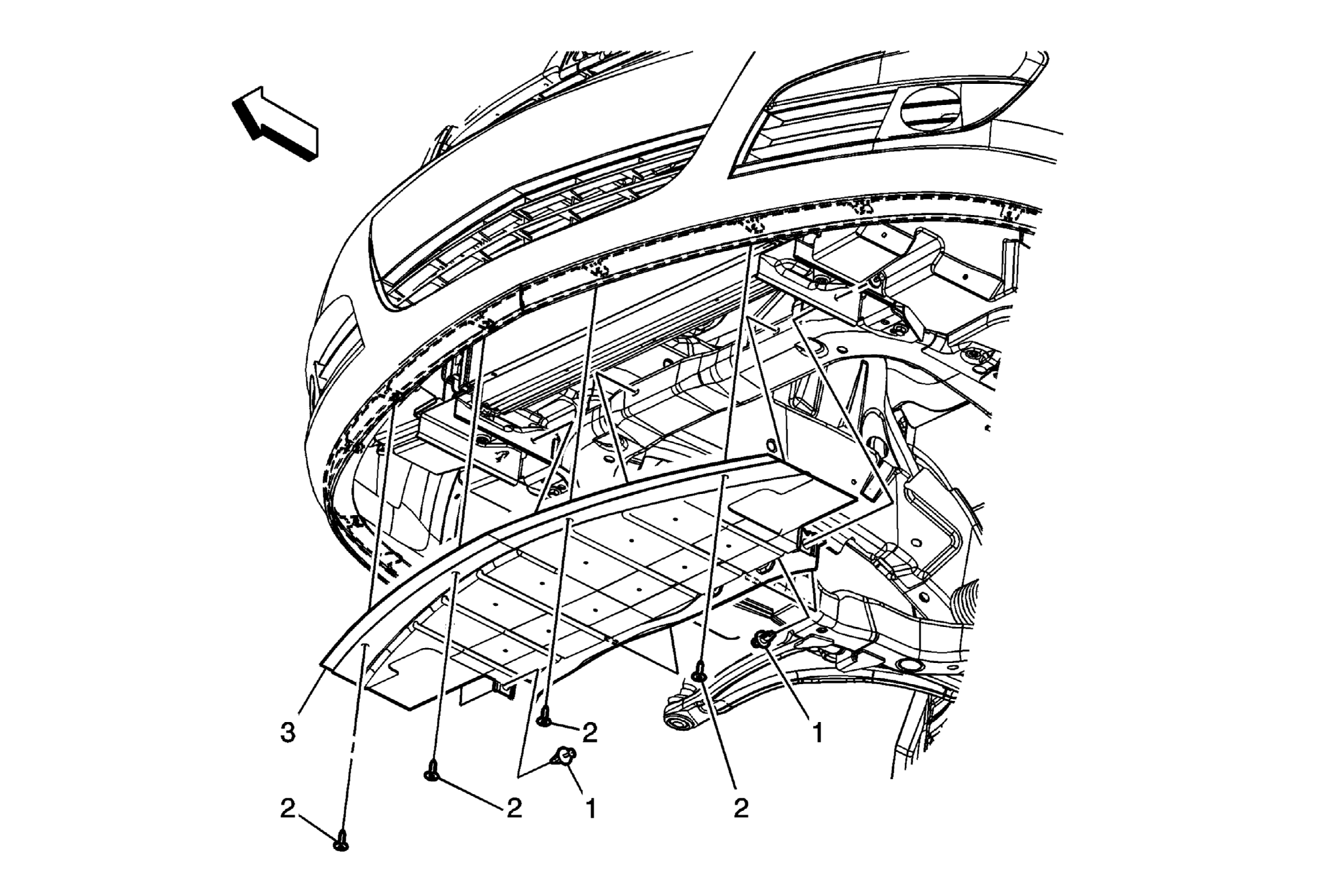

Fig 1: Identifying Engine Splash Shield
GM1824151Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Splash Shield Plastic Retainer (Qty: 2)
2 Engine Splash Shield Screw (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
3 Engine Splash Shield
