Lower Intake Manifold

Notice: Failure to tighten vertical bolts before the diagonal bolts may cause an oil leak.

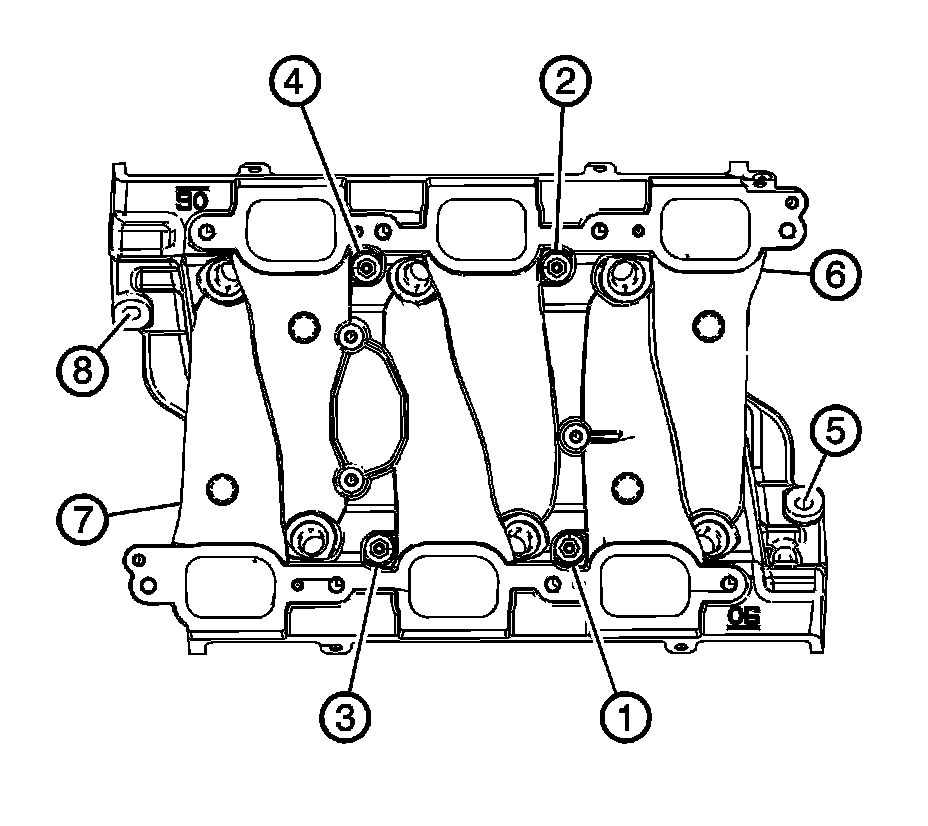

Tighten the lower intake manifold bolts in the sequence shown.

1. Tighten the bolts (1, 2, 3, 4) in sequence to 16 N.m (12 lb ft).
2. Tighten the bolts (5, 6, 7, 8) in sequence to 25 N.m (18 lb ft).
