Electrical Diagrams



Automatic Transmission Controls Schematics

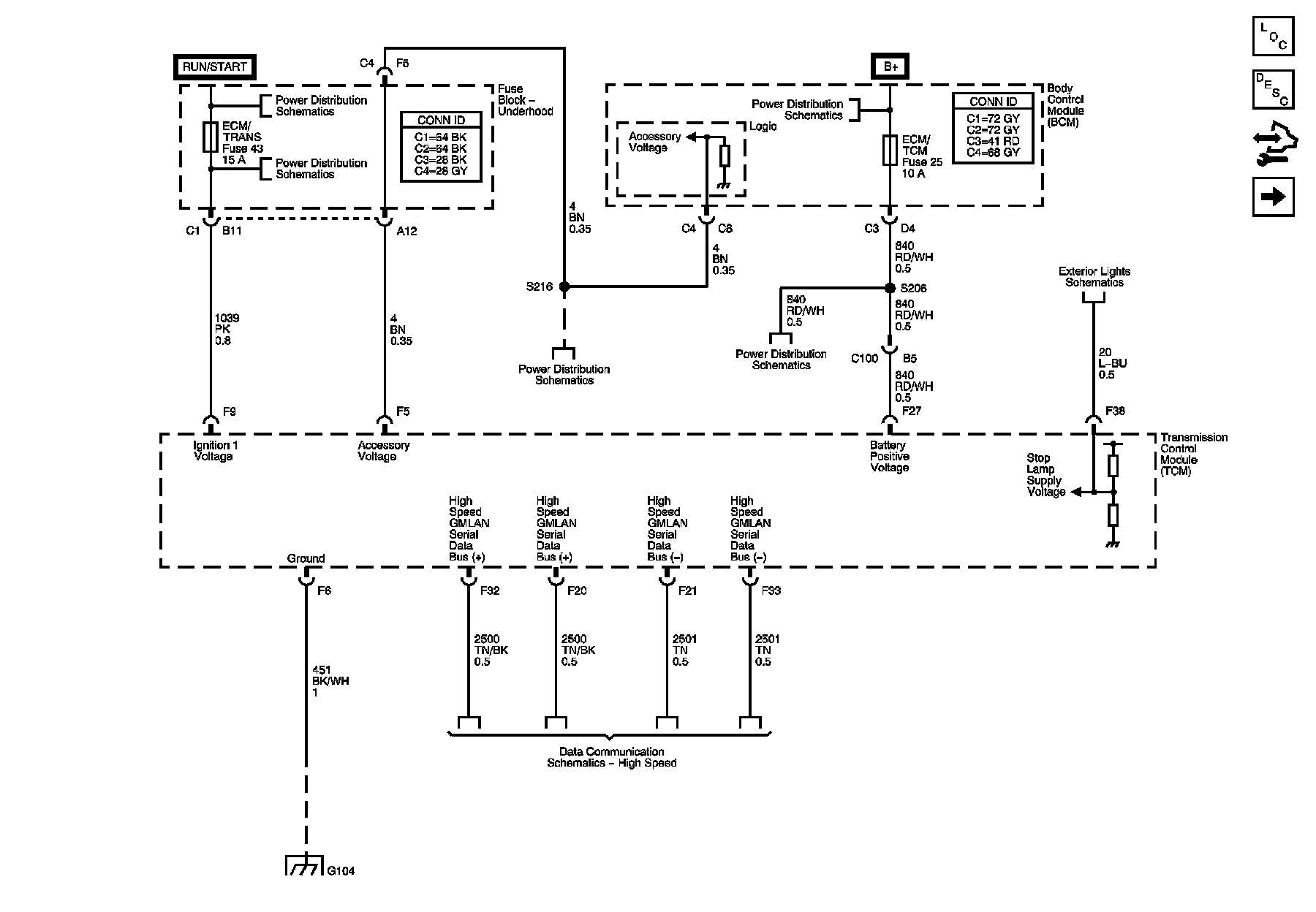

DLC, Ground, and Power

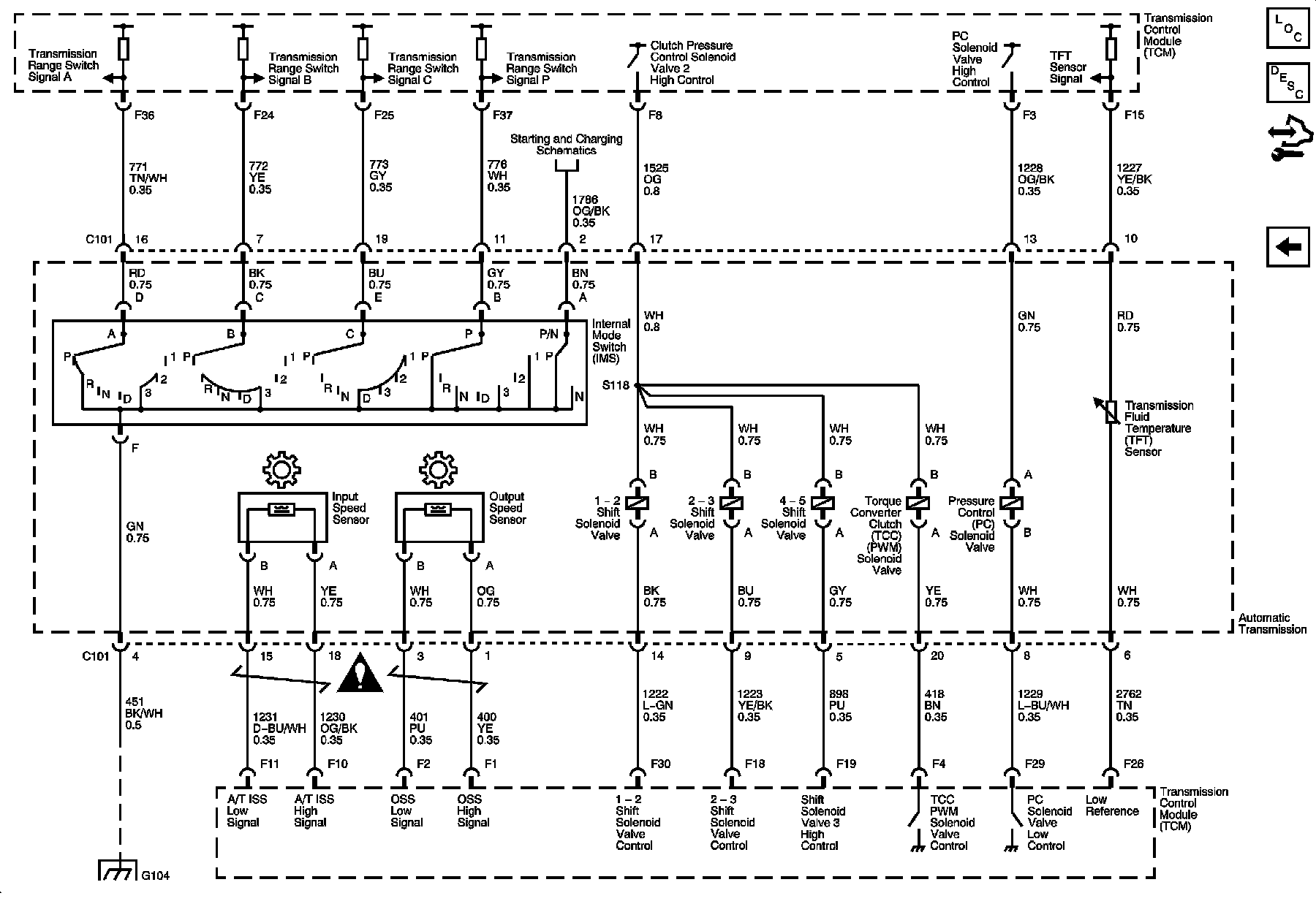

Shift Solenoids, TFT, and VSS
