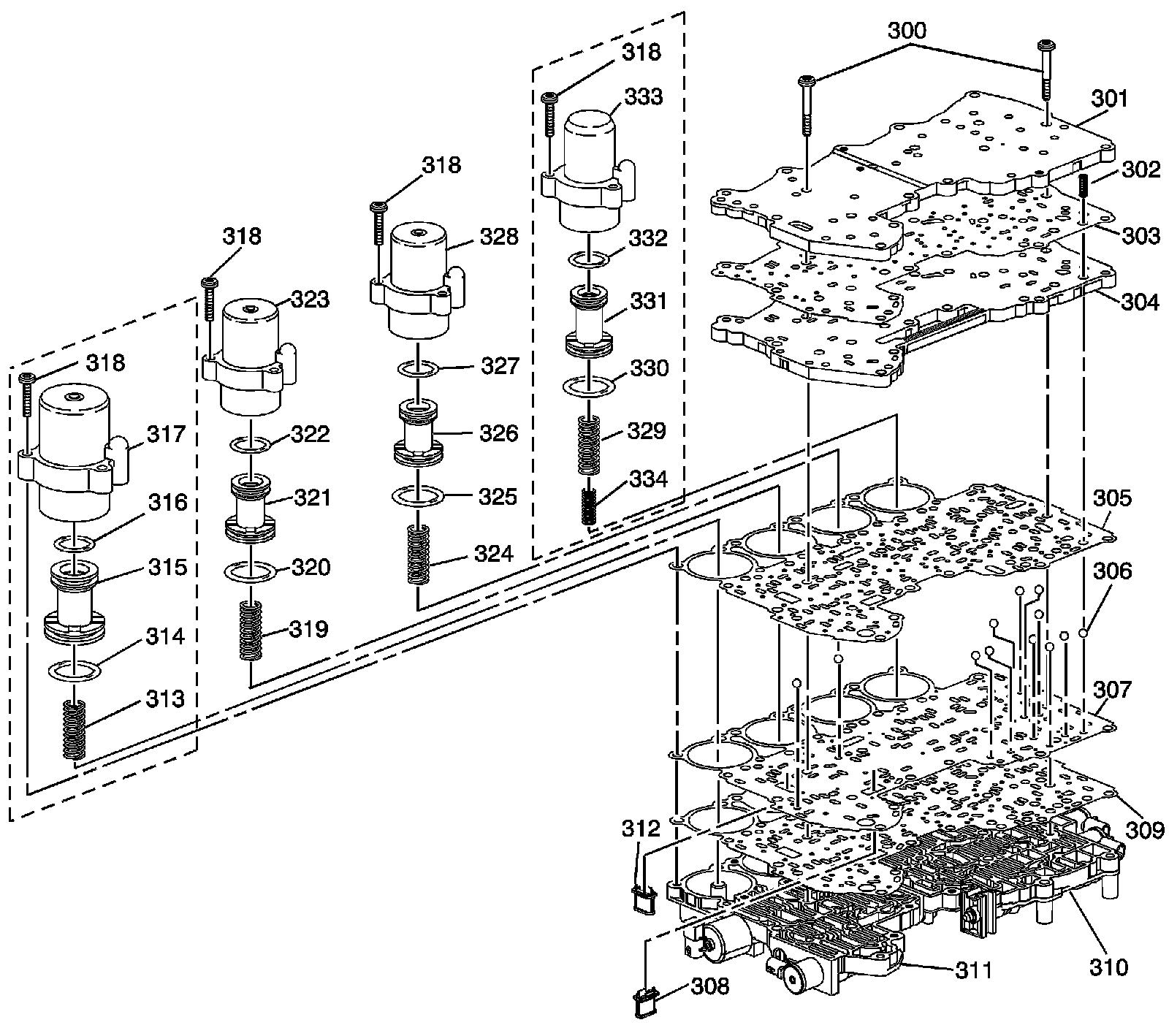

Control Valve Body and Accumulator Assembly
Disassembled Views
Control Valve Body and Accumulator Assembly
Control Valve Body and Accumulator Assembly:
300 - Control Valve Body Bolt M6 x 1.0 x 38 - 7
301 - Control Valve Top Channel Plate
302 - Control Valve Channel Plate Ball Check Spring
303 - Control Valve Channel Plate Gasket
304 - Control Valve Bottom Channel Plate
305 - Control Valve Body Gasket
306 - Control Valve Body Ball Check Valve
307 - Control Valve Body Spacer Plate
308 - TCC PWM Solenoid Valve Filter Assembly
309 - Control Valve Body Spacer Plate Gasket
310 - Control Valve Rear Body Assembly
311 - Control Valve Front Body Assembly
312 - Pressure Control Solenoid Valve Filter Assembly
313 - Direct Clutch Accumulator Piston Spring - Model Dependent
314 - Direct Clutch Accumulator Piston Fluid Seal Ring - Model Dependent
315 - Direct Clutch Accumulator Piston - Model Dependent
316 - Direct Clutch Accumulator Piston Fluid Seal Ring - Model Dependent
317 - Direct Clutch Accumulator Housing - Model Dependent
318 - Accumulator Housing Bolt M6 x 1.0 x 30 - 12 - Model Dependent
318 - Accumulator Housing Bolt M6 x 1.0 x 30 - 12
318 - Accumulator Housing Bolt M6 x 1.0 x 30 - 12
318 - Accumulator Housing Bolt M6 x 1.0 x 30 - 12
319 - Overdrive Clutch Accumulator Piston Spring
320 - Overdrive Clutch Accumulator Piston Fluid Seal Ring
321 - Overdrive Clutch Accumulator Piston
322 - Overdrive Clutch Accumulator Piston Fluid Seal Ring
323 - Overdrive Clutch Accumulator Housing
324 - Intermediate Clutch Accumulator Piston Spring
325 - Intermediate Clutch Accumulator Piston Fluid Seal Ring
326 - Intermediate Clutch Accumulator Piston
327 - Intermediate Clutch Accumulator Piston Fluid Seal Ring
328 - Intermediate Clutch Accumulator Housing
329 - 2nd Clutch Accumulator Piston Spring - Model Dependent
330 - 2nd Clutch Accumulator Piston Seal Ring - Model Dependent
331 - 2nd Clutch Accumulator Piston - Model Dependent
332 - 2nd Clutch Accumulator Piston Seal Ring - Model Dependent
333 - 2nd Clutch Accumulator Housing - Model Dependent
334 - 2nd Clutch Accumulator Piston Inner Spring - Model Dependent
