Body Control Systems



Body Control System Schematics

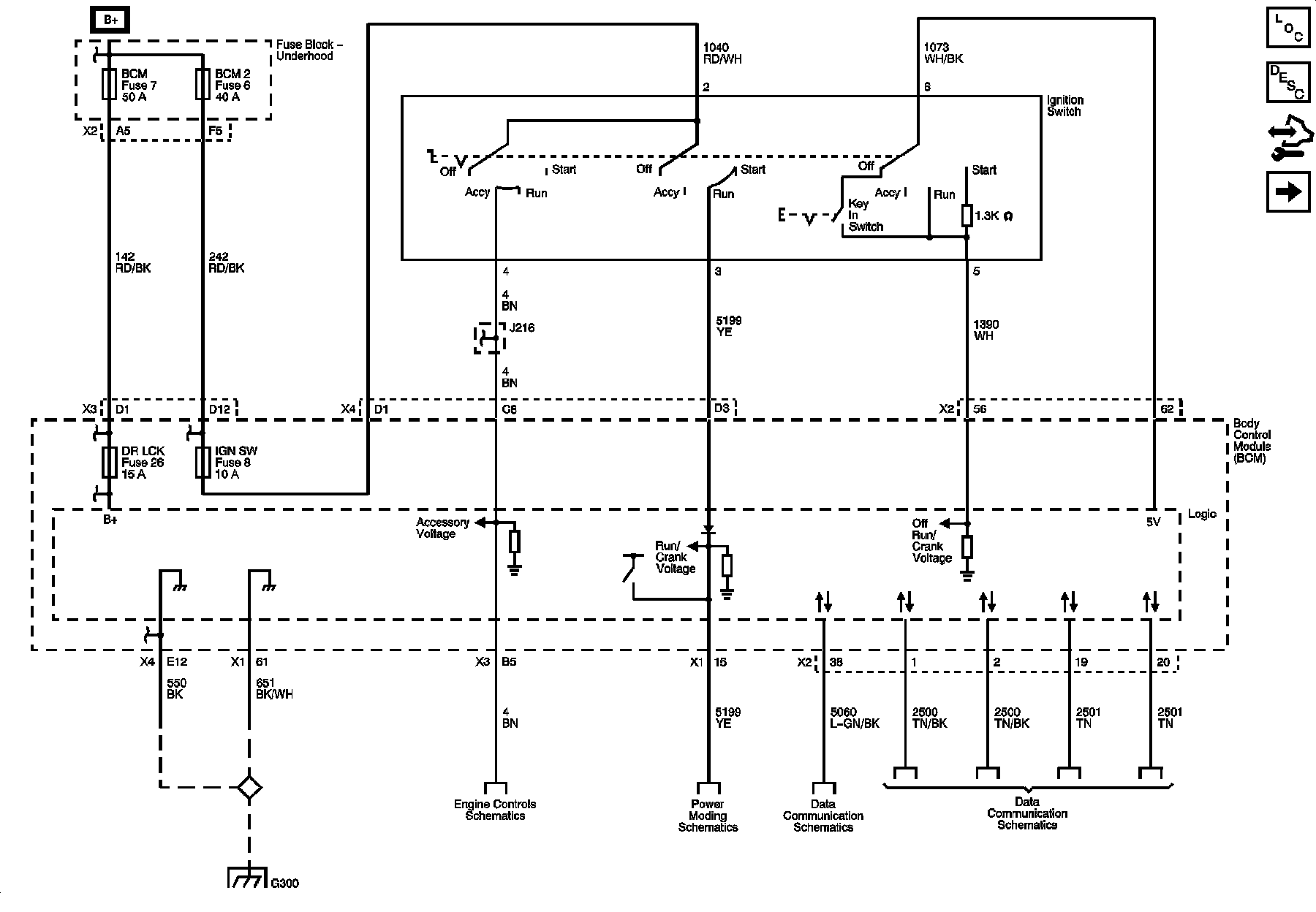

Power, Ground, and Data Link

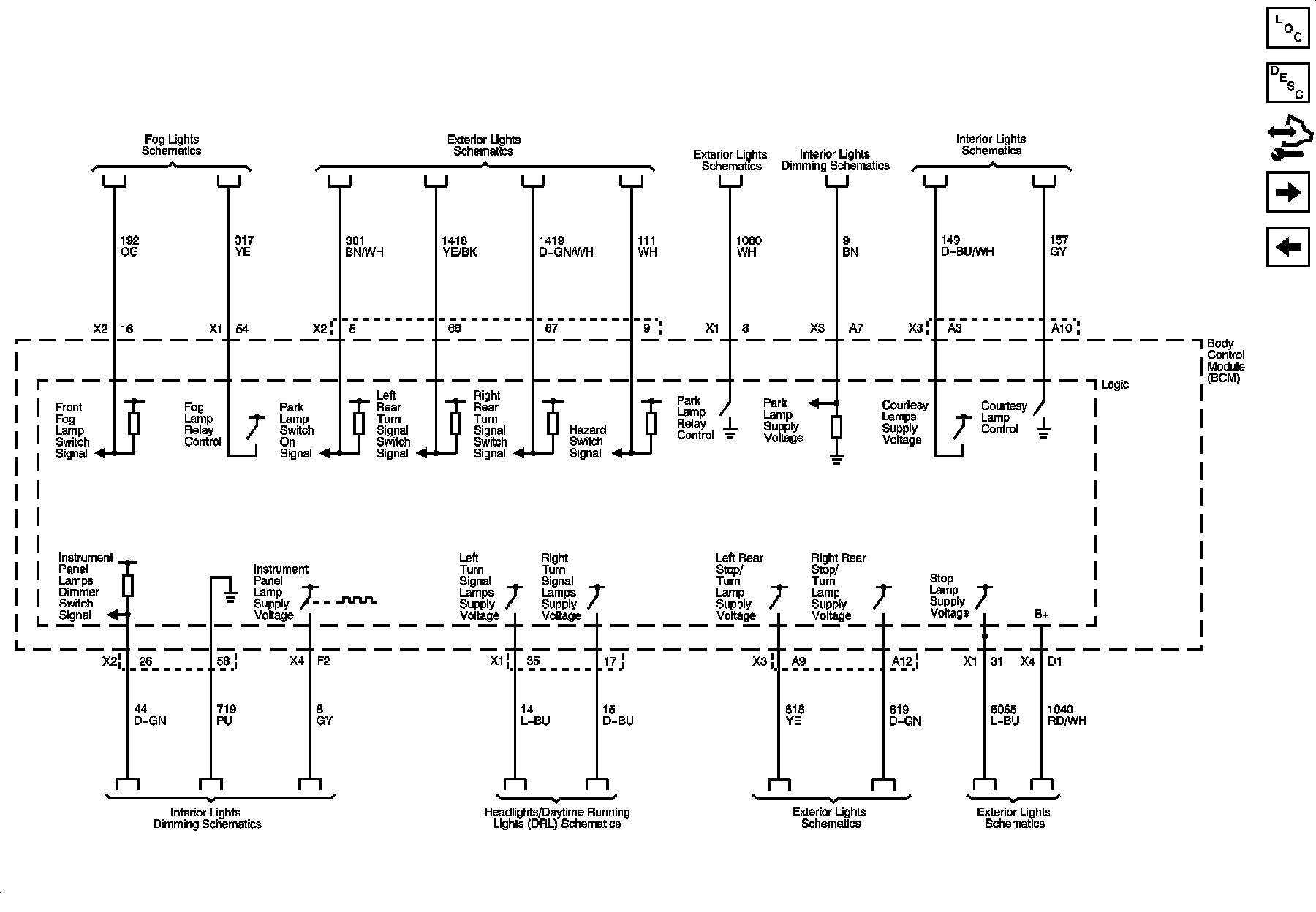

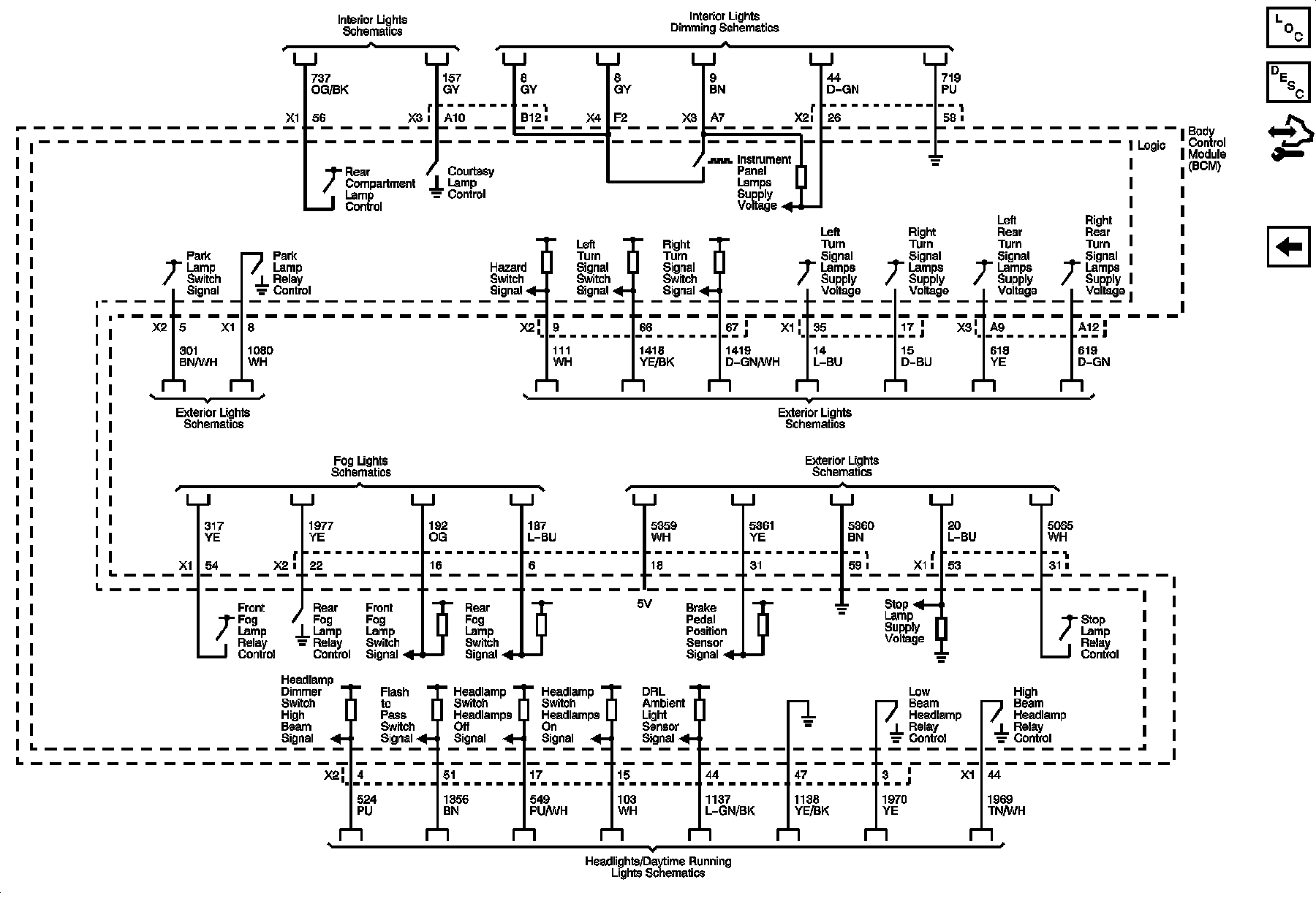

Lighting System References

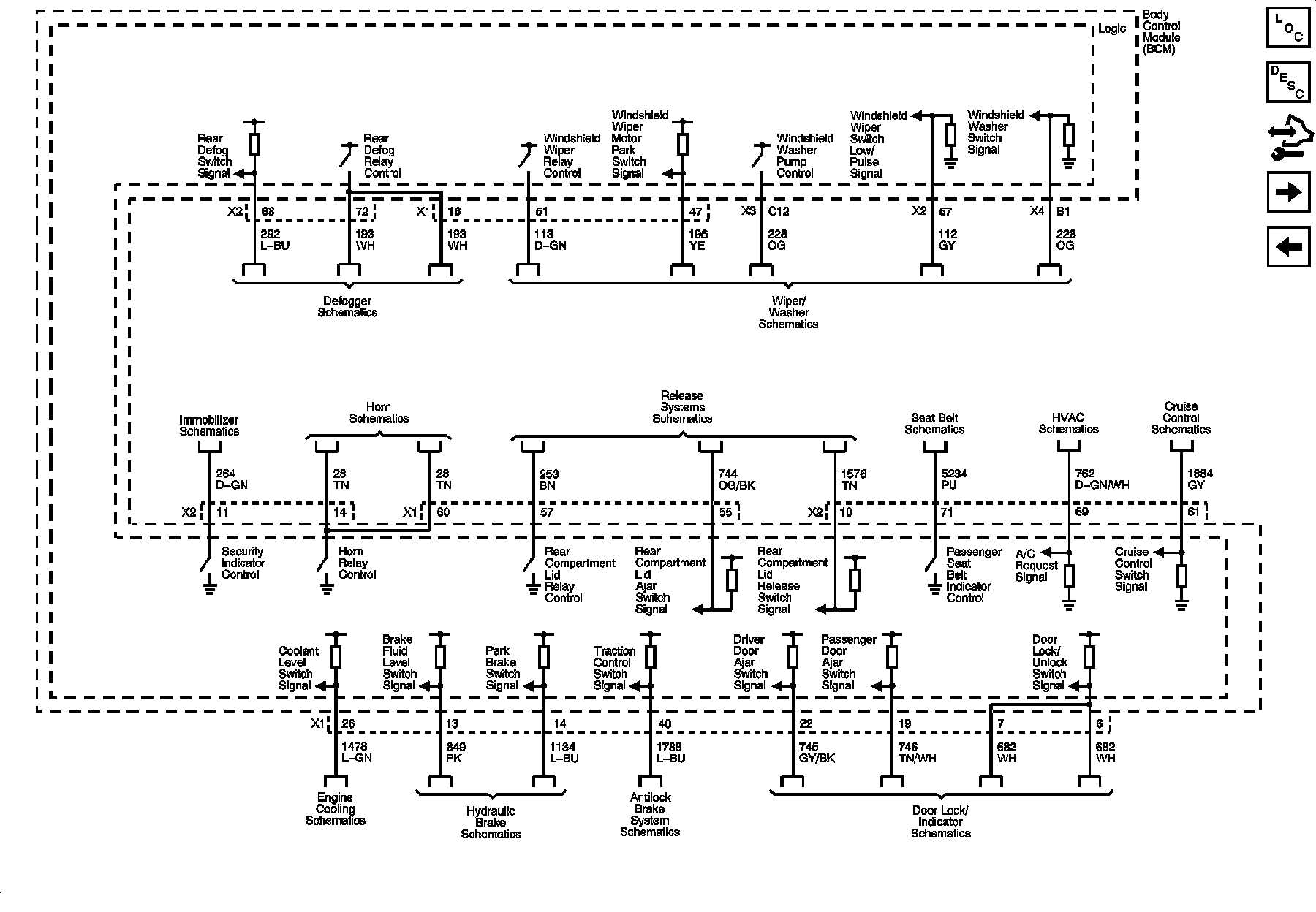

Brakes, Cooling System, Cruise, and Door Lock References





Defogger, Horn, Release Systems, and Wiper/Washer References
