Heating and Air Conditioning
Component Connector End Views

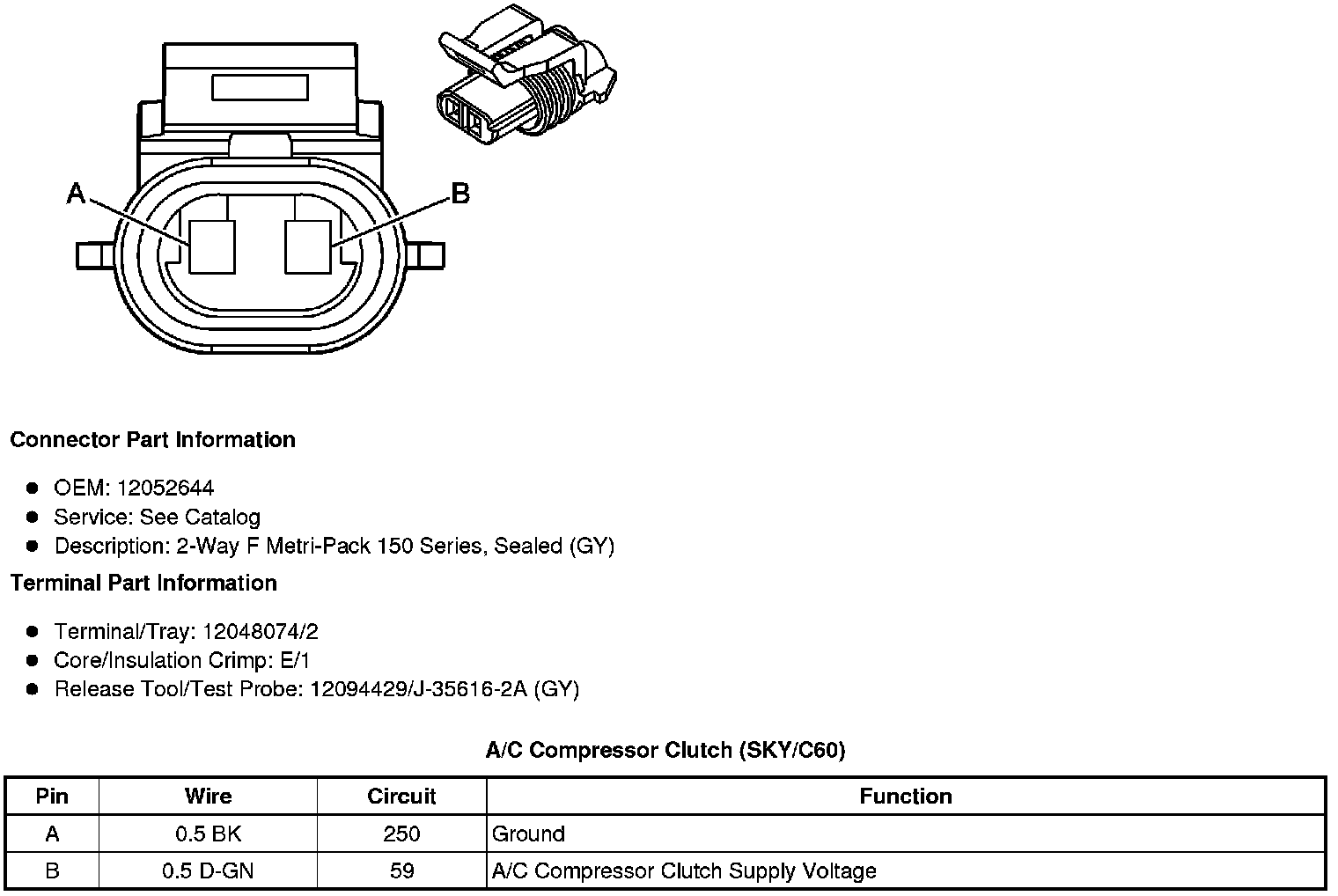

A/C Compressor Clutch (SKY/C60)

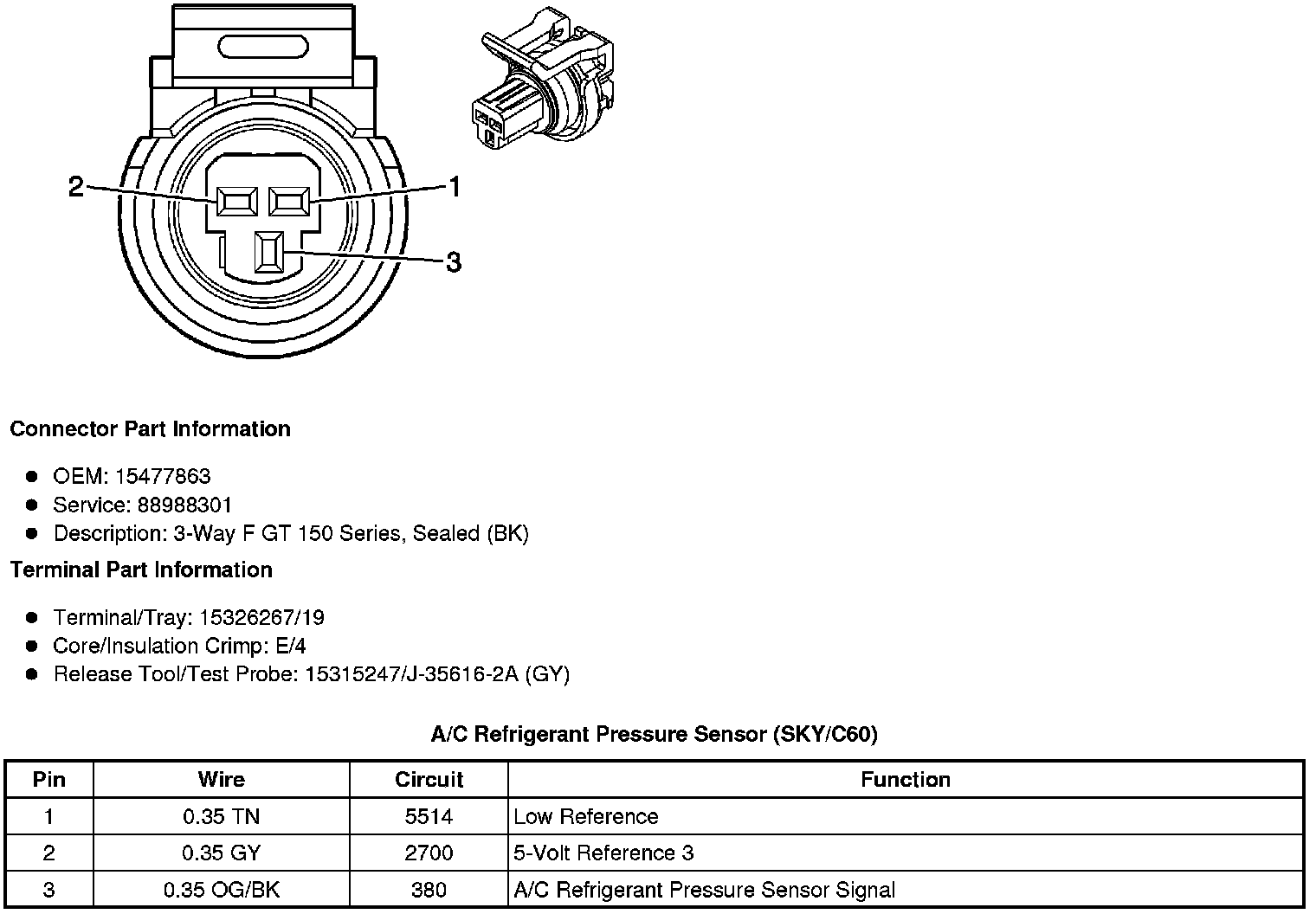

A/C Refrigerant Pressure Sensor (SKY/C60)
Air Temperature Actuator - Left
Air Temperature Actuator - Right
Blower Motor

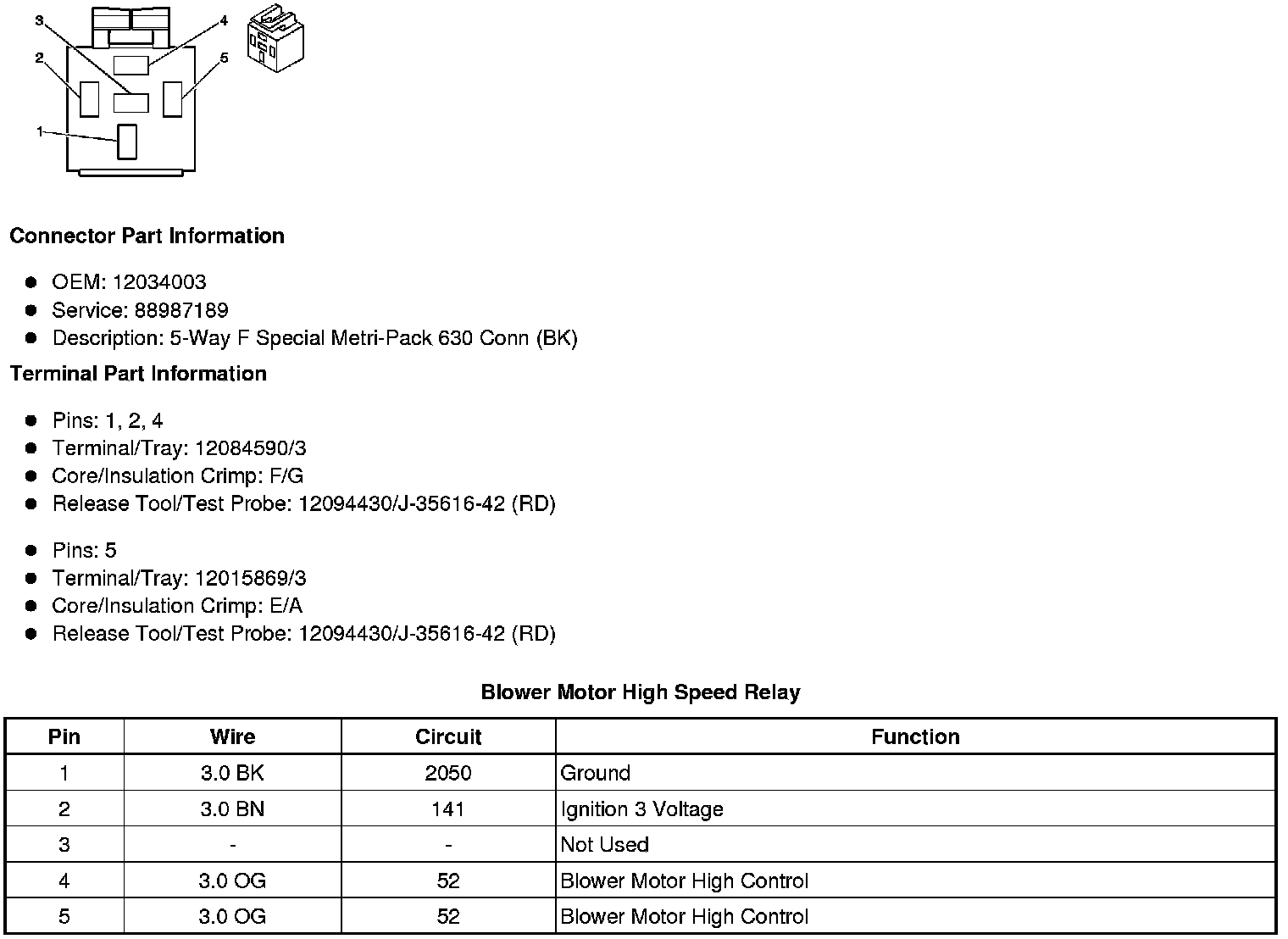

Blower Motor High Speed Relay

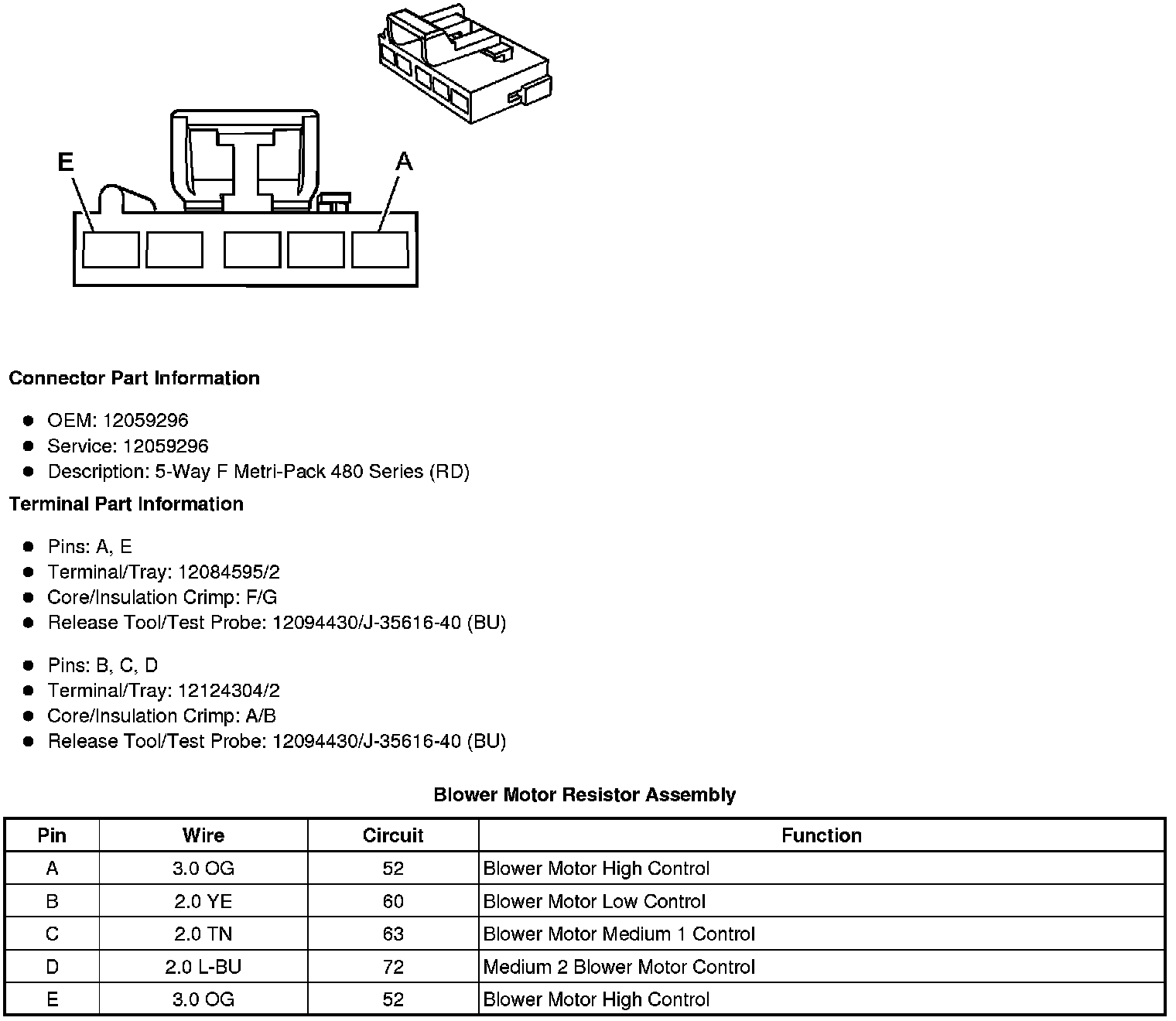

Blower Motor Resistor Assembly
Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Evaporative Emission (EVAP) Canister Vent Solenoid
Evaporator Temperature Sensor (SKY/C60)
Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Evaporative Emission (EVAP) Canister Vent Solenoid
Evaporator Temperature Sensor (SKY/C60)

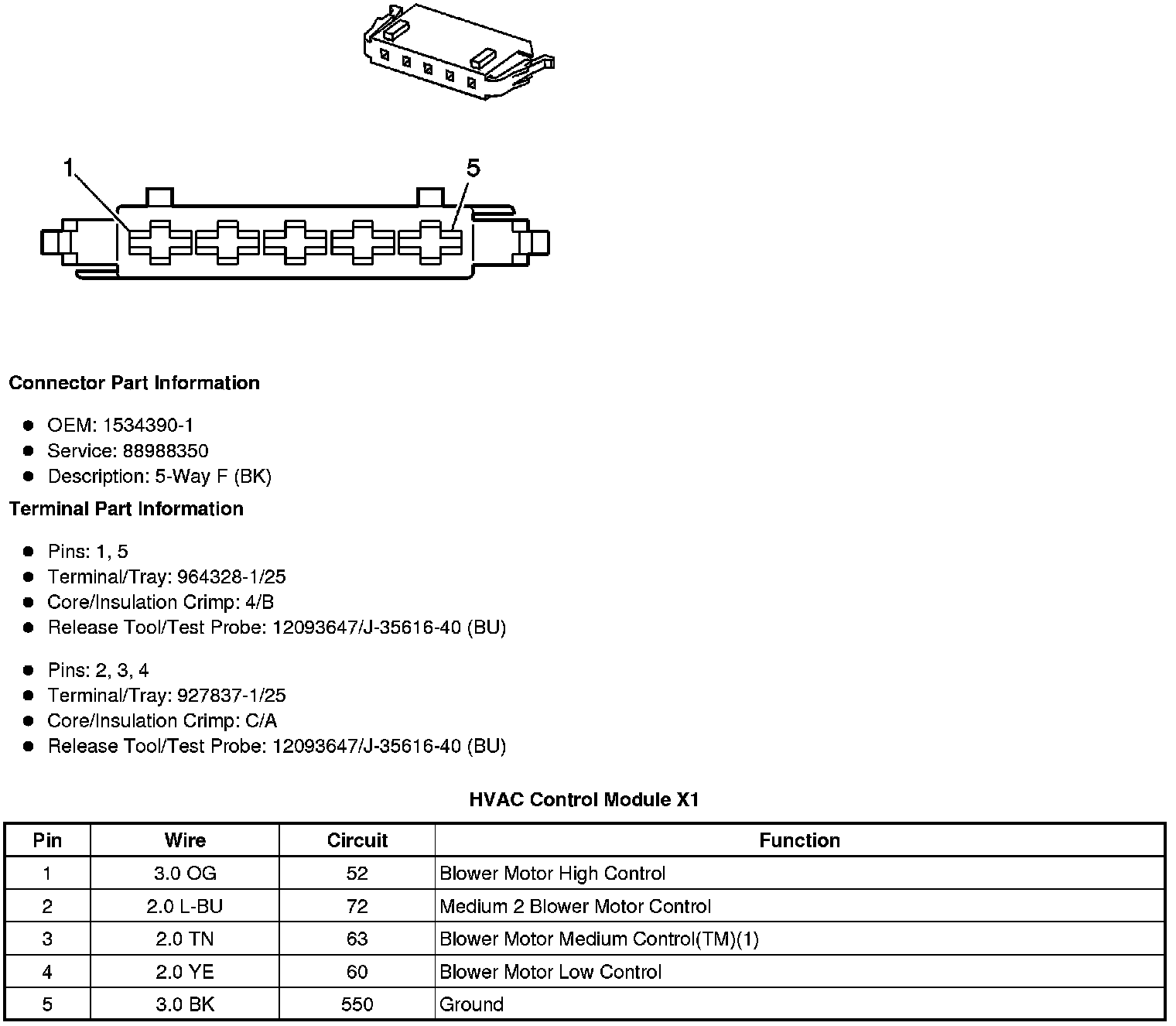

HVAC Control Module X1

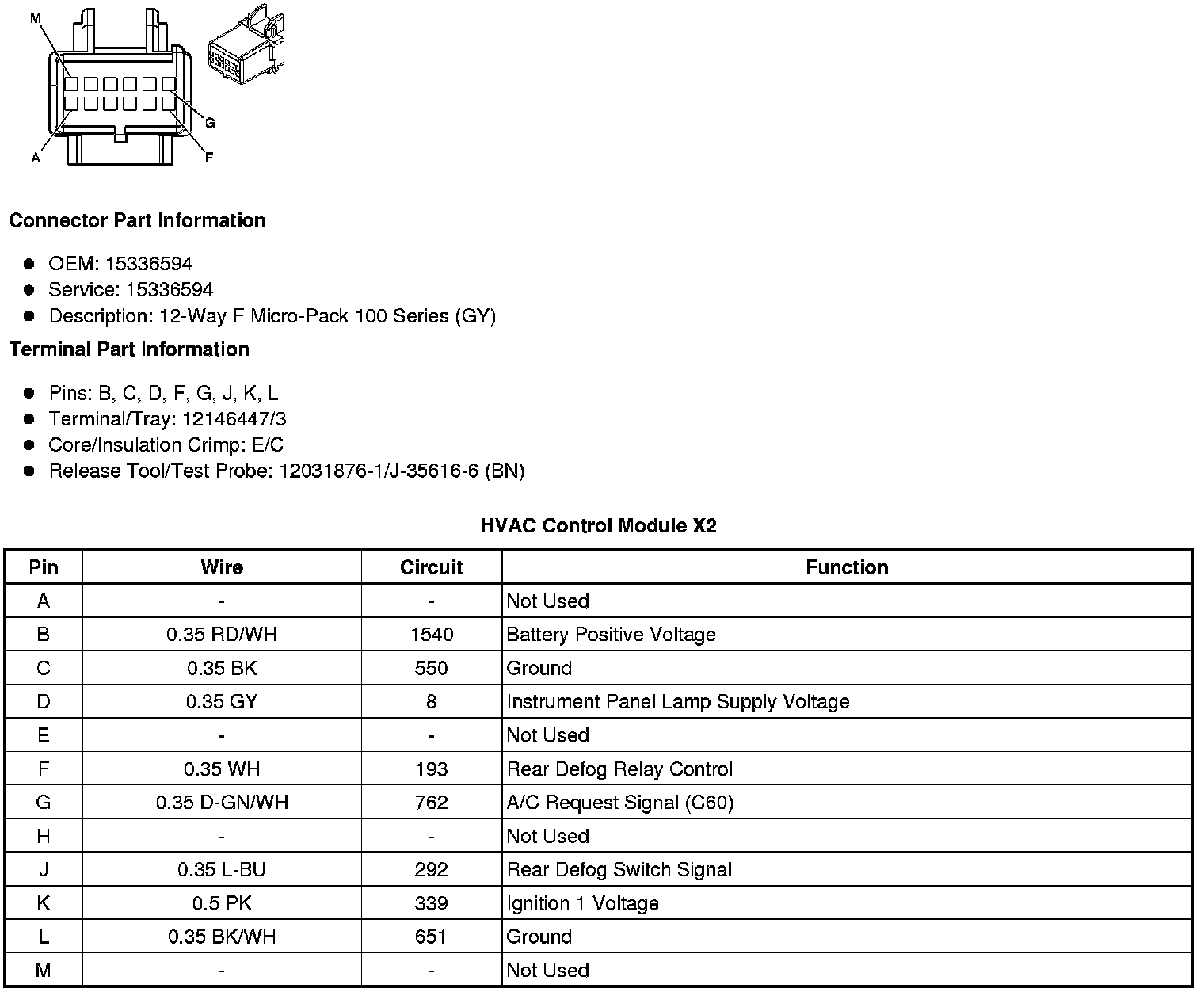

HVAC Control Module X2

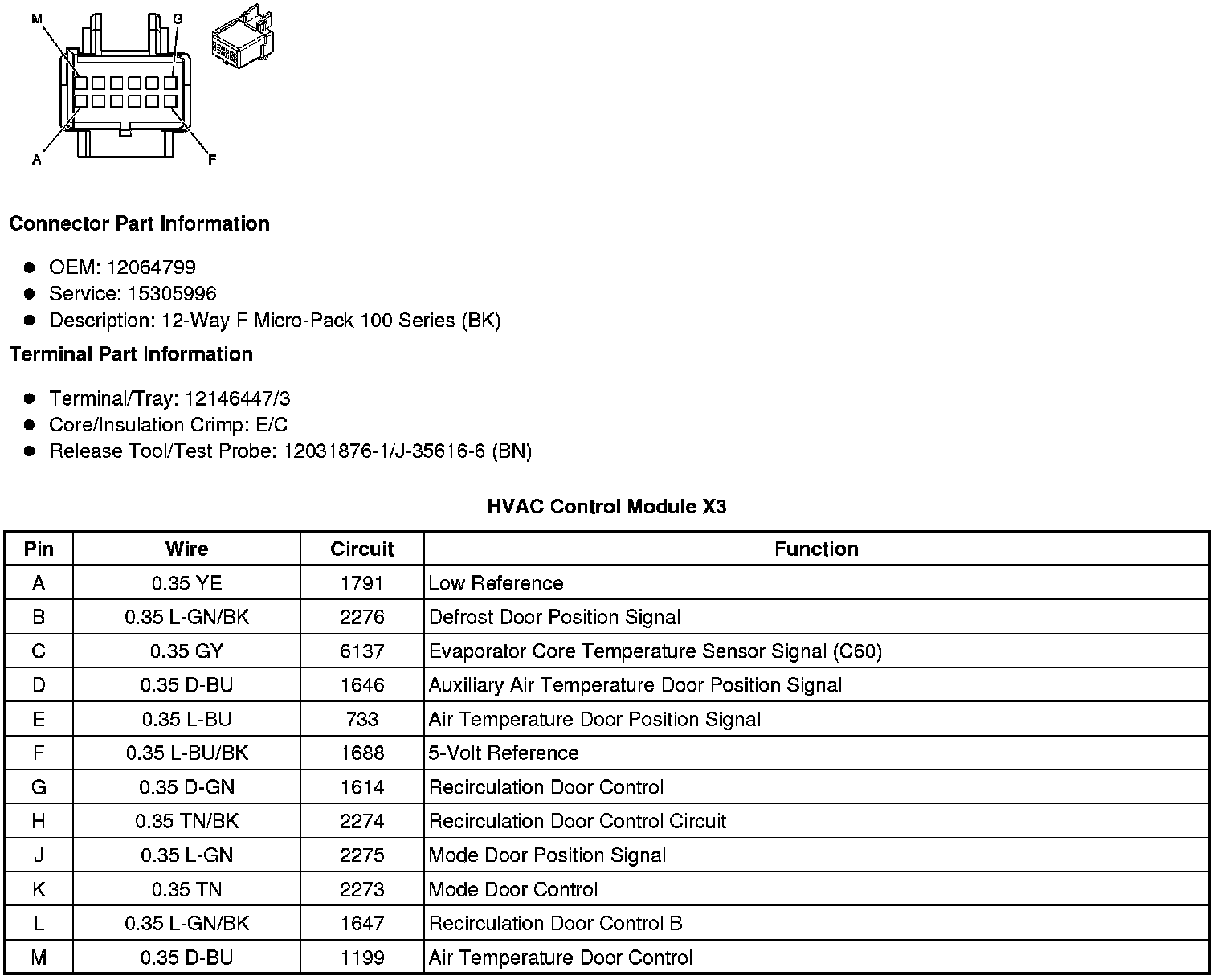

HVAC Control Module X3
Recirculation Actuator

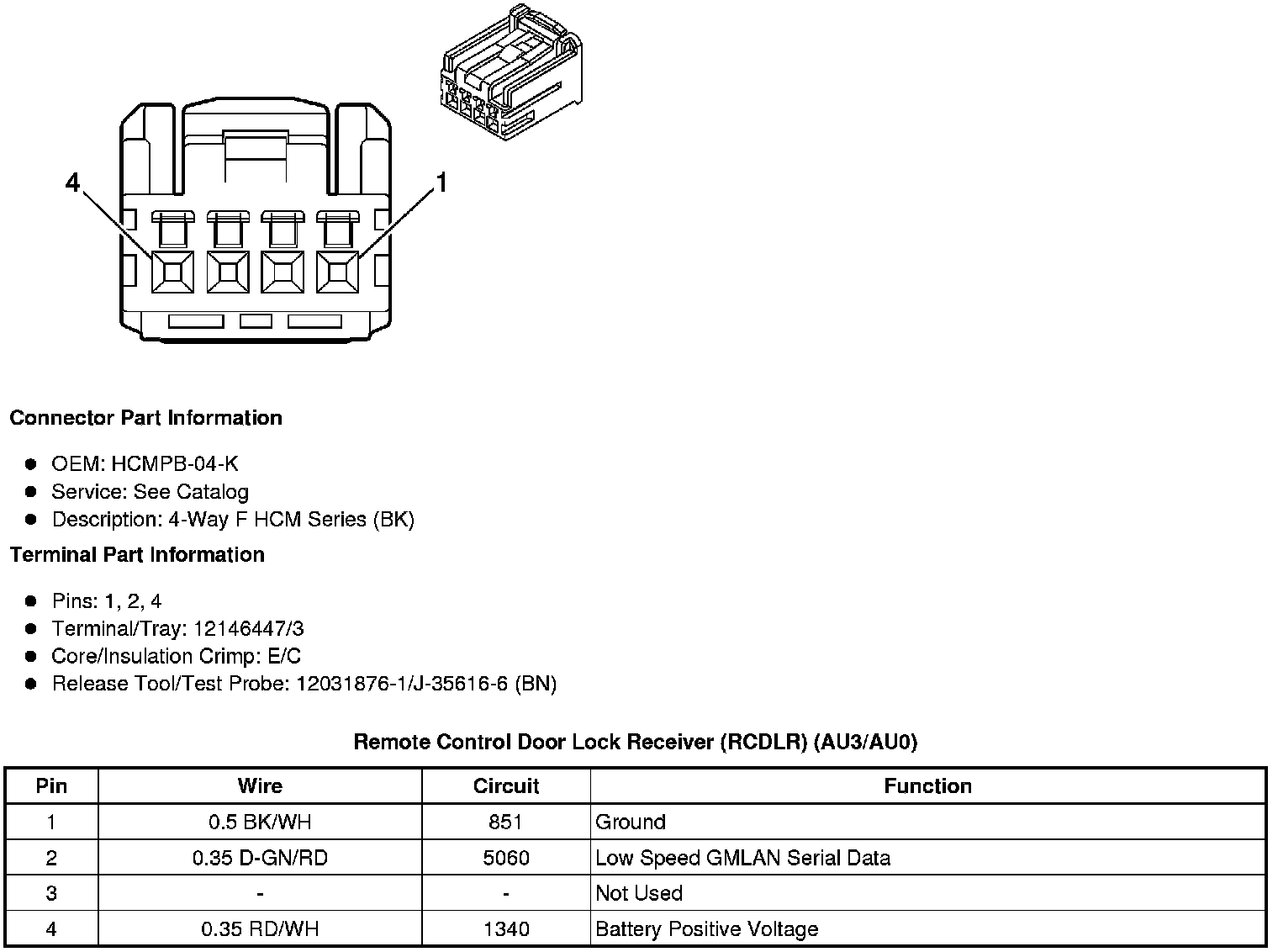

Remote Control Door Lock Receiver (RCDLR) (AU3/AU0)
Seat Adjuster Switch - Driver (AF2)
