Body and Frame



Component Connector End Views

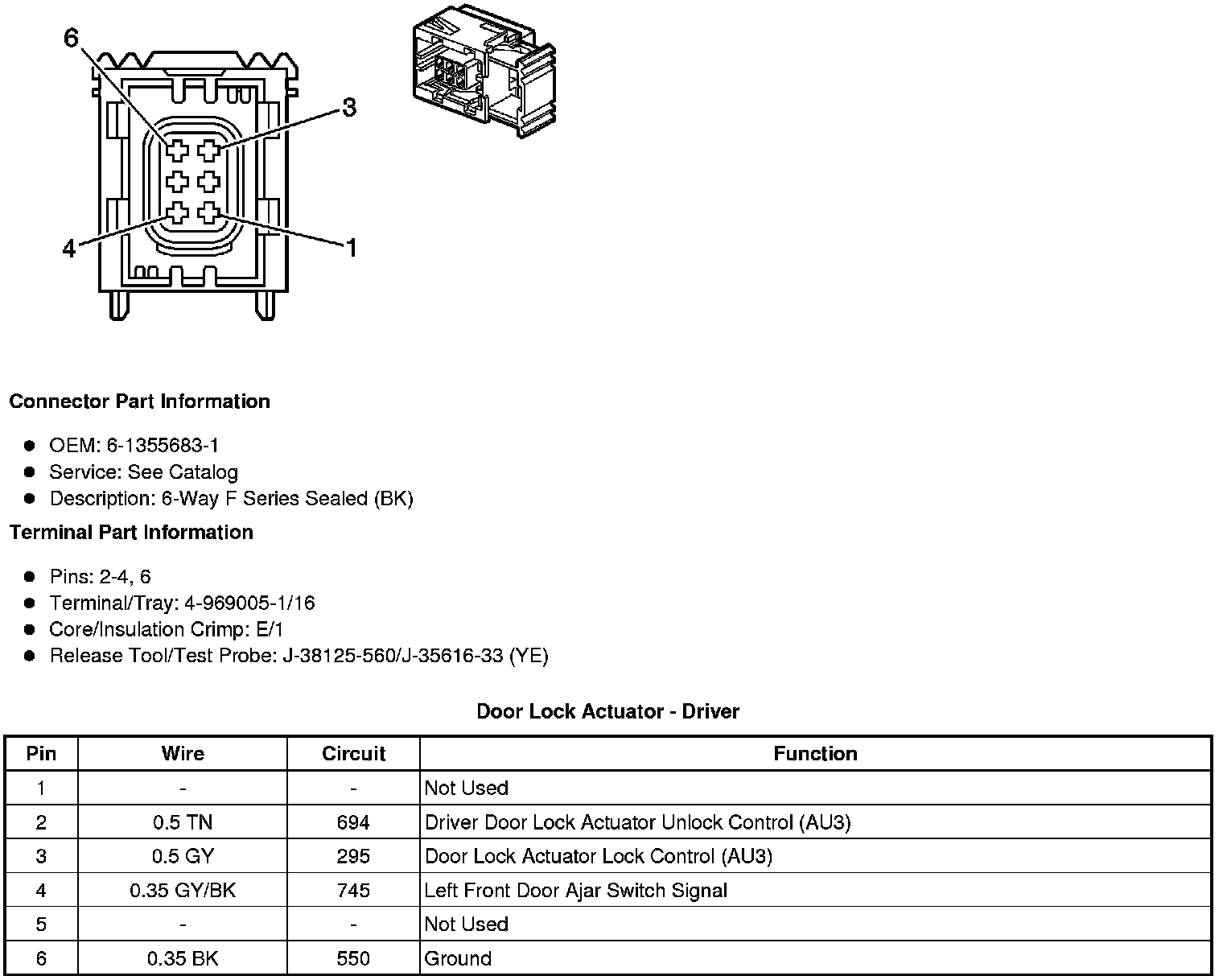

Door Lock Actuator - Driver

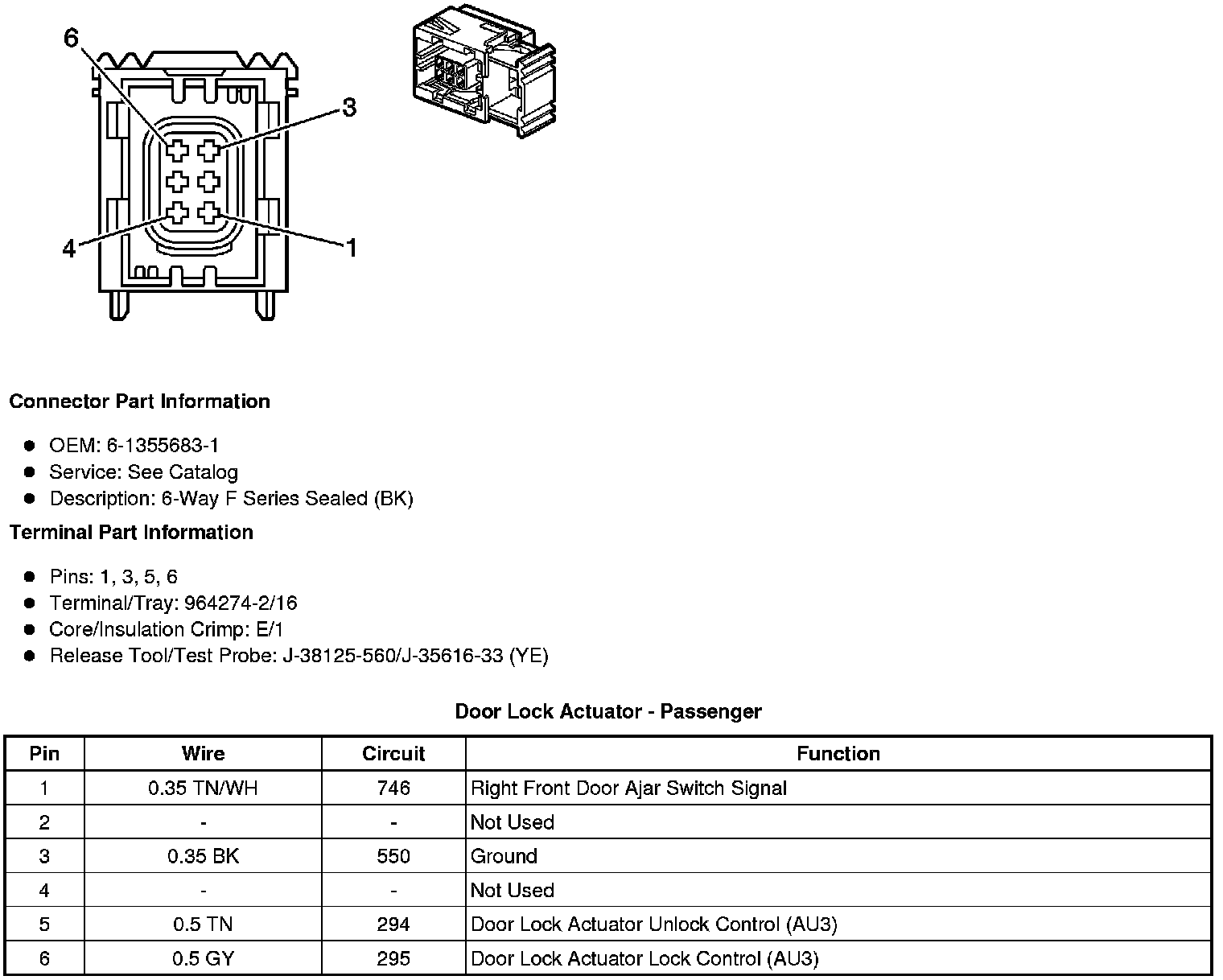

Door Lock Actuator - Passenger

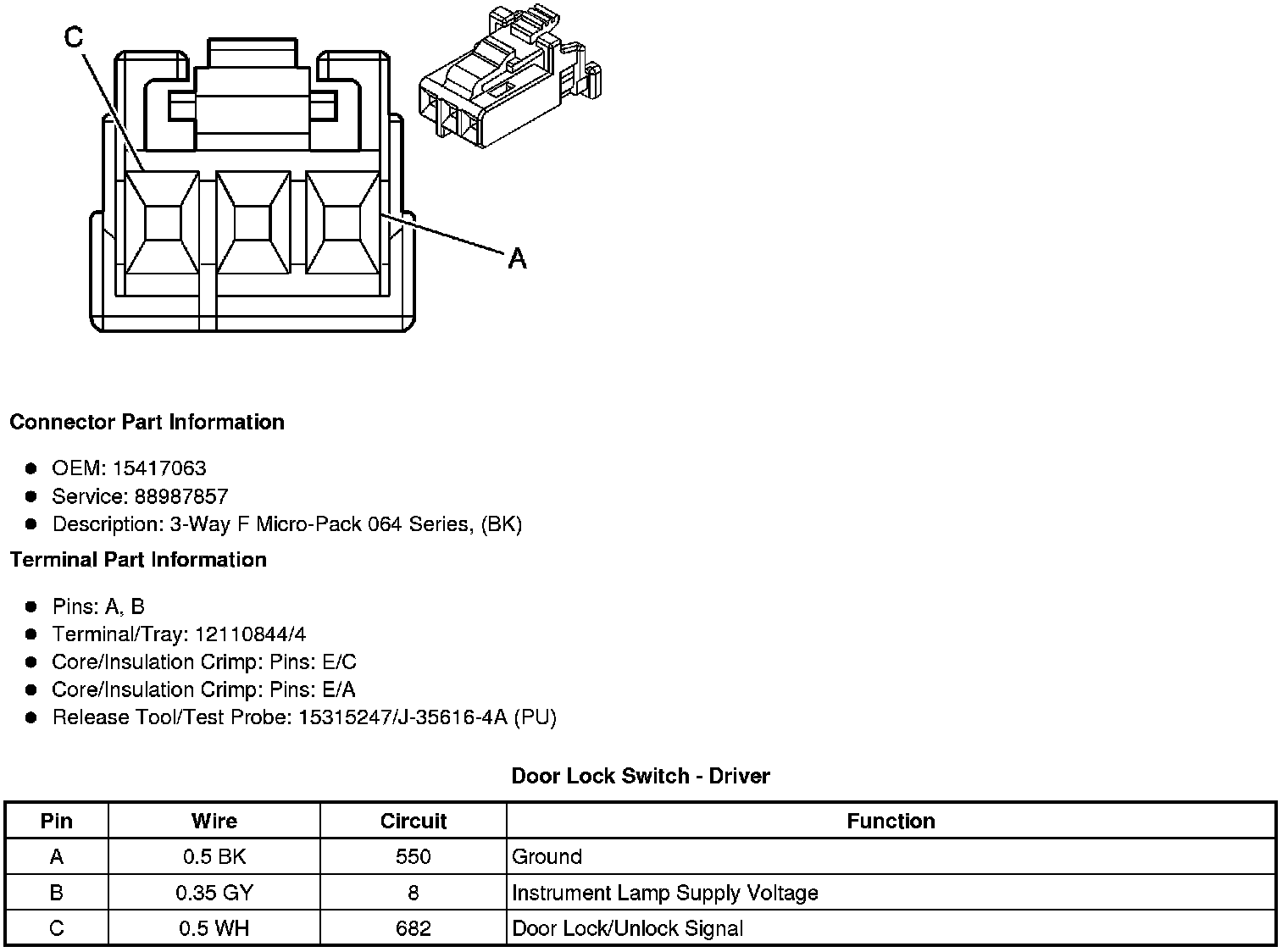

Door Lock Switch - Driver

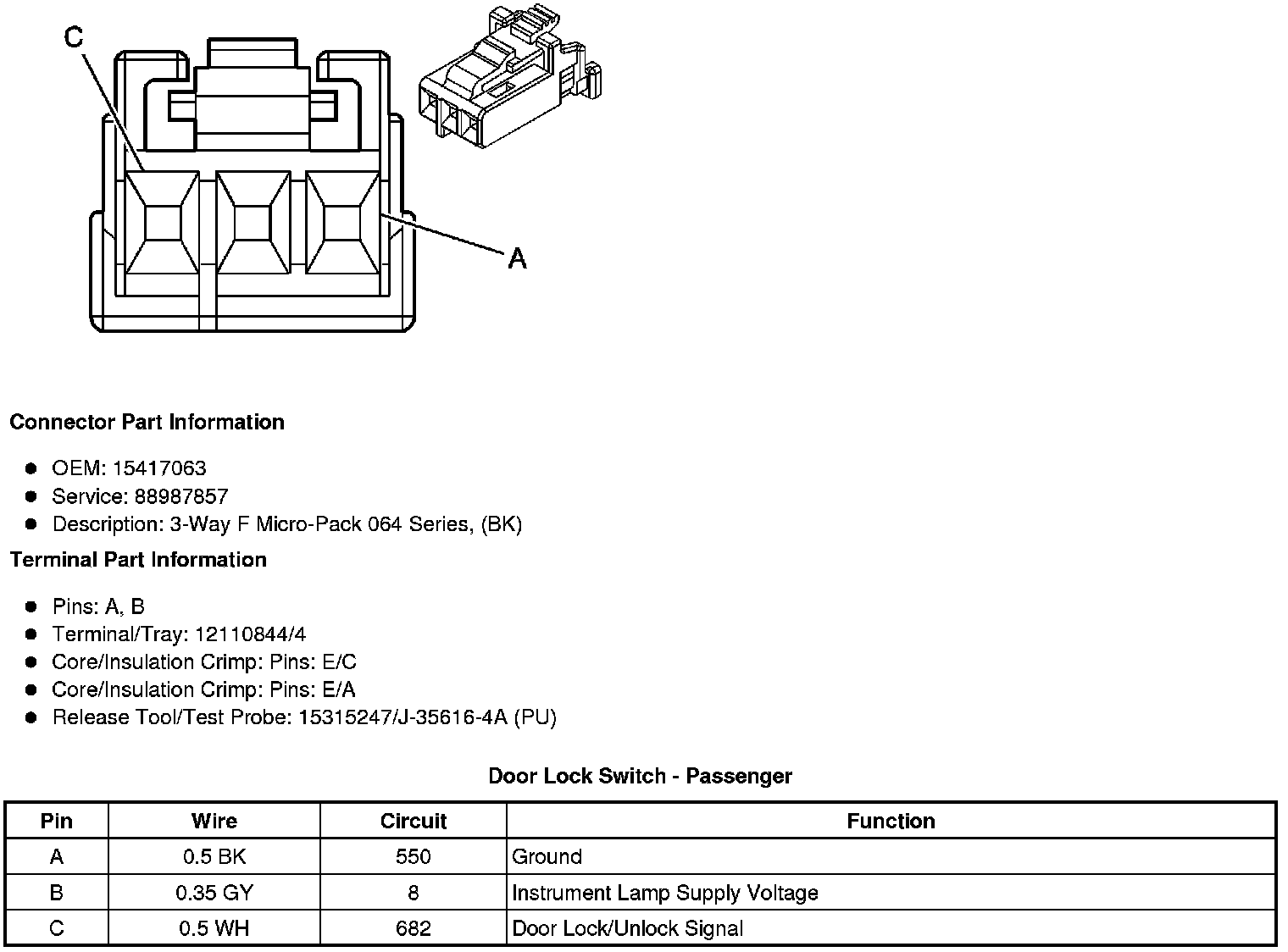

Door Lock Switch - Passenger





Folding Top Cover Actuator





Inside Rearview Mirror (-UE1)

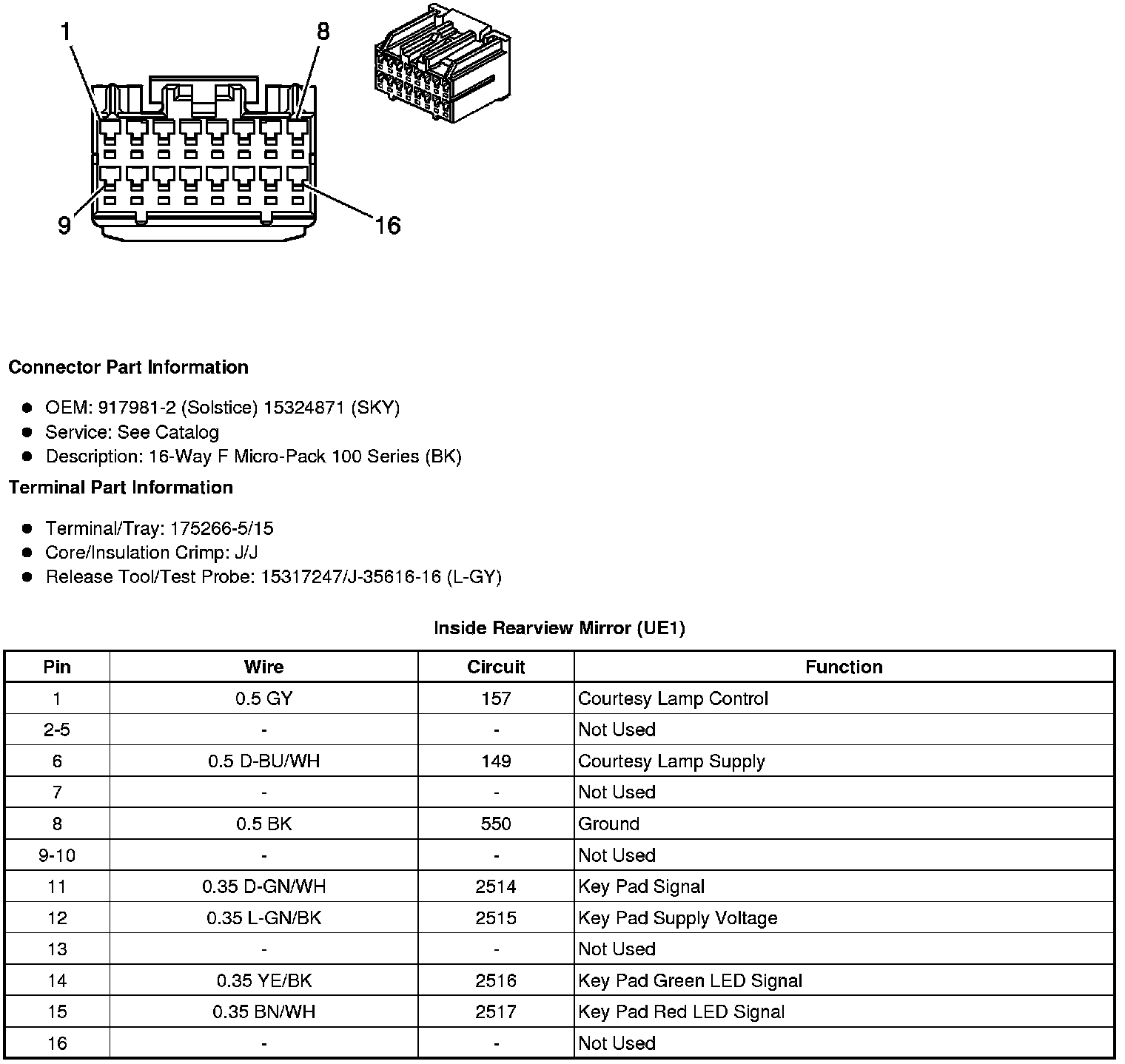

Inside Rearview Mirror (UE1)

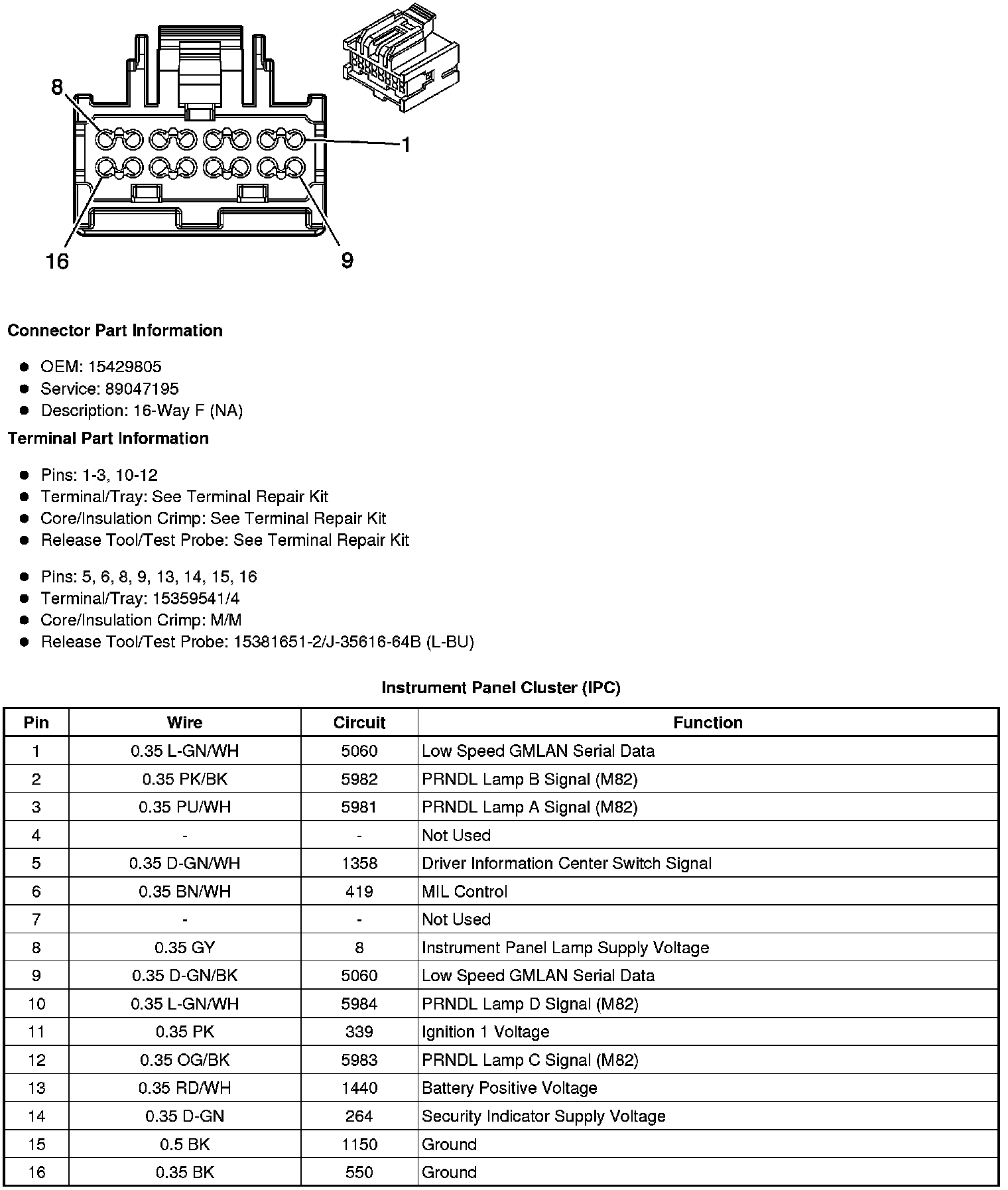

Instrument Panel Cluster (IPC)





Outside Air Temperature Sensor (SKY)

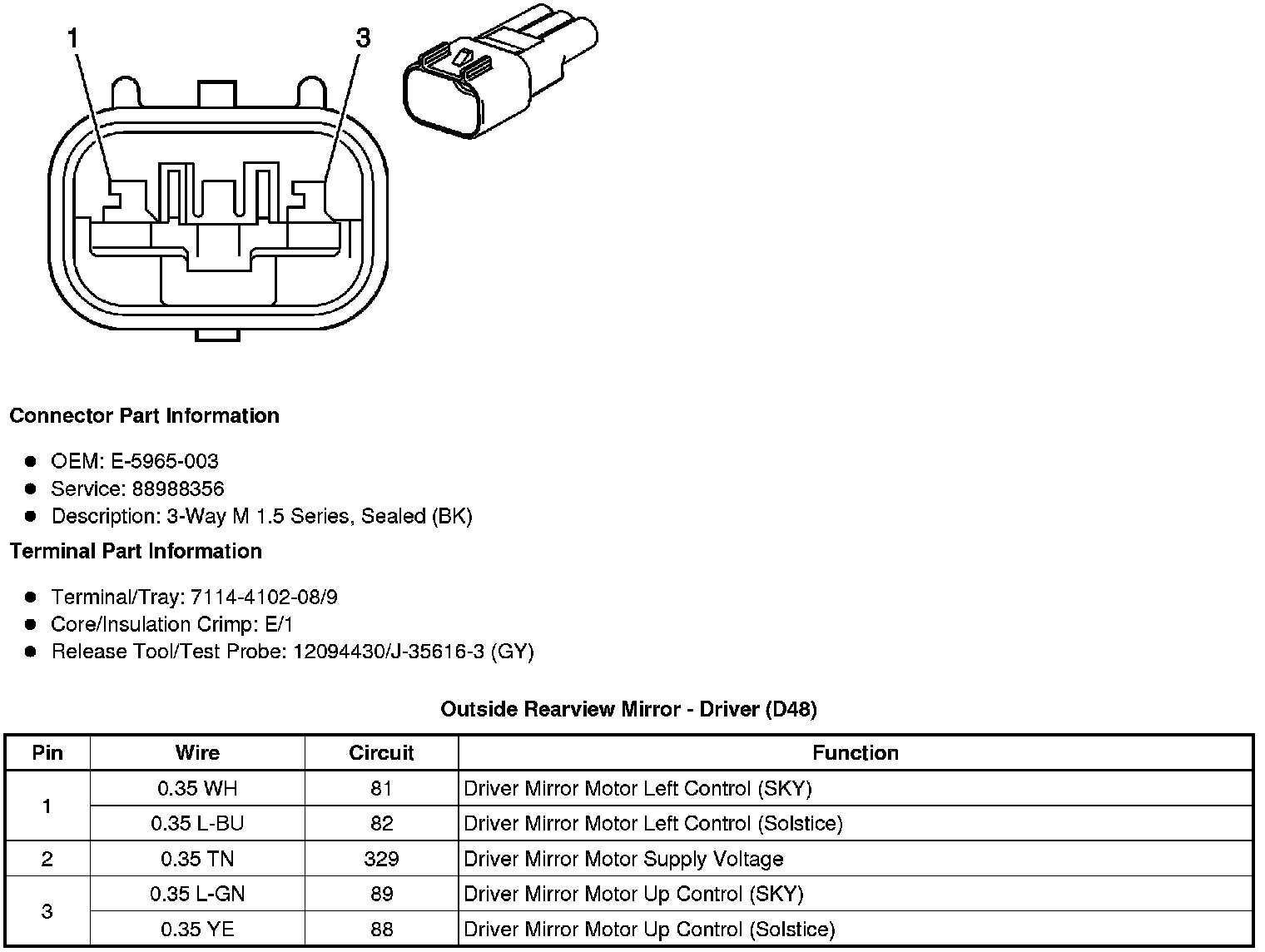

Outside Rearview Mirror - Driver (D48)

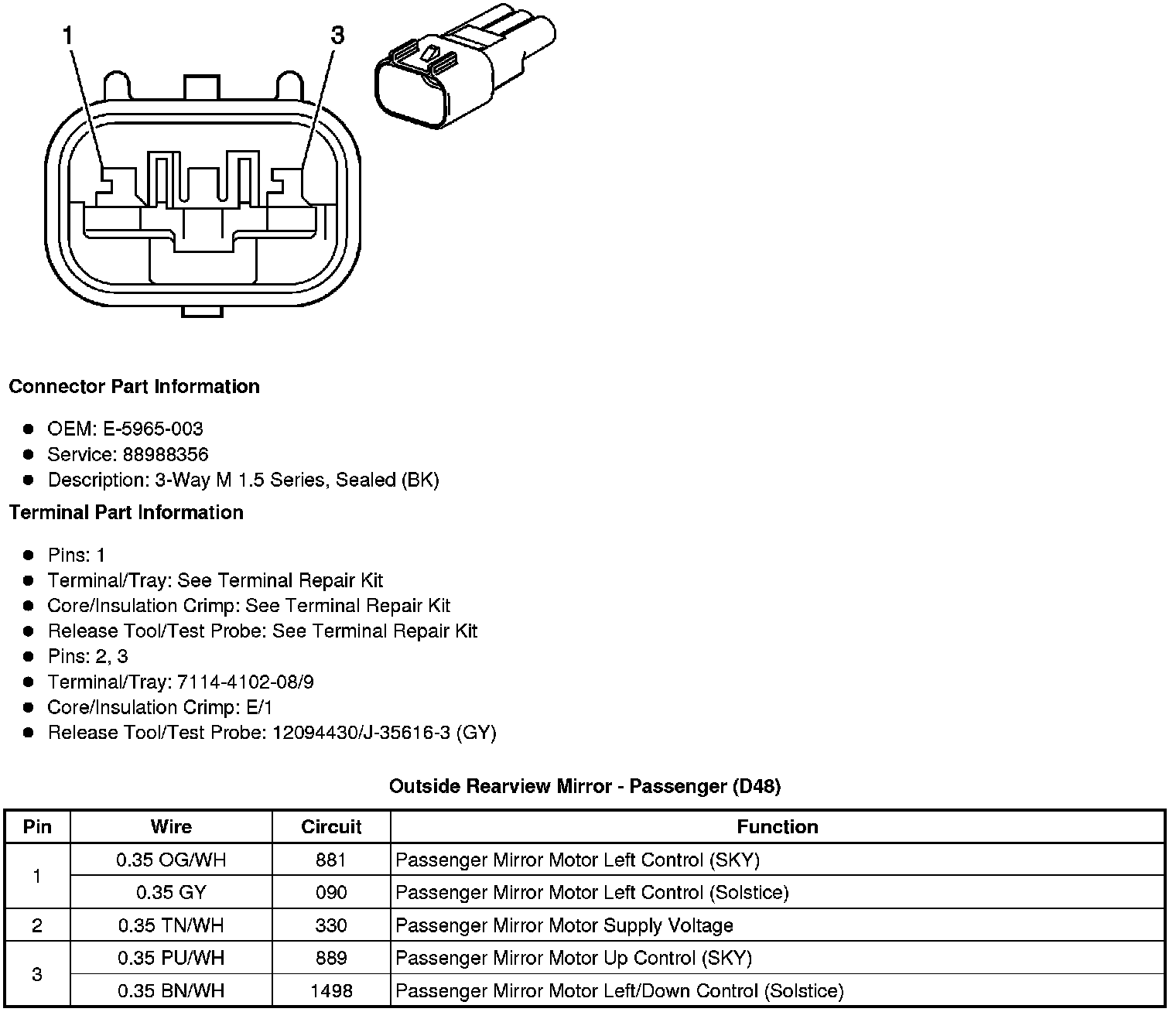

Outside Rearview Mirror - Passenger (D48)

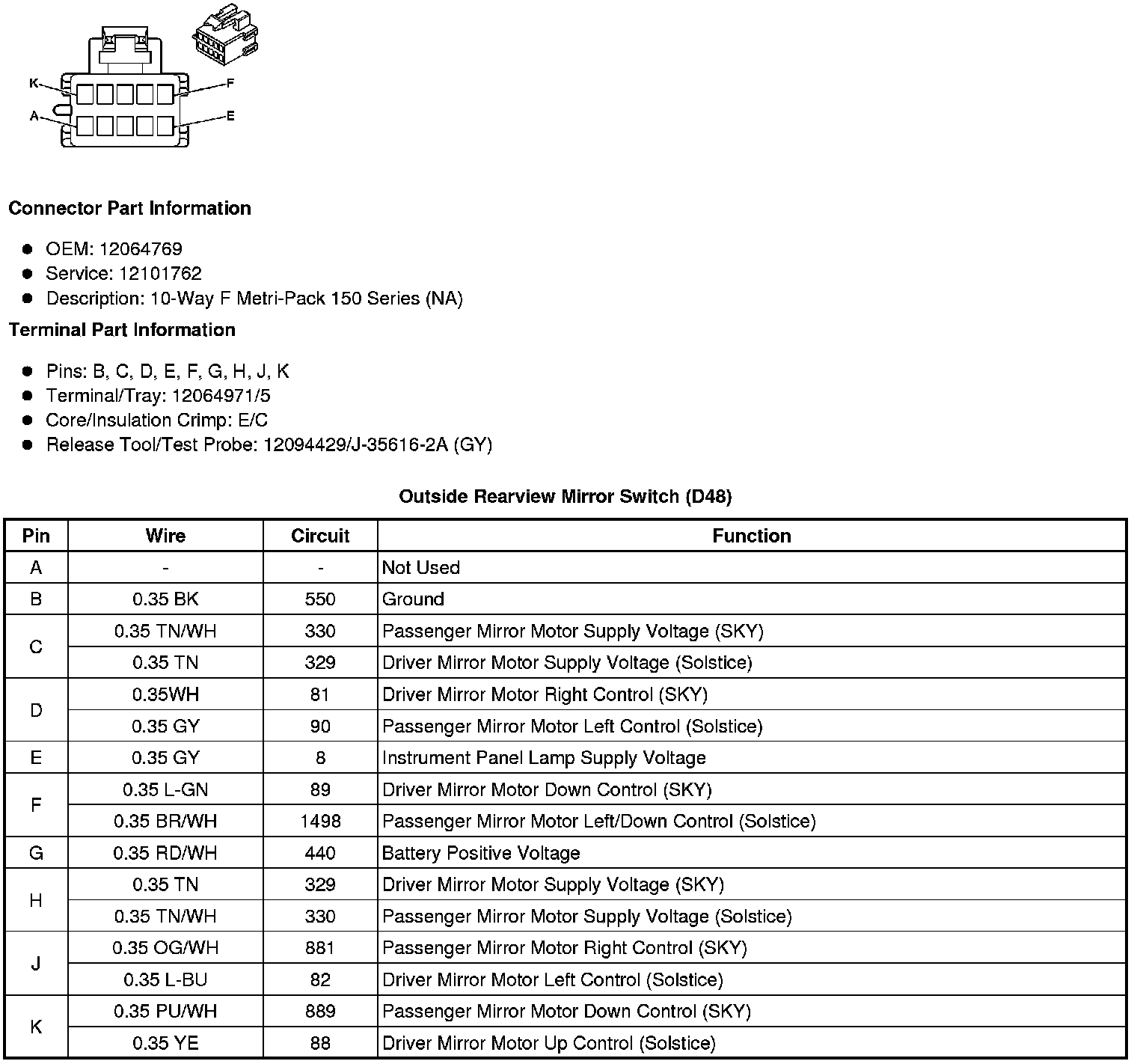

Outside Rearview Mirror Switch (D48)





Rear Compartment Lid Ajar Switch





Rear Compartment Lid Release Actuator





Rear Compartment Lid Release Switch





Seat Front Vertical Motor - Driver (AF2)
