Connector Views



Component Connector End Views

Heated Oxygen Sensor (HO2S) 1 (LAT/LE5)






Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LY7)






Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LZ4)

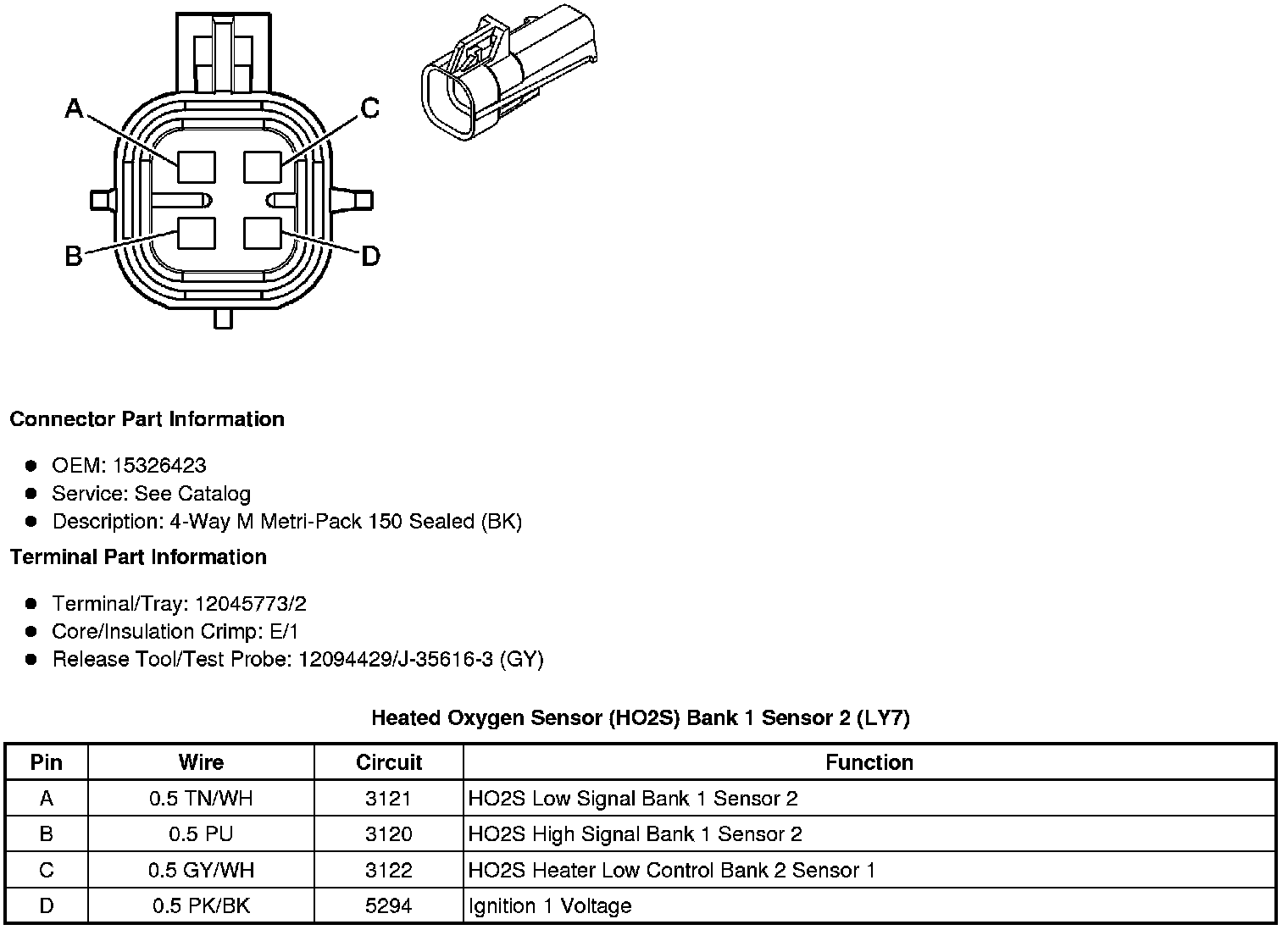

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (LY7)






Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (LZ4)

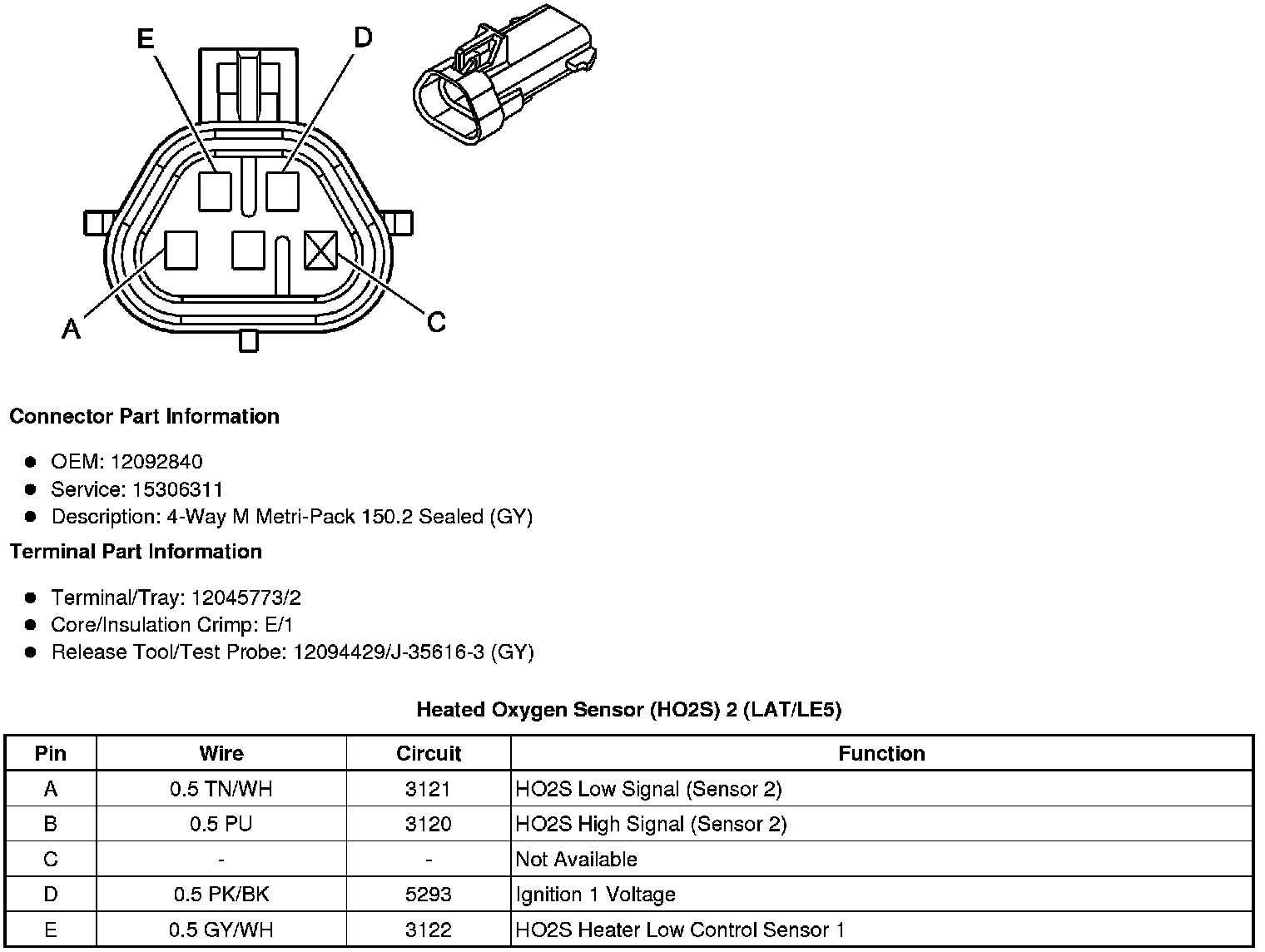

Heated Oxygen Sensor (HO2S) 2 (LAT/LE5)






Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LY7)

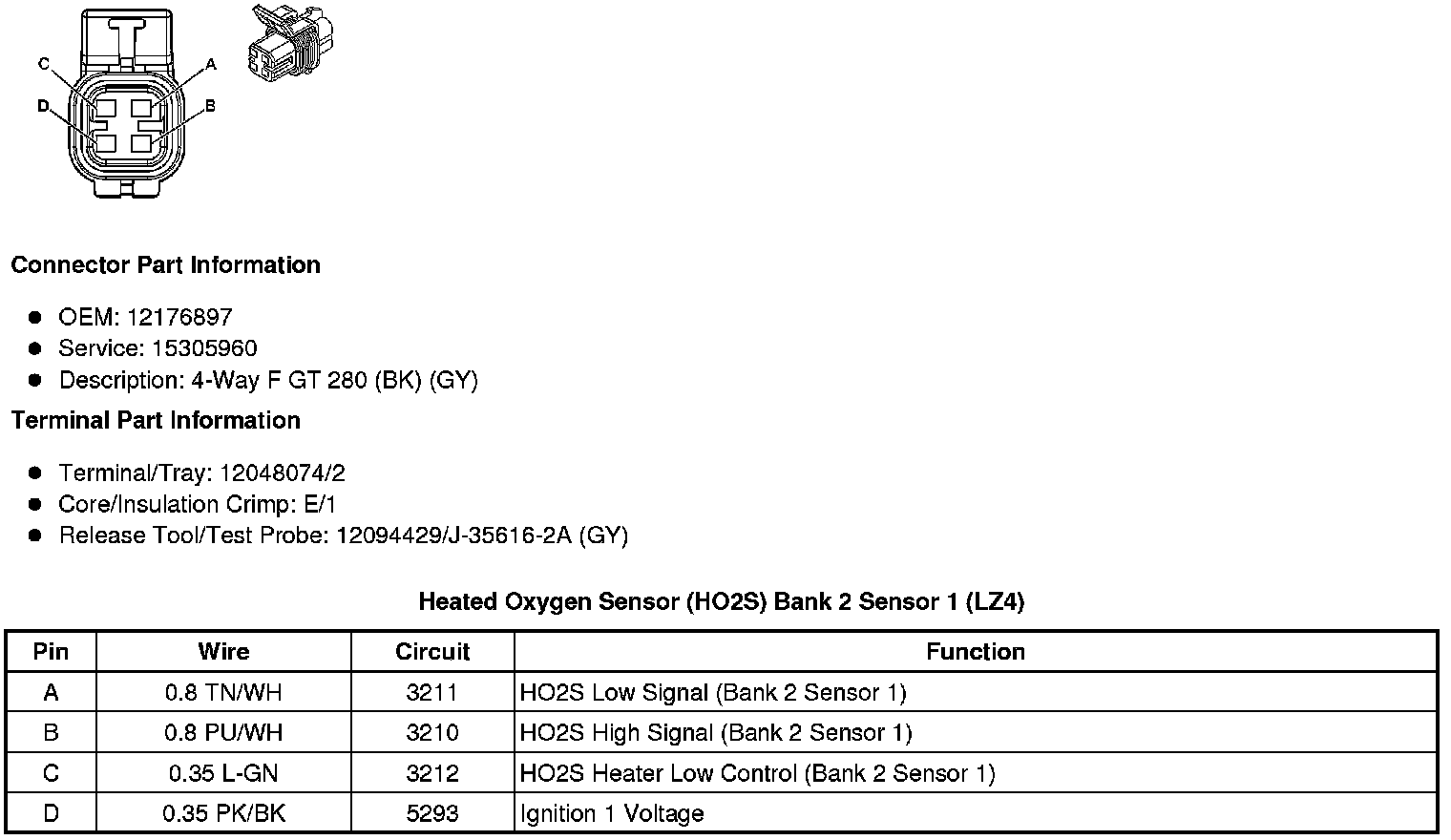

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LZ4)

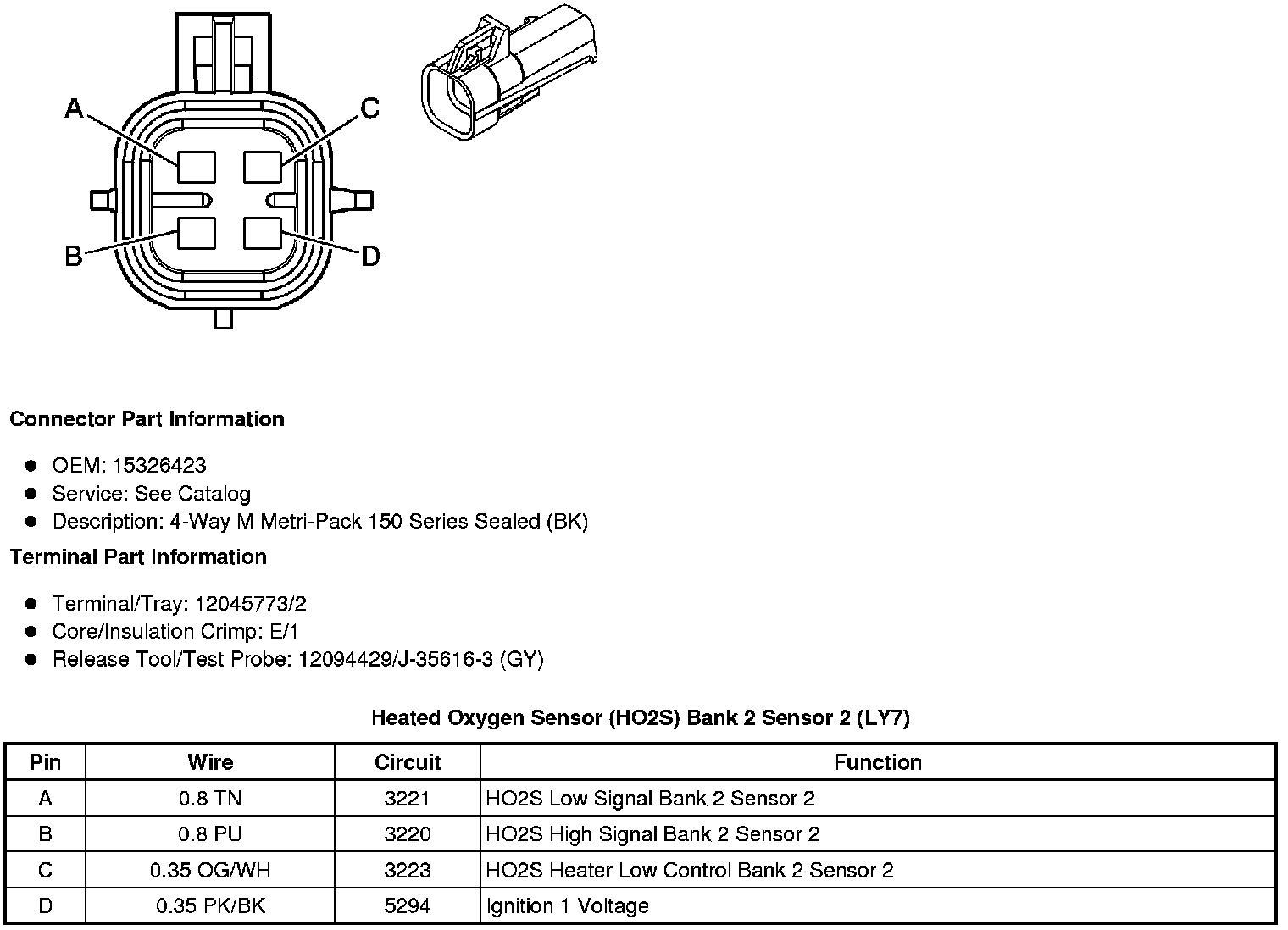

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LY7)

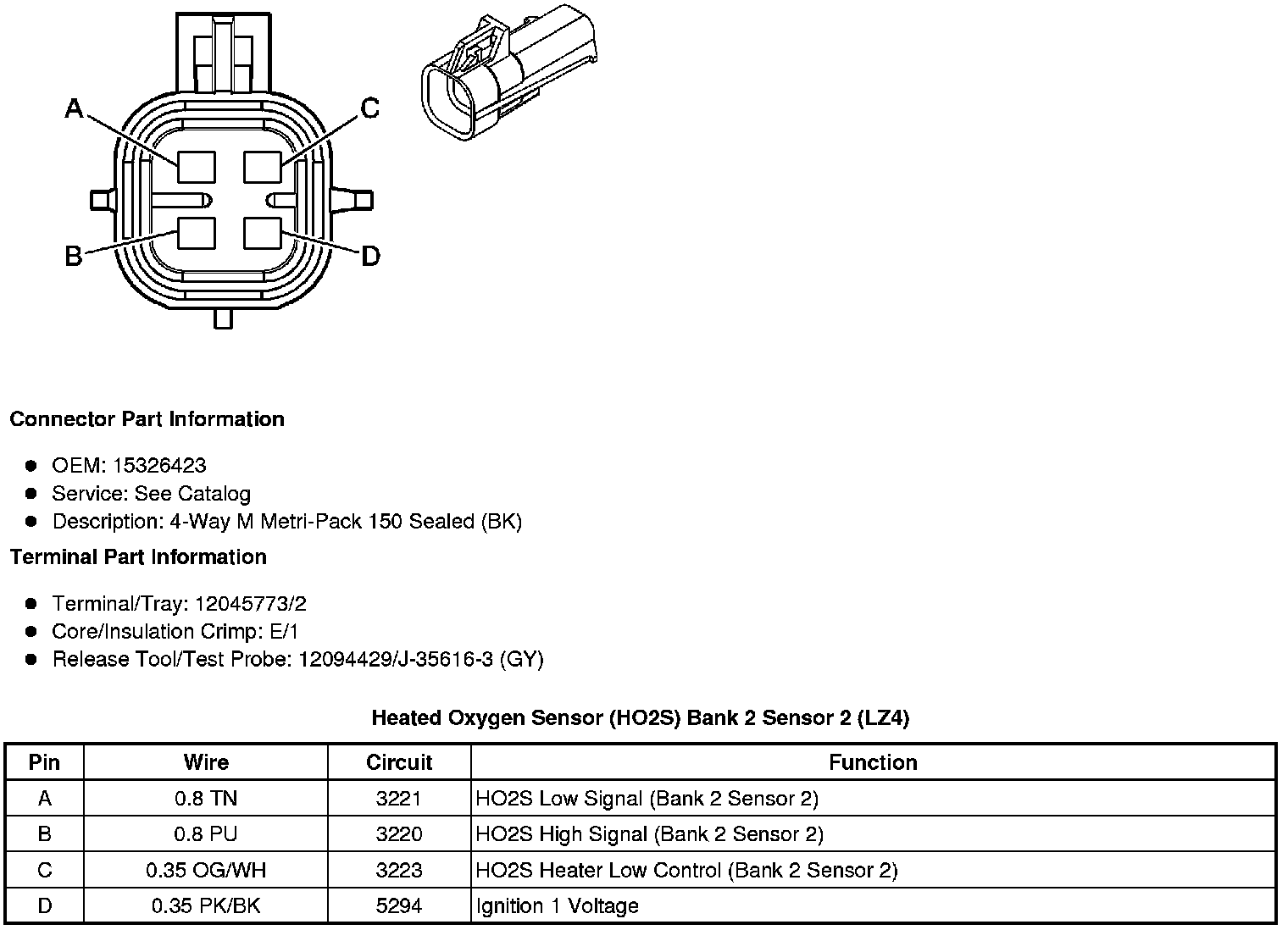

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LZ4)
