Seat Temperature Control Module



Component Connector End Views

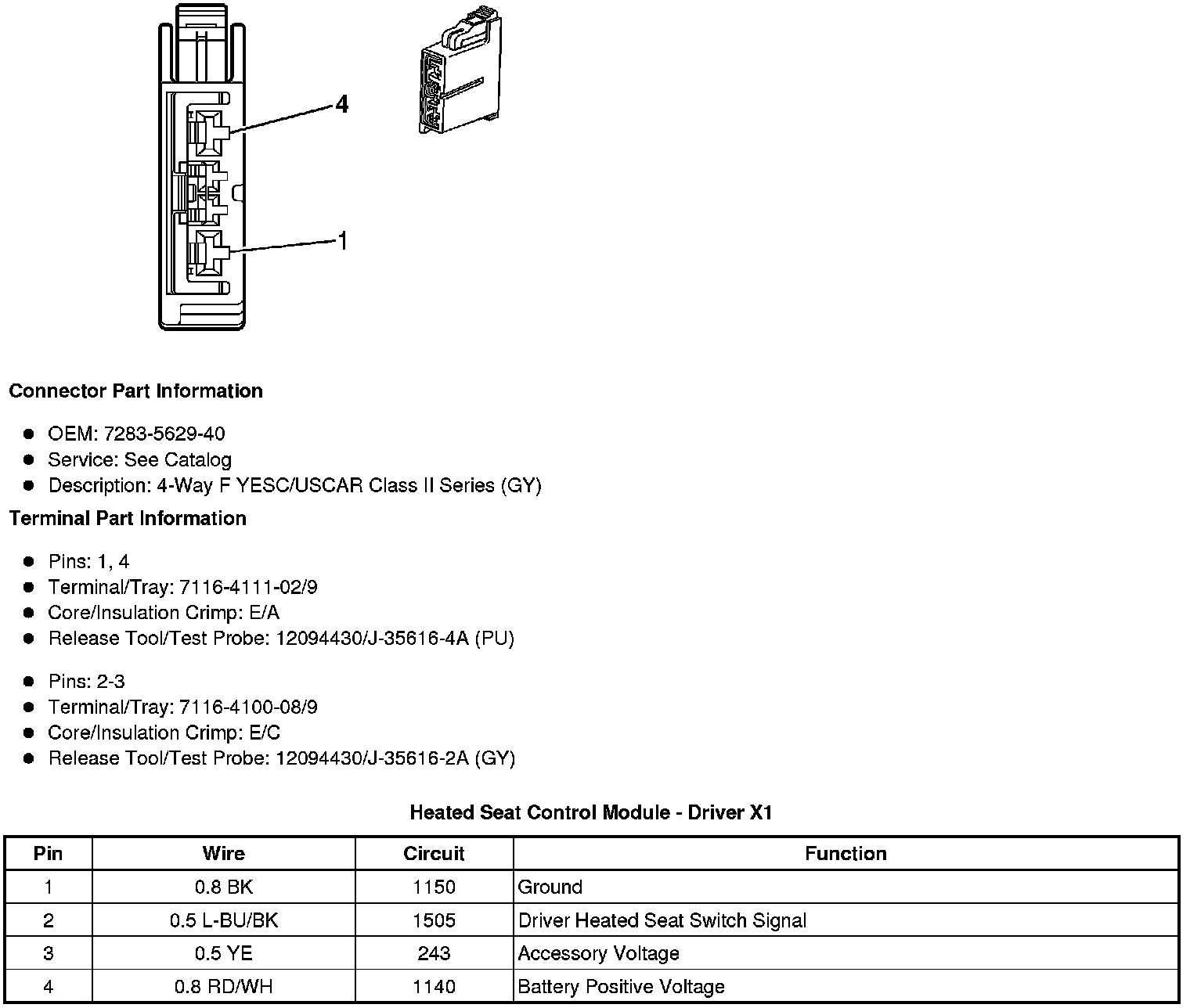

Heated Seat Control Module - Driver X1






Heated Seat Control Module - Driver X2

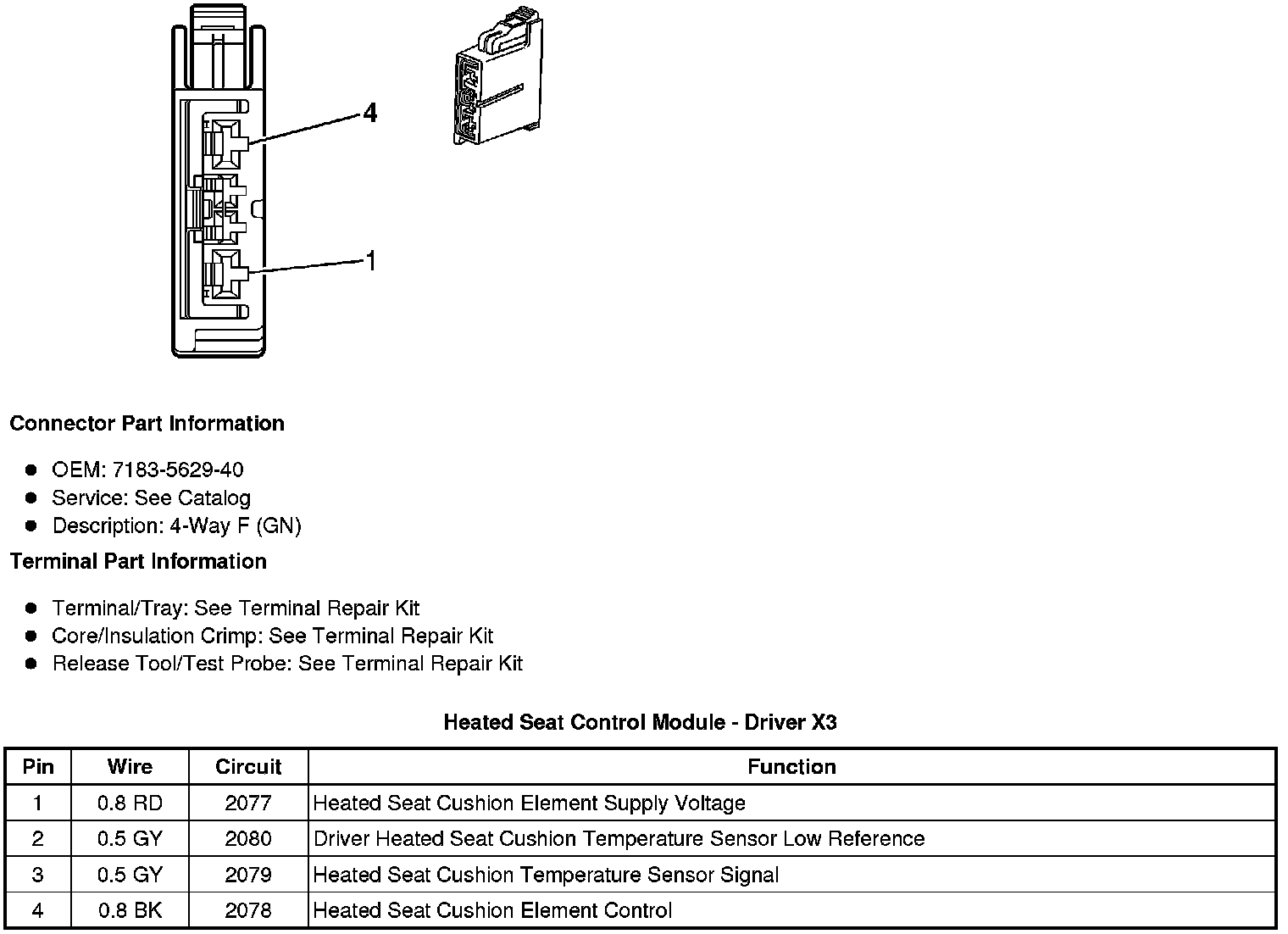

Heated Seat Control Module - Driver X3

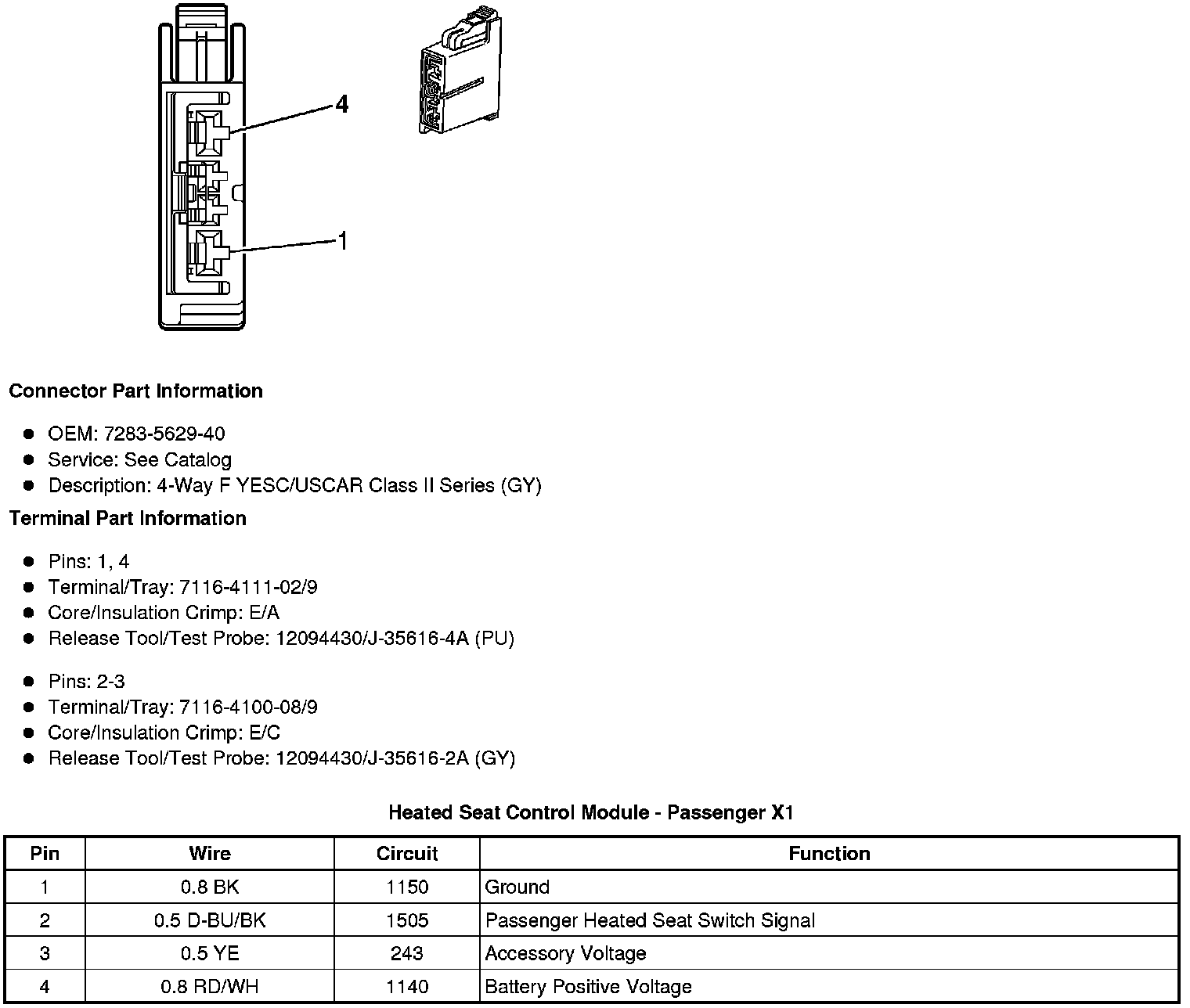

Heated Seat Control Module - Passenger X1






Heated Seat Control Module - Passenger X2

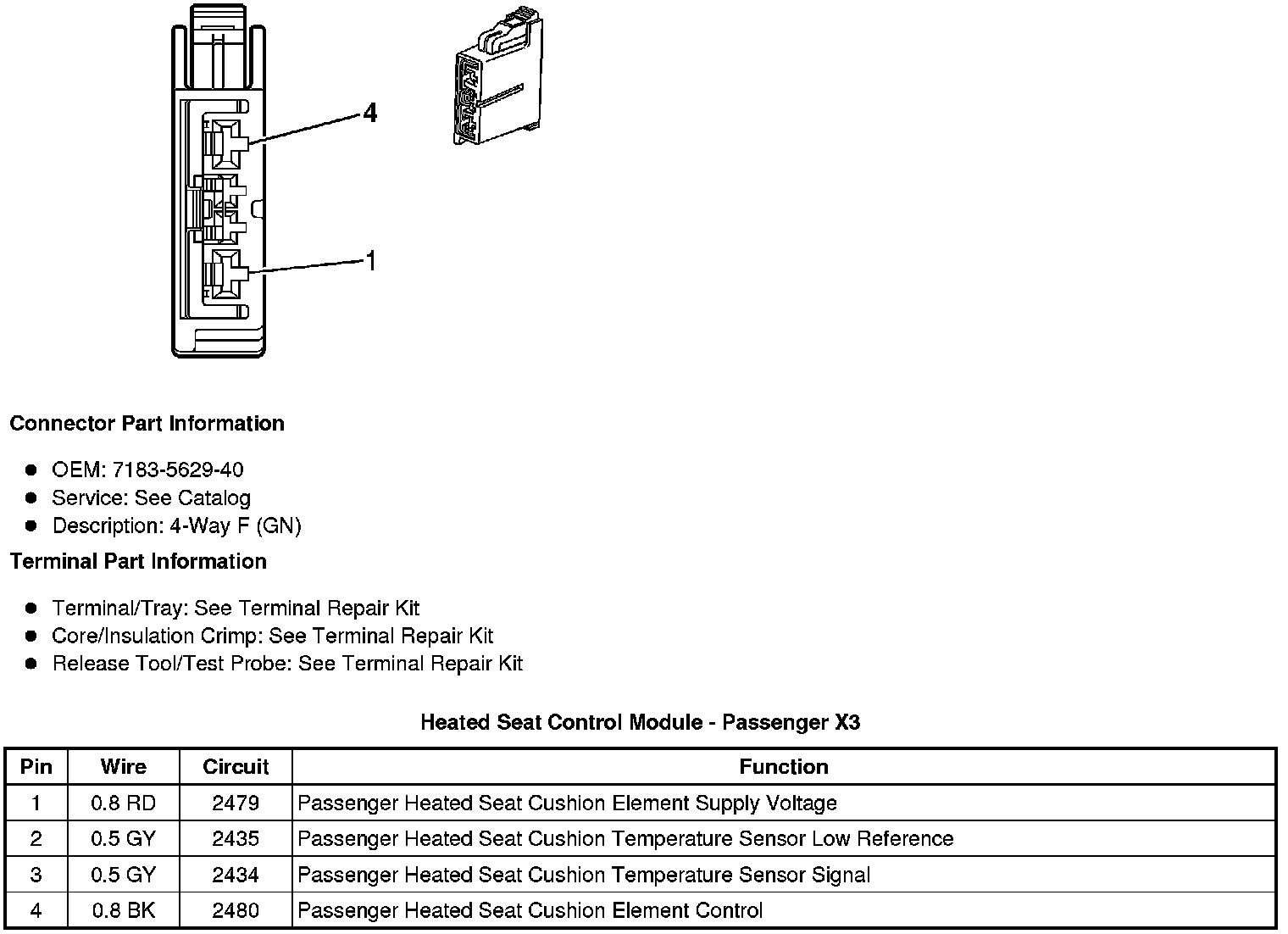

Heated Seat Control Module - Passenger X3
