Seat Occupant Sensor



Component Connector End Views

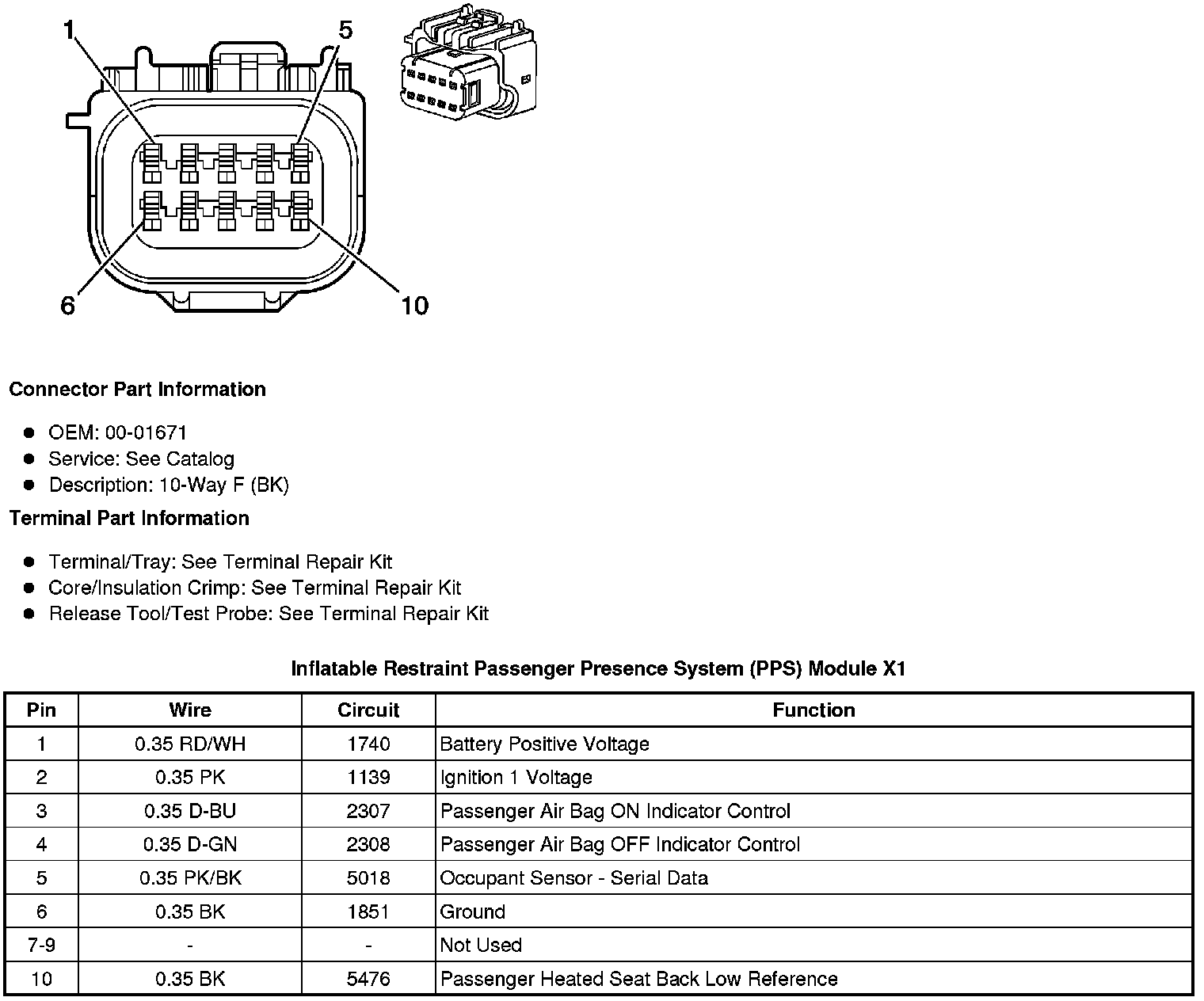

Inflatable Restraint Passenger Presence System (PPS) Module X1

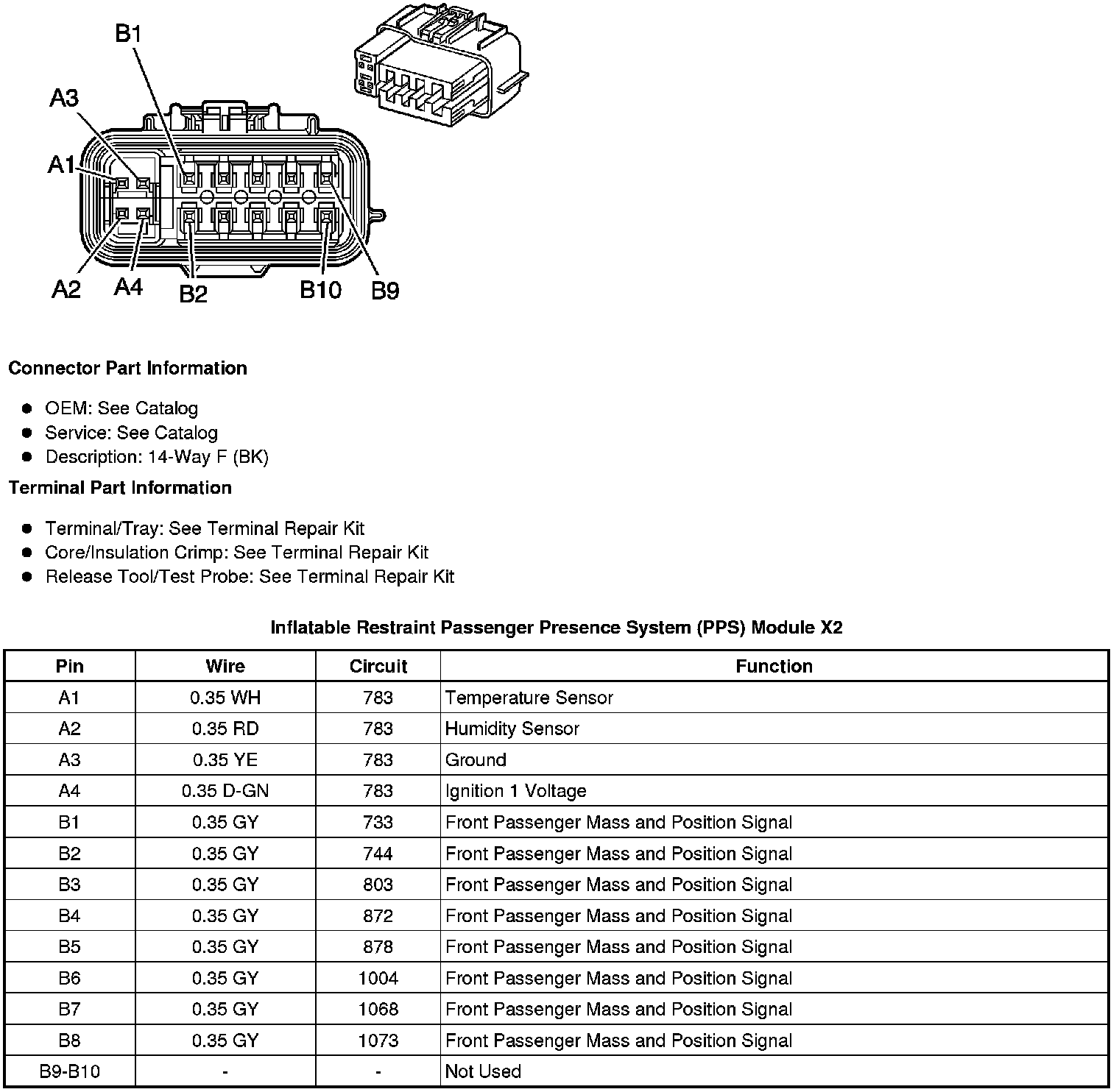

Inflatable Restraint Passenger Presence System (PPS) Module X2
