Inflatable Restraint Steering Wheel Module



Component Connector End Views

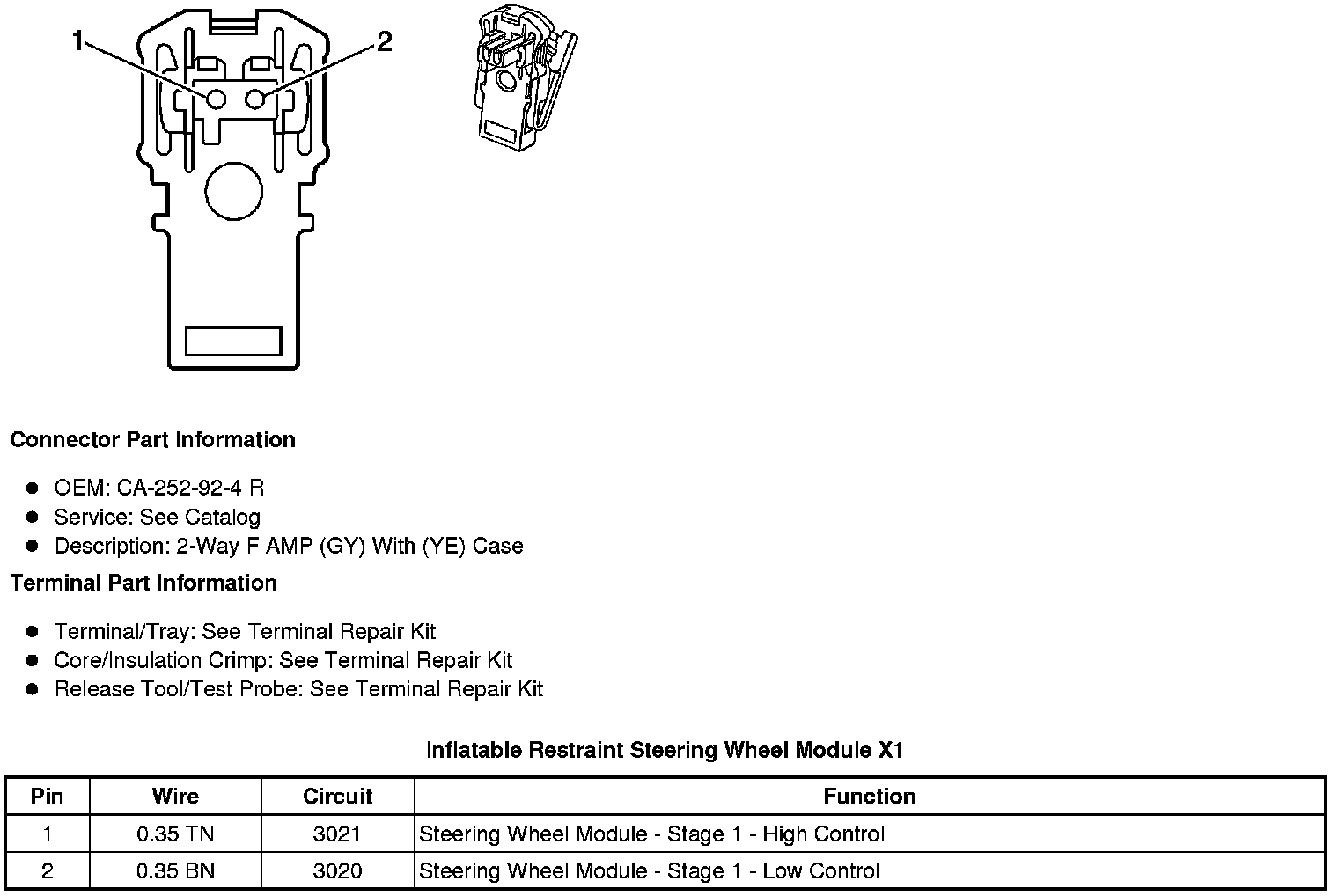

Inflatable Restraint Steering Wheel Module X1






Inflatable Restraint Steering Wheel Module X2
