Fuel Injector



Component Connector End Views

Fuel Injector 1 (LAT)






Fuel Injector 1 (LY7)






Fuel Injector 1 (LZ4)






Fuel Injector 2 (LAT)






Fuel Injector 2 (LY7)






Fuel Injector 2 (LZ4)

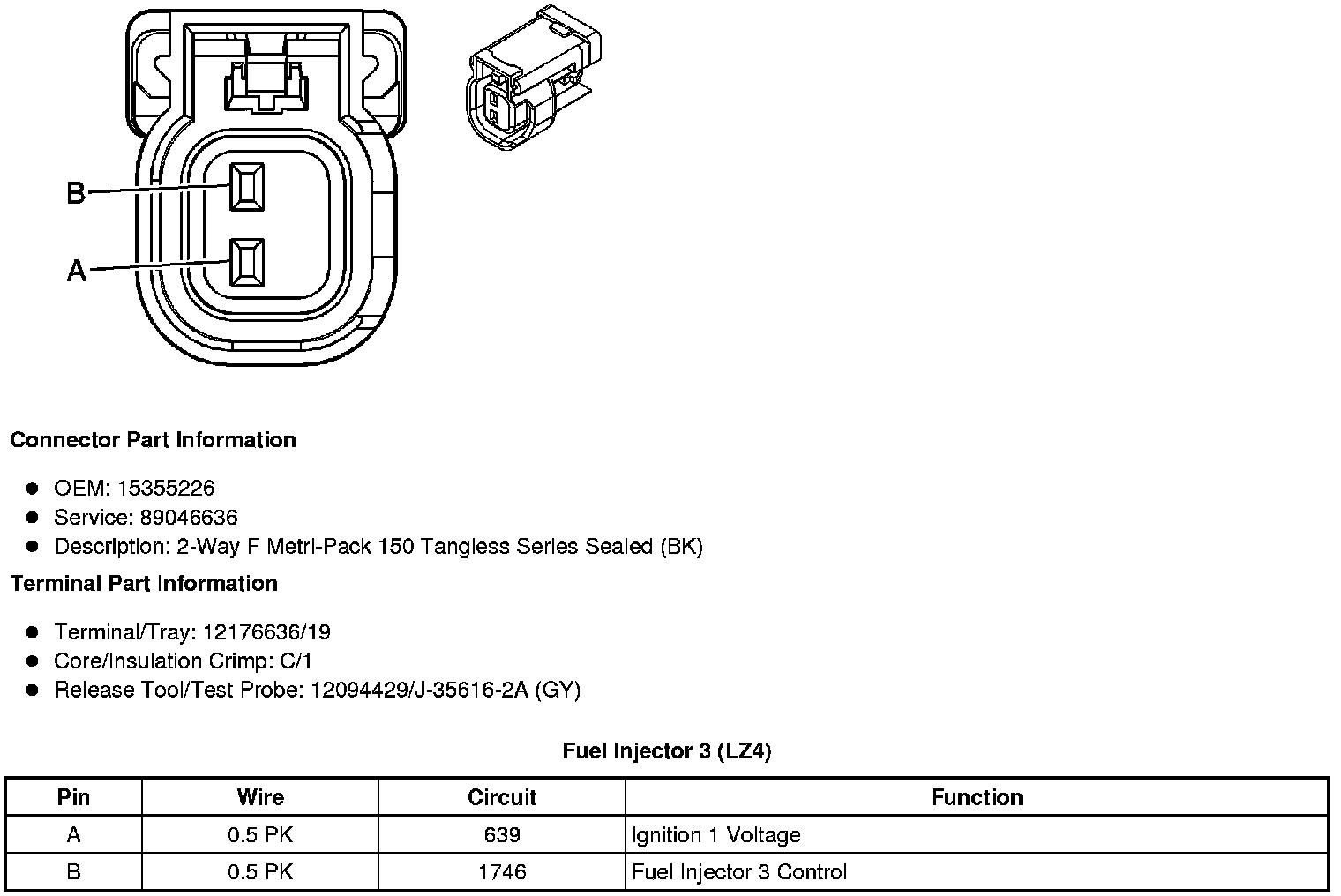

Fuel Injector 3 (LAT)






Fuel Injector 3 (LY7)






Fuel Injector 3 (LZ4)






Fuel Injector 4 (LAT)






Fuel Injector 4 (LY7)






Fuel Injector 4 (LZ4)

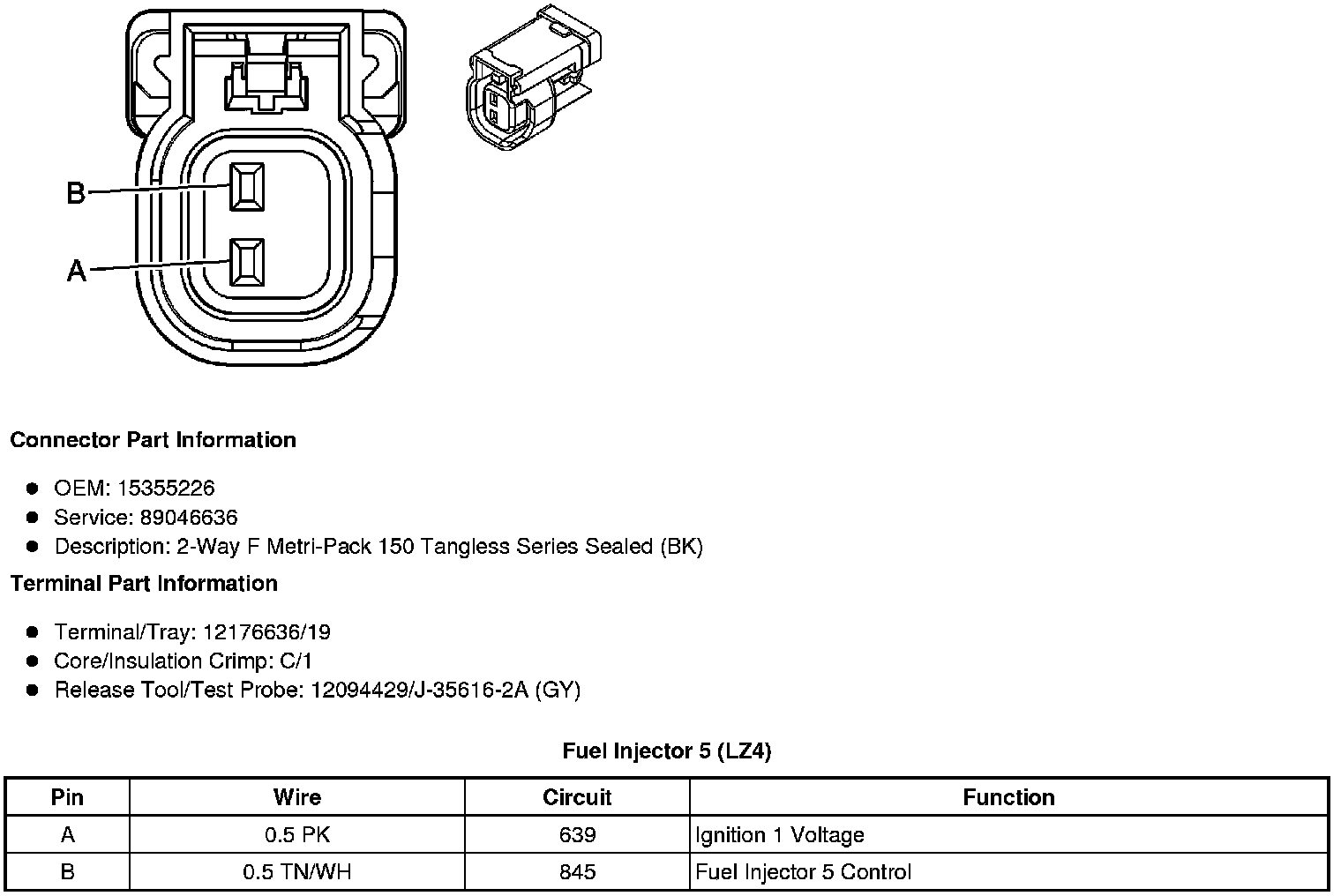

Fuel Injector 5 (LY7)






Fuel Injector 5 (LZ4)

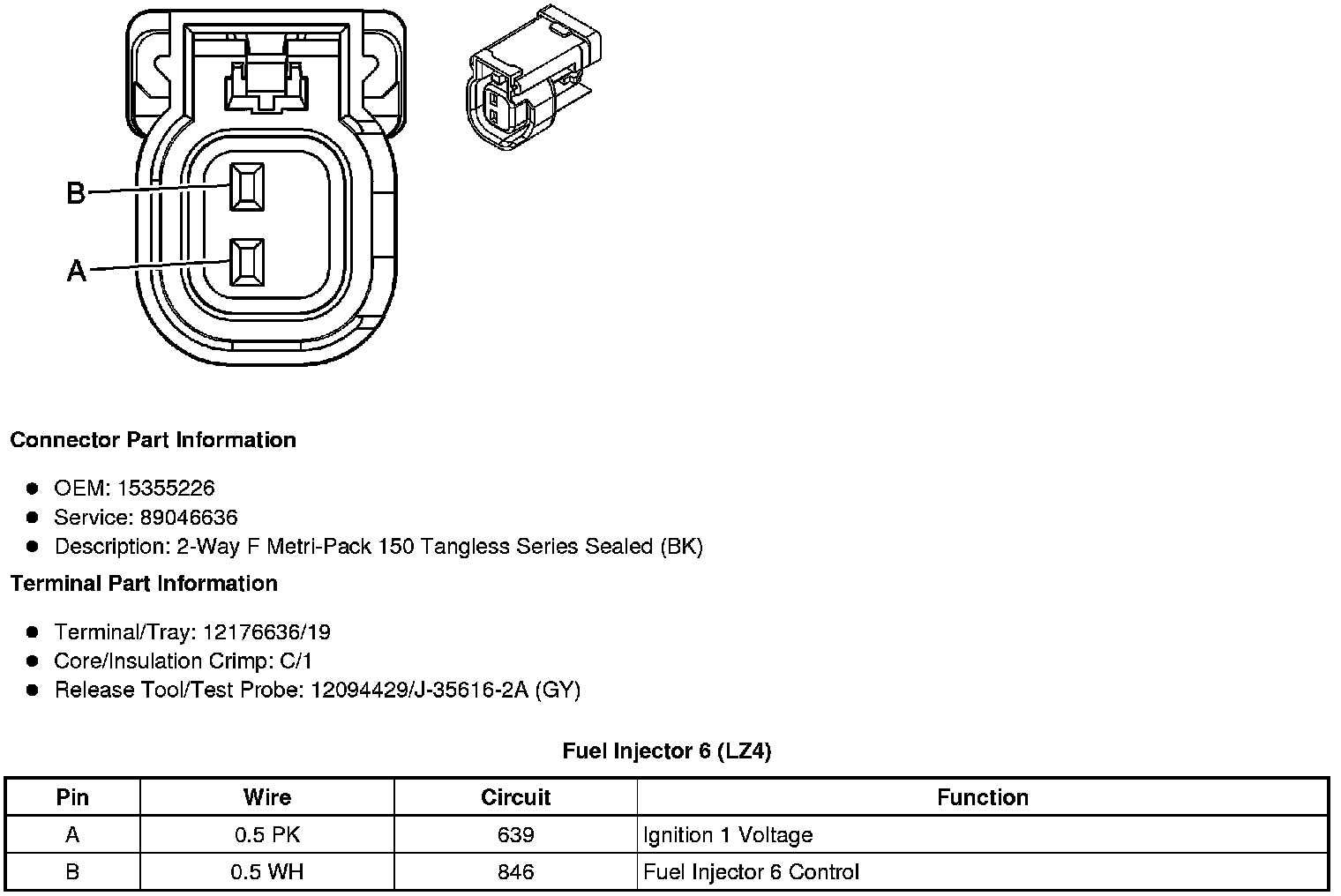

Fuel Injector 6 (LY7)






Fuel Injector 6 (LZ4)
