Ignition Switch Lock Cylinder Replacement



Ignition Switch Lock Cylinder Replacement

Removal Procedure





1. Remove the lower steering column paneling.

* Remove the 5 bolts (arrows).
* Remove the ignition lock panel (1).

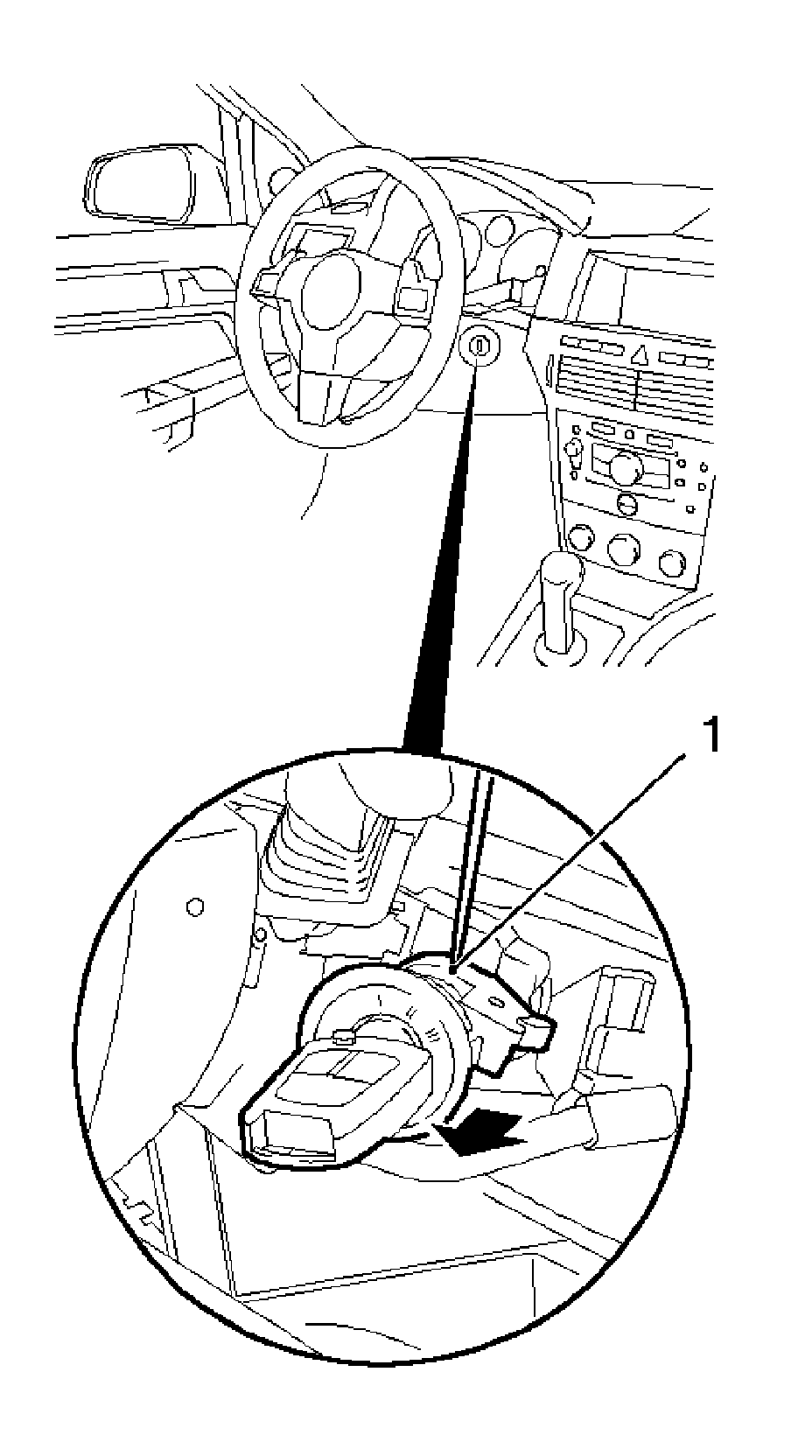

2. Remove the lock cylinder.

* Ignition key to position I.
* Remove the lock cylinder with a suitable tool (screwdriver) (1).
* Remove the lock cylinder (arrow).




Installation Procedure

1. Install the lock cylinder.

Notice: Refer toFastener Notice (Fastener Notice) .

2. Install the lower steering column paneling.

Tighten the 5 screws to 1 N.m (9 lb in).

3. Install the 2 panels.
