Antilock Brake System Schematics

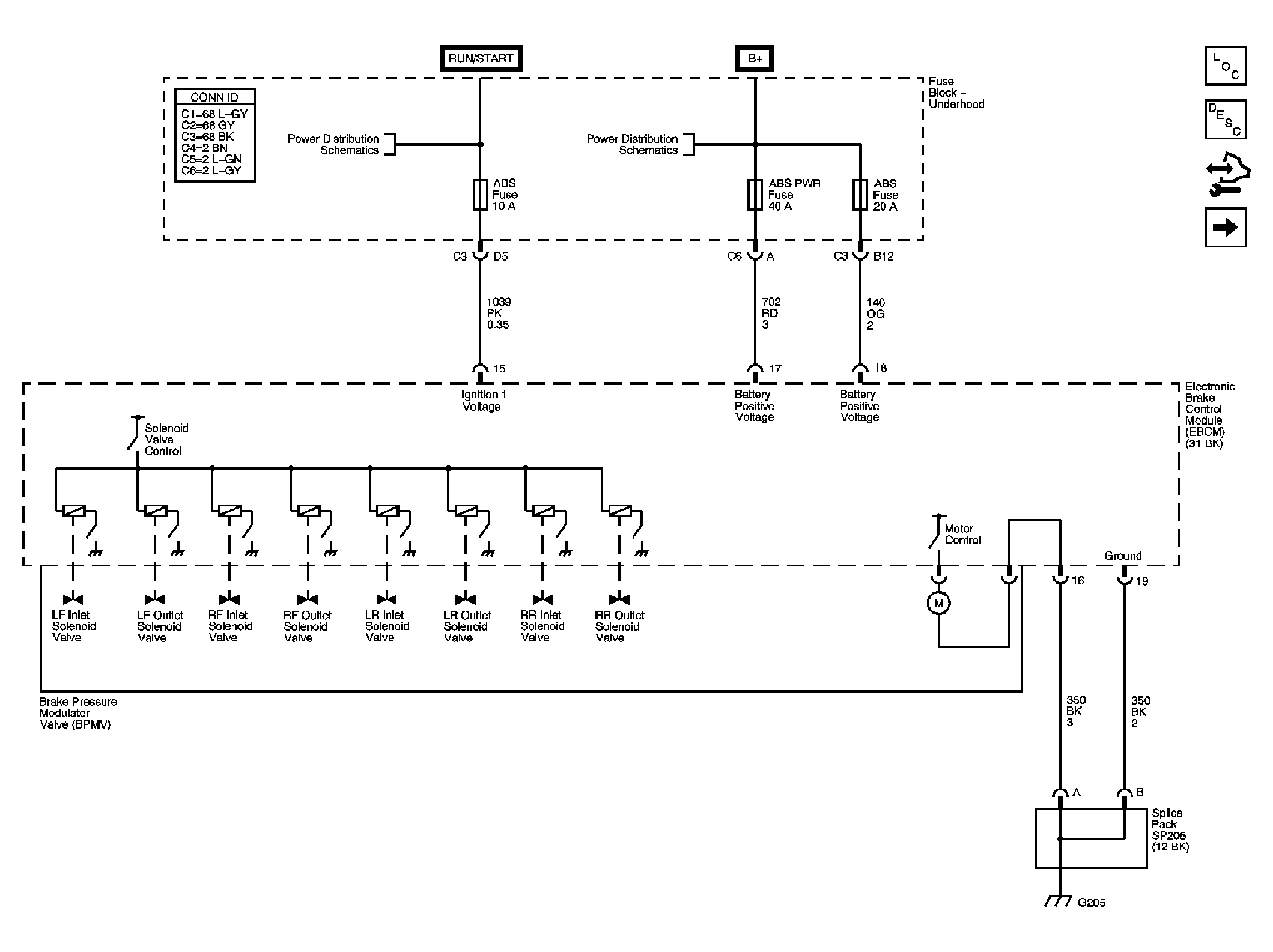

Fig 1: Power and Ground
GM1795675Courtesy of GENERAL MOTORS CORP.

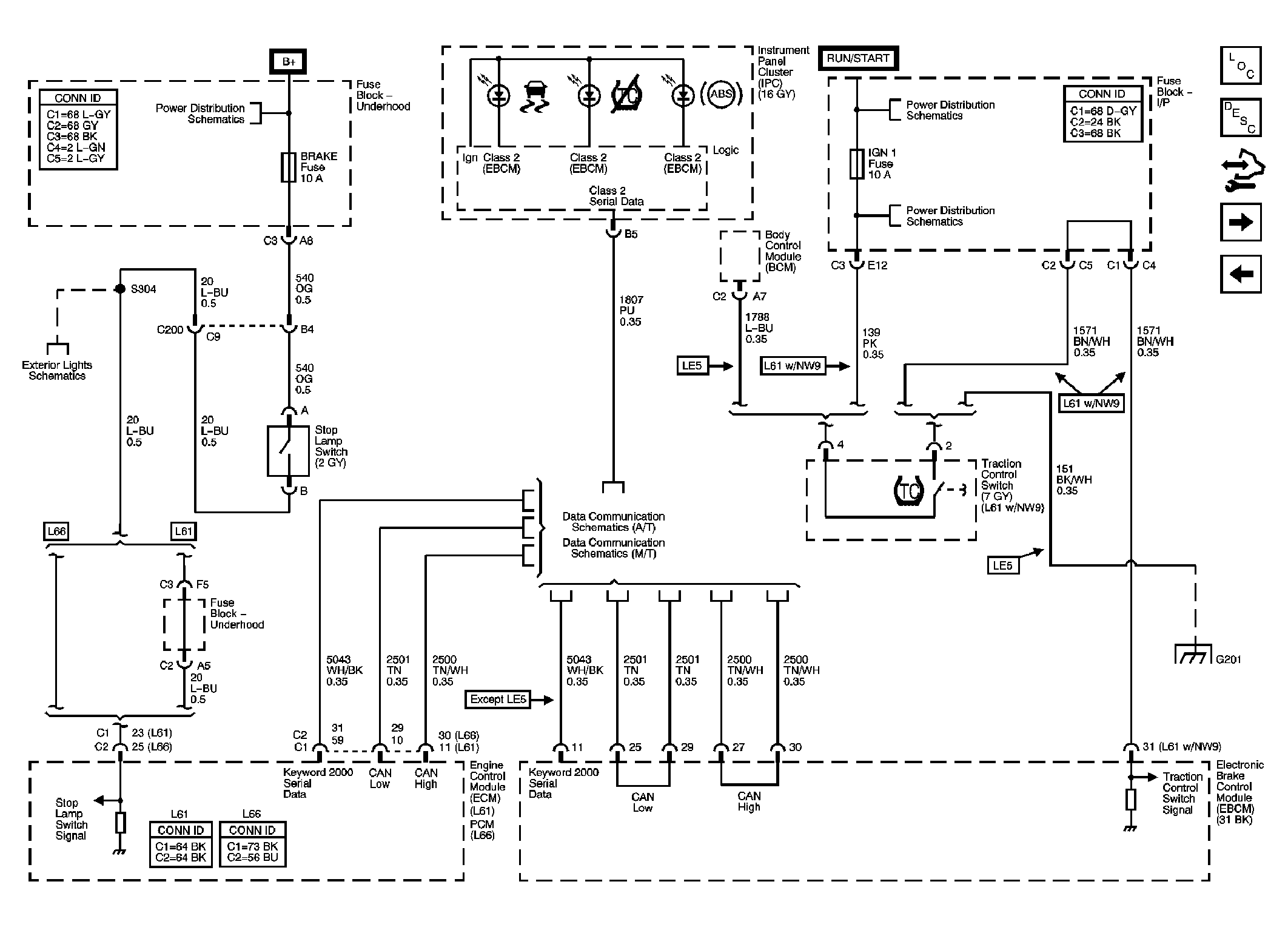

Fig 2: TC Switch, Indicators, and Stop Lamp Switch Signal
GM1795927Courtesy of GENERAL MOTORS CORP.

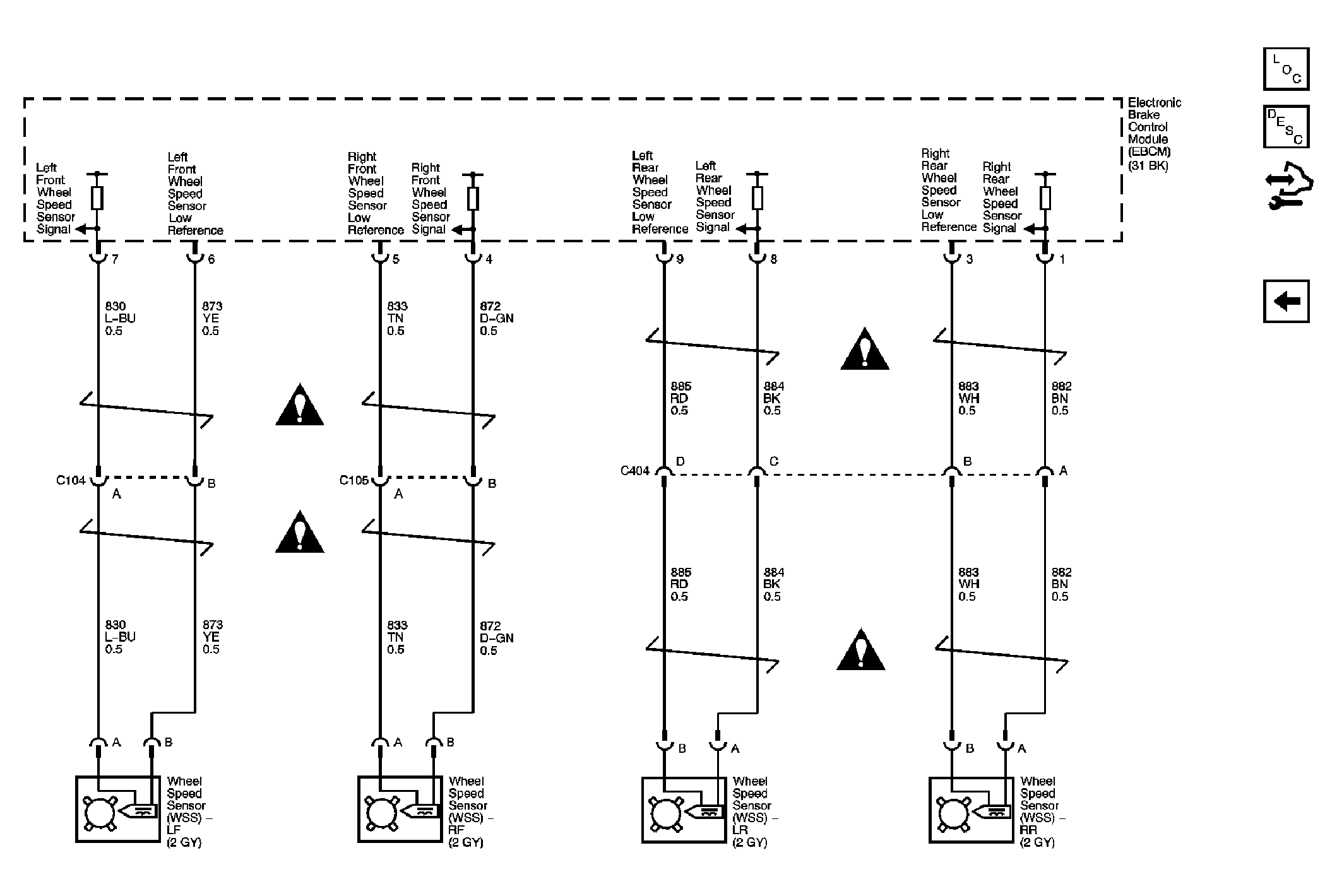

Fig 3: Wheel Speed Sensors
GM1795929Courtesy of GENERAL MOTORS CORP.
