Installation Procedure

    Fig 1: Retractor Fastener
    GM964651Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
    IMPORTANT: Apply Permatex® 24200 on all restraint fasteners prior to installation.
  1. Position the retractor into the structure. Verify that the locking tabs are in place. Install the fastener.

    Tighten:  Tighten the fastener to 45 N.m (33 lb ft).

    2. Fig 2: View Of Lock Pillar Upper Garnish Molding
    GM964659Courtesy of GENERAL MOTORS CORP.
  2. Install the shoulder belt upper fastener.

    Tighten:  Tighten the fastener to 45 N.m (33 lb ft).

  3. Snap the fastener cover closed.
    4. Fig 3: Shoulder Belt Fastener
    GM965560Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Verify that the belt is not twisted during installation.
  4. Install the shoulder belt to the floor with the fastener.

    Tighten:  Tighten the fastener to 45 N.m (33 lb ft).

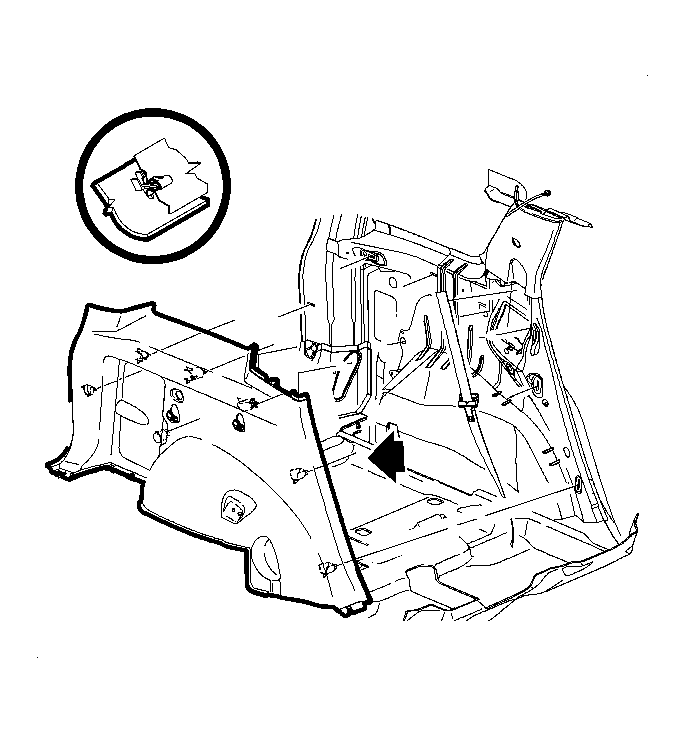

    5. Fig 4: Disconnecting Accessory Wire Harness
    GM965660Courtesy of GENERAL MOTORS CORP.
  5. On the driver side, connect the auxiliary plug connection.
  6. Position the rear wheel quarter trim panel to the vehicle. Push at the clip location to install.
    7. Fig 5: Pushing Locks Inward & Outward
    GM987444Courtesy of GENERAL MOTORS CORP.
  7. Install the rear load floor and, if equipped, lock in place by sliding the lock lever outward.
    8. Fig 6: Removing/Installing Fasteners From The Load Floor Storage Bin
    GM977535Courtesy of GENERAL MOTORS CORP.
  8. Install the load floor bin.
    9. Fig 7: Removing/Installing Cargo Hooks
    GM980988Courtesy of GENERAL MOTORS CORP.
  9. Install the cargo hooks.
    10. Fig 8: Removing/Installing Rear Seat Forward Fasteners
    GM977241Courtesy of GENERAL MOTORS CORP.
  10. Position the rear seat assembly in the vehicle. Install the forward fasteners.

    Tighten:  Tighten the fasteners to 20 N.m (15 lb ft).

  11. Install the rear seat assembly. Refer to Rear Seat Replacement .
  12. Install the rear seat fasteners.

    Tighten:  Tighten the fasteners to 50 N.m (37 lb ft).

    13. Fig 9: View Of Rear Compartment Panel
    GM977958Courtesy of GENERAL MOTORS CORP.
  13. Position the load floor forward cover to the vehicle. Push down at the Velcro® location to secure the load floor to the vehicle.
  14. Operate the shoulder belt to ensure proper installation.
