Installation Procedure

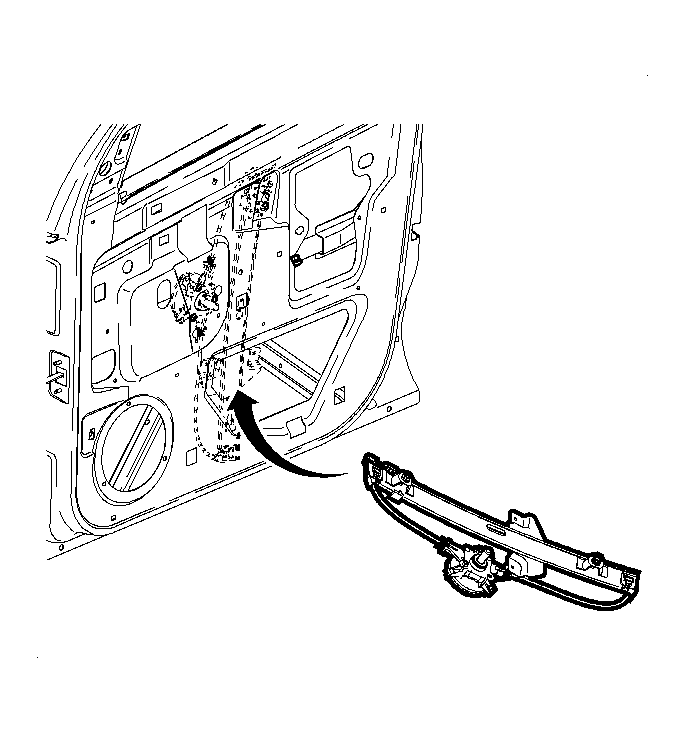

    Fig 1: Removing/Installing Front Door Regulator
    GM940791Courtesy of GENERAL MOTORS CORP.
  1. Install the front door regulator through the lower access hole in the door structure.

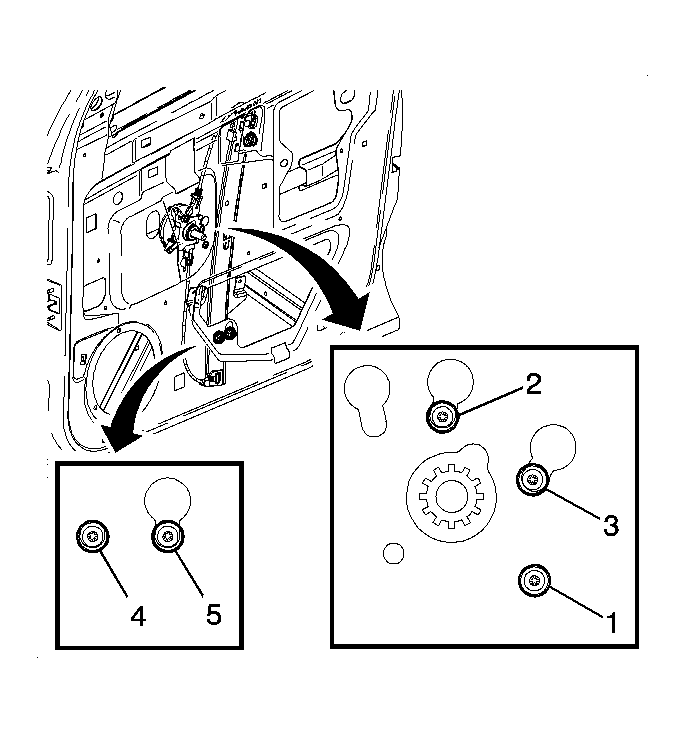

    2. Fig 2: View Of Front Door Manual Window Regulator (Manual)
    GM940866Courtesy of GENERAL MOTORS CORP.
  2. Position the window regulator on the keyhole slot bolts (2, 3, 5) in the door structure.
    3. NOTE: Refer to Fastener Notice .
  3. Install the net-hole regulator bolts.

    Tighten:  Tighten all of the bolts in the sequence shown to 10 N.m (89 lb in).

  4. Install the front door window. Refer to Front Side Door Window Replacement .
