Connector Views



Engine Control Module Connector End Views

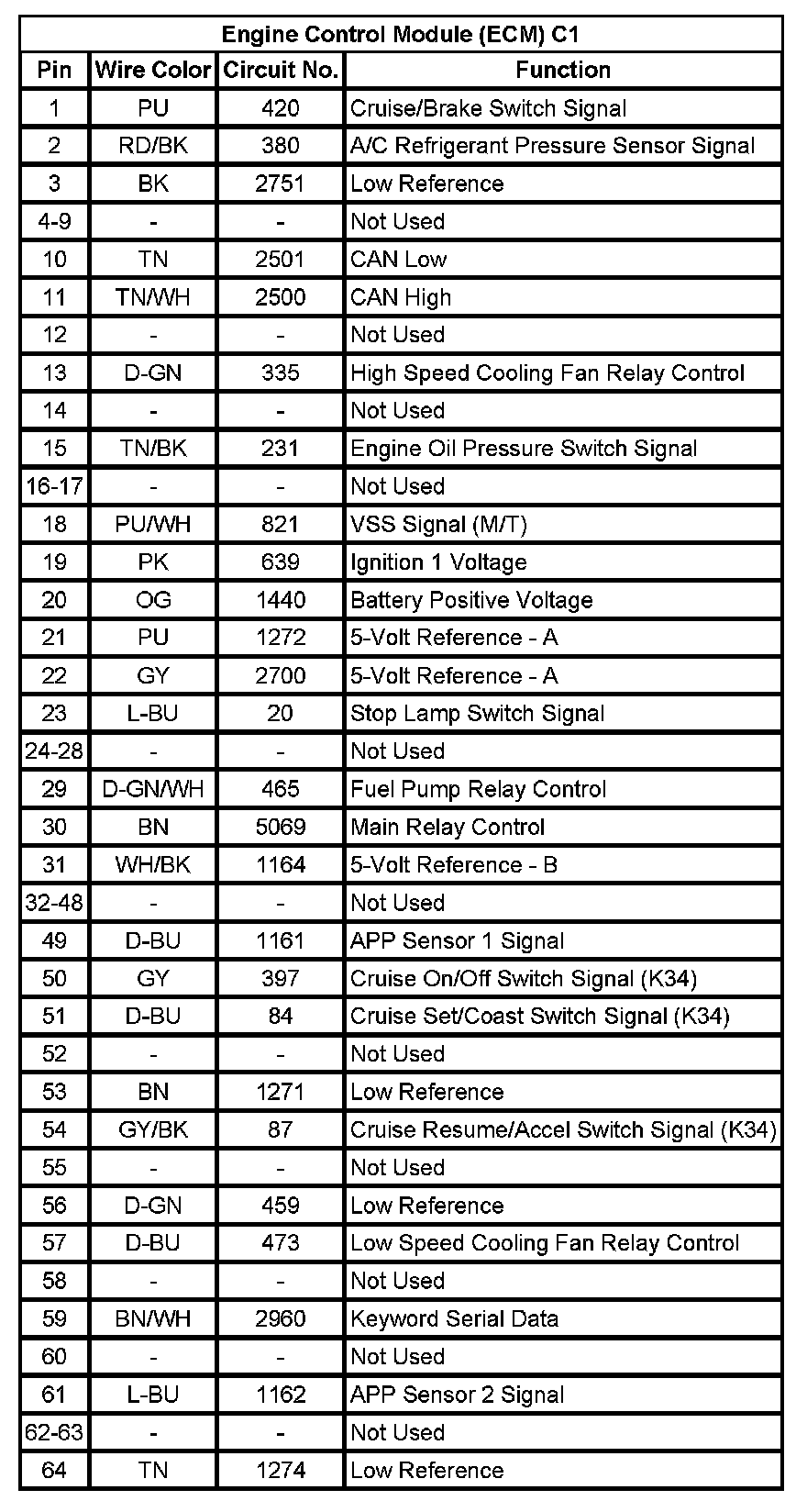

Engine Control Module (ECM) C1














Engine Control Module (ECM) C2

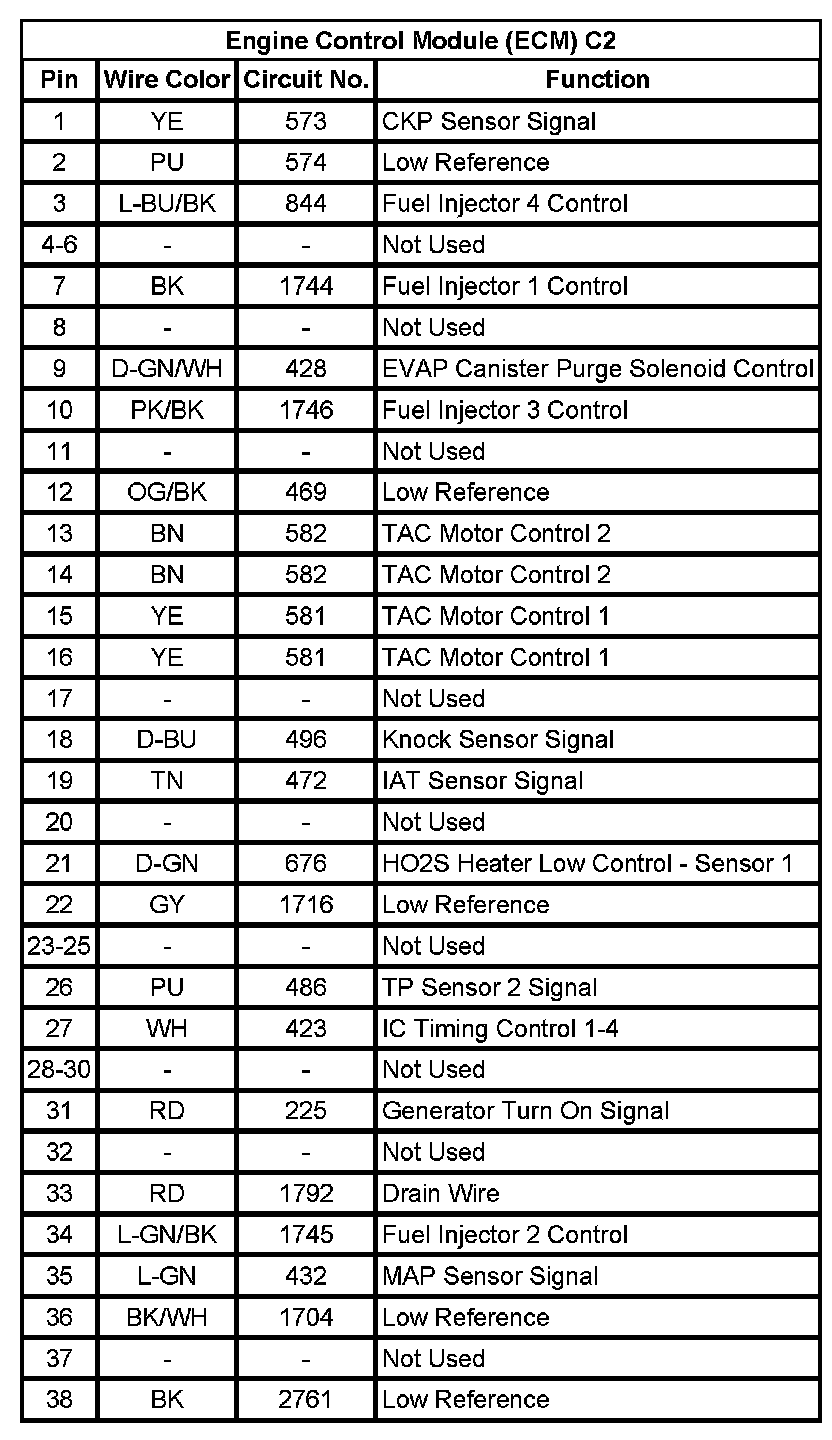

Engine Control Module (ECM) C2 (Pin 1 To 38):

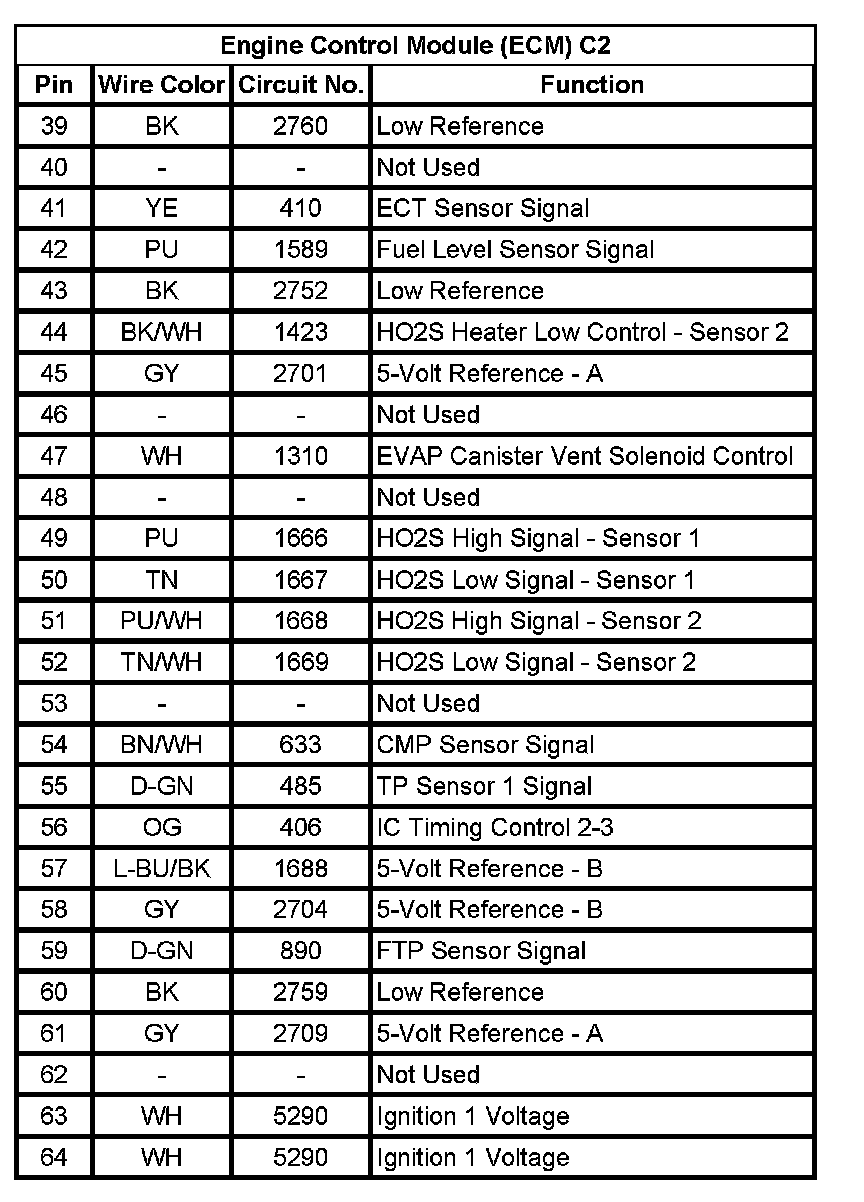

Engine Control Module (ECM) C2 (Pin 39 To 64):
