Windshield Defroster Duct Replacement



Windshield Defroster Duct Replacement

Removal Procedure




1. Remove the instrument panel upper trim panel.

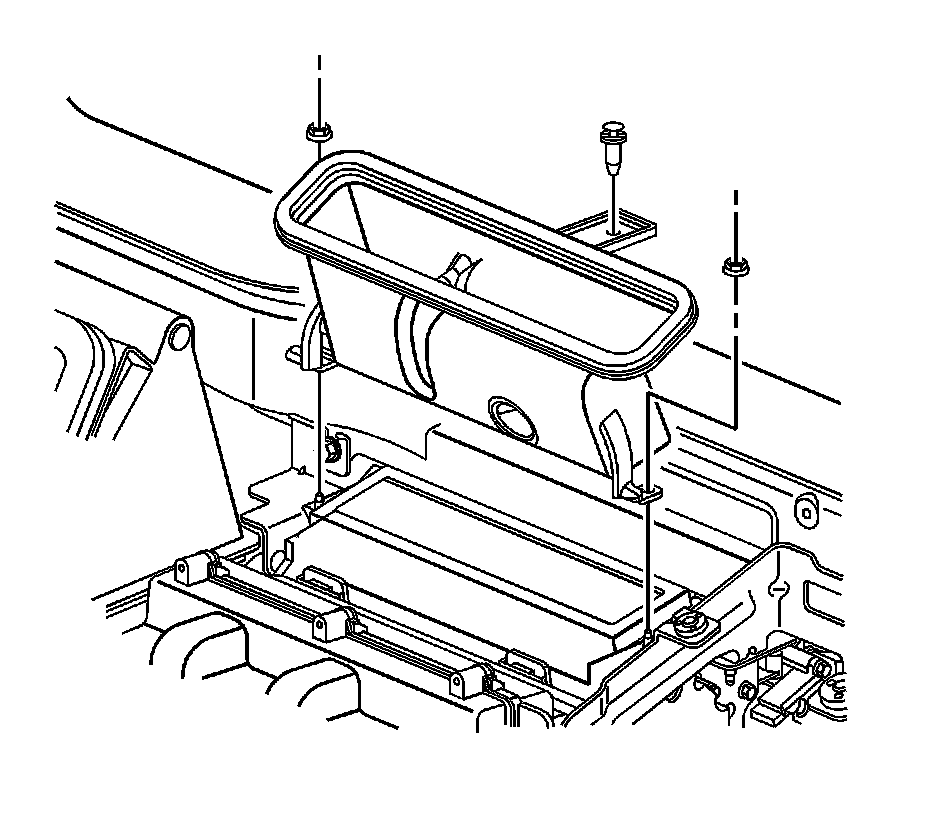

2. Remove the windshield defrost duct nuts from the HVAC module.
3. Remove the windshield defrost duct from the HVAC module.

Installation Procedure




1. Inspect the windshield defrost duct seals. If damaged, replace using Kent Industries adhesive back foam tape P/N 46485 or equivalent.
2. Install the windshield defrost duct to the HVAC module.

Notice: Refer to Fastener Notice.

3. Install the windshield defrost duct nuts to the HVAC module.

Tighten the nuts to 2.5 N.m (22 lb in).

4. Install the instrument panel upper trim panel.
