Engine Compartment Views

Power and Grounding Component Views

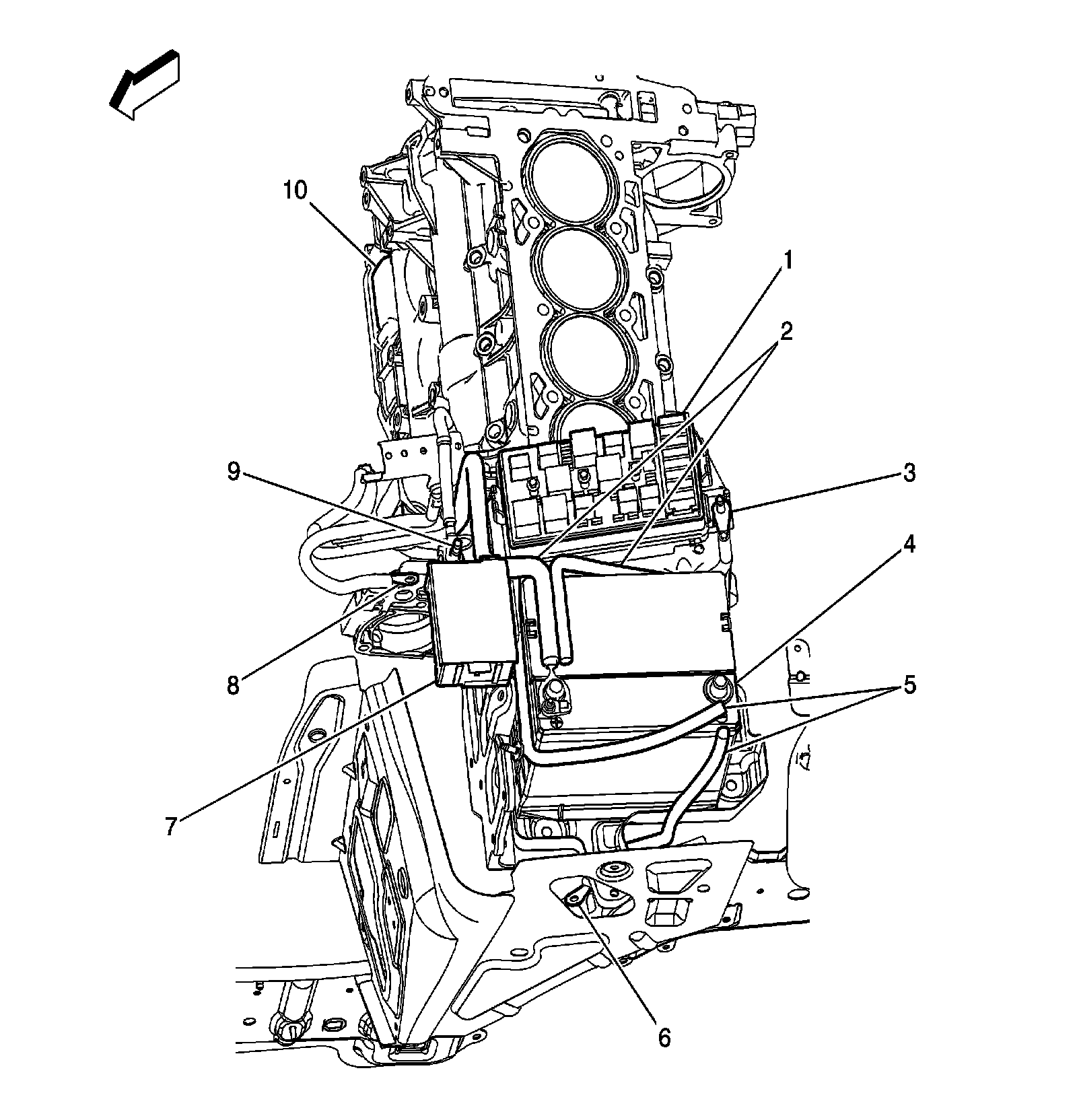

Left Side of Engine Compartment

1 - Fuse Block - Underhood
2 - Battery Positive Cables (12V)
3 - Positive Battery Voltage
4 - Battery - 12V
5 - Negative Battery Cables
6 - G103
7 - Fuse Block - Underhood - Auxiliary
8 - G105
9 - Positive Battery Voltage
10 - Engine Block
