Radio/Stereo



Entertainment/Communication Connector End Views

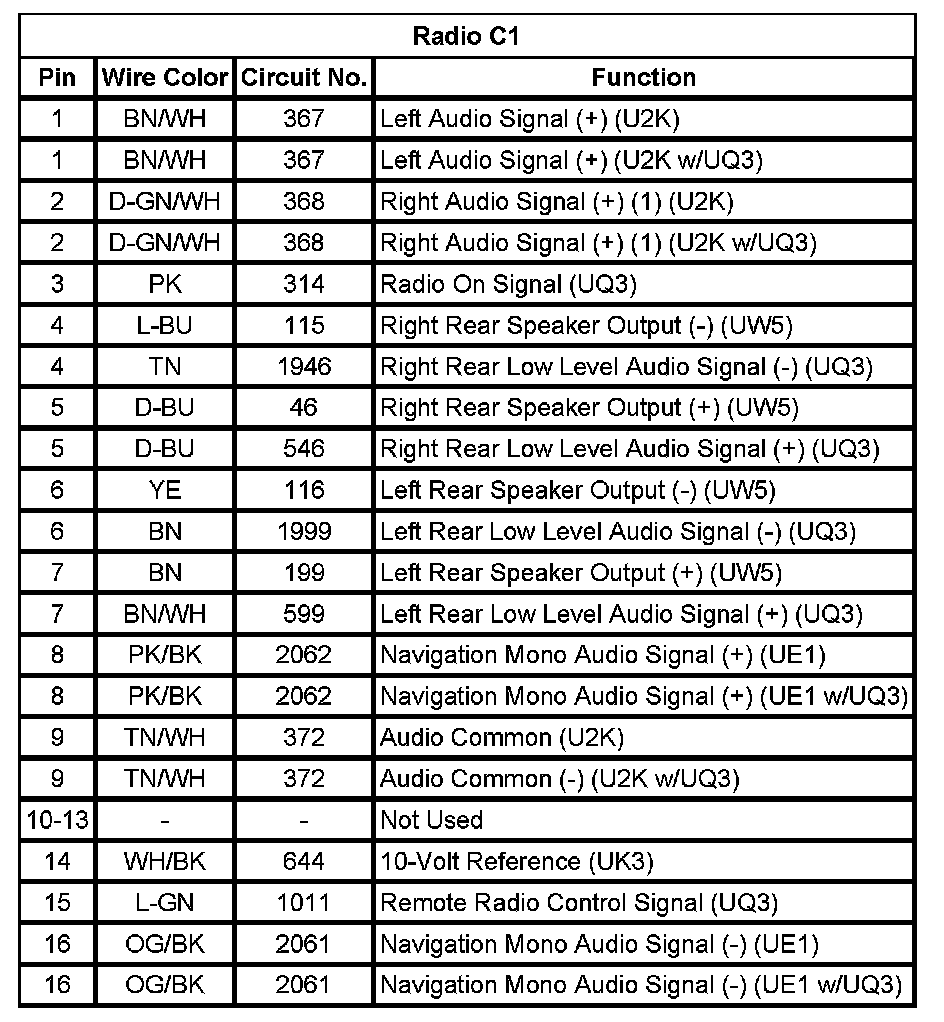

Radio C1

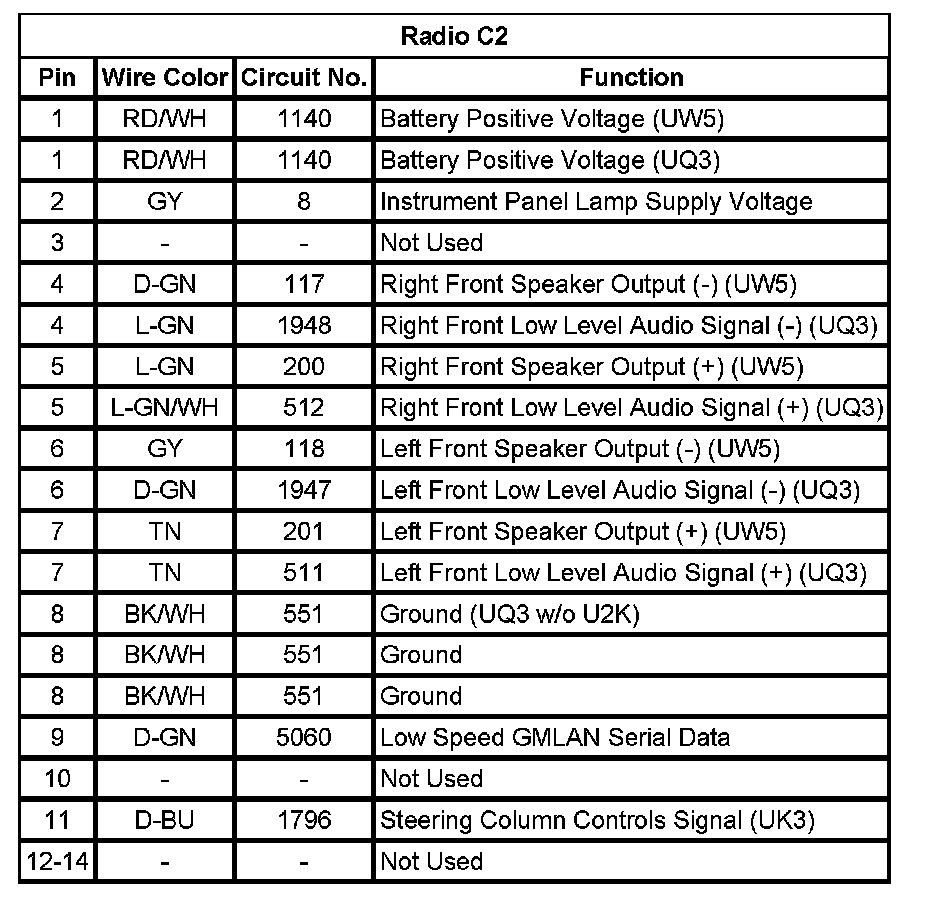

Radio C2














Digital Radio Receiver (U2K)
