Front Seat Belt Buckle Replacement

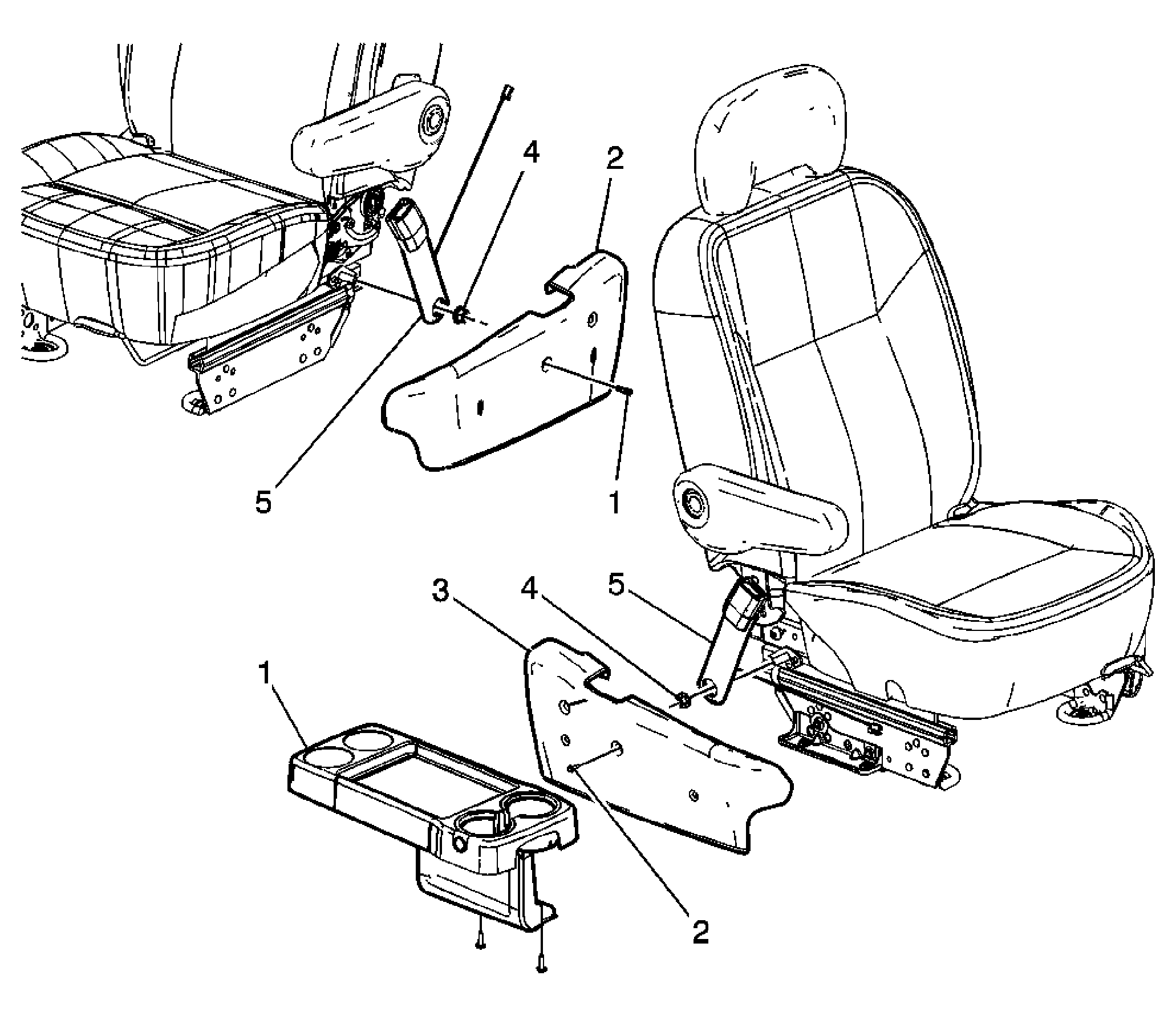

Fig 1: View Of Front Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove driver or passenger seat, if necessary. Refer to Front Seat Replacement - Bucket .
1	Convenience Tray (if equipped) Refer to Front Seat Storage Tray Replacement .
2	Passenger Seat Cushion Inner Finish Panel Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Passenger Seat Cushion Inner Finish Panel
4	Passenger Seat Belt Buckle Nut Tighten: 53 N.m (39 lb ft)
5	Passenger Seat Belt Buckle Tip: Disconnect the electrical connector.
