Amplifier Replacement (With UQG)
WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.
Amplifier Replacement (With UQG)

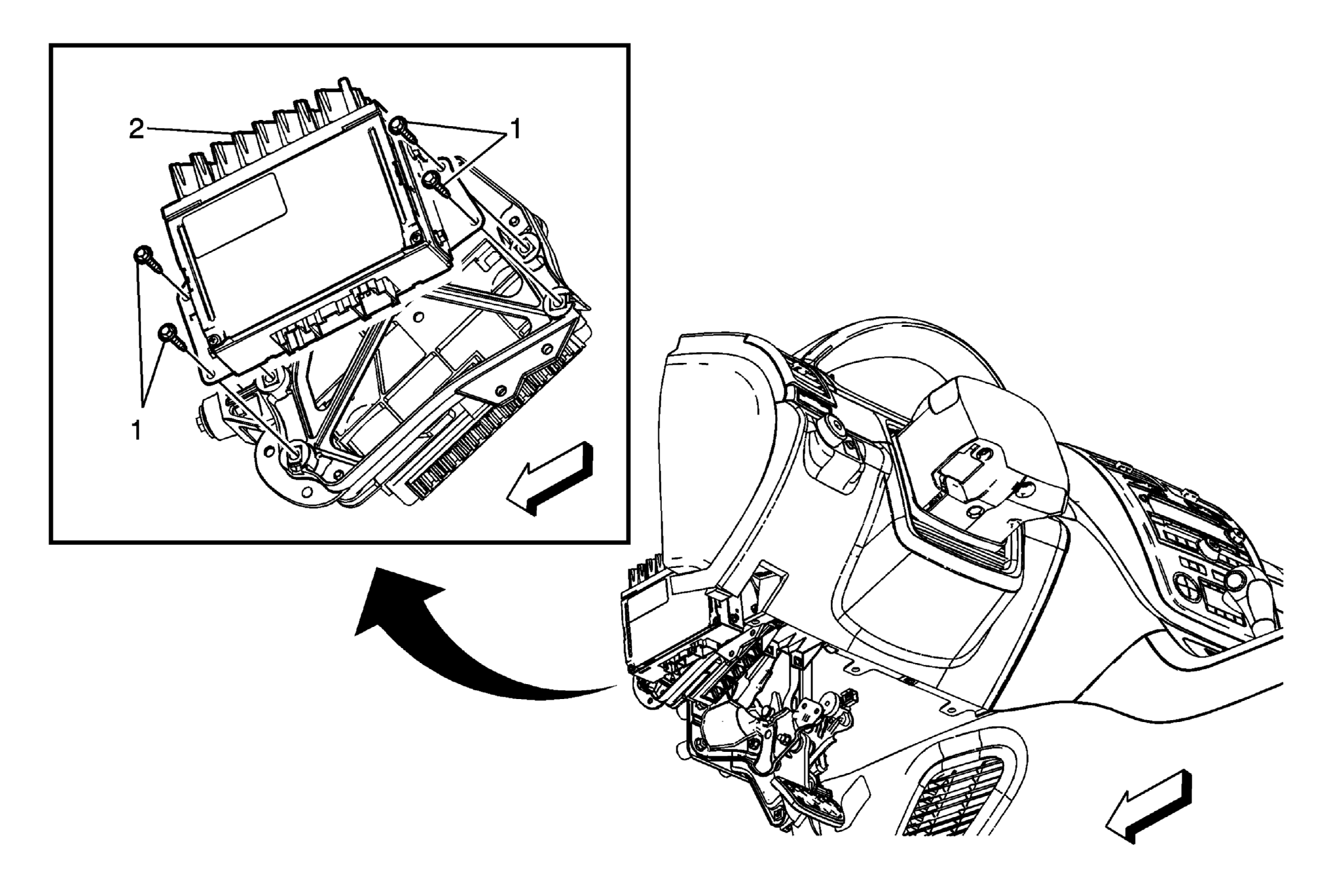

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side . |
|
| 1 | Radio Speaker Amplifier Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Radio Speaker Amplifier Assembly Procedure: Disconnect the electrical connector. |
