Square and O-Ring Seals

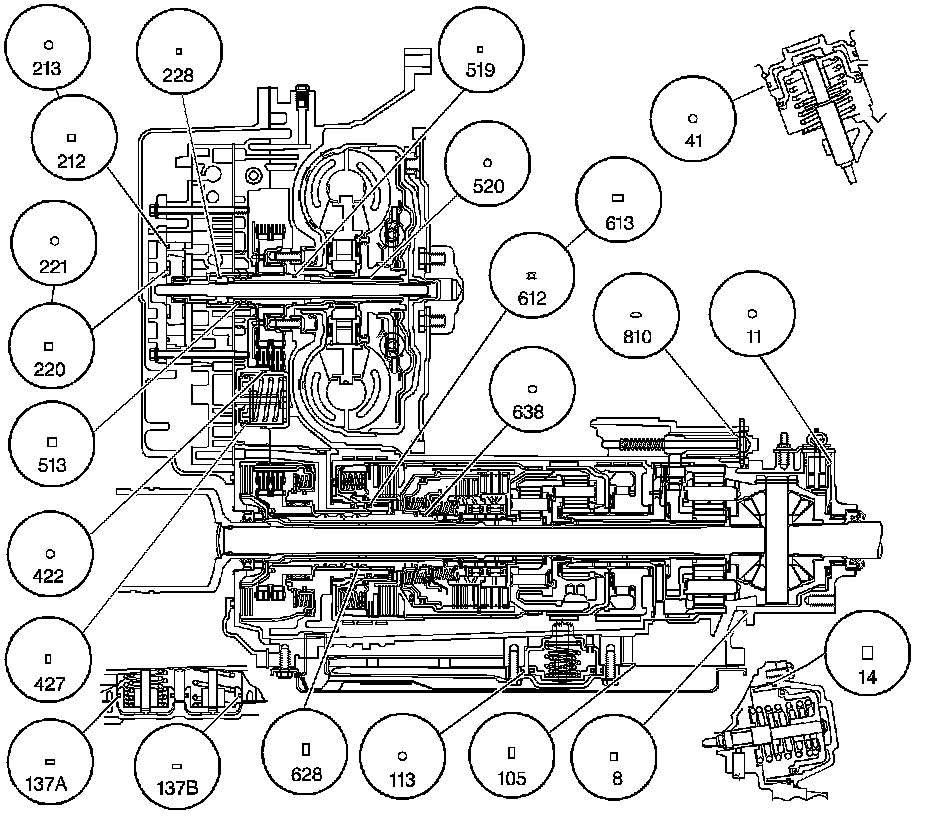

Component Location

Square and O-Ring Seals

Square and O-Ring Seals:

8 - Automatic Transmission Case Extension Seal
11 - Vehicle Speed Sensor O-Ring Seal
14 - Forward Band Servo Cover Seal
41 - Reverse Band Servo Cover O-Ring Seal
105 - Manual 2-1 Band Servo Cover Seal
113 - Manual 2-1 Band Servo Piston Cylinder O-Ring Seal
137a - 1-2 Accumulator Piston Oil Seal Ring
137b - 2-3 Accumulator Piston Oil Seal Ring
212 - Automatic Transmission Oil Pump Slide Oil Seal Ring
213 - Automatic Transmission Oil Pump Slide O-Ring Seal
220 - Automatic Transmission Oil Pump Slide Seal
221 - Automatic Transmission Oil Pump Slide Seal Support
228 - Automatic Transmission Oil Pump Drive Shaft Seal
422 - 3-4 Accumulator Piston Cylinder O-Ring Seal
427 - 3-4 Accumulator Piston Oil Seal
513 - Turbine Shaft Oil Seal Ring
519 - Turbine Shaft Oil Seal Ring
520 - Turbine Shaft O-Ring Seal
612 - Second Clutch Housing Oil Seal Ring Four Lobe Seal
613 - Second Clutch Housing Oil Seal Ring
628 - Input Clutch Housing Oil Seal Ring
638 - Third Clutch Housing O-Ring Seal
810 - Park Pawl Actuator Guide O-Ring Seal
