DVD Player



Entertainment/Communication Connector End Views

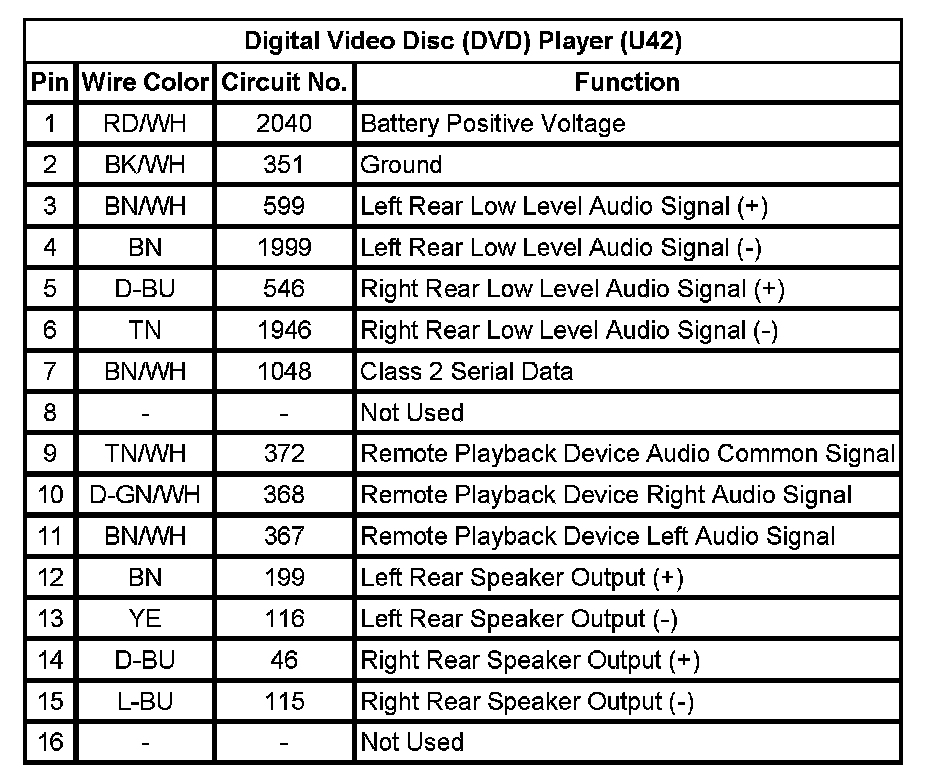

Digital Video Disc (DVD) Player (U42)














Digital Video Disc (DVD) Player C1 (UMS)














Digital Video Disc (DVD) Player C2 (UMS)
