Passenger Door Module (PDM) X3

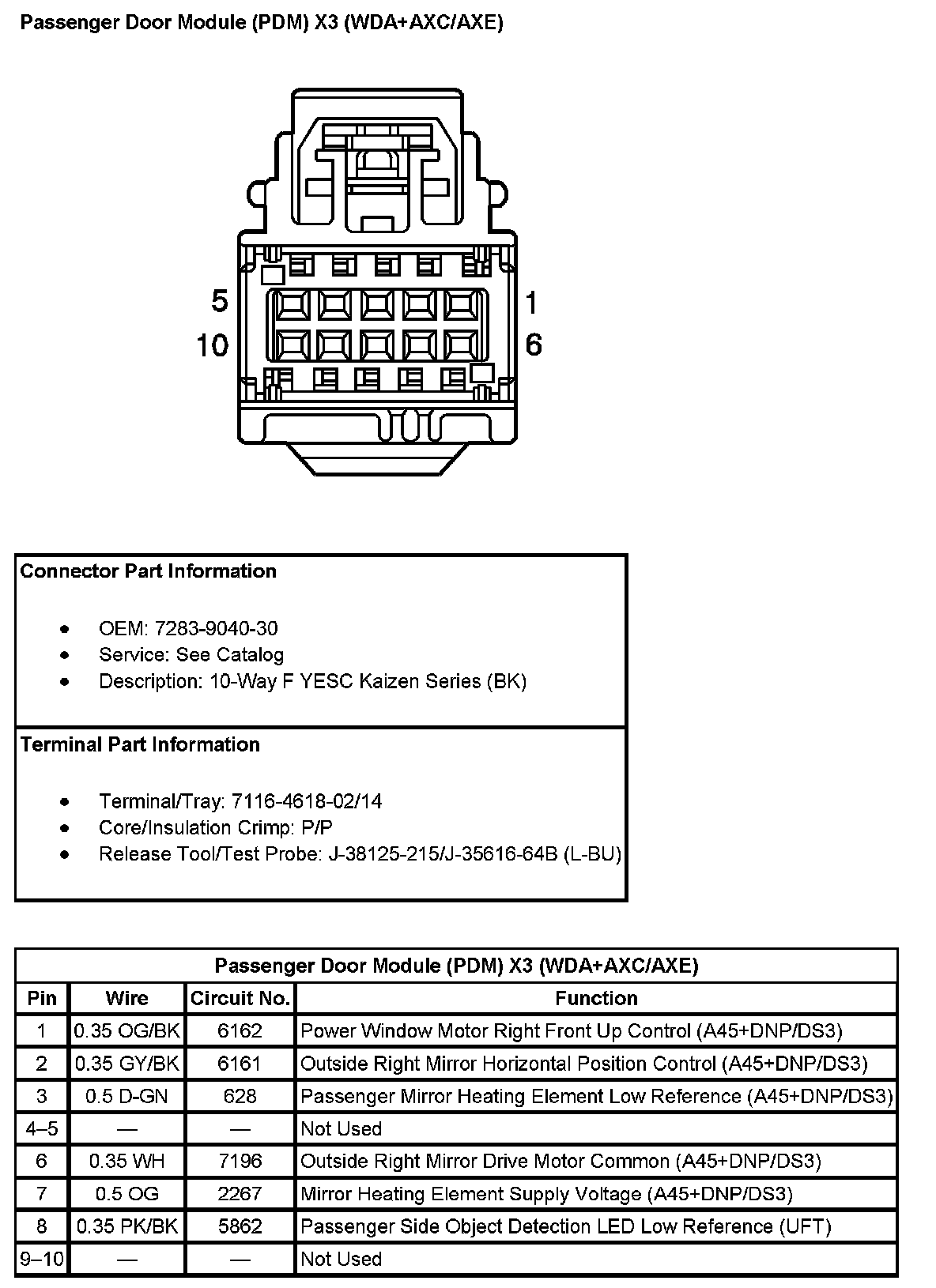

Passenger Door Module (PDM) X3 (With RPO Code WDA+AXC / AXE):

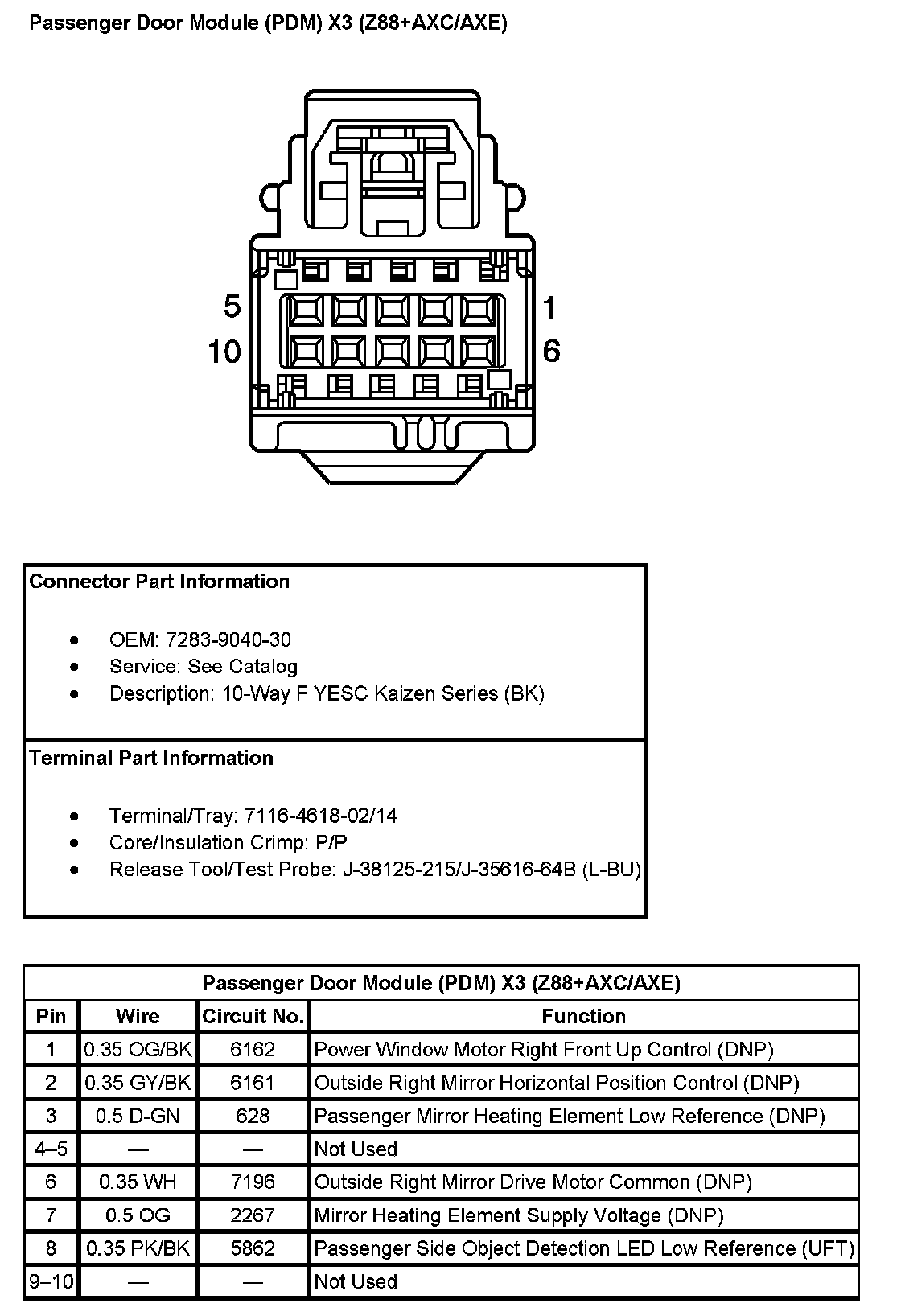

Passenger Door Module (PDM) X3 (With RPO Code Z88+AXC / AXE):
