Passenger Door Module (PDM) X2

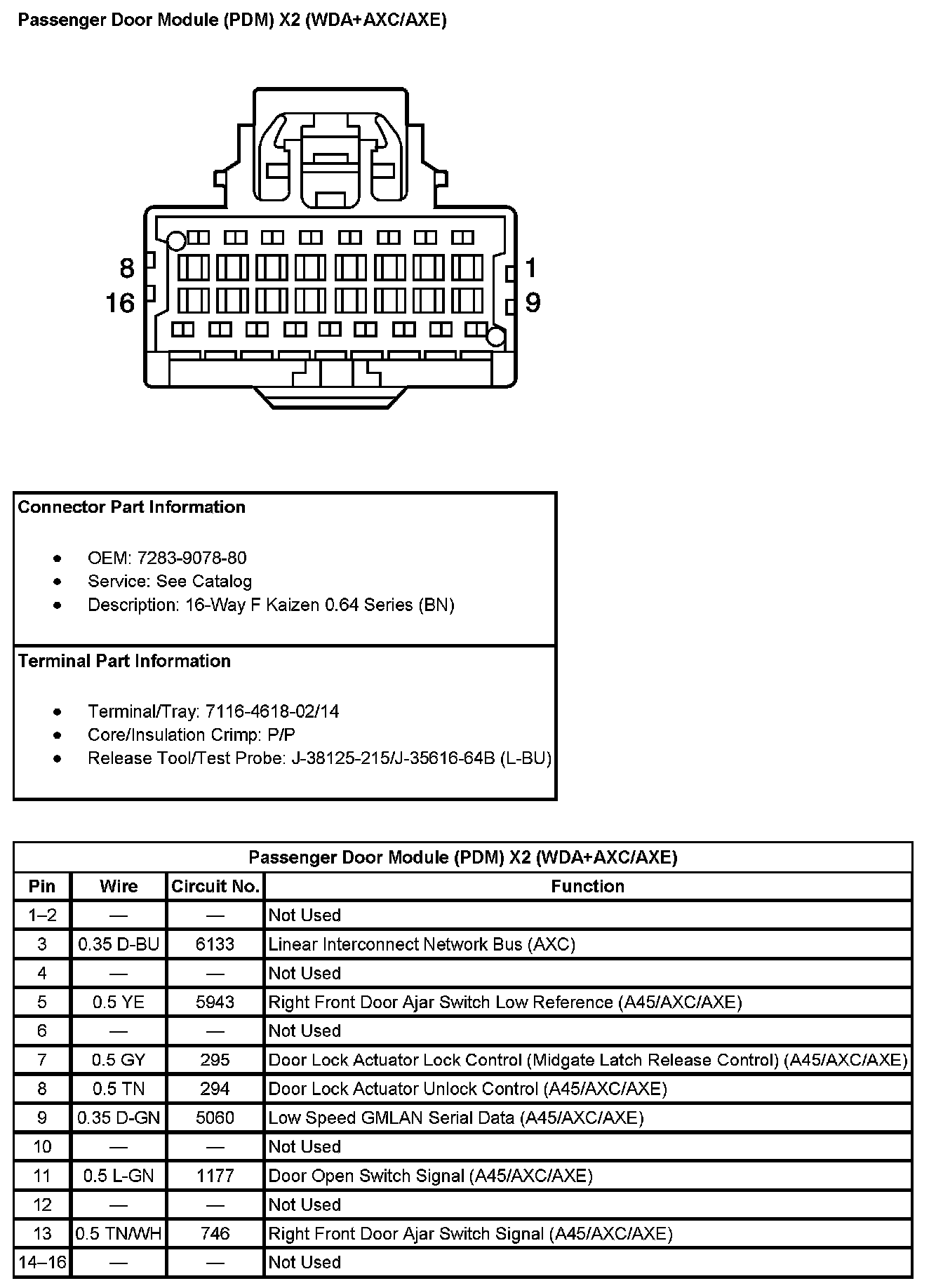

Passenger Door Module (PDM) X2 (With RPO Code WDA+AXC / AXE):

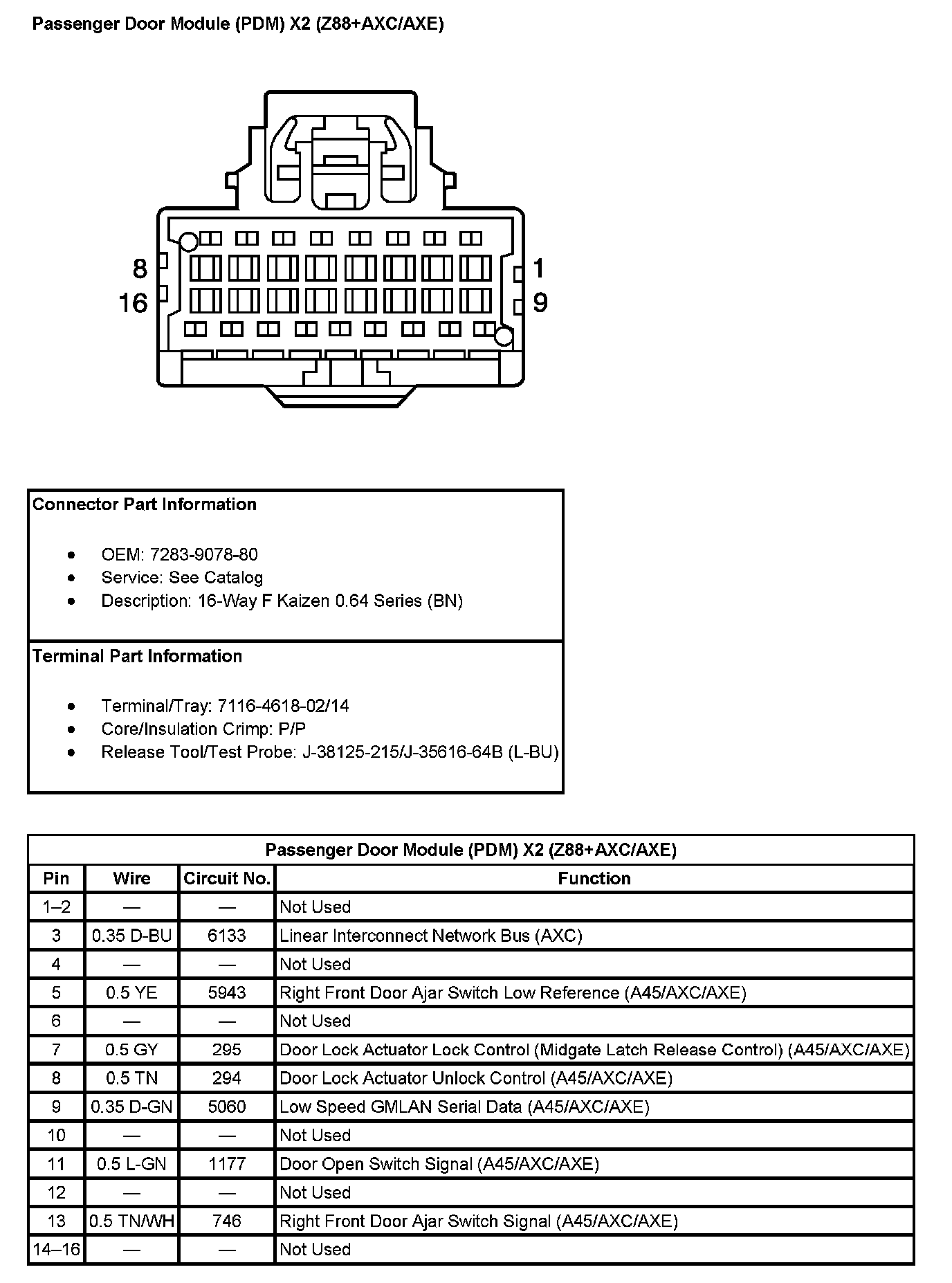

Passenger Door Module (PDM) X2 (With RPO Code Z88+AXC / AXE):
