Variable Valve Timing Actuator: Diagrams

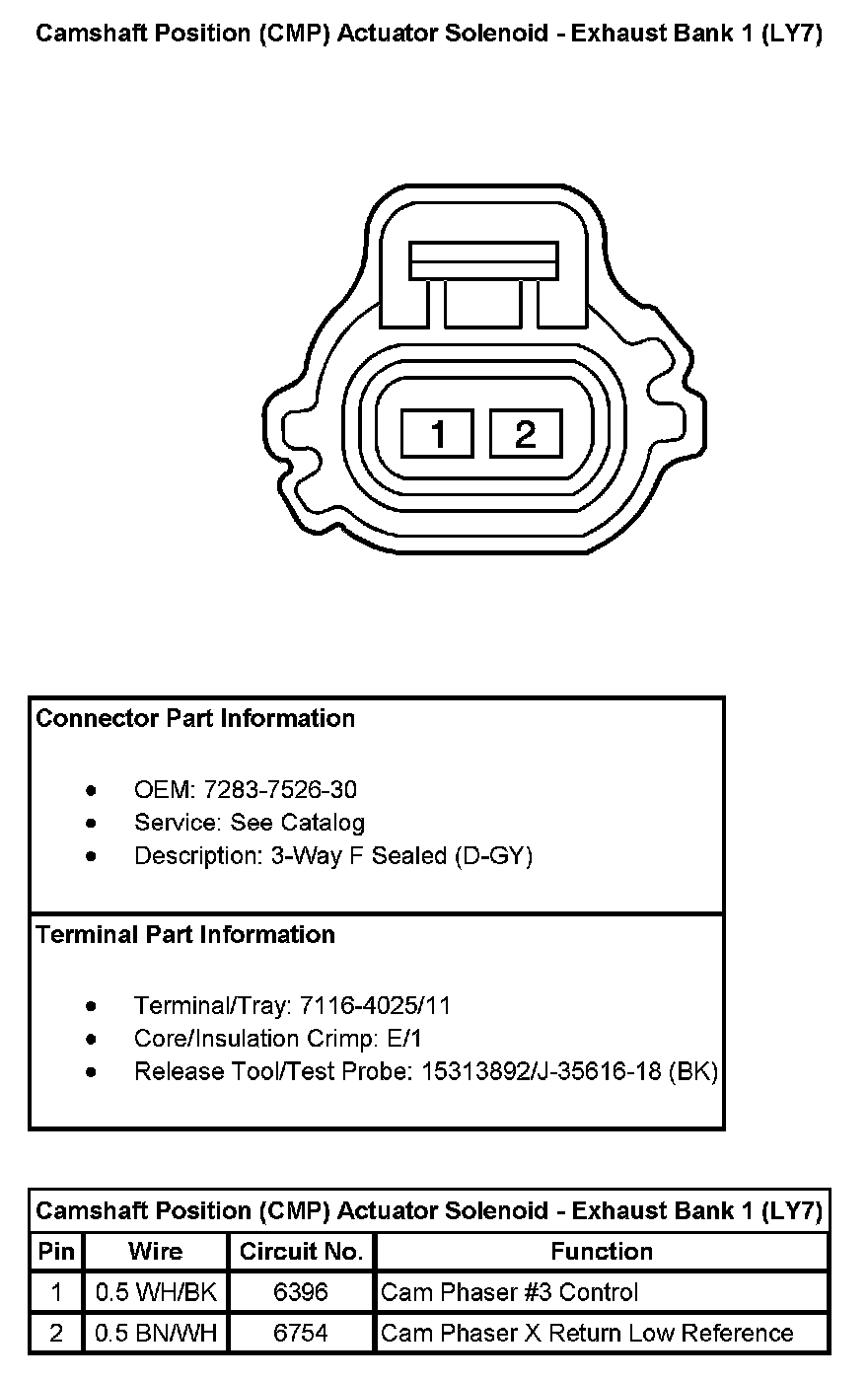

Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1:

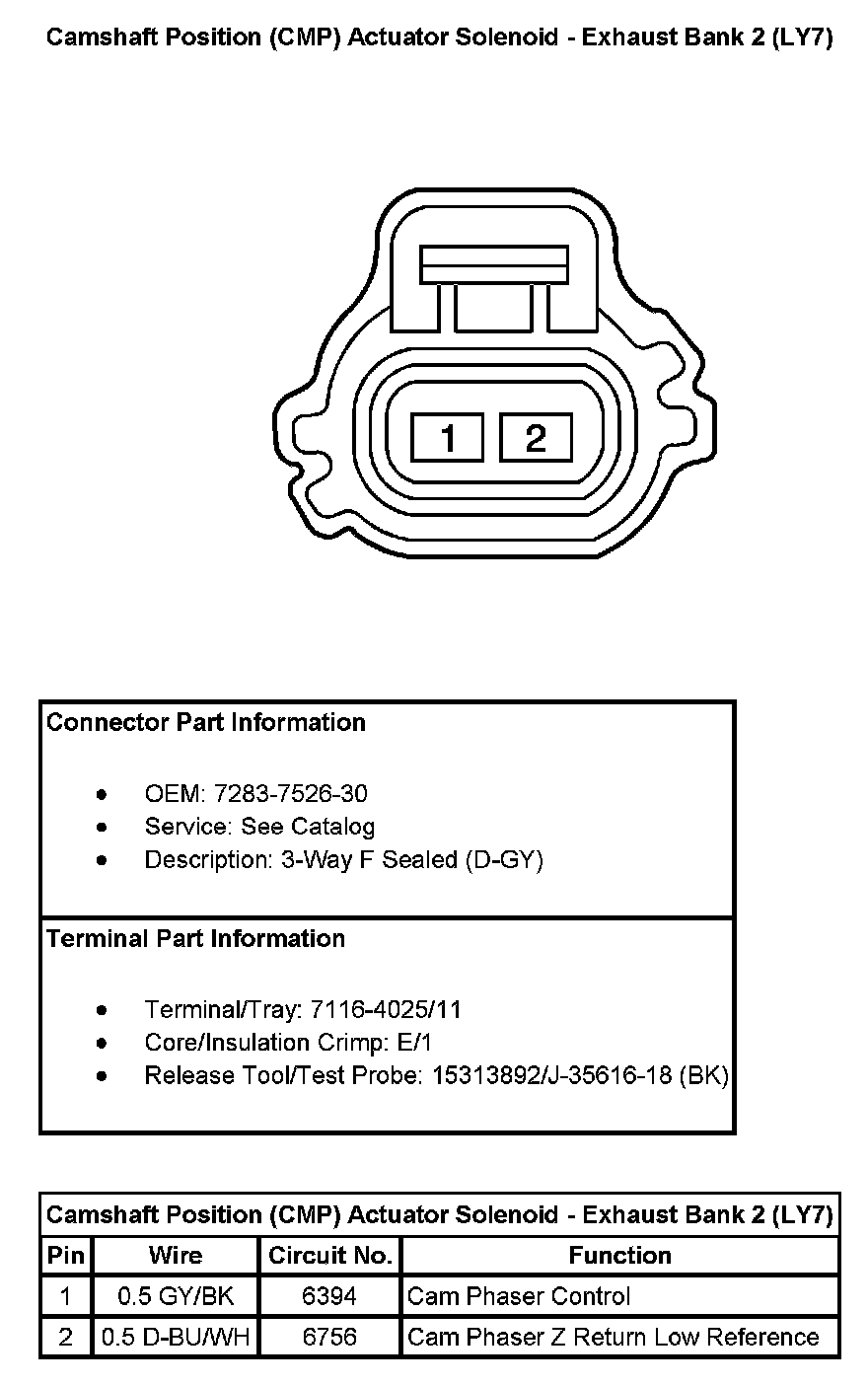

Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2:

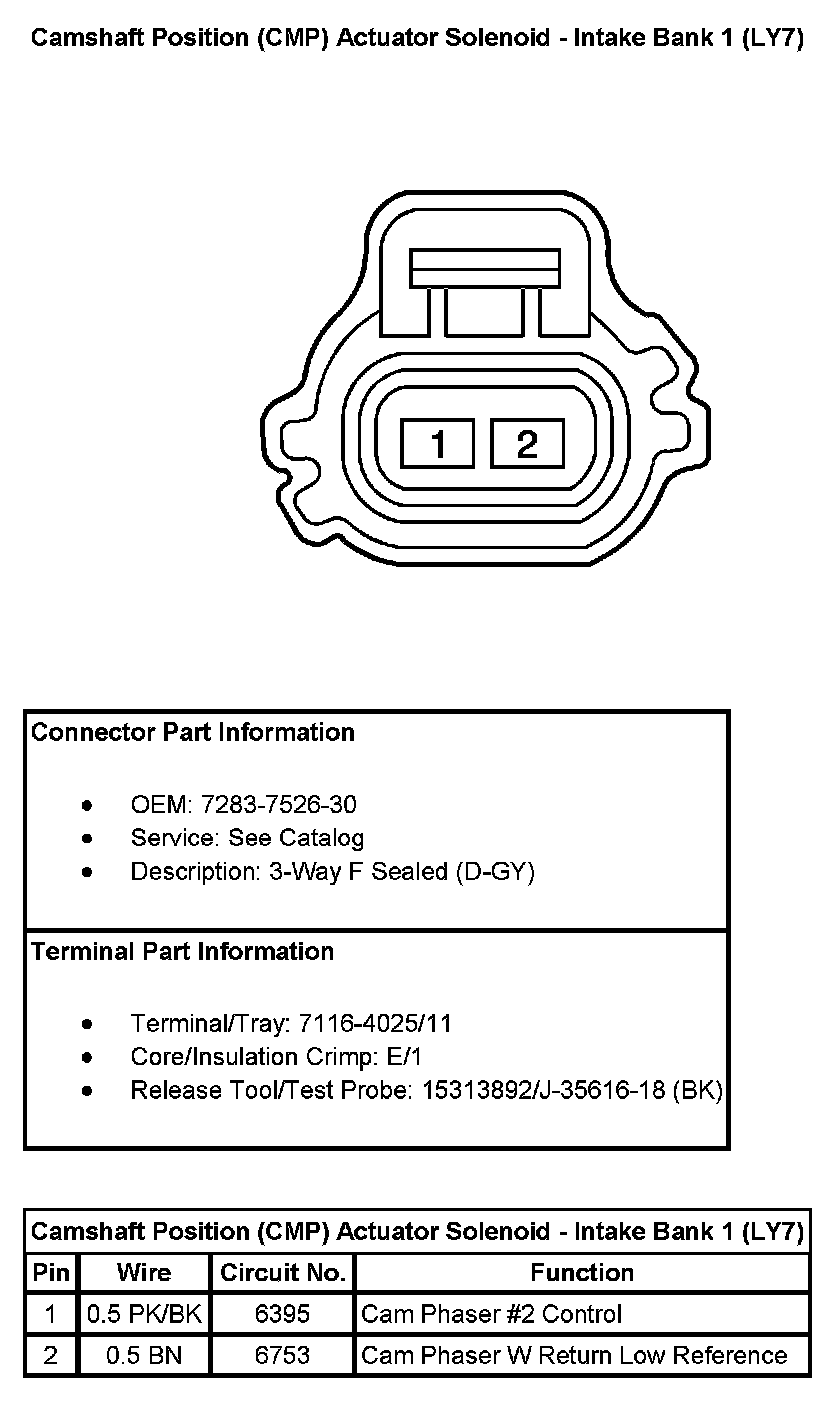

Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1:

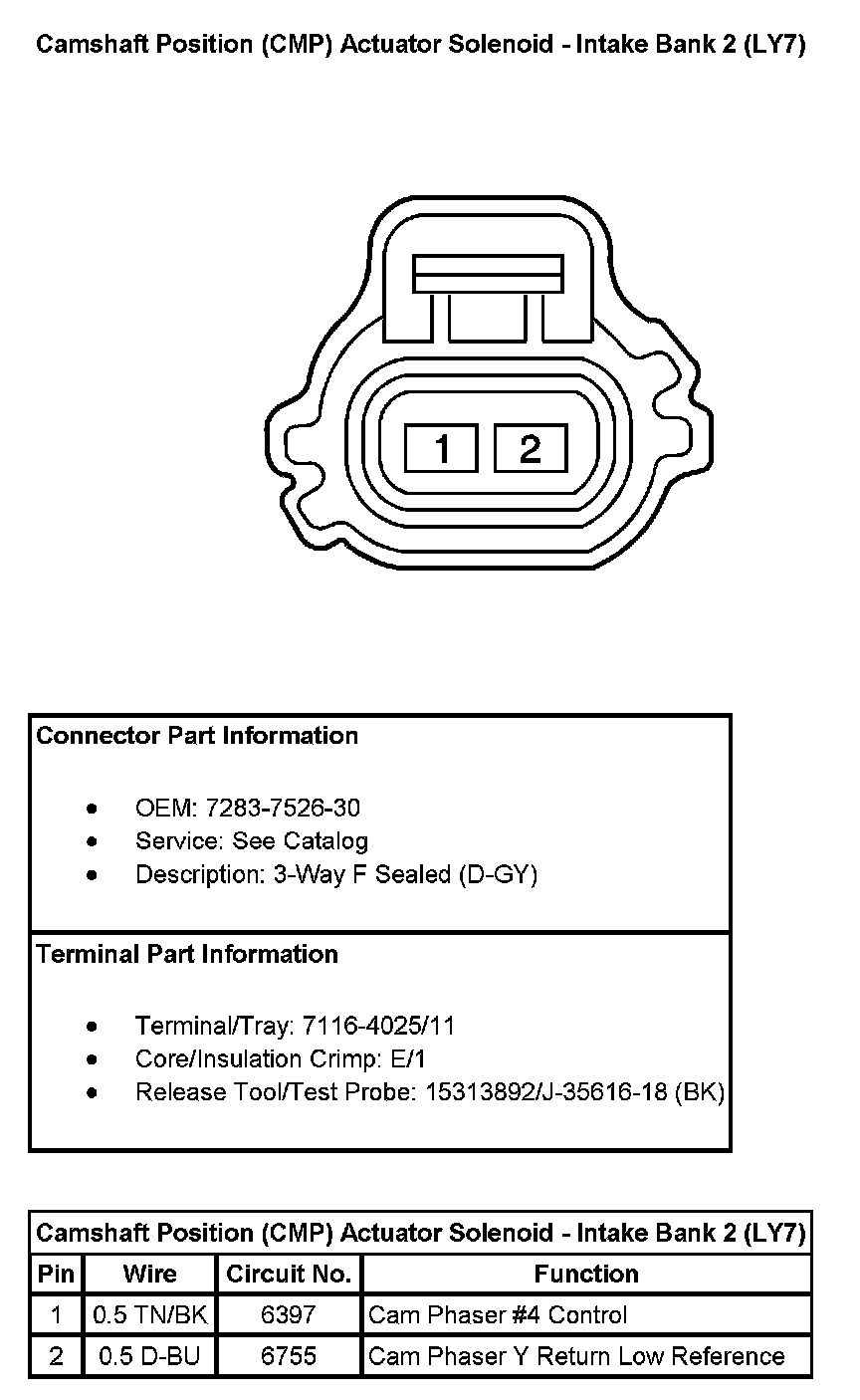

Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2:
