Power Steering Schematics

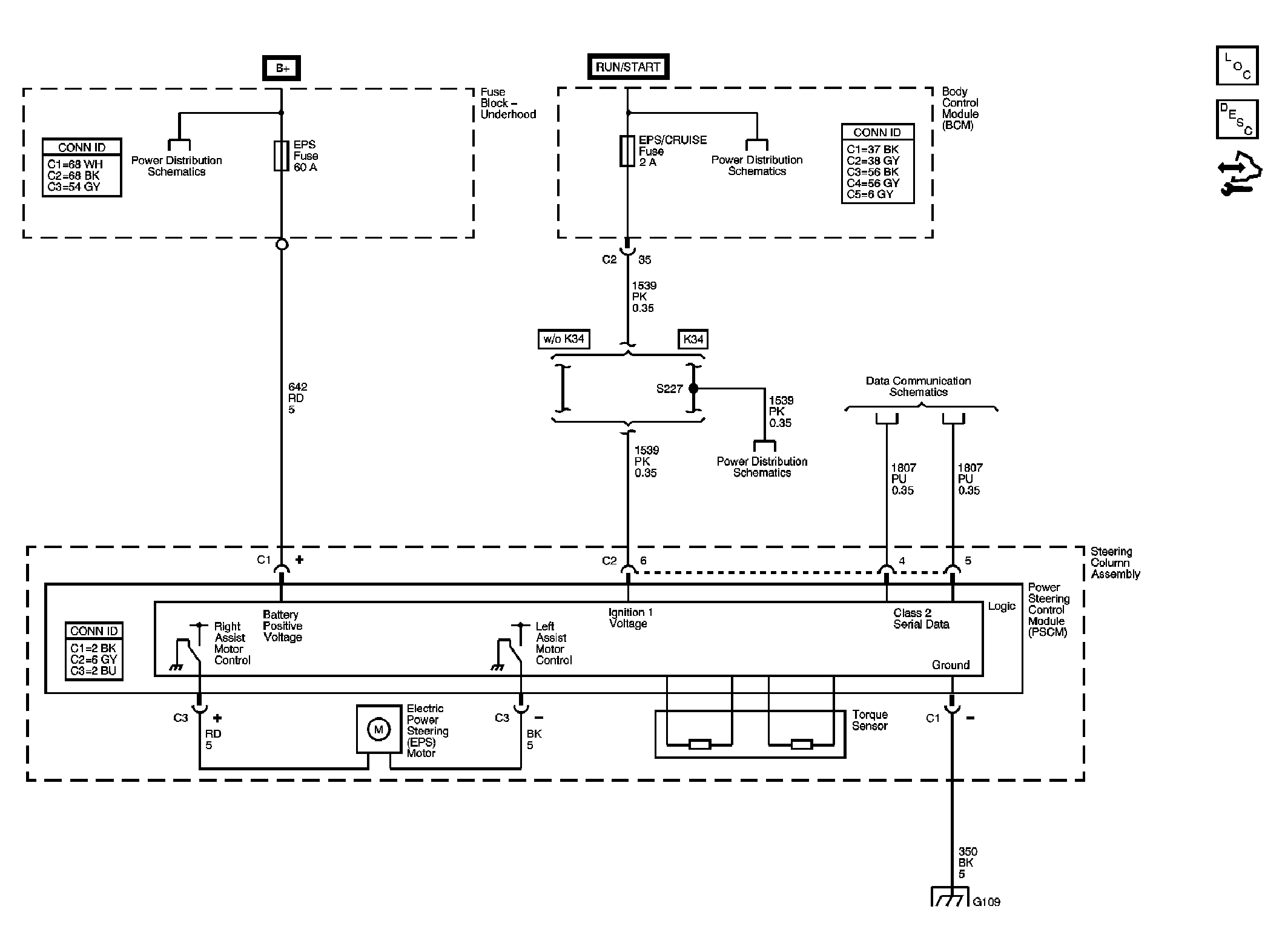

Fig 1: Power Steering Schematics
GM1768375Courtesy of GENERAL MOTORS CORP.
