Ground Distribution Schematics

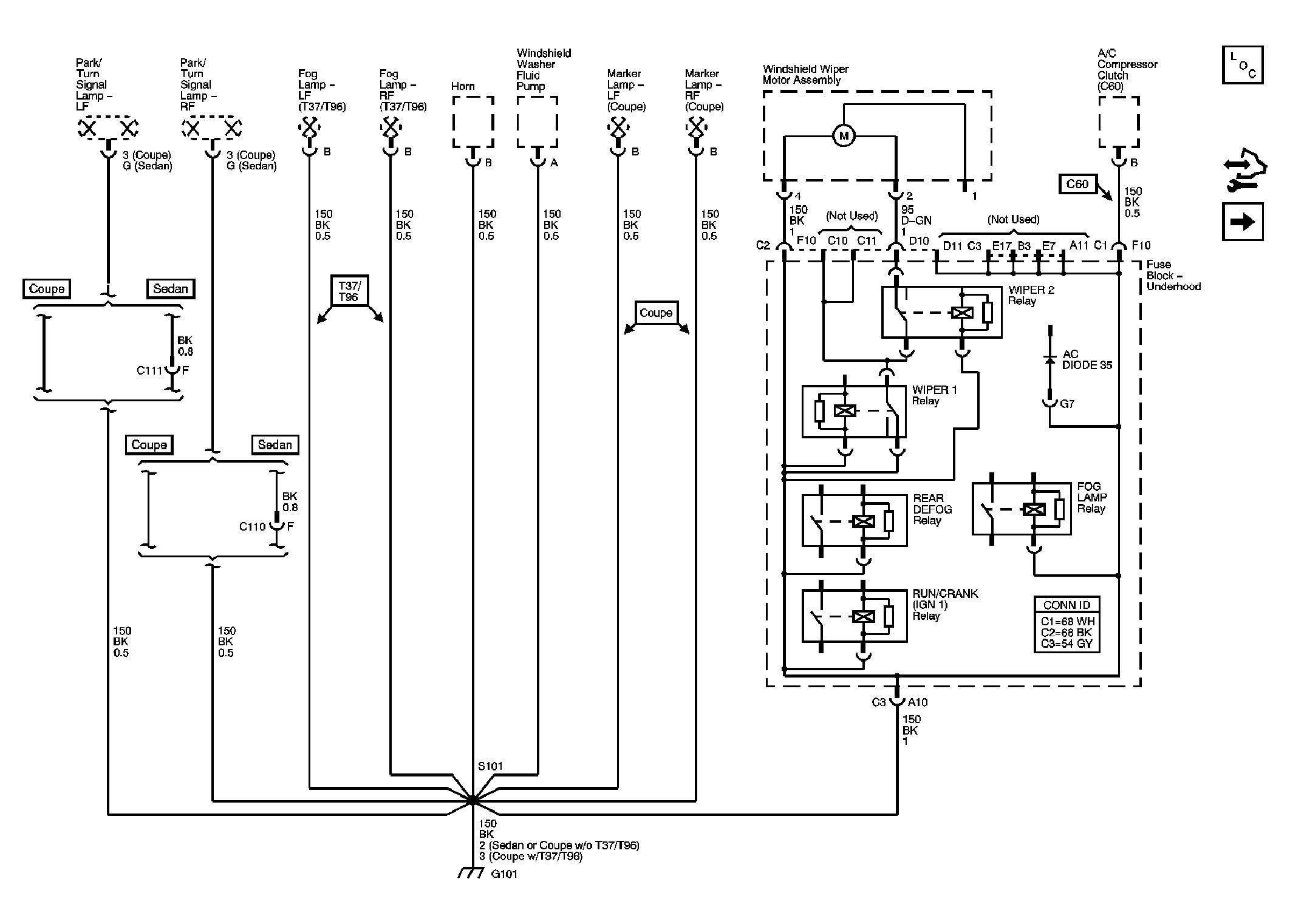

Fig 1: G101

GM1769441

Courtesy of GENERAL MOTORS CORP.

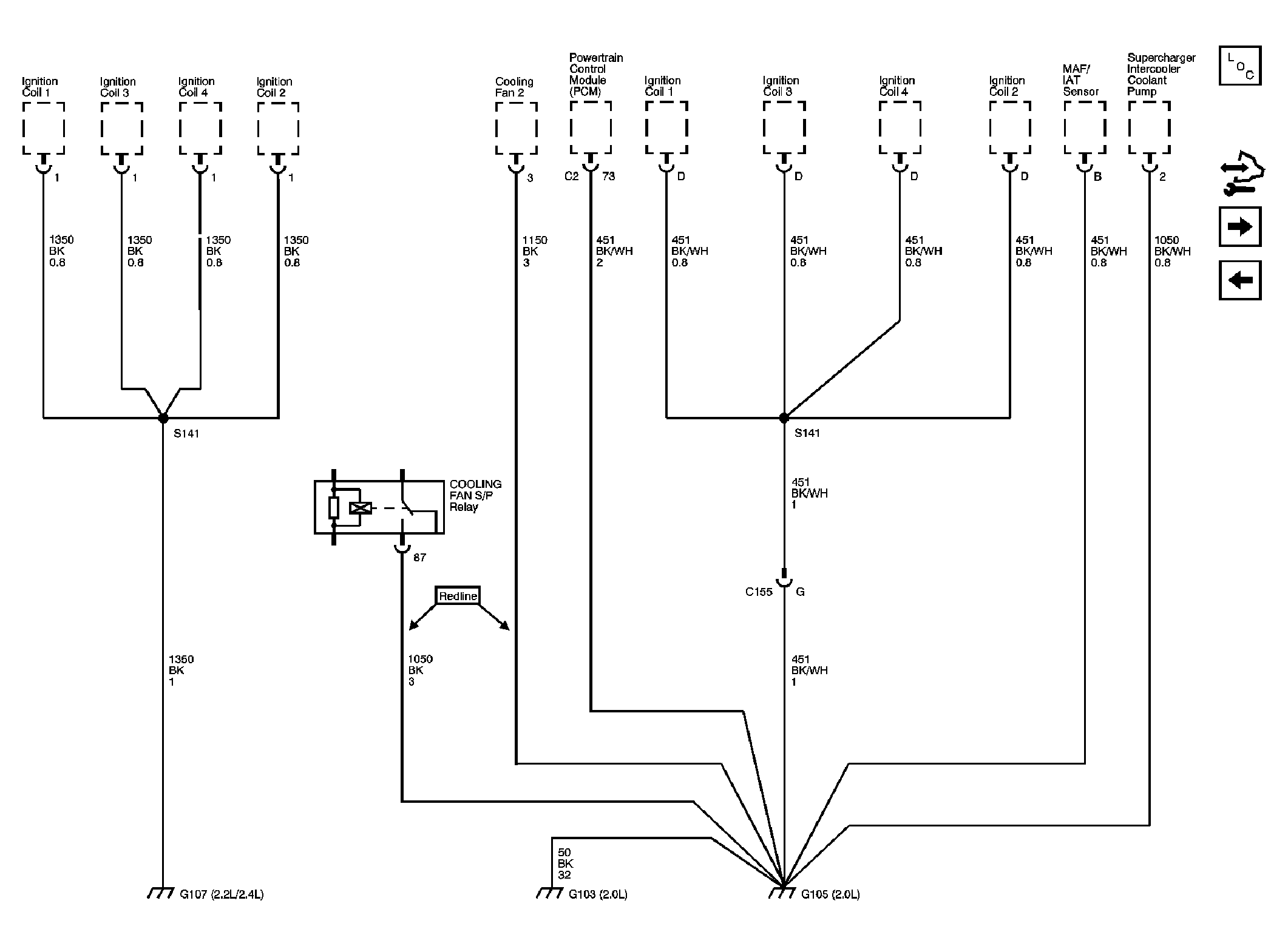

Fig 2: G103 and G105 - 2.0L, G107 - 2.2L/2.4L

GM1769446

Courtesy of GENERAL MOTORS CORP.

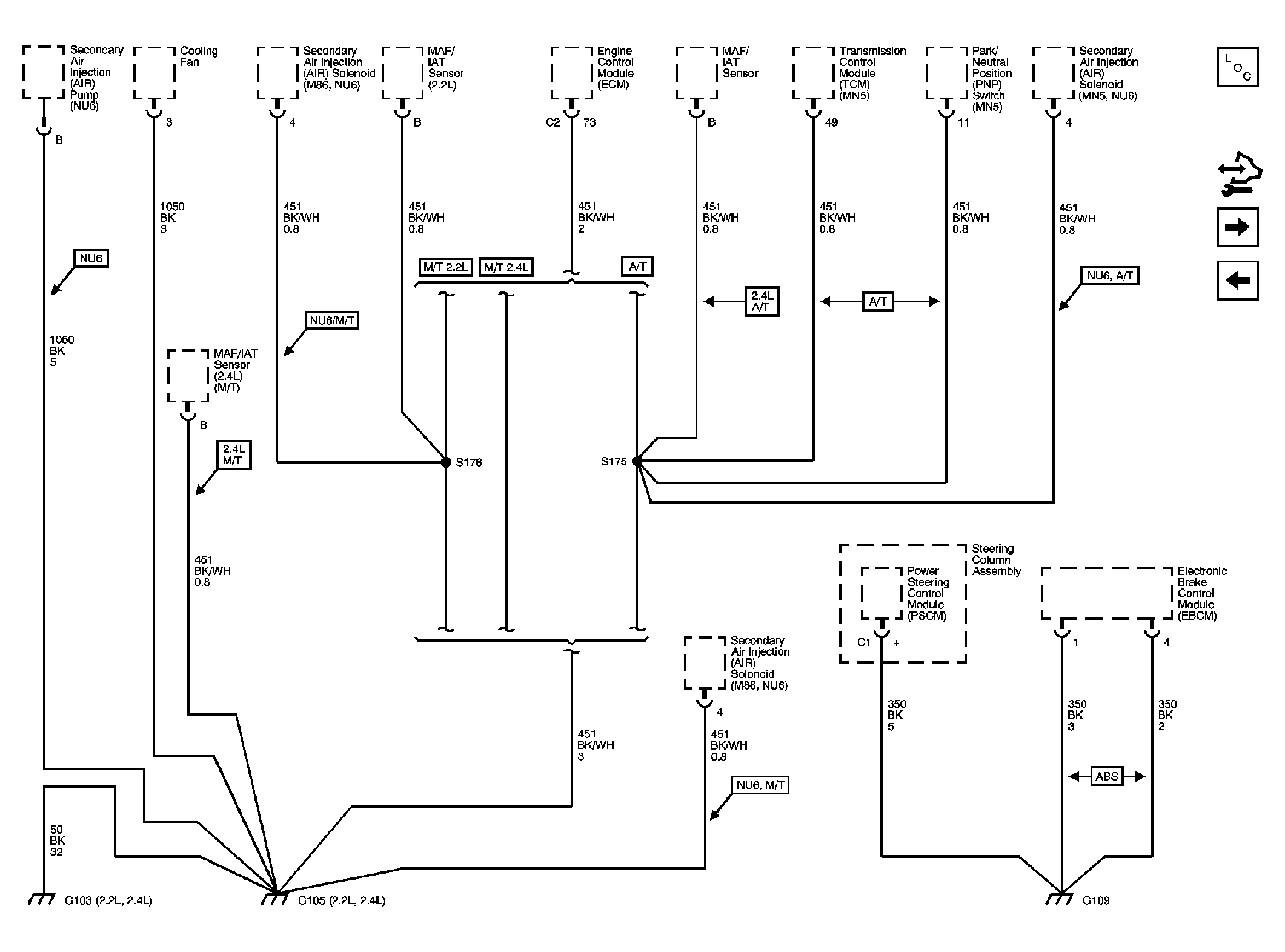

Fig 3: G103, G105 - 2.2L, 2.4L, and G109

GM1769451

Courtesy of GENERAL MOTORS CORP.

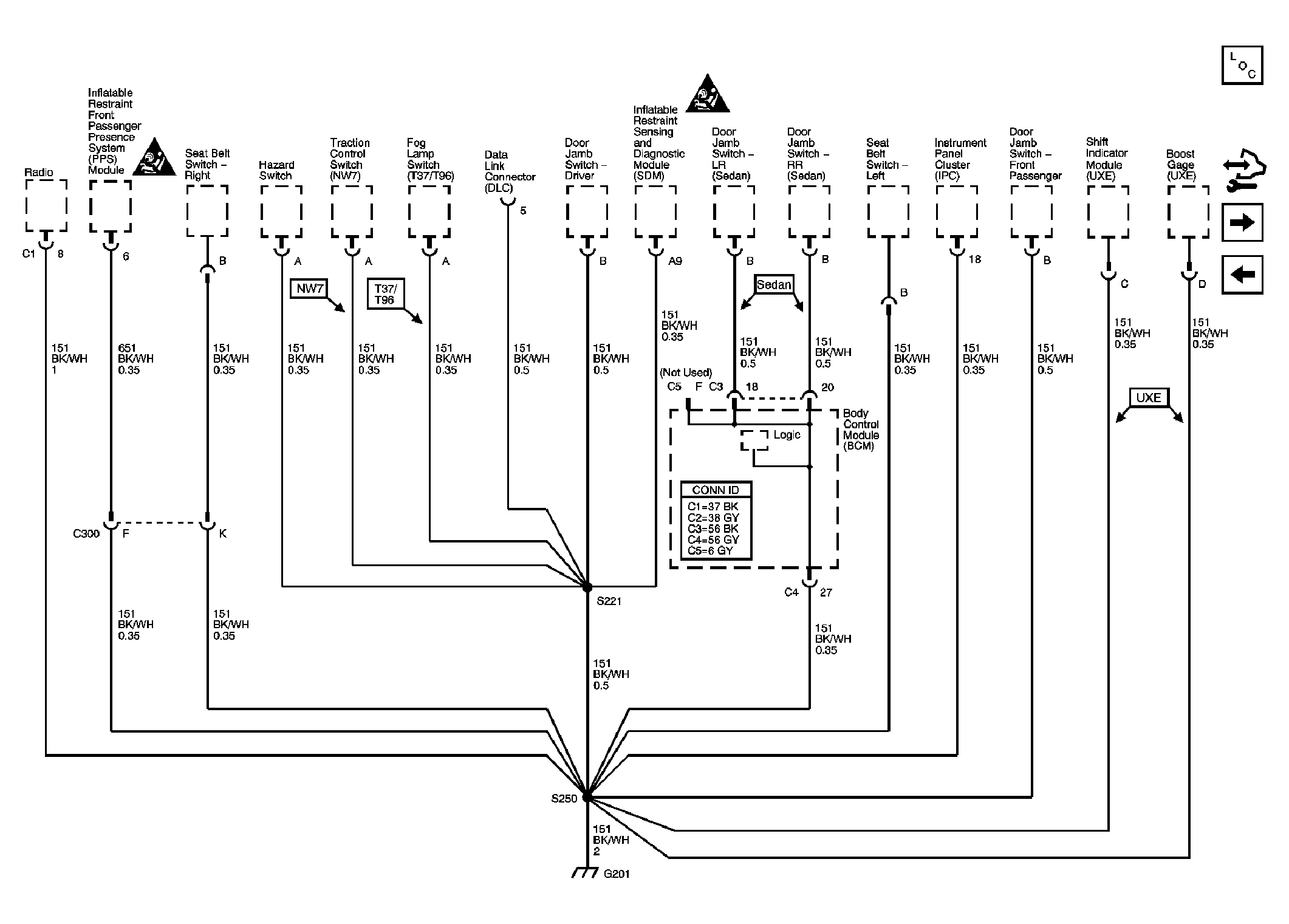

Fig 4: G201

GM1769454

Courtesy of GENERAL MOTORS CORP.

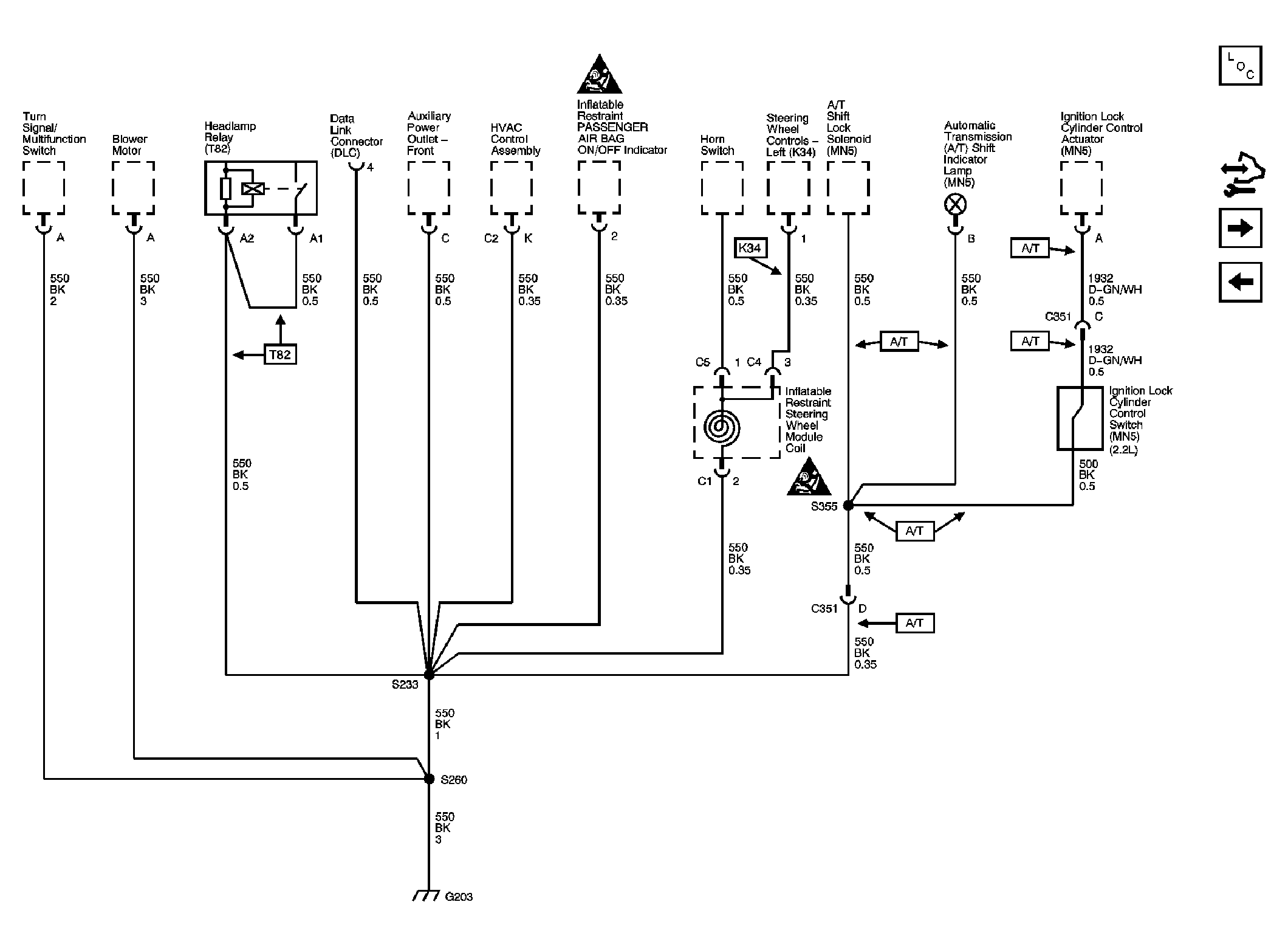

Fig 5: G203

GM1769457

Courtesy of GENERAL MOTORS CORP.

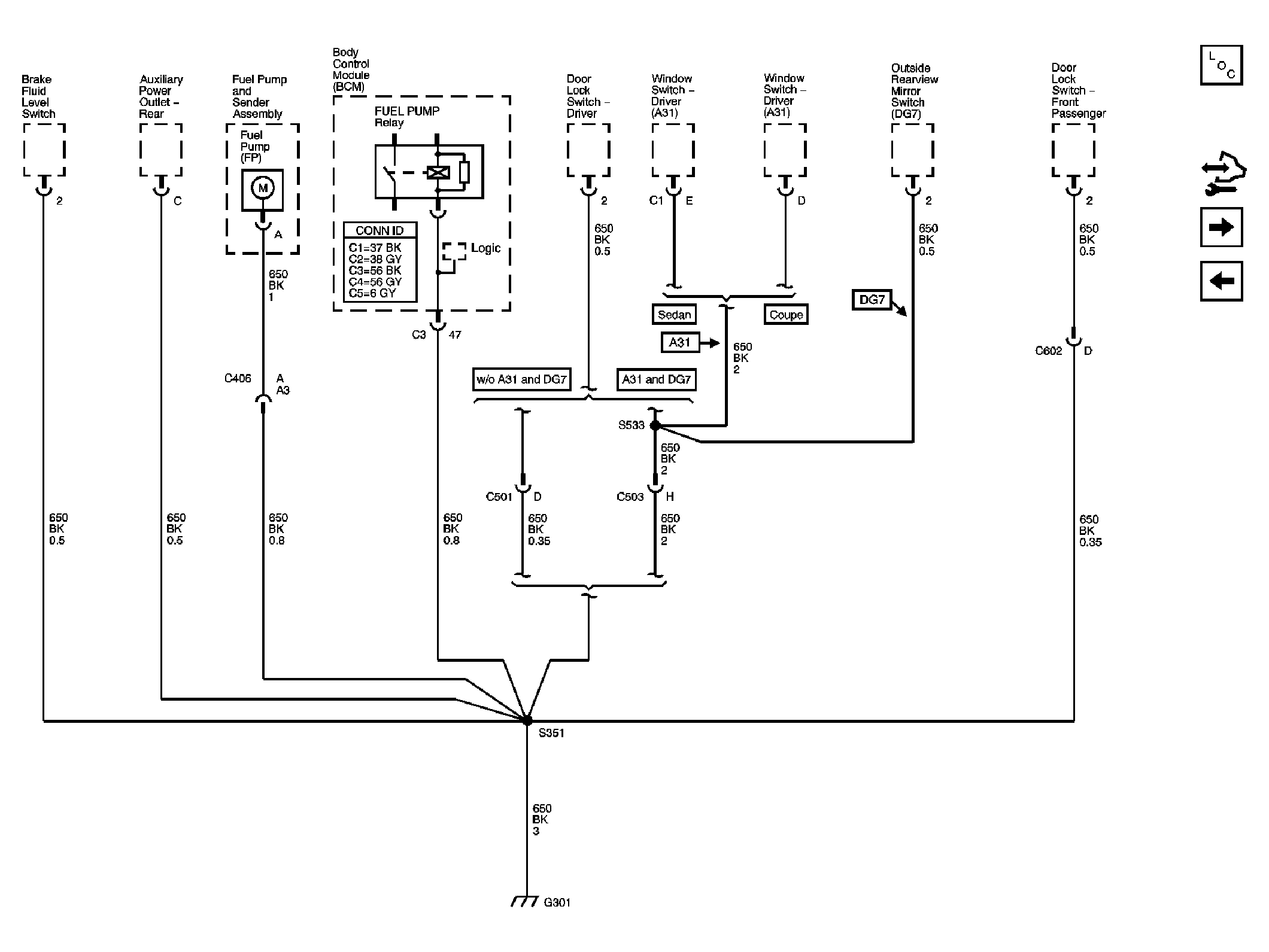

Fig 6: G301

GM1769466

Courtesy of GENERAL MOTORS CORP.

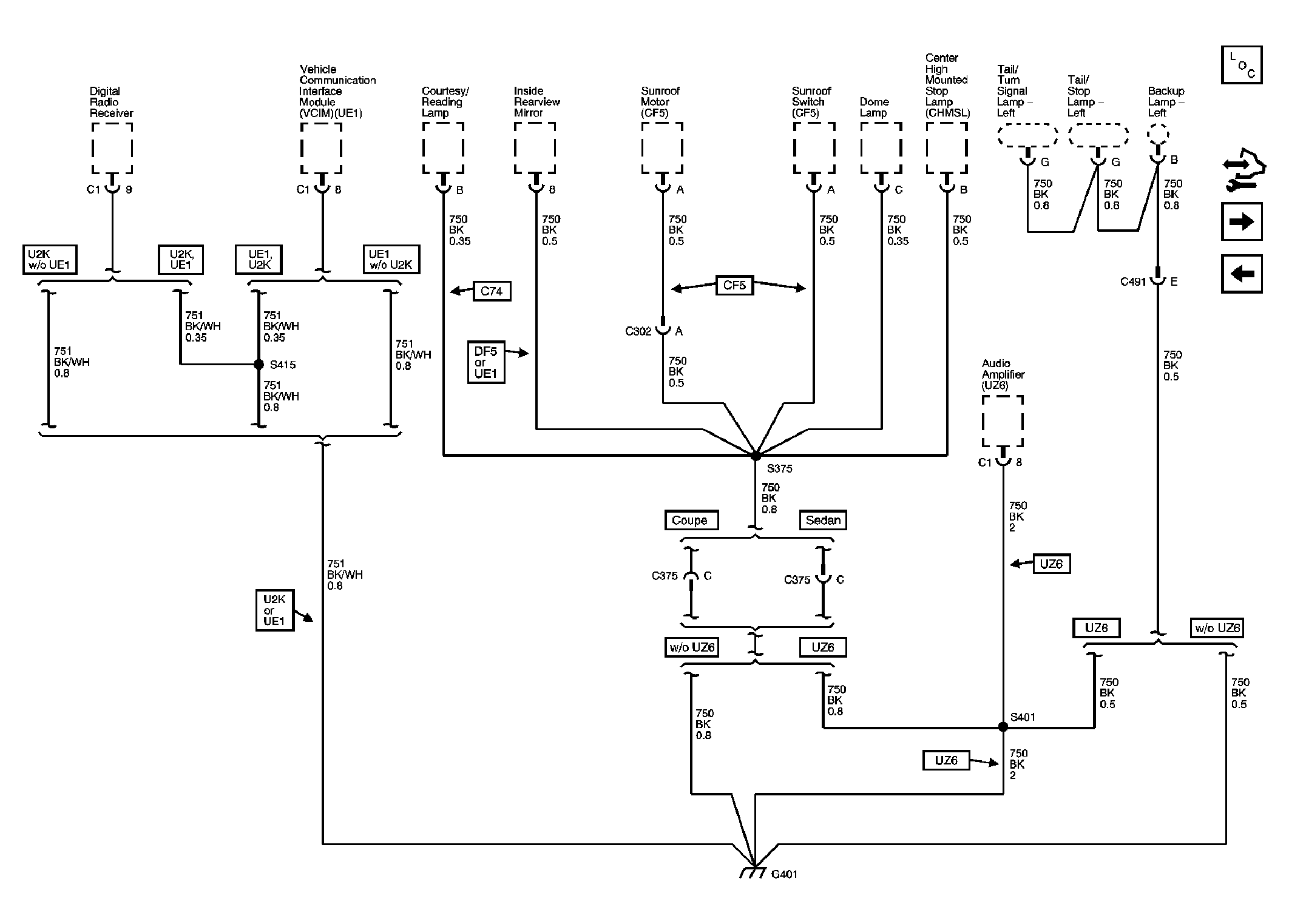

Fig 7: G401

GM1769468

Courtesy of GENERAL MOTORS CORP.

Fig 8: G403 and G502

GM1769472

Courtesy of GENERAL MOTORS CORP.
