Tail/Turn Signal Lamp



Lighting Systems Connector End Views

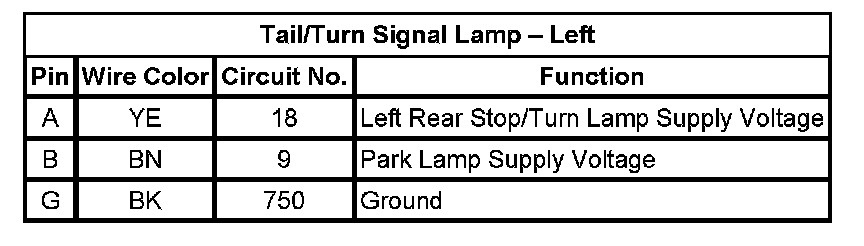

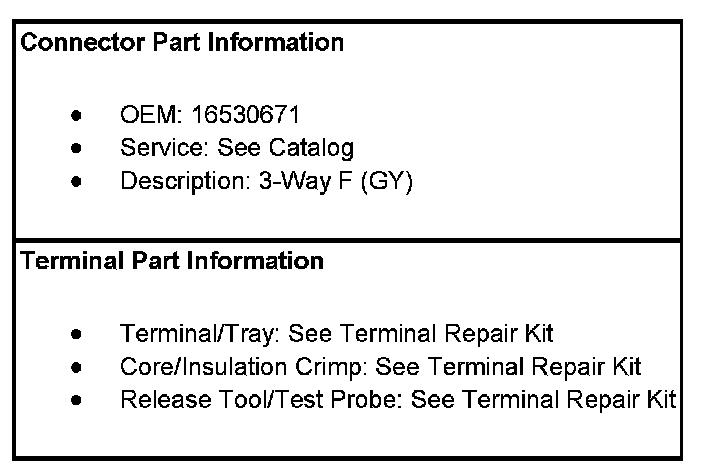

Tail/Turn Signal Lamp - Left

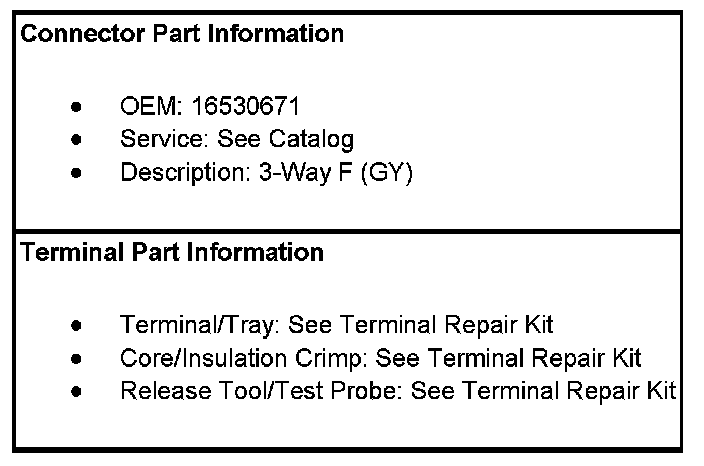

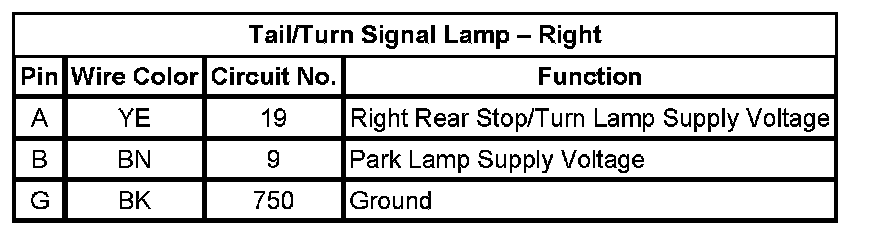

Tail/Turn Signal Lamp - Right
