Knock Sensor: Locations

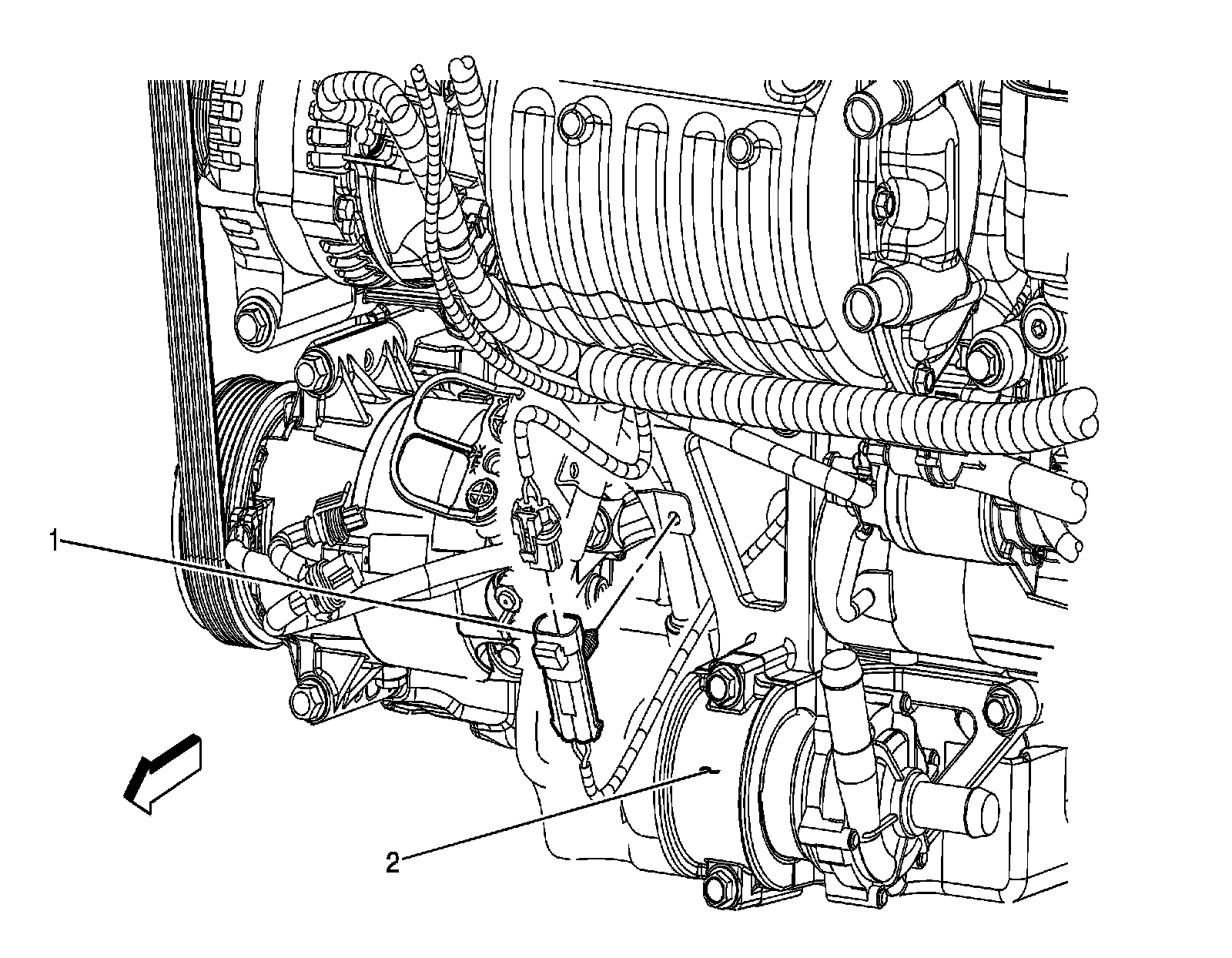

Engine Controls Component Views

Lower Front of the Engine




1 - Knock Sensor (KS) Connector
2 - Supercharger Intercooler Coolant Pump
