Power and Grounding Component Views

Power and Grounding Component Views

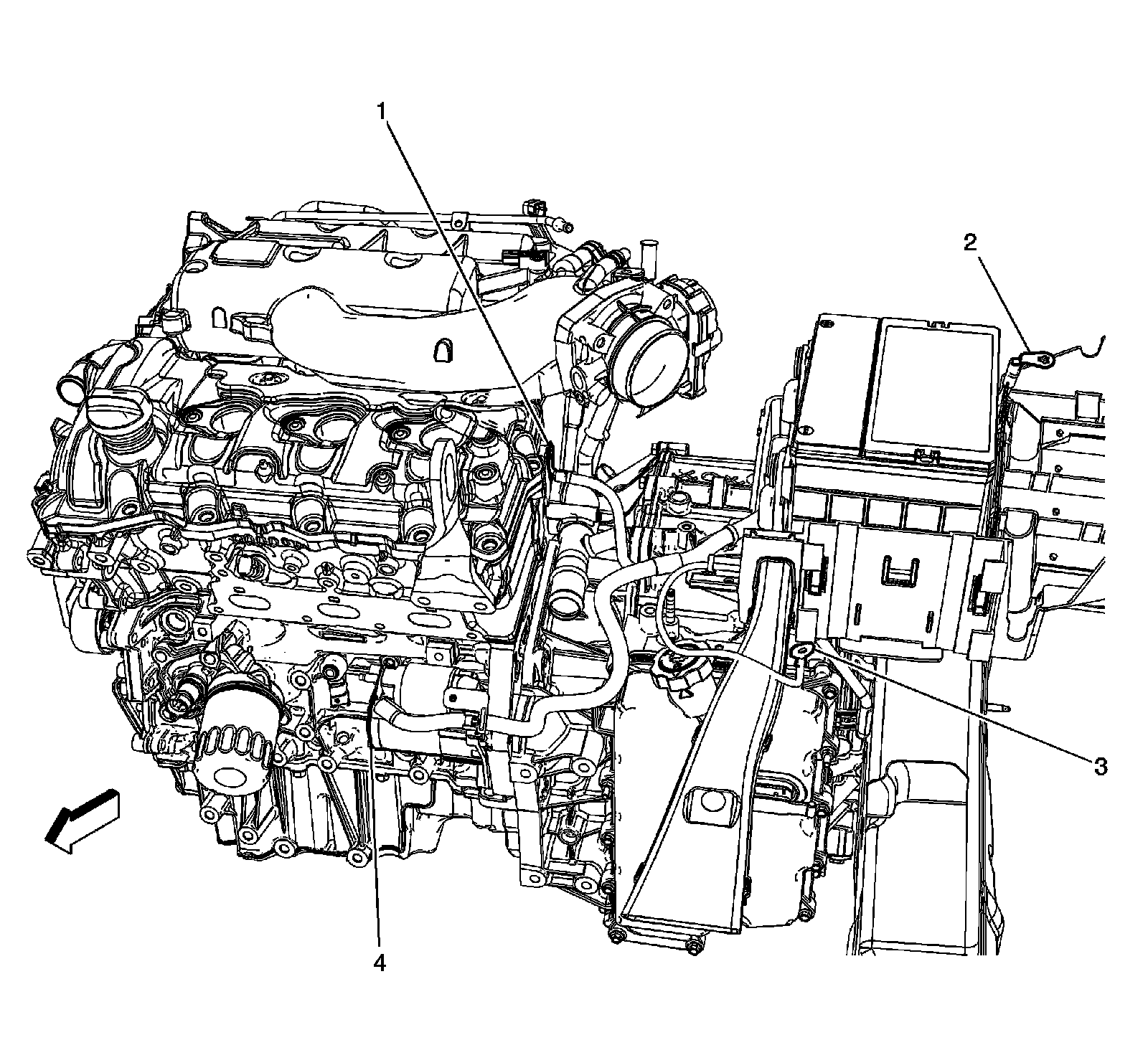

Battery Cable Harness (LY7)




1 - G105
2 - Fuse Block - Underhood Terminal
3 - G104
4 - Starter Terminal

Left Rear of Engine Compartment

Rear Of Engine Compartment:

1 - Coolant Level Switch
2 - Battery
3 - Electronic Brake Control Module (EBCM)
4 - C101
5 - G103 (NV7)
6 - Fuse Block - Underhood

Engine Harness - Rear (LY7)




1 - C108
2 - G105
3 - S198
4 - Upper Intake Manifold
5 - G111
6 - Fuse Block - Underhood C1

Rear of the Luggage Compartment




1 - Rear Window Defogger Grid
2 - Fuse Block - Rear
3 - Rear Floor
4 - Audio Amplifier (UQ3)
