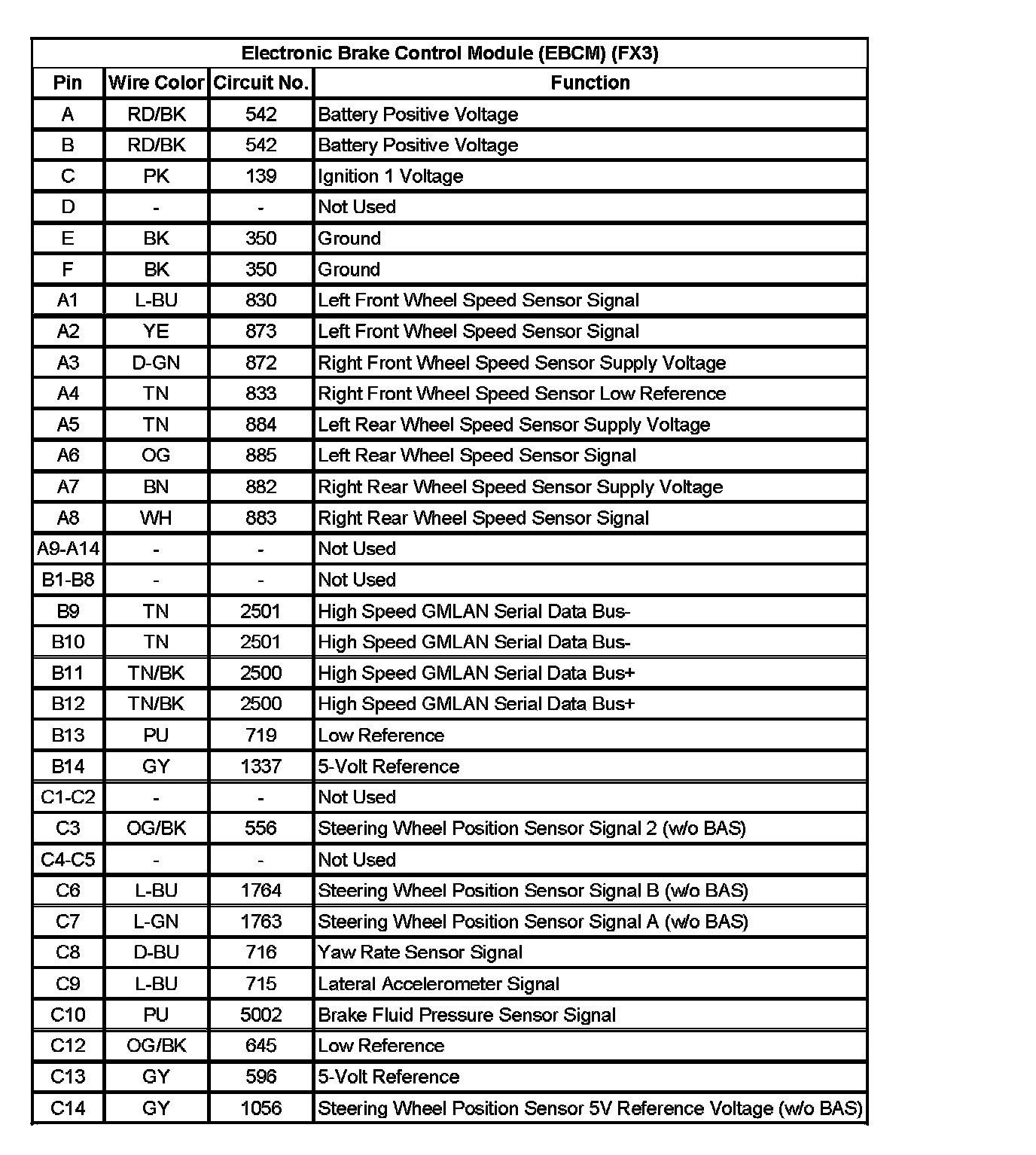

Electronic Brake Control Module (EBCM) (FX3)



Electronic Brake Control Module (EBCM) (FX3)







Electronic Brake Control Module (EBCM) (FX3):
