Engine Controls Schematics

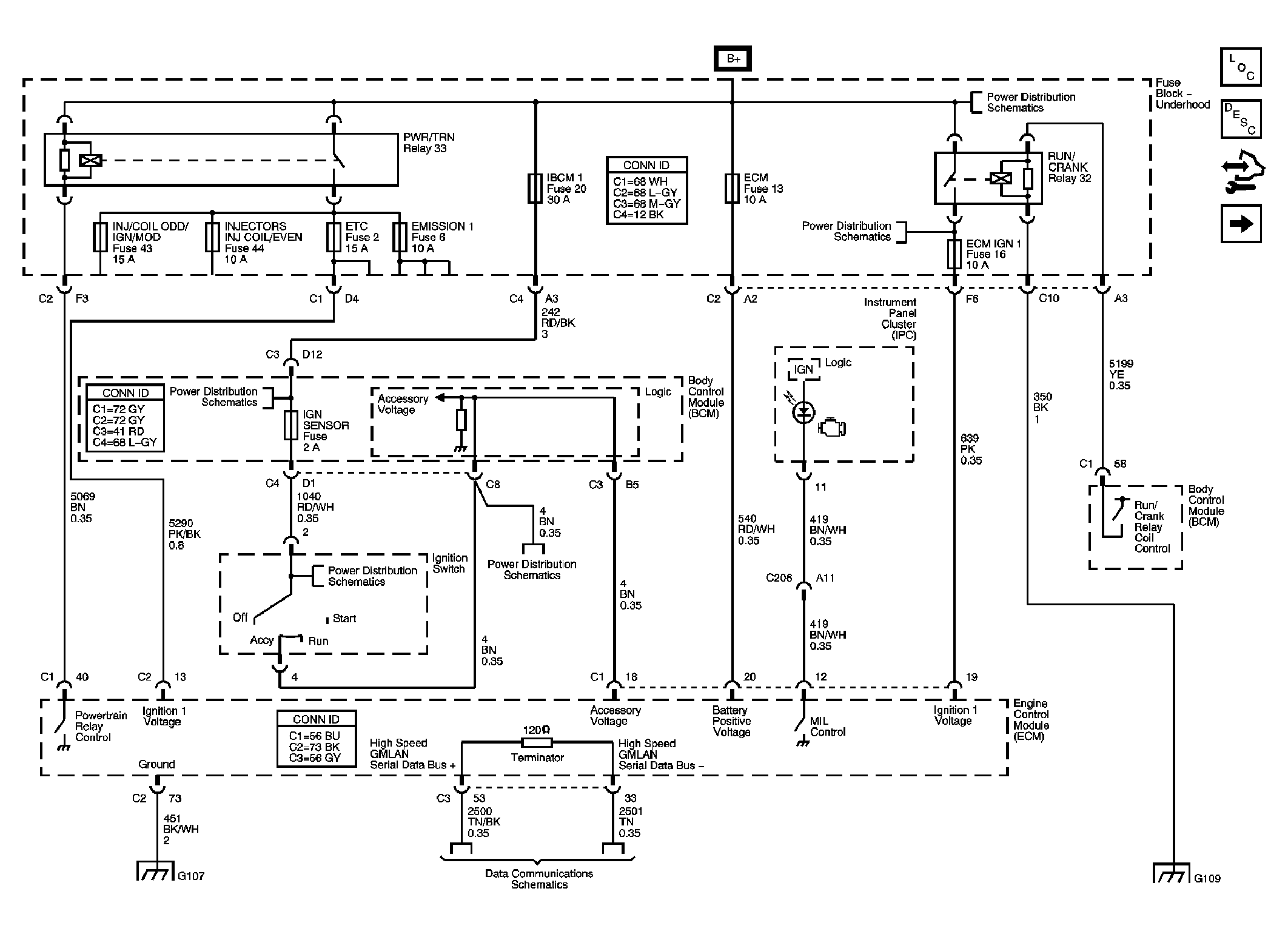

Fig 1: Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

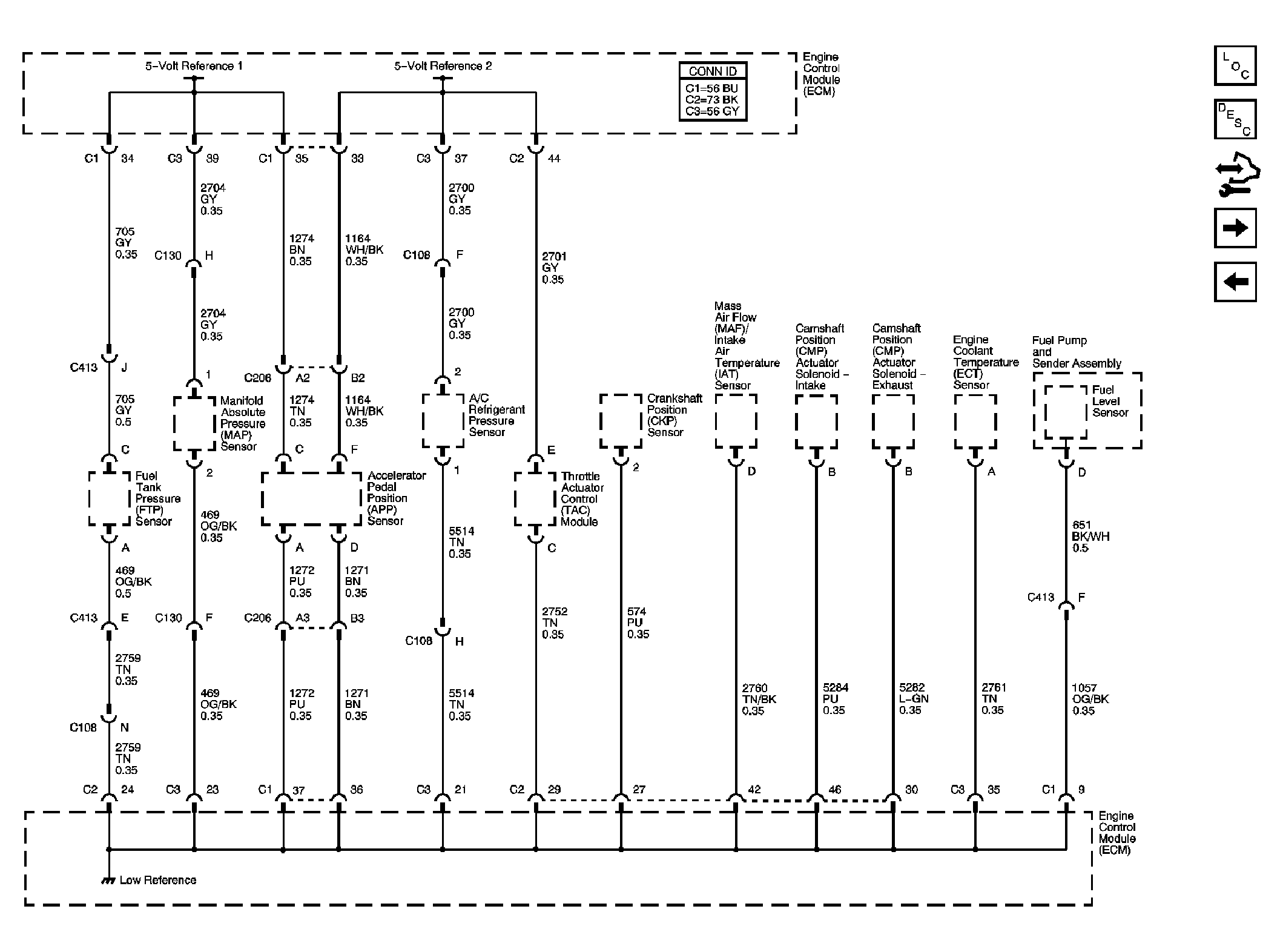

Fig 2: 5-Volt & Low References Schematic

Courtesy of GENERAL MOTORS CORP.

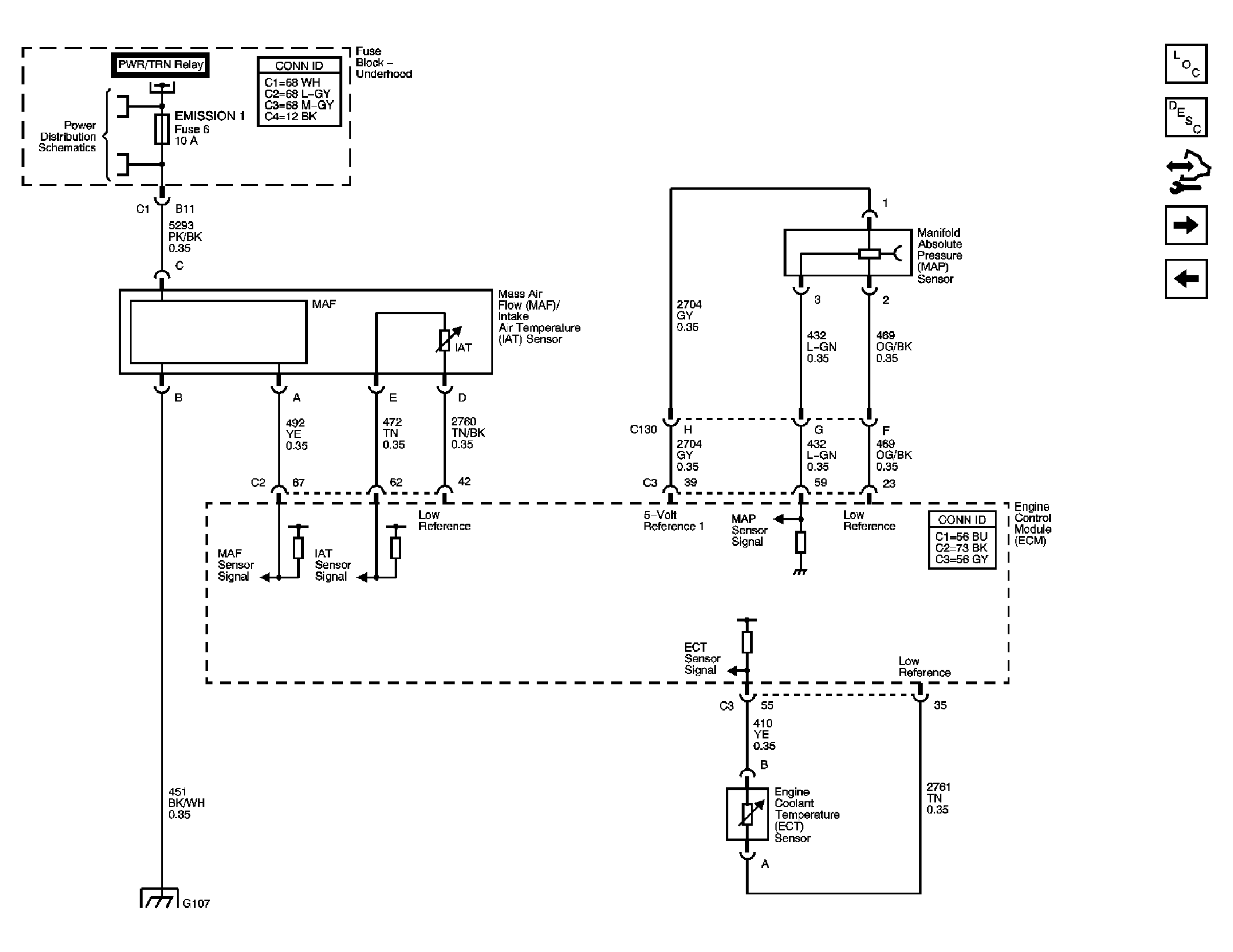

Fig 3: ECT, MAF/IAT & MAP Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

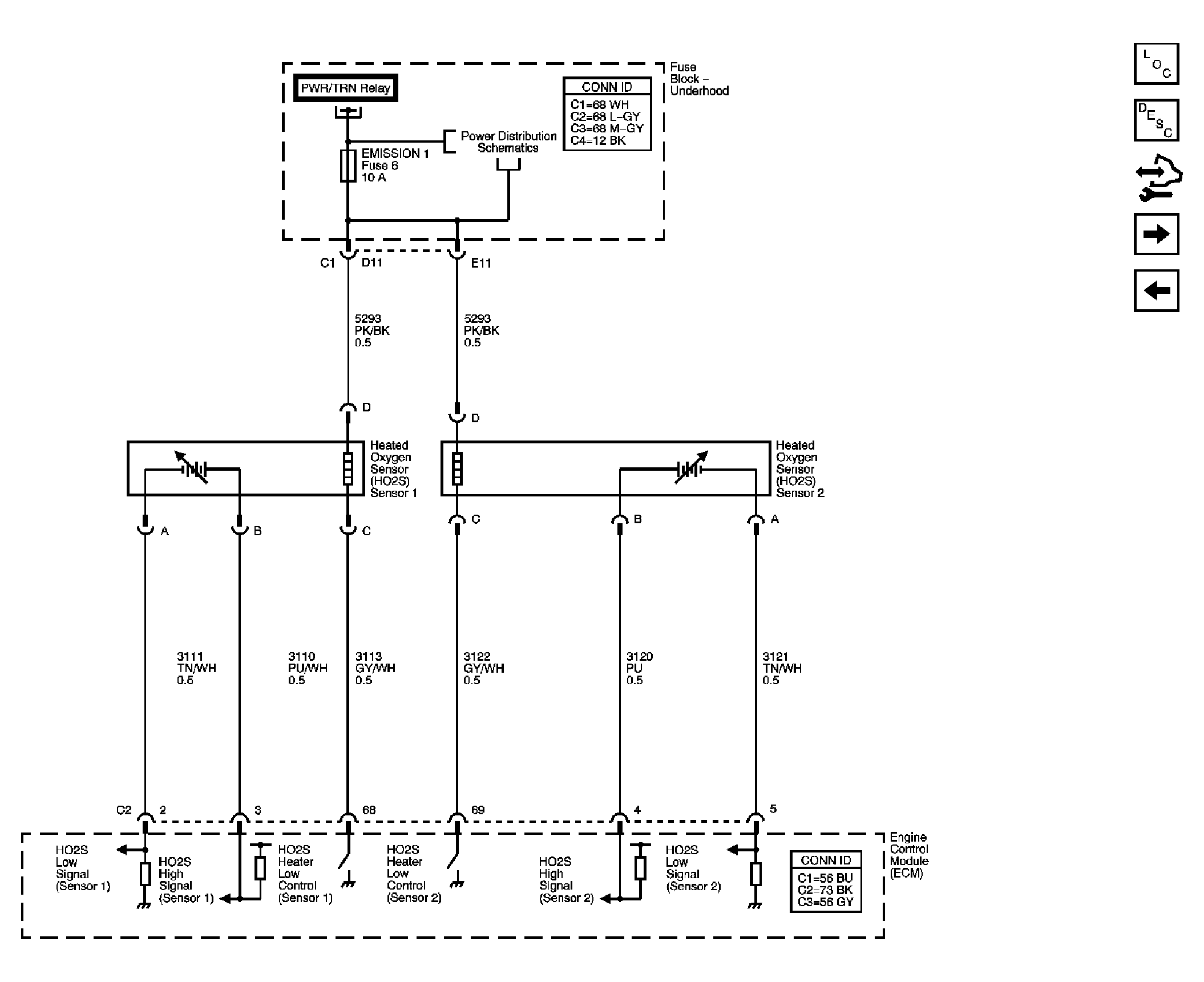

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

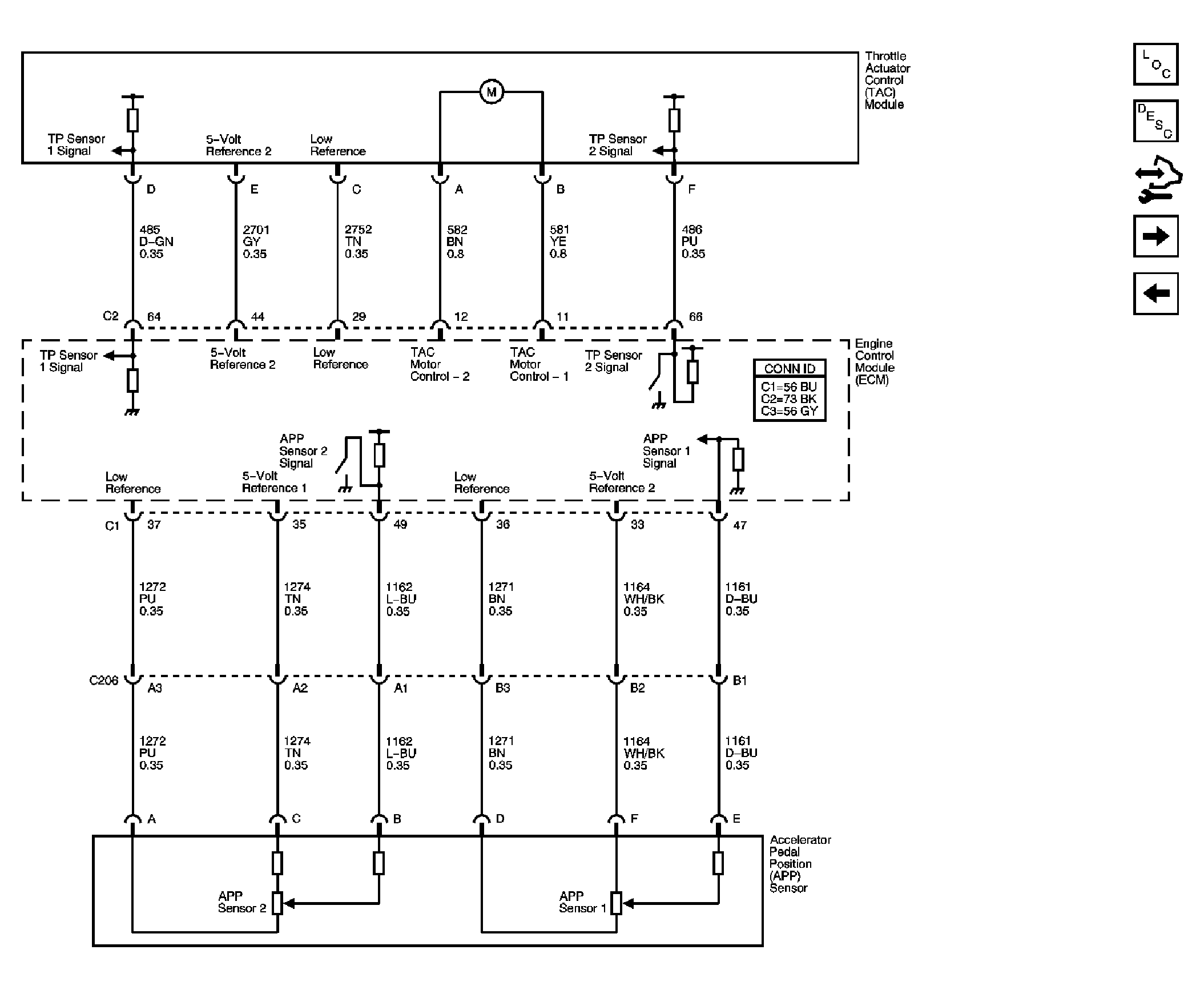

Fig 5: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

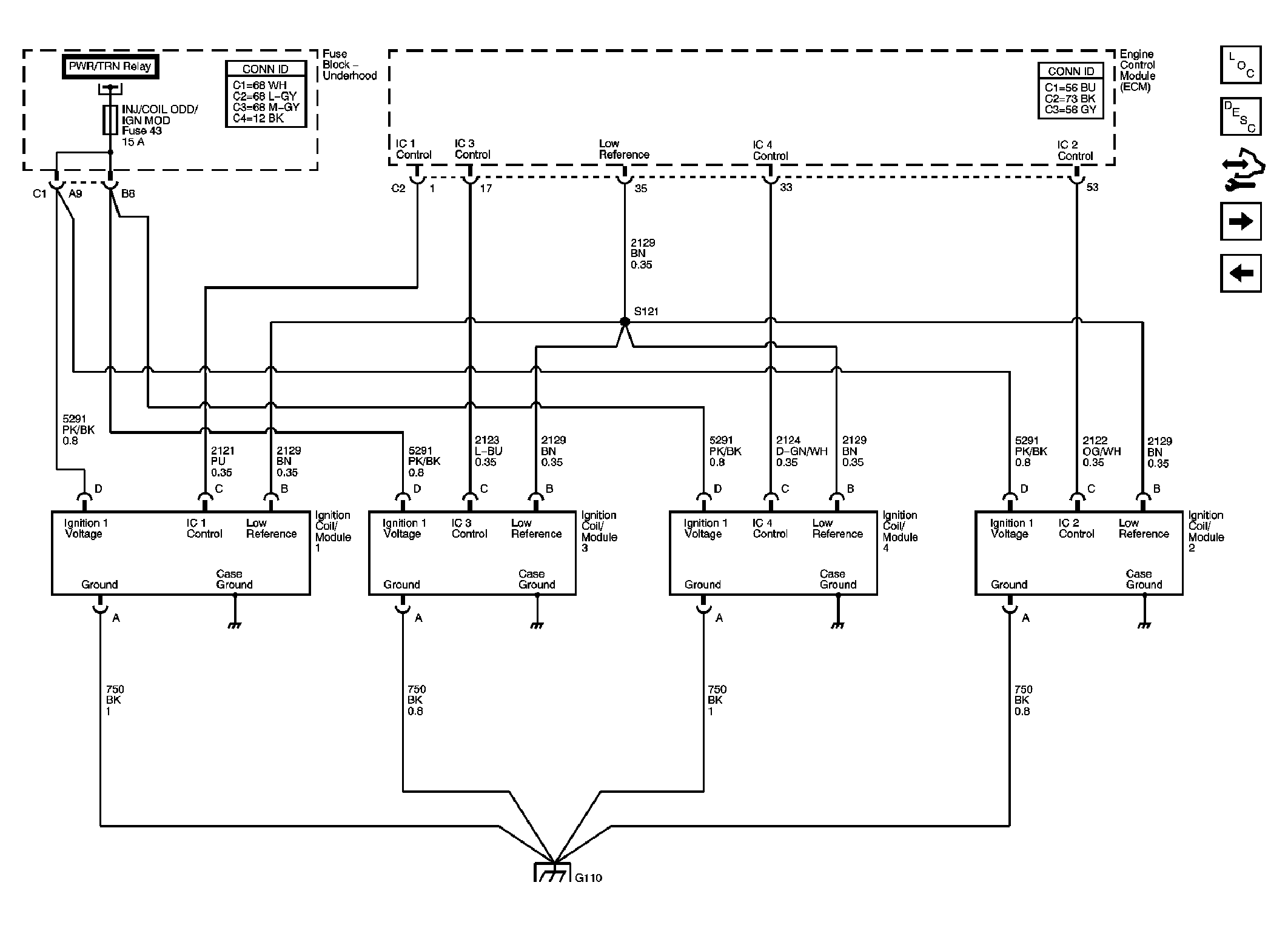

Fig 6: Ignition Coils/Modules Schematic

Courtesy of GENERAL MOTORS CORP.

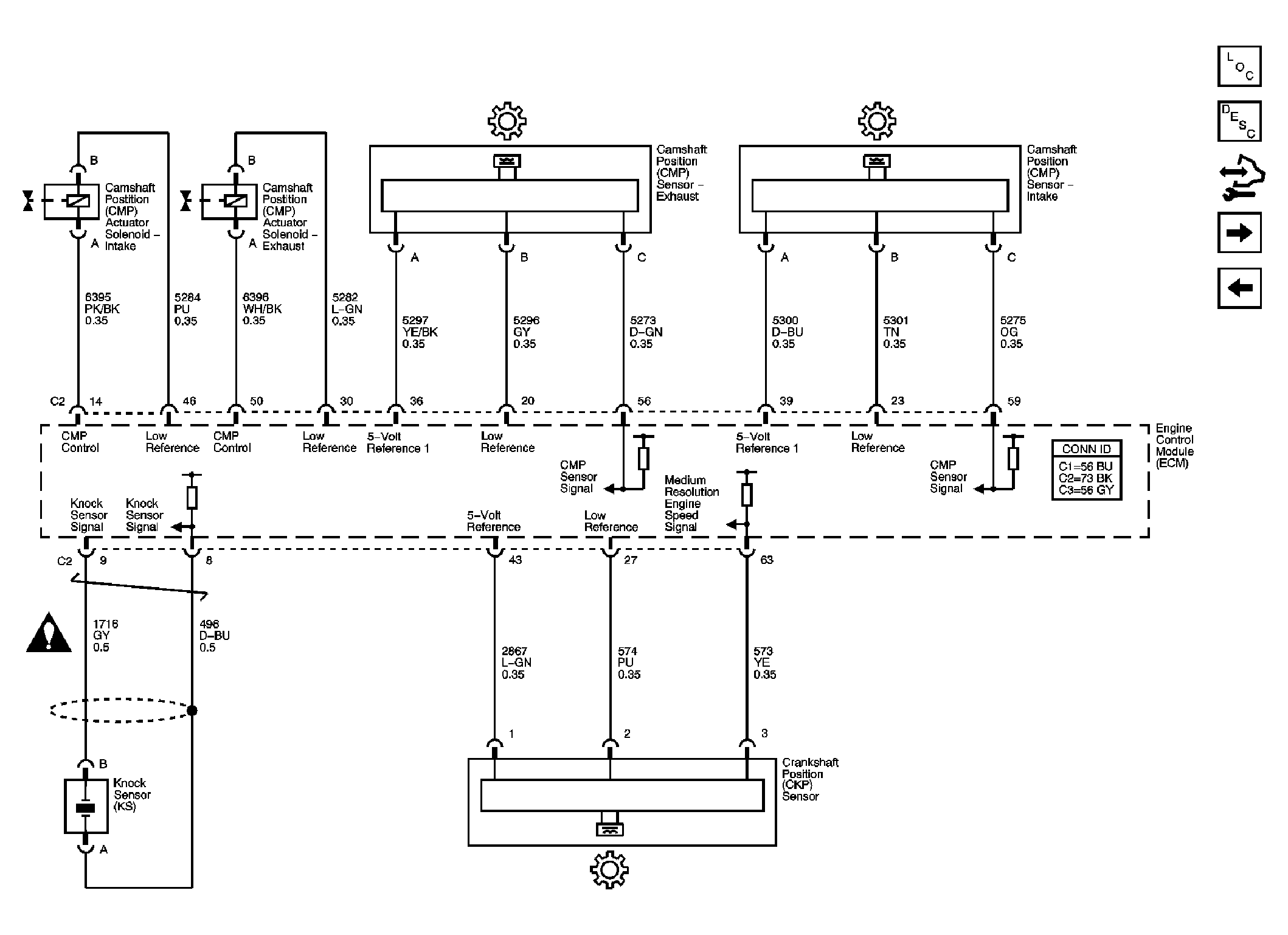

Fig 7: CMP, CKP & KS Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

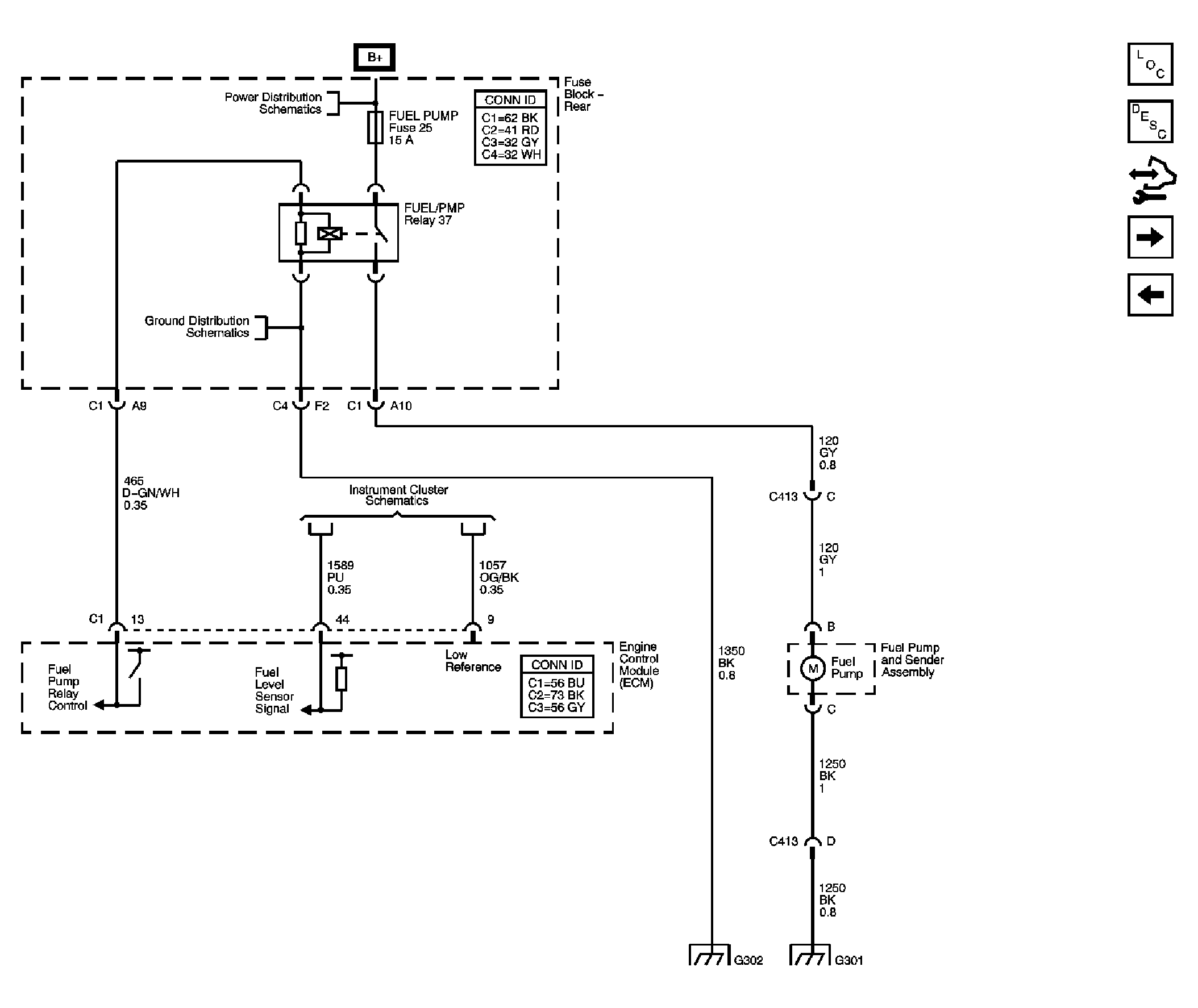

Fig 8: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

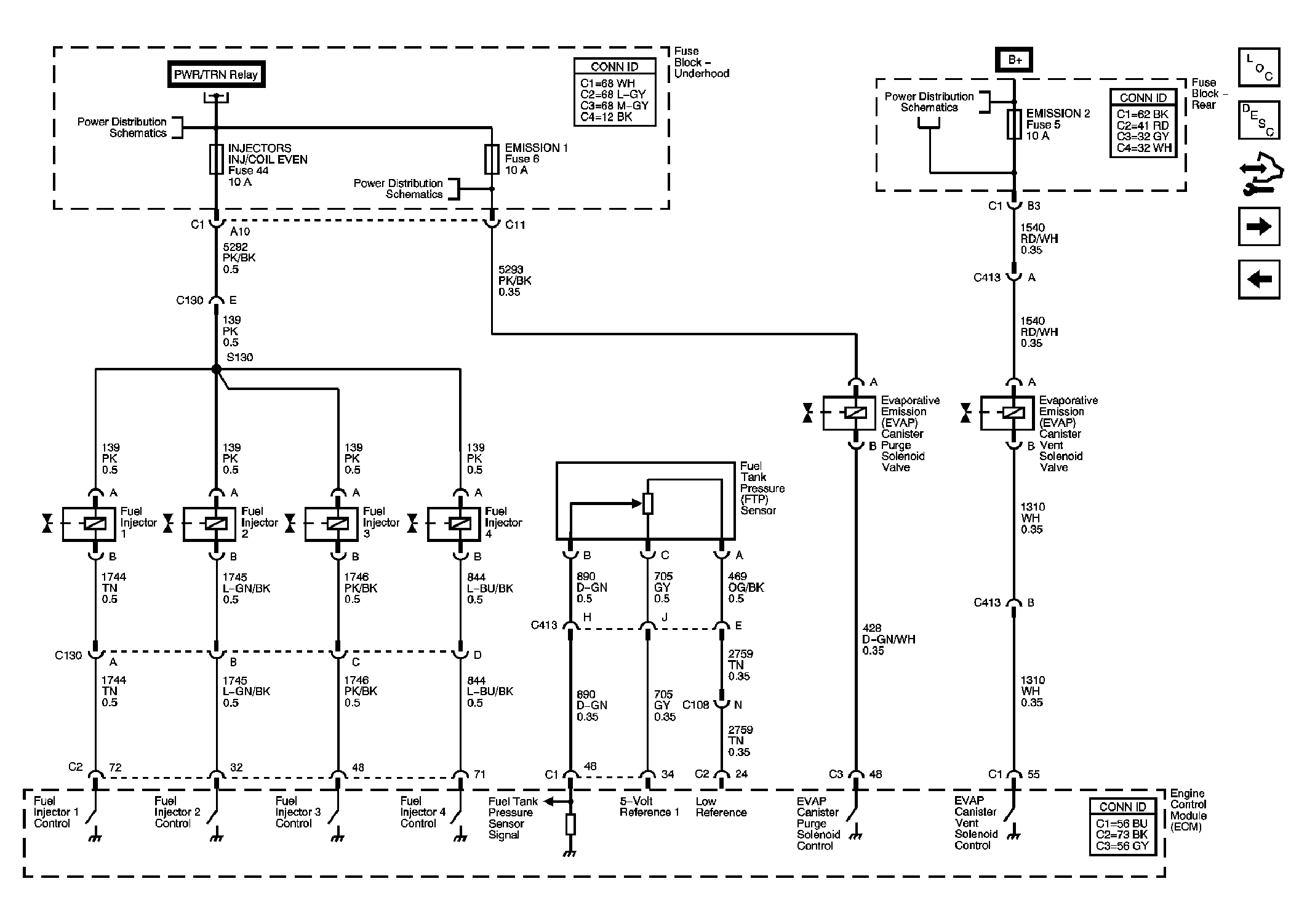

Fig 9: EVAP Controls, Fuel Injectors & FTP Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

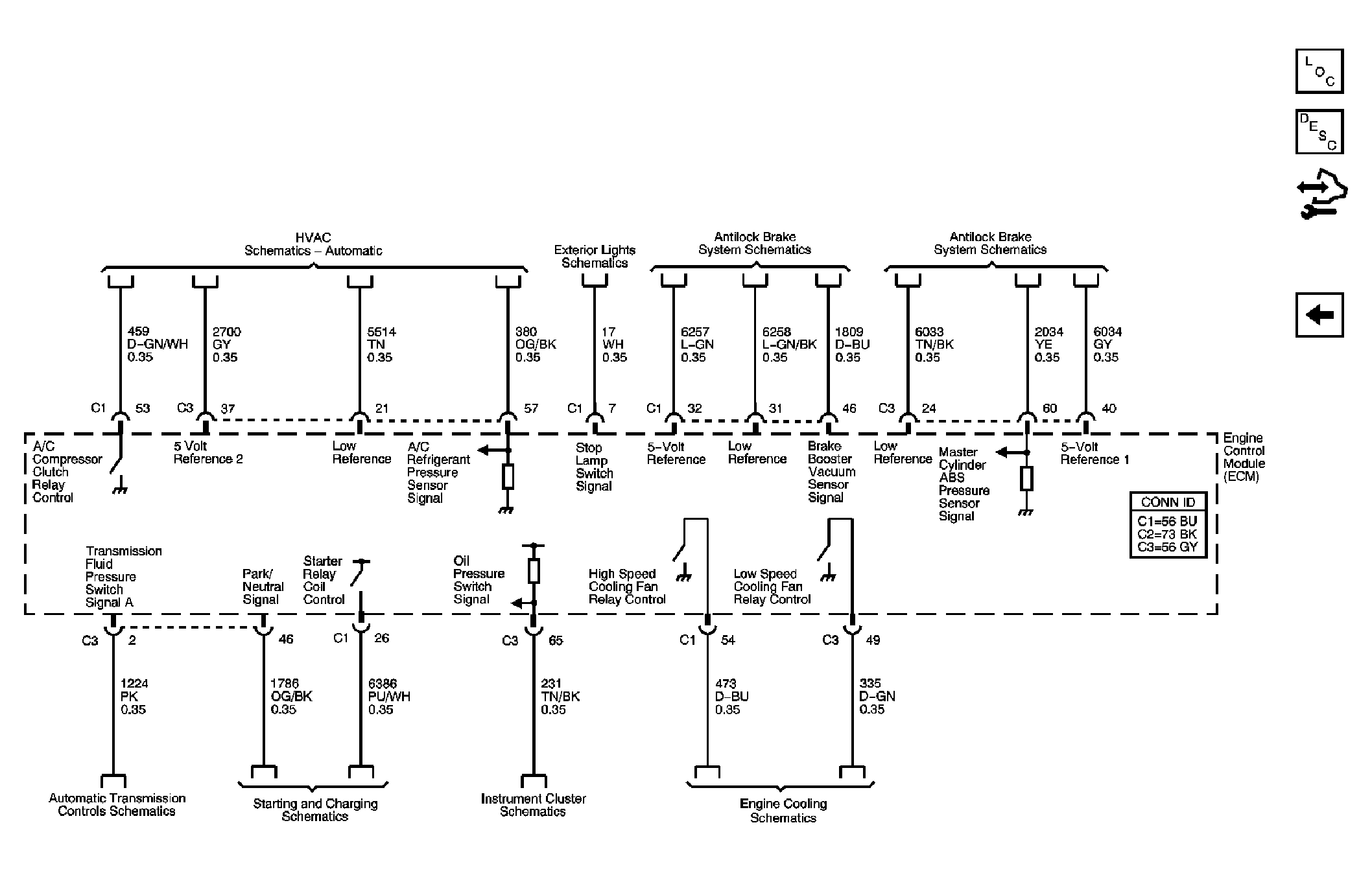

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
