Gaskets

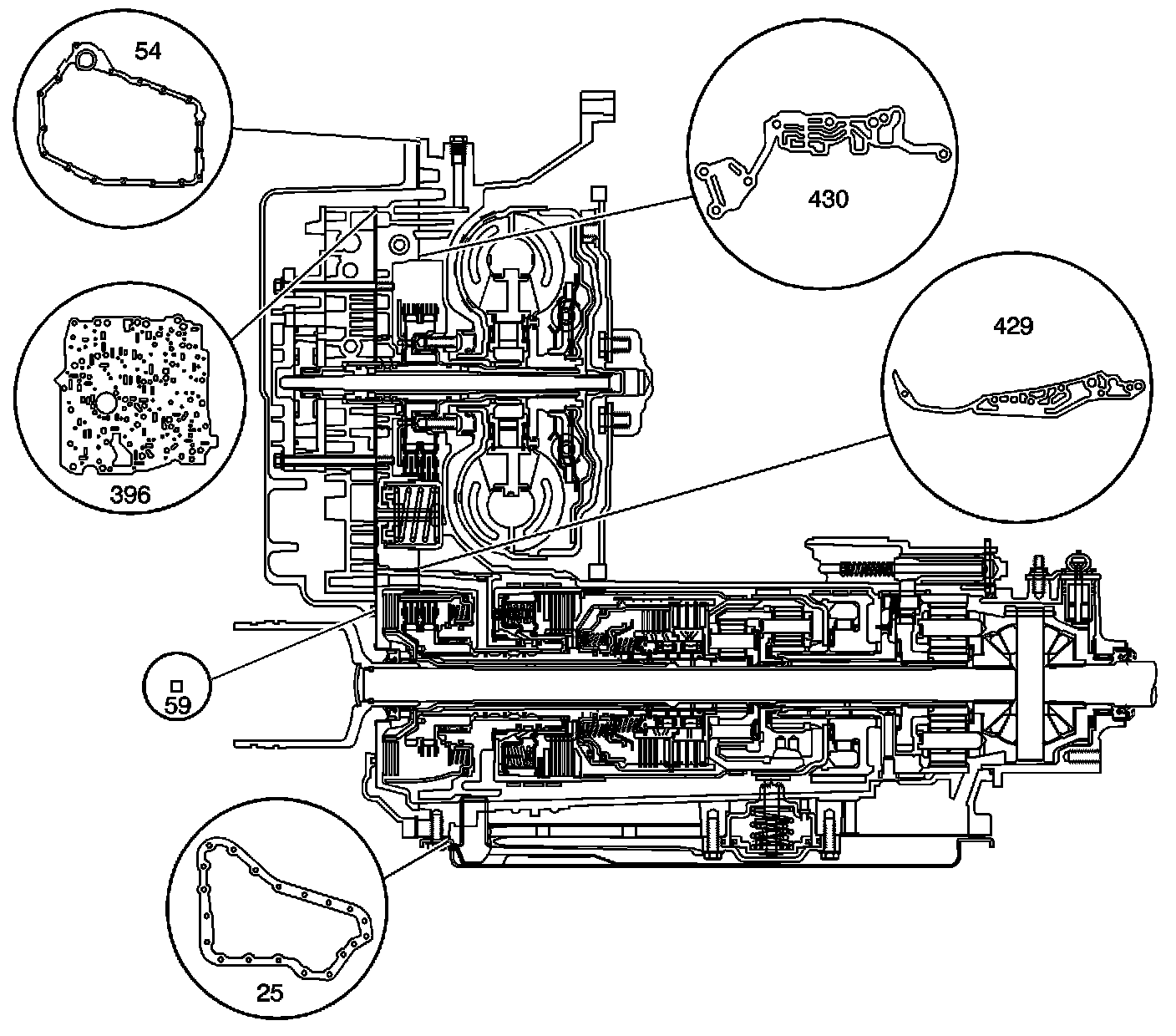

Component Location

Gaskets:

25 - Oil Pan Gasket
54 - Case Side Cover Gasket
59 - Case Side Cover Inner Gasket
396 - Control Valve Body Spacer Plate and Gasket Assembly
429 - Case Cover Lower Gasket
430 - Case Cover Upper Gasket
