Inflatable Restraint Passenger Presence System (PPS) Module

Inflatable Restraint Front Passenger Presence System (PPS) Module C1:

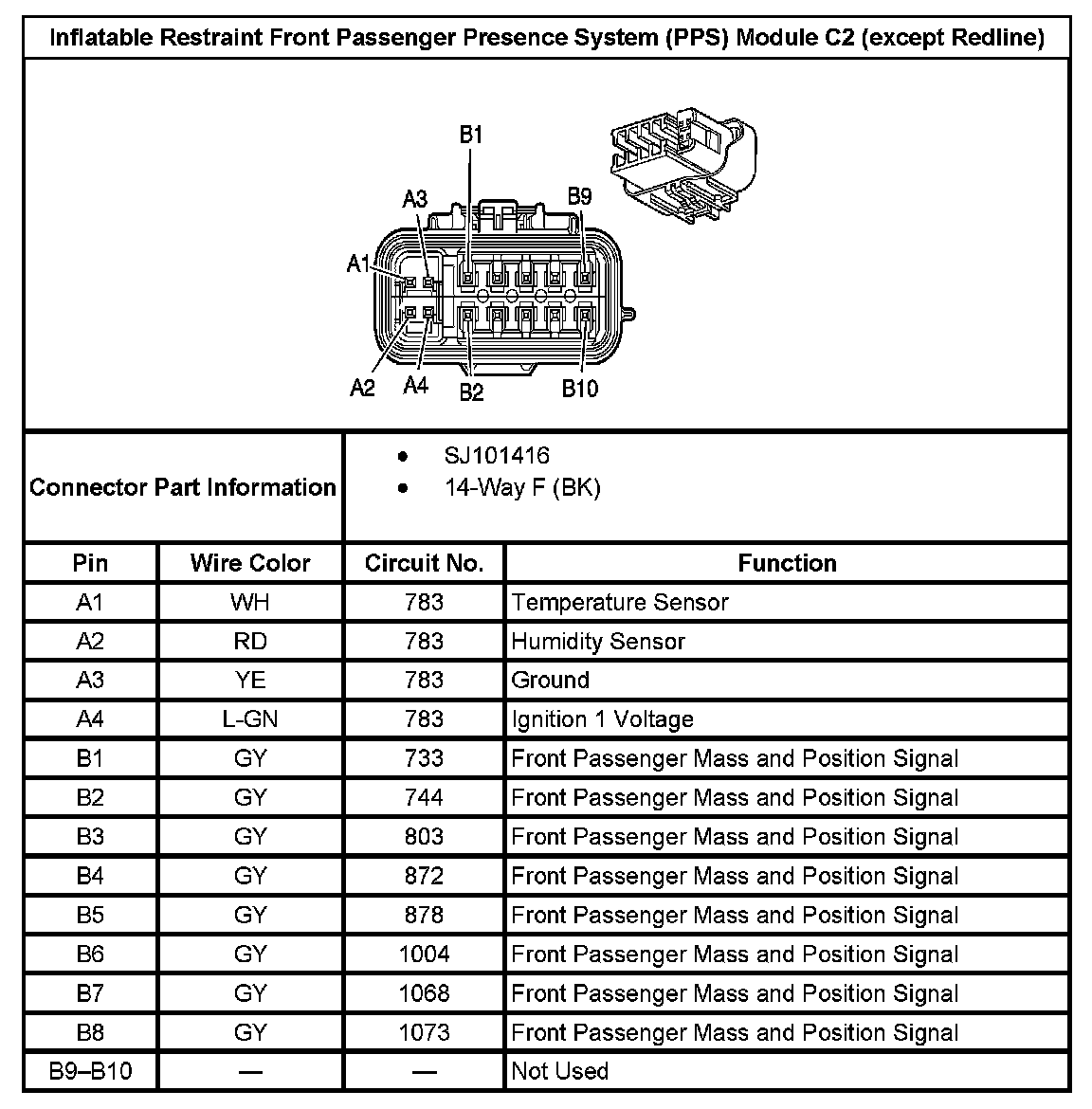

Inflatable Restraint Front Passenger Presence System (PPS) Module C2 (except Redline):
